1
SJ-P58M/58M
SJ-P63M/63M
SJ-P68M/68M
SERVICE MANUAL
S5310SE68CPUE
SHARP CORPORATION
TABLE OF CONTENTS
page
ENERGY LABEL................................................................................................................................................2
INSTALLATION .................................................................................................................................................2
CAUTIONS AND INFORMATIONS ...................................................................................................................3
SPECIFICATIONS .............................................................................................................................................4
DESIGNATION OF VARIOUS PARTS ..............................................................................................................5
THE FICHE ........................................................................................................................................................6
LIST OF ELECTRICAL PARTS .........................................................................................................................7
DIMENSIONS ....................................................................................................................................................8
WIRING DIAGRAM..........................................................................................................................................10
FUNCTIONS ....................................................................................................................................................15
ASSEMBLING PROCEDURES OF MAIN PARTS AND CAUTIONS ..............................................................19
COOLING UNIT ...............................................................................................................................................27
REPLACEMENT PARTS LIST ........................................................................................................................29
Refrigerant; HFC-134a
Refer to "HFC-134a COOLING UNIT" Service Manual for handling this refrigerant.
DESTINATION ......................... E
In the interests of user-safety (Required by safety regulations in some
countries) the set should be restored to its original condition and only
parts identical to those specified should be used.
REFRIGERATOR-FREEZER
MODELS
SJ-P58M-GY/SL/WH
SJ-58M-GY/SL/WH
SJ-P63M-GY/SL/WH
SJ-63M-GY/SL/WH
SJ-P68M-GY/SL/WH
SJ-68M-GY/SL/WH
Plasmacluster
SJ-P58M
SJ-P63M
SJ-P68M
SJ-58M
SJ-63M
SJ-68M
This equipment complies with the
requirements of Directives
96/57/EC, 89/336/EEC and 73/23/EEC
as amended by 93/68/EEC.
2
SJ-P58M/58M
SJ-P63M/63M
SJ-P68M/68M
INSTALLATION
Free standing type
To ensure adequate ventilation for this refrigerator, install with 6 cm space at the rear and both sides, with a
minimum space of 9 cm above the refrigerator.
This refrigerator shall be used under the ordinary place condition between +5˚C and +38˚C of ambient
temperature, and also not be left under -10˚C for long days.
To be used this refrigerator within the range of the rated voltage+6%
Usage of "the ENERGY LABEL"
When displaying this refrigerator in the shop-window, attach the
"ENERGY LABEL" to it in the following procedure.
"ENERGY LABEL (DATA)"
(This label is in Operation manual)
"ENERGY LABEL (BASE)"
of each language Refrigerator
Data part
E
B
A
CDE
G
FG
Fix the data part of
"ENERGY LABEL (DATA)"
on the data part of
"ENERGY LABEL (BASE)"
6cm 6cm
9cm
ENERGY LABEL
3
SJ-P58M/58M
SJ-P63M/63M
SJ-P68M/68M
Some household cleaning chemicals may affect the internal
food liner and plastic parts resulting in splitting or cracks
occurring.
When cleaning all plastic parts inside this refrigerator, only
use diluted dishwashing liquid(soapy water). Make sure that
all plastic parts are thoroughly rinsed with water after cleaning.
CAUTIONS AND INFORMATIONS
1. Some foods freezed in the refrigerator compartment.
2. Some plastic parts were cracked or splitted.
Cracking or crunching sound;
Sound produced by expansion and contraction of inner walls and internal parts during cooling.
Squeaking sound;
Sound produced by expansion and contraction of internal parts.
Sound of flowing fluid (gurgling sound, fizzing sound);
Sound of refrigerant flowing in pipes (sound may become louder from time to time).
3. IT IS NORMAL for the refrigerator to produce the following sounds.
Do not place food directly in front of
cold air outlet.
This may lead to the food freezing.
IN
OUT
cold air flow
In case of following troubles, the cause is not related with the failure of refrigerator.
Please mention the correct way to the customer for the use of refrigerator when the repairing.
4
SJ-P58M/58M
SJ-P63M/63M
SJ-P68M/68M SPECIFICATIONS
Receptacle
Items SJ-P58M SJ-58M SJ-P63M SJ-63M SJ-P68M SJ-68M
Type 2-Door 2-Door 2-Door
Outer dimensions Height 1620mm(63.8") 1720mm(67.7") 1820mm(71.6")
(Including spacer) Width 760mm(29.9") 760mm(29.9") 760mm(29.9")
Depth 740mm(29.1") 740mm(29.1") 740mm(29.1")
Rated storage volume 492 liter (17.4 cu.ft) 535 liter (18.9 cu.ft) 577 liter (20.4 cu.ft)
(Rated volume) F: 151 liter (5.3 cu.ft) F: 151 liter (5.3 cu.ft) F: 151 liter (5.3 cu.ft)
R: 341 liter(12.1 cu.ft) R: 384 liter(13.6 cu.ft) R: 426 liter
(15.1 cu.ft)
Gross volume 508 liter (18.0 cu.ft) 551 liter (19.5 cu.ft) 594 liter (21.0 cu.ft)
F: 155 liter (5.5 cu.ft) F: 155 liter (5.5 cu.ft) F: 155 liter (5.5 cu.ft)
R: 353 liter(12.5 cu.ft) R: 396 liter(14.0 cu.ft) R: 439 liter
(15.5 cu.ft)
Defrosting System Heater system
Start Automatic
Finish Automatic
Temperature control Automatic (Adjustable)
No-frost freezer Yes
Interior lamp 2
Caster 4
Evaporating pan 1
Refrigerator R glass shelf ass'y 2 3
Compartment V glass shelf ass'y 1
Vegetable case 1
V parting plate 1
R door pocket 1 2
Egg tray 2
Bottle pocket 2
Utility case pocket 1
Fresh case 1
Tube stand 2
Freezer Freezer shelf ass'y 1
Compartment Ice cube maker Twin ice cube maker
Ice storage box 1
F door pocket 2
Deodorizing unit 2 (Honeycomb type)
Plasmacluster Yes No Yes No Yes No
RATING
Items SJ-P58M SJ-58M SJ-P63M SJ-63M SJ-P68M SJ-68M
Rated voltage (V~) 220-240
Rated frequency (Hz) 50
Climate class ST
Rated current (A) 1.4-1.5
Rated input of heating systems (W) 144-170
Refrigerant (Charging quantity) [Non-flammable]
HFC-134a(120g) HFC-134a(125g) HFC-134a(130g)
Insulation Blowing Gas
[Flammable]
Cyclo pentane (HC)
Net Weight (kg) 83 85 90
PLUG TYPE
Plug cord 2 pin+Earth
Plug type CS
Destination mark E
COLOR
Items -GY -SL -WH
Outside color Gray Silver White
Inside color White
5
SJ-P58M/58M
SJ-P63M/63M
SJ-P68M/68M
NOTE : 2 star section for storing
frozen food only. (not freezing)
1. Freezer light [Lamp]
2. Freezer fan
3. Freezer shelf [F shelf ass'y]
4. Ice cube maker
5. Ice cube box [Ice storage box]
6. Deodorizing unit
7. Freezer temp. control knob
8. Fresh case [Chilled case]
9. Refrigerator fan
10. Refrigerator temp. control knob
11. Refrigerator shelf [R glass shelf ass'y]
(58/63 type; 2 shelves, 68 type; 3 shelves)
12. Refrigerator light [Lamp]
13. Shelf [V glass shelf ass'y]
14.Vegetable crispe r[Vegetable case]
15. Separator plate [V parting plate]
16. Evaporating pan & cover
17. Casters
18. Adjustable feet [Adjustable leg ass'y]
19. Fan & light switch for freezer
20. Fan & light switch for refrigerator
21. Freezer pocket [F door pocket]
22.Water supply cup [Water cup]
23. Magnetic door seal [Door packing]
24. Utility case [Utility case pocket]
25. Egg holder [Egg tray]
26. Free pocket[R door pocket]
(58/63 type; 1 pocket, 68 type; 2 pockets)
27. Bottle pocket
28. Bottle guard [Tube stand]
29. Plasmacluster panel
(Only for SJ-P58M,P63M,P68M)
119
20
21
22
23
24
25
26
27
28
3
2
4
5
7
6
6
8
9
10
11
12
13
14
17
18
15
16
23
29
Plasmacluster

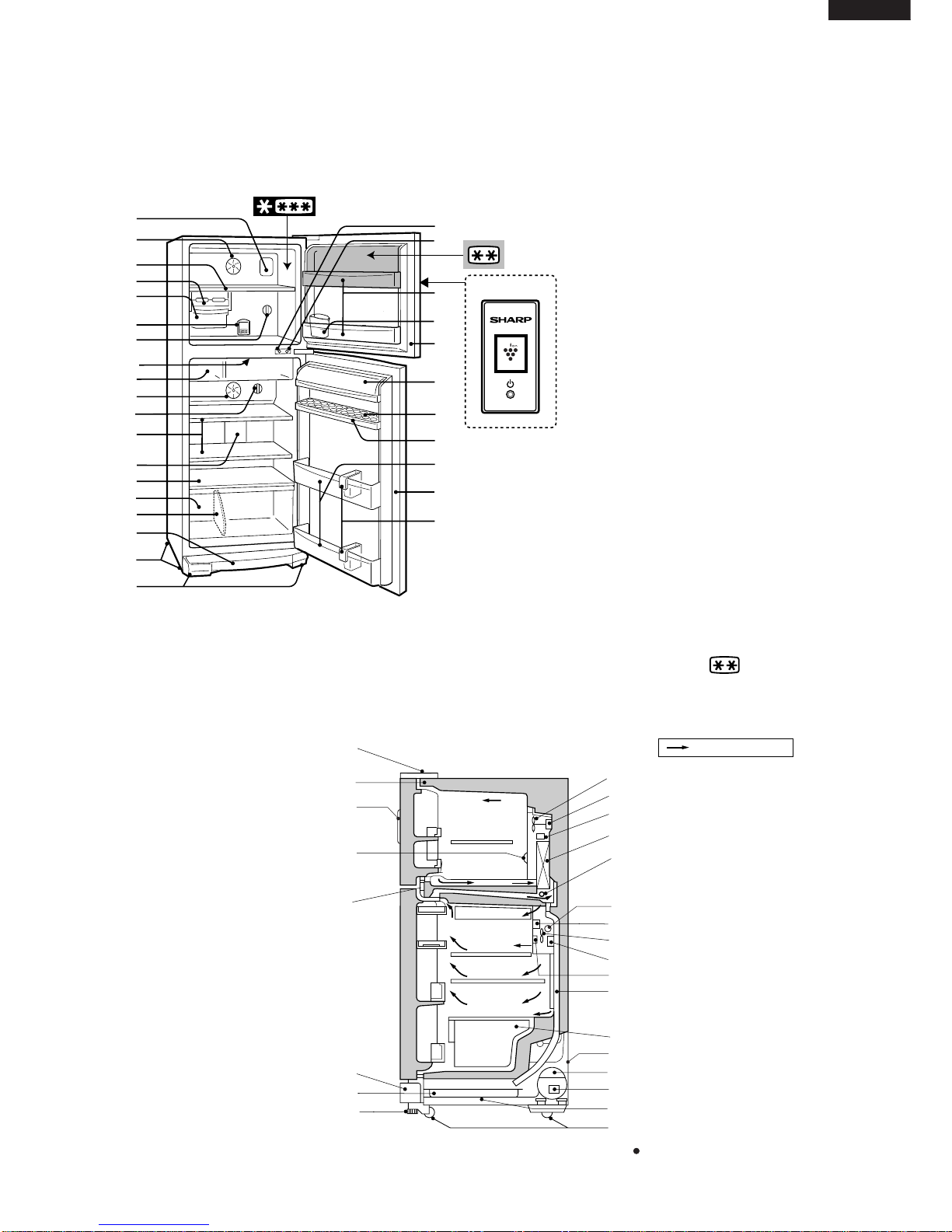

DESIGNATION OF VARIOUS PARTS
Figure D-1. External Description
Upper hinge cover
Hot pipe
Freezer temp. control knob
Hot pipe
Ventilating grille
Evaporating pan
Adjustable leg ass'y
Fan motor
Freezer fan
Defrost thermostat
Evaporator
Defrost heater
Damper thermostat
Refrigerator temp. control knob
Drain pipe
Vegetable case
Compressor
Starting relay, Overload relay(Protector)
Caster
Sub condenser
Freezer
compartment
Refrigerator
compartment
Mark: Cold air flow
Timer,R-fan thermo ass'y
Refrigerator fan
Ionizer (only for SJ-P58M,P63M,P68M)
Main P.W. B (only for SJ-P58M,P63M,P68M)
Panel P. W. B
(only for SJ-P58M,P63M,P68M)
Figure D-2. Constructions This figure shows SJ-P63M
The names in parenthesis" [ ]" are the denominations
used in the REPLACEMENT PARTS LIST.
6
SJ-P58M/58M
SJ-P63M/63M
SJ-P68M/68M
1
NO.
2
3
4
5
6
8
9
11
12
13
14
Trade mark Items Description Remarks
Model name
Type
Energy efficiency class
Eco-award mark
Energy consumption
(220V 50Hz at 25 C)
Star rating of frozen food
compartment
Temperature rise time
Freezing capacity
Climate class
Noise
10 No frost
7
Net storage volume of frozen
food storage compartment
SJ-P58M/58M
Category; 7
Refrigerator/Freezer
B
ST ST
41 dB(A)
re 1 pw 41 dB(A)
re 1 pw
640
kWh/year
938
kWh/year 985
kWh/year
341 L
No frost
10 h
8 kg /24h
Net storage volume of fresh
food storage compartment
SJ-P63M/63M
Category; 7
Refrigerator/Freezer
B
665
kWh/year
384 L
10 h
8 kg /24h
880/92
EN153
86/594/EEC
No frost
THE FICHE (according to ANNEX : 94/2/EC)
ST
41 dB(A)
re 1 pw
1032
kWh/year
SJ-P68M/68M
Category; 7
Refrigerator/Freezer
B
690
kWh/year
426 L
10 h
8 kg /24h
No frost
15 Maximum allowable electricity
consumption (Emax)
(96/57/EC)
139 L
4-STAR
139 L
4-STAR
139 L
4-STAR
2-STAR 2-STAR 2-STAR
12 L 12 L
12 L
at 25 C
at 25 C
(2.57) (2.70) (2.83) kwh / day
7
SJ-P58M/58M
SJ-P63M/63M
SJ-P68M/68M

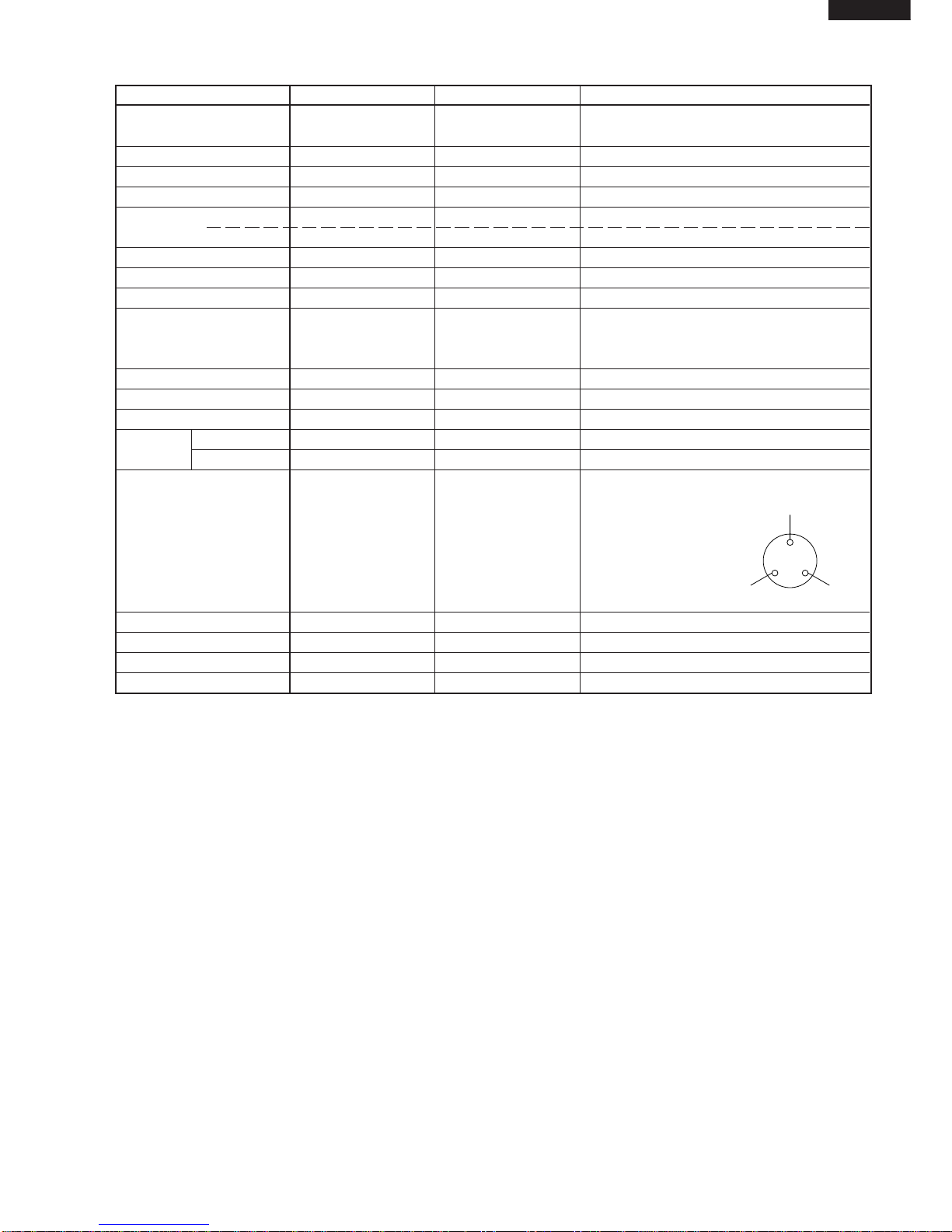

LIST OF ELECTRICAL PARTS
ITEMS TYPE NAME RATING SPECIFICATIONS
Thermostat MM1-8123 125V 6A (At normal notch)
250V 3A ON/OFF : -19/-24˚C
Defrost thermostat S101 250V 8A Open/Close : 10/1˚C
Thermo. fuse SF70E 250V 10A Working temp. : 70˚C
F-fan motor 3R00044B 220-240V 50/60Hz Working with ø100 fan
R-fan motor 3R00122A 220-240V 50/60Hz Working with ø80 fan
(R-fan fuse) 123 250V 2A Cut OFF 130˚C
Defrost heater MM6-4198 220-240V 353Ω150W at 230V
Door switch DSD-5 250V 0.25A 4 terminals push-button type
Damper thermostat MM1-6176 — Open/Close : 2/-3˚C
Defrost timer ND1004M2 220-240V Integration type
50/60Hz Cycle time : 10.8/9.0 hours(50/60Hz)
Delay time : 4.3/3.6 min.(50/60Hz)
Lamp socket (F/R) — 250V 1A E-12(Hard plastic body type)
F-lamp — 240V 10W E-12
R-lamp — 240V 15W E-12
R-fan thermo.
R-fan thermo.
S101 250V 8A Open/ Close : 7/15˚C
ass'y
R-fan thermo.heater
RSS2 350V, 2W, 10kΩ1.1W at 230V
Compressor FL2088 220-240V/50Hz Cooling capacity : 245W(50Hz)
Main coil : 9.11Ω
Aux. coil : 16.6Ω
(at 25˚C)
Starting relay PGT0SAT — 33 Ω( at 25˚C )
Overload relay(Protector) 2.0C36A3 — Open/ Close : 130/60˚C
Running capacitor — 4µF,450V —
Ionizer-K
(Plasmacluster unit)
FTRN-A014CBKZ DC 12V 3.5kV p-p
Common
Main coil
Aux. coil
8
SJ-P58M/58M
SJ-P63M/63M
SJ-P68M/68M DIMENSIONS
OUTER DIMENSIONS AND CLEARANCE
Fig. E-1
760 760
520
1340
1720
1079
1620
979 1820
1179
740
90
more than
60
more than
60
more than
60
more than
553
9.512
72.5
60.5
A
B
1420
1480
Include the panel/badge.Not include the handle.
A
SJ-P58M,58M SJ-P63M,63M SJ-P68M,68M
B
1
1
135
( Unit : mm)
9
SJ-P58M/58M
SJ-P63M/63M
SJ-P68M/68M
INNER DIMENSIONS
Fig. E-2 (SJ-P58M,58M,P63M,63M)
Fig. E-3 (SJ-P68M,68M)
180
566
185
171
180
466
135
121
The dimensions between shelves can be changed
by setting the shelves on the other rails.
a
SJ-P58M,58M SJ-P63M,63M
b
c
d
294
90
90
587
603
450
630
355177
587
615
615
607
607
174
264
125
b
a
c
d
242
110 285
310
310
335
227
133
133
110
615
615
615
600
( Unit : mm)
The dimensions between shelves can be changed
by setting the shelves on the other rails.
294
587
603
450
630
355177
587
615
615
607
607
174
264
125
180135135
171
666
242
110
110
285
310
310
310
335
227
133
133
110
90
90
615
615
615
600
615 615
( Unit : mm)
10
SJ-P58M/58M
SJ-P63M/63M
SJ-P68M/68M WIRING DIAGRAM
Be sure to replace the electrical parts with specified ones for maintaining the safety and performance of the set.
Figure W-1. Wiring Diagram (SJ-P58M,P63M,P68M)
CONNECTED IN TERMINAL BOX
CONNECTOR
G
BR
OR
Y
R
P
B
BK
SB
G-Y
W
: GRAY
: BROWN (Live)
: ORANGE
: YELLOW
: RED
: PINK
: BLUE (Neutral)
: BLACK
: SKY-BLUE
: GREEN-YELLOW (Earth)
: WHITE
(G–Y) PC
MAIN
PWB
DOOR
PWB
(Br) (G)
(B)
3PIN
PLUG/
CORD
C
M
A
FM FM
L
L
F-LAMP
F
DEF. TIMER
THERMOSTAT
DEFROST HEATER
DEFROST THERMO
COMPRESSOR
PROTECTOR
DOOR SWITCH
THERMO.
FUSE
R-
LAMP
R
TM
R-FM
HEATER
STARTING RELAY
R-FAN
THERMO
PC
: PLASMACLUSTER UNIT (IONIZER-K)
RUNNING CAPACITOR
Este manual sirve para los siguientes modelos
23
Tabla de contenidos
Otros manuales de Refrigerador de Sharp
Sharp
Sharp SJ-39J-WH Manual de usuario
Sharp
Sharp SJ-BB02DTXW1-EU Manual de usuario
Sharp
Sharp SJ-20U-G2 Manual de usuario
Sharp
Sharp SJ-FP910 Manual de usuario
Sharp
Sharp SJ-T2435T4I-EU Manual de usuario
Sharp
Sharp SJ-BR15G Manual de usuario
Sharp
Sharp SJ-48H-S Manual de usuario
Sharp
Sharp SJ-BA20IHXI2-EU Manual de usuario
Sharp
Sharp SJ-B1297M1I-EN Manual de usuario
Sharp
Sharp SJ-BA09DTXWF-EN Manual de usuario
Sharp
Sharp SJ-NFA35IHDBD-EU Manual de usuario
Sharp
Sharp SJ-F60PS Manual de usuario
Sharp
Sharp SJ-41M Manual de usuario
Sharp
Sharp SJ-F624ST Manual de usuario
Sharp
Sharp SJ-25P Manual de usuario
Sharp
Sharp SJ-LC41CHDI2-EU Manual de usuario
Sharp
Sharp SJ-2047-GY Manual de usuario
Sharp
Sharp SJ-D48H-BL Manual de usuario
Sharp
Sharp SJ-D23P Manual de usuario
Sharp
Sharp SJ-LC11CTXIF-EN Manual de usuario
