SERVICE MANUAL

This document has been published to be used for

after sales service only.

The contents are subject to change without notice.

Refrigerator-freezer

MODEL

SJ-GF60X-T

No.S0310SJF60XTFT

DESTINATION F

CONTENTS

Refer to "REFRIGERATING-CYCLE REPAIR MANUAL" for handling this refrigerant.

Refrigerant; R600a

[1] PRODUCT SPECIFICATIONS

1. SPECIFICATIONS ………………………… 2

2. ACCESSORIES …………………………… 2

3. AUTOMATIC ICE MAKING ……………… 3

[2] DESIGNATION OF VARIOUS PARTS

1. PART NAMES ……………………………… 4

2. INTERNAL STRUCTURE ………………… 5

3. FLOW OF COOL AIR ……………………… 6

4. TEMPERATURE DISTRIBUTION………… 7

[3] DIMENSIONS

OUTER DIMENSIONS AND CLEARANCE

…8

2. INNER DIMENSIONS ……………………… 9

[4] ELECTRICAL CIRCUIT DIAGRAMS…………10

1. WIRING DIAGRAM …………………………10

2. ELECTRIC ACCESSORIES LAYOUT …… 11

PRECAUTIONS FOR USING LEAD-FREE SOLDER

……12

[5] ELECTRICAL SYSTEM SPECIFICATIONS…13

1. FUNCTIONAL PART SPECIFICATIONS…13

2. MODE FOR DISPLAY………………………14

[6]

REFRIGERATION CYCLE SYSTEM SPECIFICATIONS

1. R600A PRECAUTIONS ……………………15

TABLE OF R600A CHARACTERISTICS

…15

3. REFRIGERATION CYCLE DIAGRAM……15

REPAIR OF THE REFRIGERATION CYCLE

…17

[7] TROUBLESHOOTING

1. SELF-DIAGNOSIS MODE …………………18

FORCED STOPPING OF DOOR ALARM BUZZER

…22

THERMISTOR CIRCUIT CHECK METHOD

…22

INSPECTION FLOWCHART AND REPAIR ITEMS

…23

PLASMACLUSTER OK/NG JUDGMENT

…25

[8] DISASSEMBLY/ASSEMBLY

GENERAL DISASSEMBLY SEQUENCE

…26

REFRIGERATOR COMPARTMENT DISASSEMBLY

…27

3. FREEZER COMPARTMENT/ICE

COMPARTMENT DISASSEMBLY ………29

4. HOW TO REMOVE OP. PWB ASS'Y ……31

5. HOW TO REMOVE TERMINAL BOX ……31

6. HOW TO INSTALL R-SUB PACKING ……32

HOW TO INSTALL DUCT RT ASS'Y COVER

…33

ADJUSTMENT OF R-DOOR (DOUBLE DOOR)

…34

9. MAIN PARTS ASSEMBLY…………………35

Parts Guide

SJGF60XT

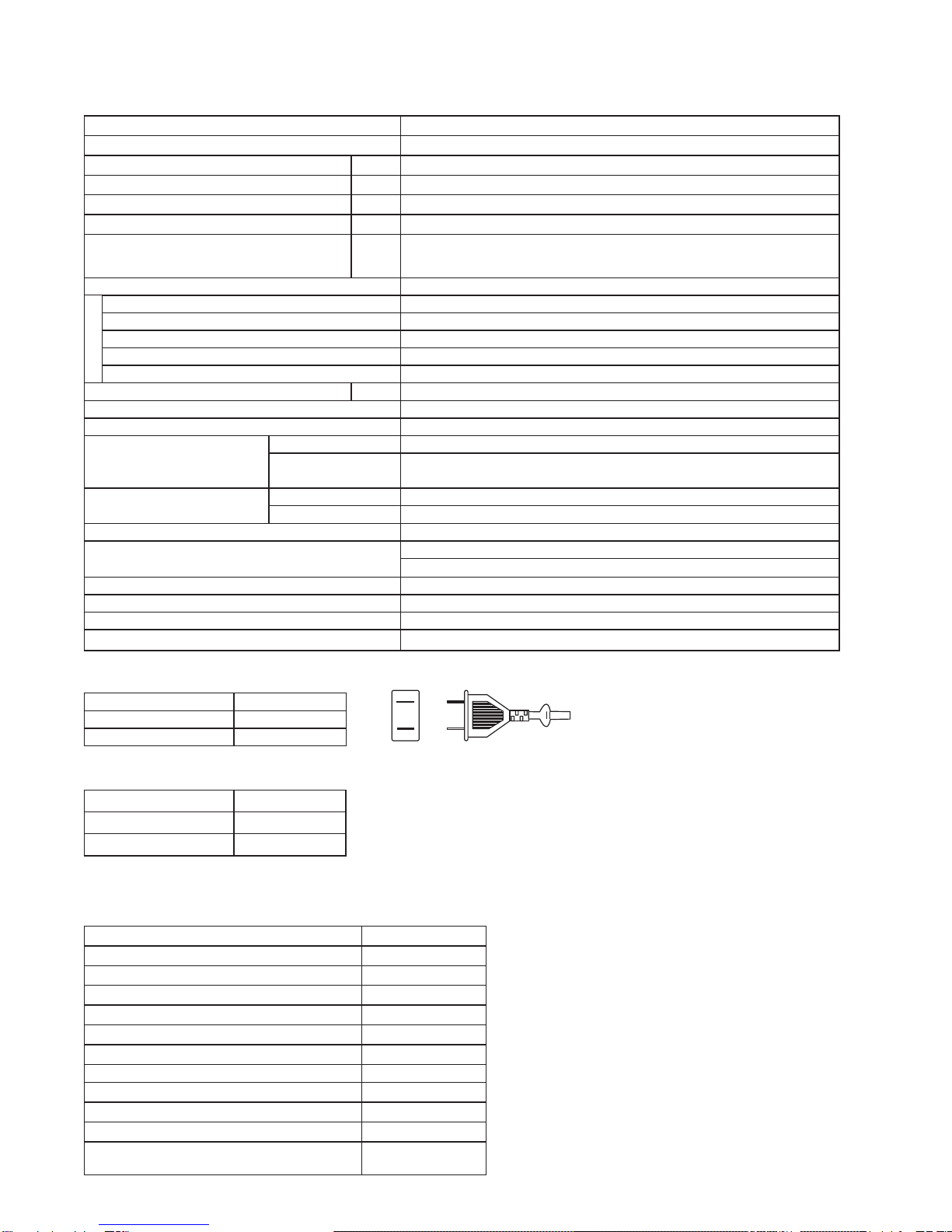

[1] PRODUCT SPECIFICATIONS

SPECIFICATIONS1.

Item SJ-GF60X-T

Rated voltage/Rated frequency 110V ～60Hz

Rated input (W) 127

Rated power input of heating systems (W) 189

Defrosting input (W) 155

Defrosting heater input (W) 155

O u t e r d i m e n s i o n s

Width×Depth×Height (mm) 750 x 728 x 1820

Rated total storage volume 601L (21.2 cu.ft.)

Refrigerator compartment 315L (11.13 cu.ft.)

Freezer compartment (upper) 37L (1.31 cu.ft.)

Freezer compartment (lower) 120L (4.24 cu.ft.)

Ice compartment 19L (0.67 cu.ft.)

Vegetable compartment 110L (3.89 cu.ft.)

Weight (kg) 106

Refrigerant (Charging quantity) [Flammable] R600a (72g)

Insulation blowing gas [Flammable] Cyclo pentane (HC)

Cabinet

Inner box material ABS plastic

Outer shell material PET steel

(Hot dipped zinc plated steel sheet with baked polyester resin coating)

Door Door shell material Glass

Door inner material ABS plastic

Temperature control Automatic(adjustable)

Defrosting system Heater system

(automatic start, automatic ﬁnish)

Refrigerator lamp LED (8 pcs)

Adjustable legs 2

Casters 4

Climate class ST

PLUG TYPE

Plug cord 2pin

Plug type A-1

Destination mark F

COLOR

Items -T

Outside color Brown

Inside color White

ACCESSORIES2.

Refrigerator Compartment

R shelf 2

Free set shelf (left) (front/back) 1 each

Free set shelf (right) (front/back) 1 each

Chilled case 1

Chilled case tray 1

Case 1

Door pocket (left) 2

Door pocket (right) 2

Egg case 1

Egg tray 1

Bottle pocket (left/right) 1each

Water tank (Tank cap, Lock lever, Slide cap,

Filter case, Water tank, Water ﬁlter) 1

SJGF60XT

Freezer compartment (Upper)

Freezer case (Upper) 1

Stainless tray 1

Freezer compartment (Lower)

Freezer case (top) 1

Freezer case (bottom) 1

Ice compartment

Ice storage box 1

Noise-proof sheet 1

Ice scoop 1

Vegetable compartment

Vegetable case 1

Fruit case 1

Pet case 1

Stainless tray 1

Other Accessories and Printed Materials

Foot grille 1

Operation manual 1

Warranty card 1

Control label 1

AUTOMATIC ICE MAKING3.

Water supply method: Storing water in tank/Direct water supply to ice cube maker•

Water tank volume: Approx. 1.2 L•

Ice making capacity (External air temperature: 30ºC, No door opening/closing, Temperature control: “• 中”, Ice-making mode: “ 通常 ”)

Ice cube size Standard Large

Daily Approx. 1.2 kg Approx. 1.5 kg

Once (8 pieces) Approx. 100 g Approx. 230 g

Ice-making time/once•

Ice cube size Standard Large

Ice making

mode

通常 Approx. 2 hours Approx. 3 hours and 30 minutes

キラット Approx. 6 hours Approx. 8 hours

おいそぎ Approx. 1 hour and 20 minutes Approx. 2 hours

Others: Water filter is attached.•

Ice scoop is provided.

Enables test operation with the cleaning function.

Heat-resistant temperature of water tank: Approx. 60ºC•

Ice storage quantity•

Ice cube size Standard Large

Normal Approx. 48 to 64 pcs. Approx. 24 to 32 pcs.

Maximum (when leveled) Approx. 96 to 112 pcs. Approx. 40 to 48 pcs.

SJGF60XT

[2] DESIGNATION OF VARIOUS PARTS

PART NAMES1.

Parts names in parentheses "[ ]" are denominations used in the Operation manual.

ྑ

>@

Ice compartment Freezer compartment (upper)

Freezer compartment (lower)

Noise-proof sheet

Ice storage box

Ice scoop F case sus

F case s

F top case

F bottom case Vegetable case

Fruit case

V case sus

Pet case

Vegetable compartment

Free set shelf(left)

Egg case

Egg tray

Water tank

Bottle pocket(left) Bottle pocket(right)

Cool plate

Door pocket(left) Door pocket(right)

Case

Chilled case

C case tray

LED [ ]

[ ]

[ ] [ ]

[ ]

[ ] Free set shelf(right)

Plasmacluster unit

R shelf

[ ]

SJGF60XT

INTERNAL STRUCTURE2.

Catalyzer

Humidity sensor

Fan motor

Proximity switch

Thermo fuse

Fan motor

Catalyzer

Ice compartment Freezer compartment (upper)

Freezer

compartment (lower)

Vegetable compartment

Refrigerator compartment

R-shower duct ass’y

D-fan motor PCI

Damper ass’y

V heater

Thermistor

Ice cube heater

Evaporator

Terminal box

(Main PWB, EECON-INV PWB, REACTANCE)

Compressor, protector, valve turret

Fan motor g

Condenser unit

Caster

Evaporating pan

Side view

Adjustable leg ass’y

F proximity switch

Ice maker ass’y

OP.PWB

Transparant electrode

R door switch

LED PWB ass’y

Cool plate

LED PWB ass’y

R-thermistor

Gear pump

Water pipe ass’y

Water pipe heater

Tank heater

F-thermistor

Evaporator

Heater

Front view

Fan motor f

DEF thermistor

SJGF60XT

FLOW OF COOL AIR3.

Ice compartment

Freezer compartment (upper)

Freezer

compartment (lower)

Refrigerator compartment

Freezer

compartment (lower)

Vegetable compartment

Side view

Front view

Refrigerator compartment

Ice compartment Freezer compartment (upper)

Vegetable compartment

Flow of Cool air

When Plasmacluster ion is in operation.

SJGF60XT

TEMPERATURE DISTRIBUTION4.

●

The temperatures above are indications under the condition of no

food inside, doors closed and surrounding temperature is 30 after

stabilized the inside temperature. (Temperature adjustment is "中")

Approx.3 7°C Approx.2 5°C Approx.3 7°C

Approx.0 2°C

Approx.-17 -19°C

Approx.-18 -20°C

Approx.3 8°C

SJGF60XT

[3] DIMENSIONS

OUTER DIMENSIONS AND CLEARANCE (UNIT:mm)1.

174 230

728

285 461

616

697.5

691.5

641

691.5

750

1820

853.2180.8335

365 8

15.5

732.5

125 118

Moving wheels

back side

Moving wheels

front side

Adjustable feet

More than

960

1136

728

60 60

More than More than

More than

SJGF60XT

INNER DIMENSIONS2.

The dimensions between shelves can be changed by setting the shelves on the other rails.•

348

319

348

619

353

357

215

208

584

593

366 208

172

118

246

226

392

81.5

417.8

424

420

280

112

203

412

589

135 334

334

309

334

142

144

122

123

135

163

417.8

105

100 71

348

311911

319

348

424 597

282

310

353

105

404

110.5

138.5

95.5

440

119 113 125

140

SJGF60XT

[4] ELECTRICAL CIRCUIT DIAGRAMS

WIRING DIAGRAM1.

Source cord

Reactance

Main PWB

PWB

EECON-INV

PWB

Protector Compressor

Fan

motor g

Fan

motor f

R-fan

motor

LED

PWB

(left)

Indicator

PWB

Plasmacluster

unit

Motor

D-fan motor PCI

Gear

pump

Damper

thermistor

F thermistor

DEF thermistor

Ice maker unit

Motor

Switch

Thermistor

Proximity

switch

F proximity

switch

Ice cube

heater

Water

pipe

heater

R door

heater

V heater

Door

switch

(left)

Door

switch

(right)

LED

PWB

(right)

Terminal box

Valve turret

Humidity sensor

Heater

Thermo fuse

Tank heater
