Welcome
Thank you for buying the SHARP SL-C1000 / SL-C3000 / SL-C3100.
This device is not sold from SHARP out of Japan. It is a Japanese device with English
user interface and English keyboard.
If you are mainly interested in a calendar, addressbook, etc., you are perhaps better off
with a simple organizer.
But if you are looking for a mobile Linux system with excellent performance, you have
made the right choice.
Each device is tested and localised by us in English in most aspects, before it is shipped.
So you can start at once, without navigating through Kanji characters.
The Zaurus will start in Japanese after a factory-reset. But do not be afraid, the steps for
localisation are described on page 21.
PleasenotethatSHARPElectronicsEurope/SHARPUSAdoesnotsupportthisdevice.
Forfurtherinformation,linksandquestionsvisitusintheinternetathttp://www.trisoft.de.
The largest german-speaking (sorry) Zaurus-Community is to be found at
http://www.z-portal.info. Tons of english information is available at
http://externe.net/zaurus/forum/ and on http://www.zaurususergroup.org .
via telephone: +49 511 94294 0
Credits:
Thisenglish version ofthe quickstart guidewassupported bytheteam ofWernerHeuser
/ Xtops.de, Berlin.
Trademarks:
SHARP and Zaurus are registered trademarks of the SHARP Corporation.
Linux is a registered trademark of Linus Torvalds.
QT and QTopia are trademarks of Trolltech Inc.
All other products, brand names or in this manual mentioned company names are
property and trademark of the particular companies.
Page 6SHARP SL-C1000/3000/3100
///TRIsoft OHG SL-C1000/3000/3100 Quickstart
The Zaurus SL-C1000/SL-C3000/SL-C3100
This manual is only for the SL-C1000 / SL-C3000 / SL-C31000 models which are
different in some important points compared to the previous SL-C series Zauris.
The essential difference is the bigger battery, the included 4 GB harddrive in the
SL-C3000 / SL-C3100 and the USB port with host capability.
Comparison of the SL-C Series Zauris
Attribute SL-C1000
SL-C3000/C3100 SL-C750 SL-C760
SL-C860
OS Lineo uLinux
Kernel 2.4.20 Linux OpenPDA
CPU Intel Xscale PXA
270, 416 MHz Intel Xscale PXA255 400 MHz
Memory
C1000:128MBFlash
C3000:16 MB Flash
C3100:128MBFlash
64 MB SDRAM
64 MB Flash
64 MB SDRAM 128 MB Flash
64 MB SDRAM
Harddrive C3000: 4 GB HD
C3100: 4 GB HD
C1000: not avail. not available
Display SHARP CG Silicon 640x480
I/O Ports USB Slave + Host
Infrared, Headphone
jack, AC adaptor
SHARP I/O-Port, Infrared, Headphone,
AC adaptor
Card slots 1 x SD, 1 x CompactFlash
Batteryincluded 3,7V LiIon
EA-BL11 1800mAh 3,7V LiIon
EA-BL06950mAh
3,7V LiIon
EA-BL08
1700mAh
Battery optional EA-BL08K, EA-BL06 EA-BL08K,
EA-BL11 EA-BL06,
EA-BL11
Power
consumption C1000: 2.3W
C3000/3100: 3.2W 2.7 W
SL-C1000/3000/3100 Quickstart ///TRIsoft OHG
SHARP SL-C1000/3000/3100 Page 7
Attribute SL-C1000
SL-C3000/C3100 SL-C750 SL-C760
SL-C860
Display cover
SL-C1000:
Cover : black
Body : black
SL-C3000:
Cover : white
Body : white
SL-C3100:
Cover : anthracite
Boddy : black
Cover black SL-C760: white
SL-C860: silver
Dimensions 124 x 87 x 25 mm 120x83x18,6mm 120x83x23,2mm
Weight C1000: Ca. 278 g
C3000: Ca. 298 g
C3100: Ca. 298 g Ca. 225 g Ca. 250 g
Unpacking
The package should contain the following items:
Item SL-C1000 SL-C3000 SL-C3100
Zaurus with stylus and covers for
CF and SD slot 1 1 1
Battery EA-BL11 1 1 1
PC-USB cable (long, black mini
USB plug) 1 1 1
ZHost USB host cable (short, white
mini USB plug) 1 1 1
Headphones - - 1
Zaurus Software CD 1 2 3
Manual (japanese) 1 1 1
This short manual (already found) 1 1 1
Page 8SHARP SL-C1000/3000/3100
///TRIsoft OHG SL-C1000/3000/3100 Quickstart
Startup
Insert the battery
Unlock the lower cover by sliding the the
switch for the interlock of the battery
compartment (1) to the left. Detach the
cover in direction (2).
Insert the battery as shown in the
picture.Forthe battery tofittightly,press
in direction of the arrow on the end
leading to the border of the enclosure.
Put the cover for the battery
compartment back onto the device.
Thereisamarking dash attheborderfor
orientation which should be aligned to
the border of the compartment.
Lock the cover by sliding the switch to
the right.
Charging the battery
You should now connect the power supply with the Zaurus (the AC-in is located on the
backside of the device).
The Zaurus will be charged and in the upper left corner should glow a yellow charging
LED.
Please charge the Zaurus for some time, before turning it on.
SL-C1000/3000/3100 Quickstart ///TRIsoft OHG
SHARP SL-C1000/3000/3100 Page 9
Open and Turn Over Display

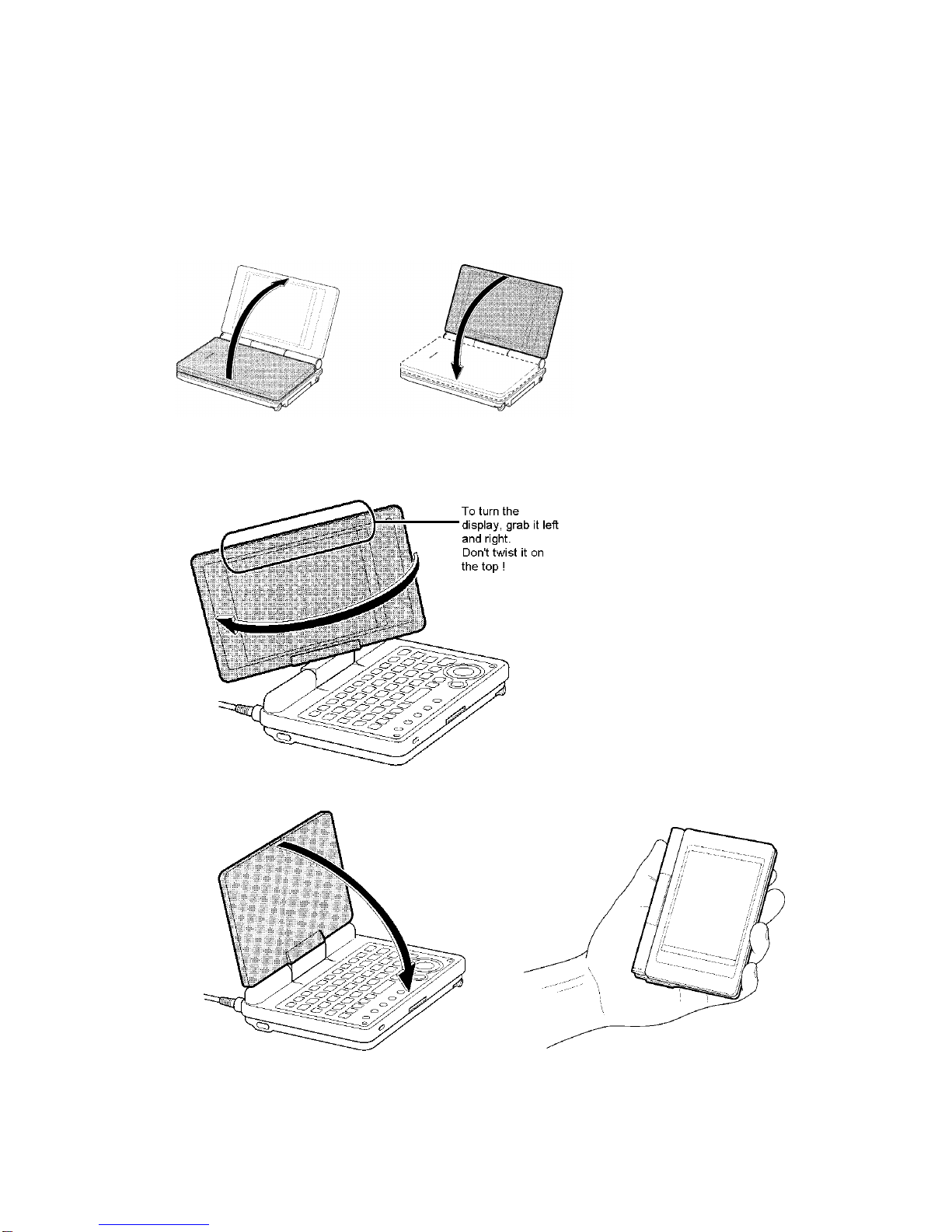

The display can be opened
andturnednearlyhorizontal
to the keyboard. There it
snaps into the maximal
possible position.
When opened, the display
can also be turned
clock-wise and overback
onto the keyboard:
Attention: NEVER turn the
display using violence or in
opposite to the designated
direction. Such damages
(Zaurus in two parts) are
not warranted.
Please touch the device at
both sides when the display
is turned. Do not touch it at
the upper border.
Page 10 SHARP SL-C1000/3000/3100
///TRIsoft OHG SL-C1000/3000/3100 Quickstart
Ports / Controls
Bottom
1: Lug for fastening the Zaurus (for instance a chain).
2. Slot for CompactFlash cards with protective cover.
3. Stylus.
4. Slot for SD/MMC cards with protective cover.
5. Speaker.
6. Switch to lock / unlock the battery compartment.
7. Battery cover.
8. Infrared.
9. On- / Off switch.
