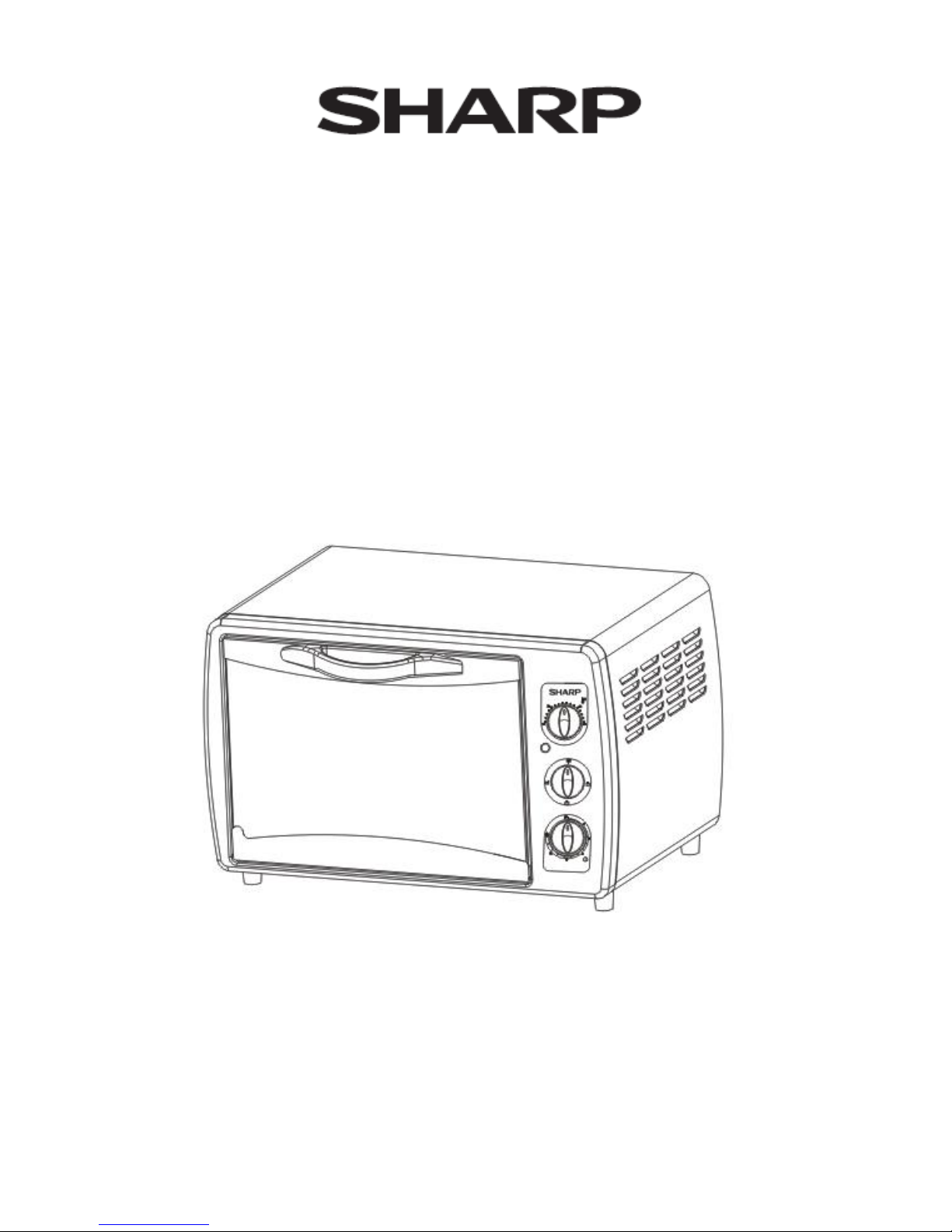

Sharp EO19K Manual de usuario

ELECTRIC OVEN

IC OVEN

MODEL: EO19K

OPERATION MANUAL

Before operating this appliance, please read these instructions completely

PARTS IDENTIFICATION

1.Heating element

2.Rack support

3.Pilot light

4.Heater selector knob

5.Timer knob

6.AC cord

7.Door

8.Door Handle

9.Bake grill

10.Tray Handle

11.Bake tray

CIRCUIT

SPECIFICATION

Model NO.

EO19K

Power supply

220-240V 50/60Hz

Power consume

1380W

Package measurement

470*355*360mm

Net weight

5.5KGS

CAUTIONS

Special indication:

The accessory image varies from different models. Please refer to

the actual model you buy.

Always use the tray handle when inserting or

removing the tray .Touching these will cause

severe burns.

When hot, do not apply water to the glass

window, it may cause the glass to break.

When unplugging the cord, always take hold of the

plug itself. Never pull on the cord. Doing so could

break the wires inside the cord.

Do not position the unit close to a gas

burner or other source of high

temperature or do not direct an electric

fan & etc during USE.By doing so could

prevent correct temperature control.

Do not wet the power cord nor handle the unit with

wet hands. Always unplug the cord after use, or

whenever the unit is to be left unattended. A

malfunction while the plug is inserted into the outlet

could cause a fire.

When cooking oil-splashing dishes such as roast chicken, it is

recommended to put 2 sheets of aluminum foils on a tray in order to

diminish oil splashing. Put one on a tray. Then oil will drip to a gap

between foils.

USE INDICATION

Special indication: the parts and accessory varies from different

models. Please refer the image to the real item you buy.

Bake tray and bake grill

Bake tray

How to use tray

handle

Roast Chicken,

Hamburg steak, Gratin,

Sponge cake, almost all

other oven-cooked foods

Bake grill

Baked potatoes,Dry food

Bake tray and bake

grill

For food which will

drip/boiled fish, etc

The trays are not perfectly square.

Note:

Be careful when removing pudding and other hot liquids.

Rack Support

You can adjust the tray at 4 different

positions according to the dishes you

want to cook.

METHOD OF CLEANING

Take off the plug and cool down before cleaning.

Use dry cloth to clean outer surface of oven and glass

window. When cleaning inside of oven, mopping with

cloth can be applied. Never wash it with water as it

may cause current leakage when electric parts are

wet.

Bake tray, bake grill and tray handle can wash with

soft cotton (or sponge) and neutral cleaner. Then rinse

thoroughly with clean water, then wipe dry. Do not use

hard brush that will scratch the interior surface of the

oven, and to protect the tray, bake grill and tray

handle.

Do not use the toxic and abrasive cleaners such as

gasoline, polishing powder, solvent.

BAKING REFERENCE OF COMMON FOOD

TYPE OF FOOD

TEMPERTURE

TIME

Bread

180

9-13

Cake

180

25-35

Fish

250

10-15

Chicken/Duck

220-250

30-45

Pancake

160

7-10

Beef

250

8-15

Egg/Peanut

125-150

6-10

Hot Dog

200

6-10

Hamburger

240

10-14

OPERATING INSTRUCTIONS

Before using the unit for the first time:

Heat the empty oven.

(1) Insert the tray and bake grill.

(2)Set the heater operating switch to "UPPER & LOWER", set the

temperature control dial to "250℃" and heat the empty oven for

about 10 minutes.

Note:

There may be some smoke and a burning smell at first use, but this

is not a malfunction.

Temperature control dial:

Set the Temperature Control Dial for the dishes which you are going

to cook.

Heat Operating Switch:

Select “upper” or “lower” or "Upper and Lower" according to the

dishes you are going to cook. You can observe whether the heaters

are working or not by observing the front Indicator light.

UPPER , LOWER , UPPER& LOWER

1. Set the arrow on the timer knob to the number

which indicates the cooking time (minutes)

according to the dishes you are going to cook.

2. Set the Timer by turning it clockwise.

The oven will turn off automatically at the end of

the selected time and a bell will ring

•When setting the Timer to less than 5 min., turn it

to more than 6 min. and then back to the selected

time.

3. The oven can be turned off manually during

cooking by turning the Timer counter-clockwise to

the "0FF" position.

Note:

If the inside of the oven is dirty, cooking may take slightly longer than

usual.

CAUTIONS

If the oven is positioned to close to a wall,

the wall will be burned or stained. Be sure

the curtain & etc, are not in contact with

the body.

Do not put anything between the bottom

of the body and the surface on which it is

set, an object so placed could be burned.

Do not put anything on the oven while using it, the

heat could cause deformation, cracking, etc.

Any bottled or tinned food can not be heated directly

as the bottle or tin would be broken out and scald the

person.

Be careful! Not to burn yourself during use or

immediately after use. The metal parts and glass

window of the door become extremely hot during

use. Be careful not to touch them when opening and

closing the door.

AC power must be taken from a properly wired

outlet. Insert the plug completely into the socket. If it

is not, it could become abnormally hot. Do not use

an electric light outlet. Never connect multiple plugs

to the same outlet

MAINTENANCE

1. Other than cleaning mentioned in this instruction manual, no

additional maintenance or serving of this appliance is required.

2. Repairs, when necessary, must be performed at an authorized

service facility.

3. This appliance is intended for HOUSEHOLD USE ONLY and

not for commercial or industrial use.

WARNING

If the supply cord is damaged, the manufacturer or its service agent

or a similarly qualified person in order to avoid a hazer must replace

it.

SPECIAL WARNING

Recycling symbol, don’t dispose of the product with household

refuse.

Caution: The temperature of the accessible surface

may be high when the appliance is operating.

MANUFACTURED FOR/ DIBUAT UNTUK

SHARP ROXY SALES & SERVICE COMPANY (M) SDN BHD (8394-W)

NO 1A PERSIARAN KUALA LANGAT, SECTION 27

40400 SHAH ALAM, SELANGOR DARUL EHSAN
