PN-70HC1E Dismantle Instruction

Dismantle Instruction

LCD MONITOR

MODEL

PN-70HC1E

PN-70HC1E Dismantle Instruction

Table of contents

1. Scope ............................................................................................................... 3

2. Tools for dismantling............................................................................................. 3

3. Dismantle Procedure............................................................................................ 3

4. Back covers........................................................................................................ 4

5. Printed circuit boards ........................................................................................... 5

6. Batteries ........................................................................................................... 6

7. LCD Module/cover glass/bracket .............................................................................. 7

8. Capacitors.......................................................................................................... 8

9. Parts List ........................................................................................................... 8

PN-70HC1E Dismantle Instruction

1. Scope

This document describes dismantling instruction according to Annex VII of Directive 2012/19/EU.

2. Tools for dismantling

Below tools are required to dismantle this product.

- Screw Driver

- Nipper

3. Dismantle Procedure

This product can be dismantled by below steps.

1. Remove Back covers (section 4)

2. Remove the shielding

3. Remove Printed circuit boards (section 5)

4. Remove battery (section 6)

5. Dismantle LCD (section 7)

6. Remove Electrolyte Capacitors (section 8)

PN-70HC1E Dismantle Instruction

4. Back covers

Back covers can be removed by screw driver.

PN-70HC1E Dismantle Instruction

5. Printed circuit boards

All PWBs can be removed by screw driver.

Main PWB (1pcs) Connector PWB(1pcs)

Power PWB (1pcs) IO PWB (1pcs)

T-con PWB (1pcs) OPS PWB(1pcs)

PN-70HC1E Dismantle Instruction

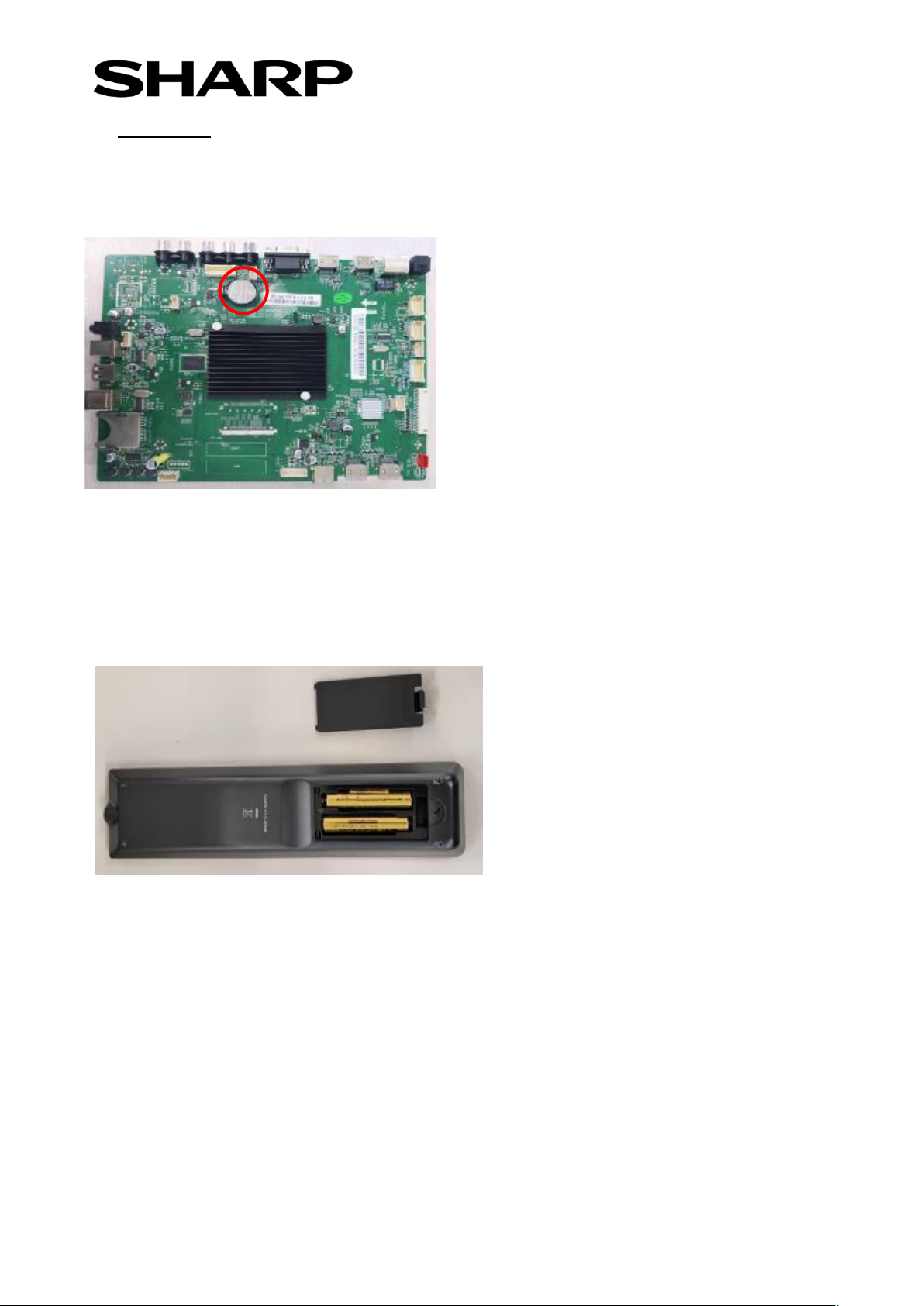

6. Batteries

This model uses CR2032 Lithium Coin battery on MAIN PWB.

Battery CR2032 can easily be removed from the battery holder.

This model uses AAA battery for remote control.

Battery can easily be removed

PN-70HC1E Dismantle Instruction

7. LCD Module bezels/bracket

- LCD Dismantle procedure

1. Remove screws

2. Remove Cover glass and Bezels

3. Remove screws

4. Remove Middle Frame

5. After you have removed the PWB´s, the cover glass and bezels please take out the cables from

the LCD module.

LCD

PN-70HC1E Dismantle Instruction

8. Capacitors

Electrolyte Capacitors which diameter/height is larger than 25mm is installed on the Power PWB.

These capacitors can be removed by using nipper to cut the leads.

9. Parts List

Parts described in Annex VII of directive 2012/19/EU are as below.

Parts

Note

LCD

70inch LCD module

Batteries

Battery CR2032 of the main board

Battery (AAA) of remote control

Printed Circuit Boards

Main PWB

Connector PWB

Power PWB

IO PWB

T-CON PWB

OPS PWB

Electrolyte capacitors

(height >25mm, diameter >25mm)

On the Power PWB

External electric cables

2 kinds of Power Cord

- CEE 7 (for EU)

- Type-BF (for UK)
