1. Part Names

1. Monitor

6. Name of Remote

Control Buttons

2. Basic Operation

3. Menu Operation

4. USB Media

5. Connecting Other

Devices

6. Operating the Monitor

Using a PC (IP control)

7. Troubleshooting

8. Specifications, etc.

Ver. 1.00

＞

＜

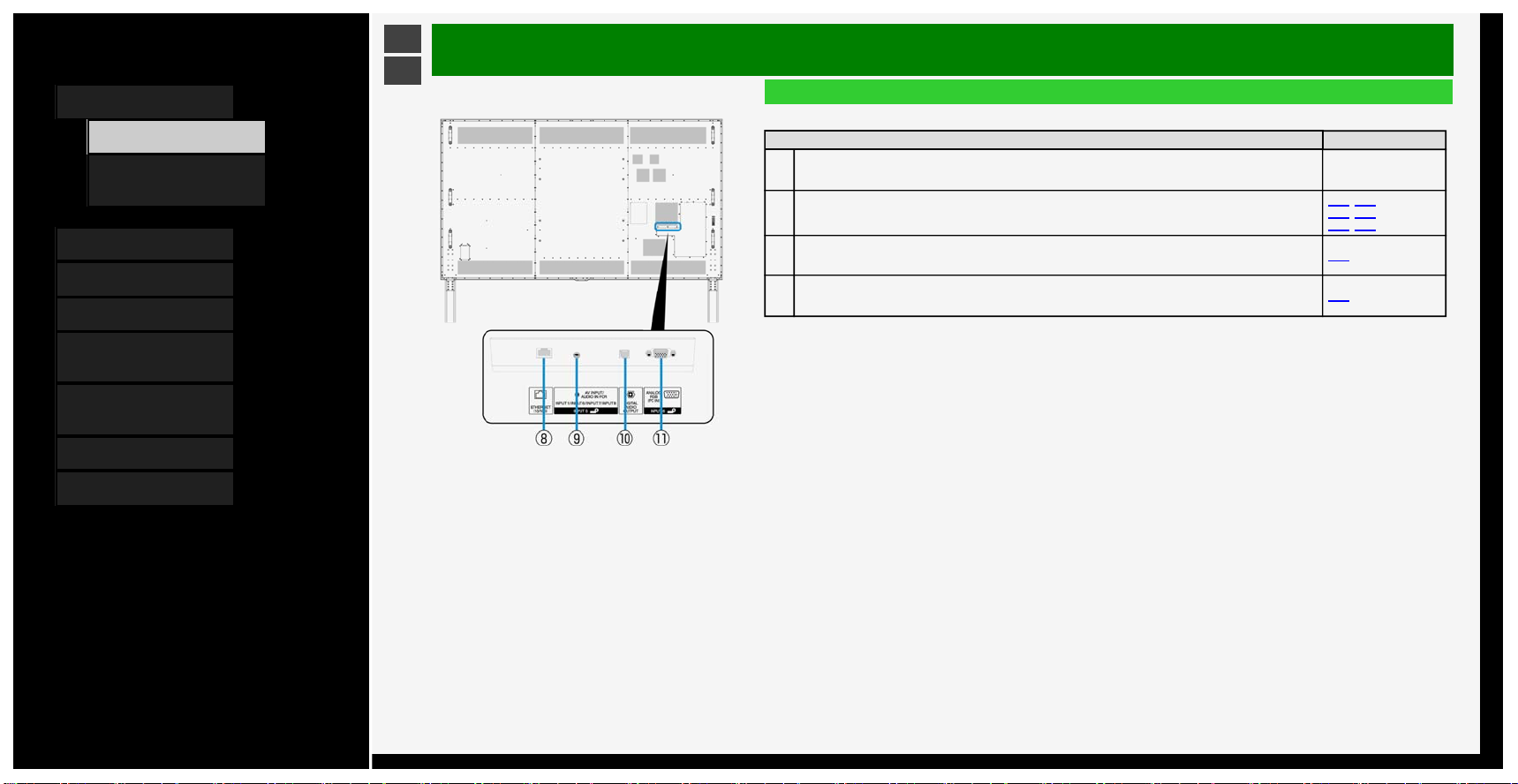

Part Names

Monitor

Front

Name Page

1Remote control light receiving section

• Point the remote control toward this section. ―

POWER lamp

• Lit white: operating state

• Unlit: power-off state

2-3

1-1

4/8/2020 Sharp operation manual

Contents

1. Part Names

1. Monitor

6. Name of Remote

Control Buttons

2. Basic Operation

3. Menu Operation

4. USB Media

5. Connecting Other

Devices

6. Operating the Monitor

Using a PC (IP control)

7. Troubleshooting

8. Specifications, etc.

Ver. 1.00

＞

＜

Part Names

Monitor

Rear

Name Page

1Headphone terminal (Ø 3.5, stereo mini jack)

• It allows sounds to come out from the speakers even after headphones are connected. 3-34

USB1 terminal

• Connect USB memory.

• You can enjoy photo / music / video files stored in USB memory on the Monitor.

• You can use the multimedia auto play function.

3-4, 4-1

USB2 terminal

• Connect USB memory.

• You can enjoy photo / music / video files stored in USB memory on the Monitor.

• You can use the multimedia auto play function.

―

4INPUT 1 to 4 (HDMI) (INPUT 1: (4K)~4:4:4, INPUT 2/3/4: (4K)~4:2:0)

• Connect 4K or 2K output HDMI compatible device.

5-5, 5-6,

5-11, 5-13,

5-14, 5-27,

5-28

5AUDIO OUTPUT 3.5mm stereo 5-21

1-2

4/22/2020 Sharp operation manual

Contents

1. Part Names

1. Monitor

6. Name of Remote

Control Buttons

2. Basic Operation

3. Menu Operation

4. USB Media

5. Connecting Other

Devices

6. Operating the Monitor

Using a PC (IP control)

7. Troubleshooting

8. Specifications, etc.

Ver. 1.00

＞

＜Part Names

Monitor

Rear

Name Page

6INPUT 7 A to D (8K, HDMI x 4) 5-1, 5-2

7INPUT 8 (8K, HDMI)

1-3

2020/08/06 Sharp operation manual

Contents

1. Part Names

1. Monitor

6. Name of Remote

Control Buttons

2. Basic Operation

3. Menu Operation

4. USB Media

5. Connecting Other

Devices

6. Operating the Monitor

Using a PC (IP control)

7. Troubleshooting

8. Specifications, etc.

Ver. 1.00

＞

＜

Part Names

Monitor

Rear

Name Page

8LAN terminal (10BASE-T／100BASE-TX)

• Used for IP Control, etc. ―

9INPUT 5

• AV INPUT/AUDIO IN FOR INPUT1/INPUT6/INPUT7/INPUT8

3-35, 3-36,

5-15, 5-27,

5-28, 5-29

10 Digital audio output (optical) terminal

• Connect the audio device. 5-21

11 INPUT 6 (Analog RGB)

• Connect with the analog RGB terminal for a computer. 5-29

1-4

4/22/2020 Sharp operation manual

Contents

1. Part Names

1. Monitor

6. Name of Remote

Control Buttons

2. Basic Operation

3. Menu Operation

4. USB Media

5. Connecting Other

Devices

6. Operating the Monitor

Using a PC (IP control)

7. Troubleshooting

8. Specifications, etc.

Ver. 1.00

＞

＜

Part Names

Monitor

Rear

Name Page

12 Power button 2-3

13 MENU button

• Displays the menu. 3-2

14 INPUT button

• When in the Menu, this functions as the OK button. ―

15 forward / backward button

• When Menu is operated, it is used as and cursor.

―

Volume (+ / -) button

• When Menu is operated, it is used as right-left cursor.

• When in the Menu, this functions as the right-left cursor.

―

1-5

4/8/2020 Sharp operation manual

Contents

1. Part Names

1. Monitor

6. Name of Remote

Control Buttons

2. Basic Operation

3. Menu Operation

4. USB Media

5. Connecting Other

Devices

6. Operating the Monitor

Using a PC (IP control)

7. Troubleshooting

8. Specifications, etc.

Ver. 1.00

＞

＜

Part Names

Name of Remote Control Buttons

Button name Page

1POWER 2-3

INFORMATION

• Display the information. ―

1-6

4/8/2020 Sharp operation manual

Contents

1. Part Names

1. Monitor

6. Name of Remote

Control Buttons

2. Basic Operation

3. Menu Operation

4. USB Media

5. Connecting Other

Devices

6. Operating the Monitor

Using a PC (IP control)

7. Troubleshooting

8. Specifications, etc.

Ver. 1.00

＞

＜

Part Names

Name of Remote Control Buttons

Button name Page

Number

• Also used to enter characters or numbers and perform the setup operations. ―

4MUTE ―

5VOLUME +/- ―

6BRIGHT +/- ―

INPUT

• Also used to change the input source to PC, USB media, etc. 5-18, 5-26

1-7

4/8/2020 Sharp operation manual

Contents

1. Part Names

1. Monitor

6. Name of Remote

Control Buttons

2. Basic Operation

3. Menu Operation

4. USB Media

5. Connecting Other

Devices

6. Operating the Monitor

Using a PC (IP control)

7. Troubleshooting

8. Specifications, etc.

Ver. 1.00

＞

＜

Part Names

Name of Remote Control Buttons

Button name Page

8///, ENTER

• Used for the menu, character entry, etc. 3-2, 3-45

9OPTION 3-44

10 MENU 3-2

11 RETURN

• Used for the menu, character entry, etc. 3-2, 3-45

1-8

4/22/2020 Sharp operation manual
