SERVICE MANUAL

LC-40/46/52/60Z5T

No. S51Q5LC60Z5T/

Parts marked with " " are important for maintaining the safety of the set. Be sure to replace these parts with specified ones for maintaining the

safety and performance of the set.

This document has been published to be used for

after sales service only.

The contents are subject to change without notice.

TopPage

OUTLINE

In the interests of user safety (required by safety regulations in some countries) the set should be restored to its

original condition and only parts identical to those specified should be used.

In this Service Manual, only parts in the LCD module are shown.

For the other points, refer to the LC-40/46/52/60Z5T (S51Q2LC60Z5T/) Service Manual.

LCD Module Edition

MODELS

LC-40Z5T

LC-46Z5T

LC-52Z5T

LC-60Z5T

LCD COLOUR TELEVISION

LC-40/46/52/60Z5T

LC40Z5T Service Manual

OUTLINE

In this Service Manual, only parts in the LCD module are shown. For the other points, refer to the LC-40/46/52/60Z5T (S51Q2LC60Z5T/)

Service Manual.

NOTE: When replacing the LCD control PWB, perform the VCOM adjustment.

LC-40/46/52/60Z5T

1 – 1

LC40Z5T Service Manual

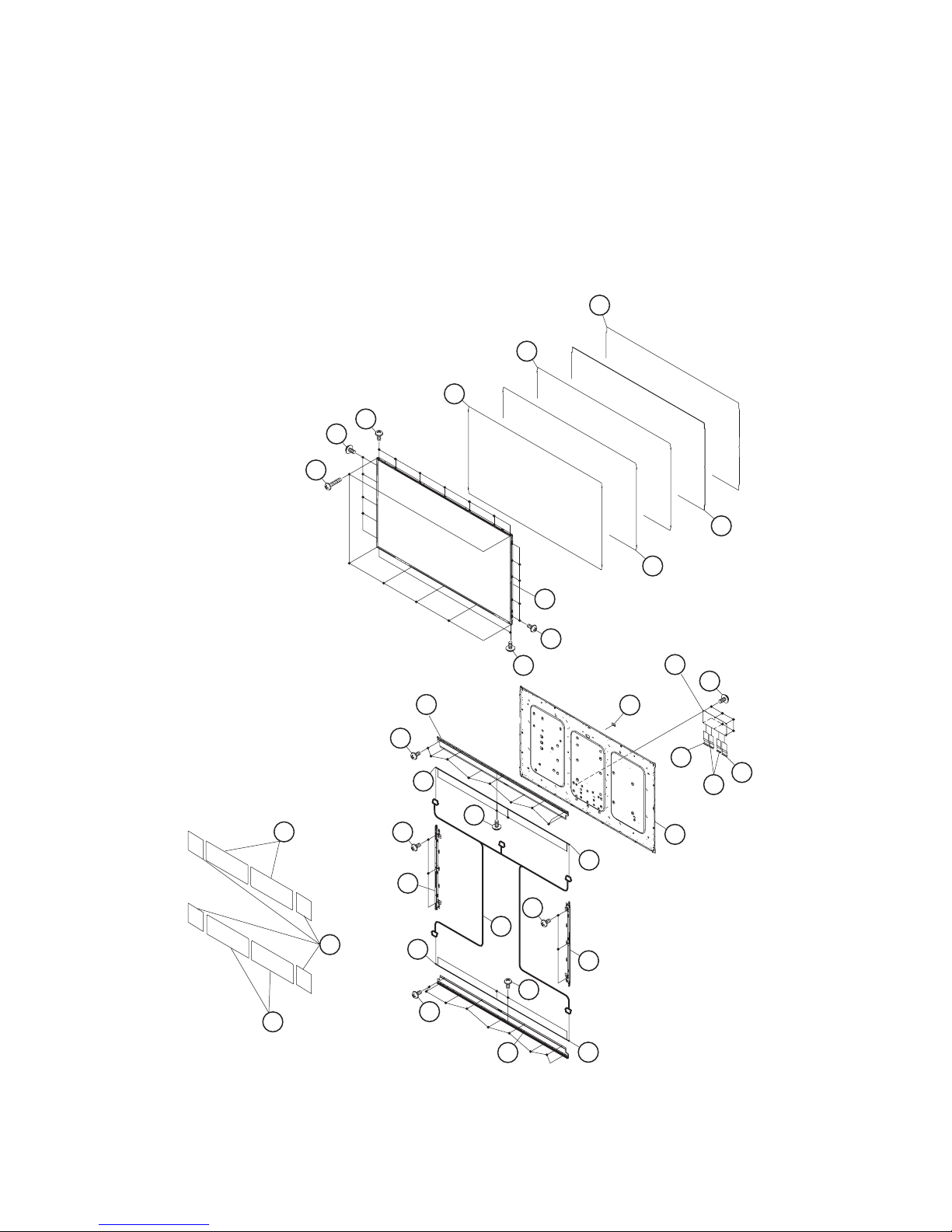

CHAPTER 1. Removing LCD Module

[1] LC-40Z5T

1. Remove the 4 lock screws [1], 13 lock screws [2], 12 lock screws [3] and detach the Bezel Unit (Top) [4], Bezel Unit (Bottom) [5] and Bezel Unit

(Left/Right) [6].

2. Detach the 40” LCD Panel Module Unit [7].

3. Detach the DBEF Sheet [12], Lens Sheet [13]/[14], Micro Lens Sheet [15], Light Guide Plate [16], Reflection Sheet [17], Graphite Sheet (Top

Right/Bottom Left) [18] and Graphite Sheet, (Top Right/Bottom Left) [19].

4. Detach the P Chassis Unit (Top) [8], P Chassis Unit (Bottom) [9], P Chassis Unit (Left) [10] and P Chassis Unit (Right) [11] .

5. Remove the 23 lock screws [20] and detach the 2 pieces LED Angle [21].

6. Remove the 40 lock screws [22] and detach the 4 pieces LED-PWB [23].

7. Remove the 6 lock screws [24] and detach the 2 pieces Holder Unit [25].

8. Detach the LED Cable Cover (Cap) [26].

9. Disconnect the LED cable [27].

10.Detach the and Back Light Chassis Unit [28].

112

911

21 25

40" LCD Panel Module Unit

Reflection Sheet

Light Guide Plate

Micro Lens Sheet

Lens Sheet

DBEF Sheet

P Chassis Unit

(Bottom)

P Chassis Unit

(Left)

P Chassis Unit

(Top)

P Chassis Unit

(Right)

Bezel Unit (Top)

Bezel Unit (Bottom) Bezel Unit (Right)

Bezel Unit

(Left)

LED Angle

Back Light Chassis Unit

Holder Unit

LED Cable Cover (Cap)

LED-PWB

Graphite Sheet

(Top Left)

Graphite Sheet

(Bottom Right)

Graphite Sheet

(Top Right)

Graphite Sheet

(Bottom Left)

LC-40/46/52/60Z5T

1 – 2

[2] LC-46Z5T

1. Remove the 4 lock screws [1], 12 lock screws [2] and detach the 46” LCD Panel HIRAK Unit [3].

2. Detach the DBEF Sheet [4], Lens Sheet [5], Micro Lens Sheet [6], Light Guide Plate [7], Reflection Sheet [8], 4 pieces Graphite Sheet [9].

3. Remove the 18 lock screws [10] and detach the 2 pieces LED Angle [11].

4. Remove the 40 lock screws [12] and detach the 4 pieces LED-PWB [13].

5. Remove the 6 lock screws [14] and detach the Holder Unit (L/R) [15].

6. Detach the LED Cable Cover (Cap) [16].

7. Disconnect the LED cable [17].

8. Remove the 6 lock screws [18] and disconnect the 2 pieces FFC (80Pin) [19], FFC (64Pin)[20] and detach the C-PWB [21] .

9. Detach the and Back Light Chassis Unit [22].

LED Angle

11 LED Angle

15 Holder Unit (L)

Holder Unit (R)

LED-PWB

Back Light Chassis Unit

C-PWB

19 19

FFC

(64Pin)

FFC

(80Pin)

346" LCD Panel HIRAKI Unit

Light Guide Plate

Lens Sheet

Reflection Sheet

6Micro Lens Sheet

DBEF Sheet

FFC

(80Pin)

LED Cable Cover (Cap)

Graphite Sheet

LC-40/46/52/60Z5T

1 – 3

[3] LC-52Z5T

1. Remove the 5 lock screws [1], 19 lock screws [2] and detach the 52” LCD Panel HIRAKI Unit [3].

2. Detach the DBEF Sheet [4], Lens Sheet [5], Micro Lens Sheet [6], Light Guide Plate [7], Reflection Sheet [8], 4 pieces Graphite Sheet [9].

3. Remove the 28 lock screws [10] and detach the 2 pieces LED Angle [11].

4. Remove the 48 lock screws [12] and detach the 4 pieces LED-PWB [13].

5. Remove the 10 lock screws [14] and detach the 2 pieces Holder Unit [15].

6. Detach the LED Cable Cover (Cap) [16].

7. Disconnect the LED cable [17].

8. Remove the 6 lock screws [18] and disconnect the 2 pieces FFC (80Pin) [19], FFC (64Pin) [20] and detach the C-PWB [21] .

9. Detach the and Back Light Chassis Unit [22].

13LED-PWB

LED-PWB

Holder Unit

LED-PWB

11 LED Angle

15Holder Unit

Back Light Chassis Unit

FFC

(64Pin)

FFC

(80Pin) FFC

(80Pin)

C-PWB

LED Angle

3 52" LCD Panel HIRAKI Unit

Lens Sheet

Light Guide Plate

4DBEF Sheet

6Micro Lens Sheet

8Reflection Sheet

Graphite Sheet

LED Cable Cover (Cap)

LC-40/46/52/60Z5T

1 – 4

[4] LC-60Z5T

1. Remove the 7 lock screws [1], 19 lock screws [2] and detach the 60” LCD Panel HIRAKI Unit [3].

2. Detach the DBEF Sheet [4], Lens Sheet [5], Micro Lens Sheet [6], Light Guide Plate [7], Reflection Sheet [8], 4 pieces Graphite Sheet [9] and 4

pieces Graphite Sheet [23].

3. Remove the 18 lock screws [10] and detach the 2 pieces LED Angle [11].

4. Remove the 8 lock screws [12] and detach the 4 pieces LED-PWB [13].

5. Remove the 6 lock screws [14] and detach the 2 pieces Holder Unit [15].

6. Detach the LED Cable Cover (Cap) [16].

7. Disconnect the LED cable [17].

8. Remove the 6 lock screws [18] and disconnect the 2 pieces FFC (80Pin) [19], FFC (64Pin)[20] and detach the C-PWB [21] .

9. Detach the and Back Light Chassis Unit [22].

5 Lens Sheet

Light Guide Plate

4DBEF Sheet

6Micro Lens Sheet

8Reflection Sheet

3 60" LCD Panel HIRAKI Unit

C-PWB

FFC

(64Pin)

FFC

(80Pin) FFC

(80Pin)

11 LED Angle

LED Angle

13LED-PWB

LED-PWB

15 Holder Unit

15Holder Unit

Graphite Sheet

LED Cable Cover (Cap)

Back Light

Chassis Unit

PARTS GUIDE

No. S51Q5LC60Z5T/

CONTENTS

Parts marked with " " are important for maintaining the safety of the set. Be sure to replace these

parts with specified ones for maintaining the safety and performance of the set.

This document has been published to be used

for after sales service only.

The contents are subject to change without notice.

LC-40/46/52/60Z5T

LCD COLOUR TELEVISION

MODELS

LC-40Z5T

LC-46Z5T

LC-52Z5T

LC-60Z5T

PartsGuide

[1] LCD PANEL MODULE Assembly

(LC-40Z5T)

[2] LCD PANEL MODULE Assembly

(LC-46Z5T)

[3] LCD PANEL MODULE Assembly

(LC-52Z5T)

[4] LCD PANEL MODULE Assembly

(LC-60Z5T)

LC-40/46/52/60Z5T

[1] LCD PANEL MODULE Assembly (LC-40Z5T)

40" LCD Panel

LC-40/46/52/60Z5T

NO. PARTS CODE PRICE

RANK

NEW

MARK

PART

DELIVERY DESCRIPTION

[1] LCD PANEL MODULE Assembly (LC-40Z5T)

1R1LK400D3GW6AA DQ J 40" LCD Panel Module Unit

2CANGK4919TP02 AN N J Bezel Unit (Top)

3CANGK4920TP02 AW N J Bezel Unit (Bottom)

4CANGK4921TP02 AG N J Bezel Unit (Left/Right), x2

5CHLDZ4763TP01 AK N J P Chassis Unit (Top)

6CHLDZ4764TP01 AM N J P Chassis Unit (Bottom)

7CHLDZ4765TP01 AG N J P Chassis Unit (Left)

8CHLDZ4766TP01 AG N J P Chassis Unit (Right)

9CANGT0321TP01 AU N J LED Angle, x2

10 CCHSM0326TP01 BE N J Back Light Chassis Unit

11 CHLDZ4767TP01 AF N J Holder Unit, x2

12 LX-BZ2568TPZZ AA N J Screw, x6 (Holder Unit)

13 LX-HZ2414TPZZ AA N J Screw, x23 (LED Angle)

14 LX-HZ2417TPZZ AA N J Screw, x40 (LED PWB)

15 PCOVP2986TPZZ AB N J LED Cable Cover (Base)

16 PCOVP2989TPZZ AB N J LED Cable Cover (Cap)

17 PSHEM0823TPZZ AQ N J Graphite Sheet, x2 (Top Left/Bottom Right)

18 PSHEM0824TPZZ AQ N J Graphite Sheet, x2 (Top Right/Bottom Left)

19 QCNWN2674TPZZ AQ N J LED Cable

20 RUNTK4833TPZZ BA N J LED-PWB, x4

21 LX-BZ2568TPZZ AA N J Screw, x12 (Bezel Lateral Side)

22 LX-BZ2574TPZZ AA N J Screw, x4

23 LX-UZ2067TPZZ AB N J Screw, x13 (Bezel)

24 PLGPA0751TPZZ BK N J Light Guide Plate

25 POFMA1275TPZZ AU N J Lens Sheet (H)

26 POFMA1276TPZZ AU N J Lens Sheet (V)

27 POFMD0620TPZZ BG N J DBEF Sheet

28 PREFL3336TPZZ AU N J Reflection Sheet

29 PSLDK3574TPZZ BF N J Micro Lens Sheet

30 PSPAK0452TPZZ AB N J Spacer, x2

LC-40/46/52/60Z5T

[2] LCD PANEL MODULE Assembly (LC-46Z5T)

11 12
