OPERATION MANUAL

FACSIMILE

MODEL

FO-50

FO-70

1. Installation

2. Sending Documents

3. Receiving Documents

4. Making Copies

5. Making Telephone Calls

6. Answering Machine Connection

7. Special Functions

8. Printing Reports and Lists

9. Maintenance

10. Troubleshooting

UX-8 / FO-50 / FO-70 FACSIMILE

All manuals and user guides at all-guides.com

all-guides.com

Quick Reference Guide

Entering Your Name and

Number

1. Press:

Display shows:

2. Press:

3. Enter your fax number (max. of 20 digits)

by pressing the number keys.

•To insert a space between digits, press

the # key. To enter “+”, press the *key.

•If you make a mistake, press the SPEED

DIAL key to backspace and clear the mis-

take.

4. Press:

5. Enter your name by pressing the appro-

priate number keys as shown below.

•To enter two letters in succession that

require the same key, press the

SPEAKER key after entering the first let-

ter.

Setting the Date and Time

1. Press:

Display shows:

2. Press:

3. Enter two digits for the day (01 to 31).

4. Enter two digits for the month (01 to 12).

5. Enter four digits for the year (Ex: 1999)

6. Enter two digits for the hour (00 to 23)

and two digits for the minute (00 to 59).

7. When finished, press:

Storing and Clearing Auto

Dial Numbers

1. Press:

Display shows:

2. Press 1to store a number or 2to clear a

number.

3. Enter a 2-digit Speed Dial number (from

01 to 05 for Rapid Key Dialling, or 06 to

40 for Speed Dialling). (If you are clearing

a number, go to Step 7.)

4. Enter the full fax/telephone number.

5. Press:

6. Enter the name of the location by press-

ing number keys. (Refer to the letter entry

table in Entering Your Name and Num-

ber.)

7. Press:

FUNCTION 3

START

OWN NUMBER SET

START

A =

B =

C =

D =

E =

F =

G =

H =

I =

J =

K =

L =

M =

N =

O =

P =

Q =

R =

S =

T =

U =

V =

W =

X =

Y =

Z =

SPACE =

•To change case, press the REDIAL key.

Press # or *to scroll through symbols

and special characters.

6. When finished, press: START STOP

FUNCTION 3

DATE & TIME SET

START

START STOP

FUNCTION 3

FAX/TEL # MODE

START

START STOP

all-Fo50A.book Page 1 Friday, October 1, 1999 5:32 PM

All manuals and user guides at all-guides.com

Quick Reference Guide

Sending Faxes

Place your document

(up to 5 pages) face

down in the document

feeder.

Normal Dialling

1. Lift the handset or press

2. Dial the fax number.

3. Wait for the reception tone (if a person

answers, ask them to press their Start

key).

4. Press:

Rapid Key Dialling

Press the appropriate Rapid Key.

Transmission will begin automatically.

Speed Dialling

1. Press:

2. Enter 2-digit Speed Dial number.

3. Press:

SPEAKER

START

SPEED

DIAL

START

Receiving Faxes

Press the RESOLUTION/RECEPTION

MODE key until the arrow in the display

points to the desired reception mode (make

sure the document feeder is empty).

RESOLUTION/

RECEPTION MOD

FAX

TEL

FAX

TEL

05 NOV 10:30

A.M.

TEL/FAX

A.M.

TEL/FAX

05 NOV 10:30

FAX

TEL

FAX

TEL

05 NOV 10:30

A.M.

TEL/FAX

A.M.

TEL/FAX

05 NOV 10:30

FAX mode: The fax machine automatically

answers on the set number of rings and

receives the incoming document.

TEL mode:

Beep

START

RECEIVING

TEL/FAX mode: This mode is convenient

for receiving both faxes and voice calls.

When a call comes in, the fax will detect

whether it is a voice call (including manually

dialled fax transmissions), or an

automatically dialled fax.

A.M. mode: Select this mode when an

answering machine is connected to the fax

and the answering machine is turned on.

all-Fo50A.book Page 2 Friday, October 1, 1999 5:32 PM

All manuals and user guides at all-guides.com

Introduction

Note: This fascismile machine is Year 2000 compliant.

*Based on ITU-T Test Chart #1 at standard resolution in Sharp special mode

excluding time for protocol signals (i.e. ITU-T phase C time only).

Automatic dialling Rapid Key Dialling: 5 numbers

Speed Dialling: 35 numbers

Fax (thermal) paper Initial starter roll (included with machine):

10 m

Recommended replacement roll:

FO-20PRw 30 m

Paper cutting method FO-50: Tear off by hand

FO-70: Automatic cutter

Modem speed 9600 bps with automatic fallback to lower

speeds.

ransmission time* Approx. 15 seconds

Resolution Horizontal: 8 pels/mm

Vertical:

Standard: 3.85 lines/mm

Fine /Halftone: 7.7 lines/mm

Super fine: 15.4 lines/mm

Automatic document

feeder

5 pages max. (80 g/m2 paper)

Haftone (grayscale) 64 levels

Display 16-digit LCD display

Welcome, and thank you for

choosing a Sharp facsimile

machine! The features and

specifications of your new Sharp

fax are shown below.

all-Fo50A.book Page 3 Friday, October 1, 1999 5:32 PM

All manuals and user guides at all-guides.com

As a part of our policy of continuous improvement SHARP reserves the right to

make design and specification changes for product improvement without prior notice.

The performance specification figures indicated are nominal values of production

units. There may be some deviations from these values in individual units.

Compression scheme MR MH Sharp (H2)

Applicable telephone line Public switched telephone network

Compatibility ITU-T (CCITT) G3 mode

Input document size Automatic feeding:

Width: 148 to 216 mm

Length: 140 to 297 mm

Manual feeding:

Width: 148 to 216 mm

Length: 140 to 600 mm

Effective scanning width 210 mm max.

Effective printing width 210 mm max.

Contrast control Automatic/Dark selectable

Reception modes Fax Tel Fax/Tel A.M.

Copy function Yes

elephone function Yes (cannot be used if power fails)

Power requirements 230-240 V AC 50 Hz

Operating temperature 5° - 35°C

Humidity Maximum: 85% RH

Power consumption Standby: 2.3 W

Maximum: 115 W

Dimensions Width: 304 mm

Depth: 236 mm

Height: 122 mm

Weight Approx. 2.6 kg

all-Fo50A.book Page 4 Friday, October 1, 1999 5:32 PM

All manuals and user guides at all-guides.com

Important safety information

• For your safety if any of your equipment is not operating properly

or should any physical damage occur to the equipment where inter-

nal parts may become exposed the equipment should be immedi-

ately disconnected from the phone line and then the power line and

returned to a SHARP authorised Service Centre for inspection

repair or disposal.

• In Australia installing or modifying telephone lines should only be

done by an ACA licensed serviceman. In New Zealand installing or

modifying telephone lines should be done in accordance with Tele-

com wiring practices.

• Do not disassemble this machine or attempt any procedures not

described in this manual. Refer all servicing to qualified service

personnel.

• This machine must only be connected to a 230-240 V 50 Hz

earthed (3-prong) outlet. Connecting it to any other kind of outlet

may damage the machine.

• Do not install or use the machine near water or when you are wet.

For example do not use the machine near a bath tub wash bowl

kitchen sink or laundry tub in a wet basement or near a swimming

pool. Take care not to spill any liquids on the machine.

• Unplug the machine from the telephone socket and then the power

outlet and consult a qualified service representative if any of the fol-

lowing situations occur:

- Liquid has been spilled into the machine or the machine has been

exposed to rain or water.

- The machine produces odors smoke or unusual noises.

- The power cord is frayed or damaged.

- The machine has been dropped or the housing damaged.

• Do not allow anything to rest on the power cord and do not install

the machine where people may walk on the power cord.

all-Fo50A.book Page 5 Friday, October 1, 1999 5:32 PM

All manuals and user guides at all-guides.com

all-guides.com

• Never insert objects of any kind into slots or openings on the

machine. This could create a risk of fire or electric shock. If an

object falls into the machine that you cannot remove unplug the

machine and consult a qualified service representative.

• Do not place this machine on an unstable cart stand or table. The

machine could be seriously damaged if it falls.

• Never install telephone wiring during a lightning storm.

• Never install telephone sockets in wet locations unless the socket is

specifically designed for wet locations.

• Never touch bare telephone wires or terminals unless the telephone

line has been disconnected at the network interface.

• Use caution when installing or modifying telephone lines.

• Avoid using a telephone (other than a cordless type) during an elec-

trical storm. There may be a remote risk of electric shock from

lightning.

• Do not use a telephone to report a gas leak in the vicinity of the

leak.

• The socket-outlet must be installed near the equipment and must be

easily accessible.

WARNING NO ICE: NO calls can be made to or from this fax

during a mains power failure.

WARNING: Australian Communications Authority (ACA)

regulations state that no unauthorised changes or modifications to this

equipment are permitted.

Note: Complies with ACA and NZ TELECOM standard AS/

NZS3548 regarding emission of electromagnetic interference.

all-Fo50A.book Page 6 Friday, October 1, 1999 5:32 PM

All manuals and user guides at all-guides.com

These limits are designed to provide reasonable protection against

interference in an installation. This equipment generates uses and can

radiate radio frequency energy and if not installed and used in

accordance with the instructions may cause interference. However

there is no guarantee that interference will not occur in a particular

installation.

If this equipment does cause interference to radio or television

reception which can be determined by turning the equipment off and

on the user is encouraged to try to correct the interference by one or

more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and the receiver.

- Connect the equipment to an outlet on a different circuit to that

which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

For Australia: The Ringer Equivalence Number (REN) for this

equipment is written on the back of the machine.The sum of all the

Ringer Equivalence Numbers (REN's) on your telephone line should

not exceed 3 to assure correct service from your telephone company.

Important:

• This facsimile machine is not designed for use on a line which has

call waiting call forwarding or certain other special services

offered by your telephone company. If you attempt to use the fax

machine on a telephone line using any of these services you may

experience errors during transmission and reception of facsimile

messages.

• This facsimile machine is not compatible with digital telephone sys-

tems.

• This facsimile machine is designed to operate in Australia and New

Zealand only.

all-Fo50A.book Page 7 Friday, October 1, 1999 5:32 PM

All manuals and user guides at all-guides.com

Important Notice For New Zealand Users

Please note:

The grant of a Telepermit for any item of terminal equipment

indicates only that Telecom has accepted that the item complies with

the minimum conditions for connection to its network.

It indicates no endorsement of the product by Telecom nor does it

provide any sort of warranty. Above all it provides no assurance that

any item will work correctly in all respects with another item of

Telepermitted equipment of a different make or model nor does it

imply that any product is compatible with all of Telecom's network

services.

This equipment is not capable under all operating conditions of

correct operation at the higher speeds for which it is designed.

Telecom will accept no responsibility should difficulties arise in such

circumstances.

This equipment shall not be set up to make automatic calls to the

Telecom '111' Emergency Service.

To avoid telephone charges for local calls be sure to store numbers

"without" area code in your rapid or speed dial locations.

This equipment may not provide for the effective hand-over of a call

to another device connected to the same line.

Not all standard telephones and answering machines will respond to

imcoming ringing when connected to the extenison socket of the

equipment.

all-Fo50A.book Page 8 Friday, October 1, 1999 5:32 PM

All manuals and user guides at all-guides.com

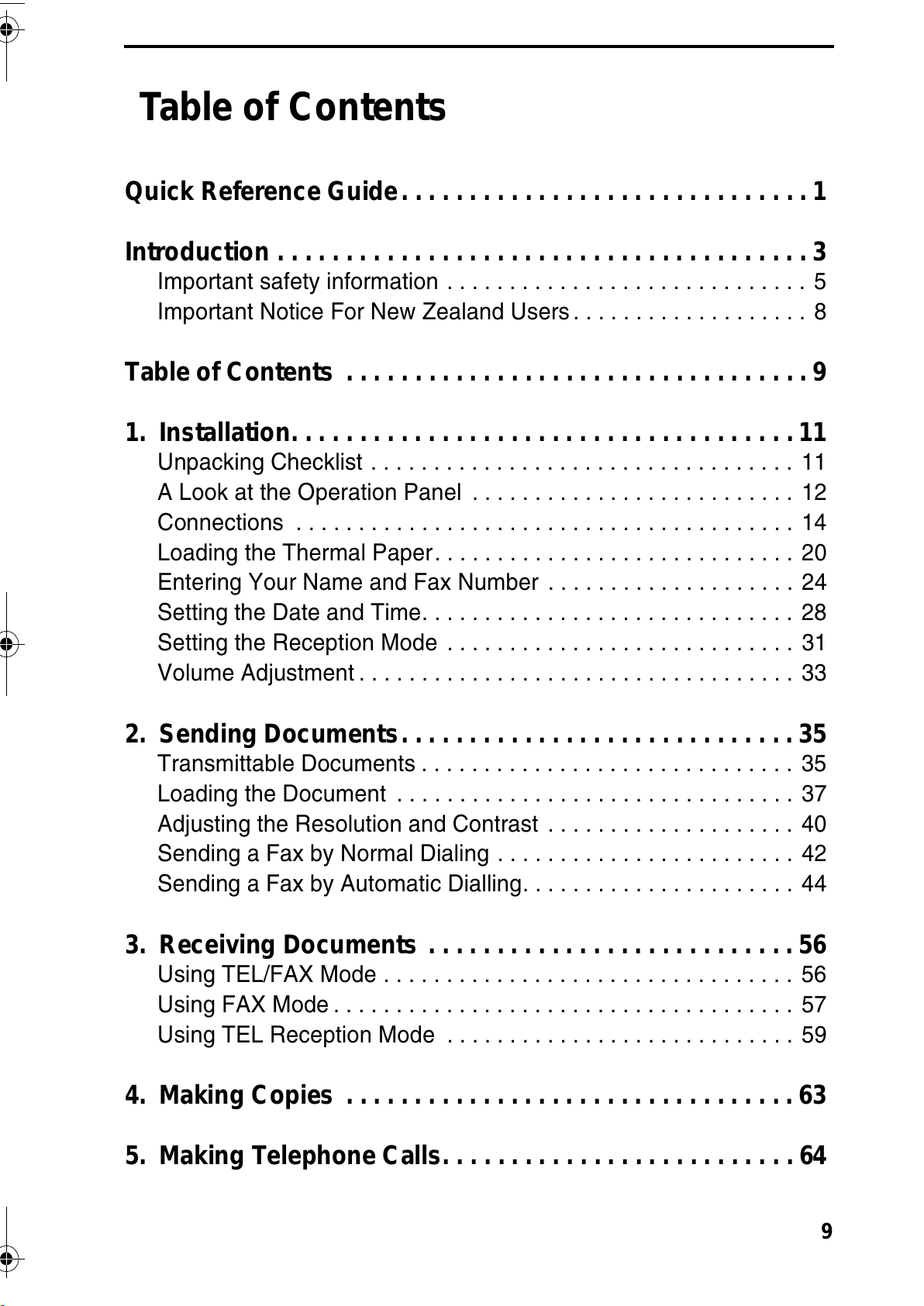

Table of Contents

Quick Reference Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Important safety information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Important Notice For New Zealand Users . . . . . . . . . . . . . . . . . . . 8

Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

1. Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Unpacking Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

A Look at the Operation Panel . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Loading the Thermal Paper. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Entering Your Name and Fax Number . . . . . . . . . . . . . . . . . . . . 24

Setting the Date and Time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Setting the Reception Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Volume Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

2. Sending Documents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Transmittable Documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Loading the Document . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Adjusting the Resolution and Contrast . . . . . . . . . . . . . . . . . . . . 40

Sending a Fax by Normal Dialing . . . . . . . . . . . . . . . . . . . . . . . . 42

Sending a Fax by Automatic Dialling. . . . . . . . . . . . . . . . . . . . . . 44

3. Receiving Documents . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Using TEL/FAX Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Using FAX Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Using TEL Reception Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

4. Making Copies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

5. Making Telephone Calls. . . . . . . . . . . . . . . . . . . . . . . . . . 64

all-Fo50A.book Page 9 Friday, October 1, 1999 5:32 PM

All manuals and user guides at all-guides.com

Otros manuales para FO-50

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Máquina de fax de Sharp

Sharp

Sharp FO-780 Manual de usuario

Sharp

Sharp FO-2950M - B/W Laser - All-in-One Manual de usuario

Sharp

Sharp FO-2950M - B/W Laser - All-in-One Manual de usuario

Sharp

Sharp AR-FX11 Manual de usuario

Sharp

Sharp FO-1660M Manual de usuario

Sharp

Sharp FO-780A Manual de usuario

Sharp

Sharp UX-40 Manual de usuario

Sharp

Sharp UX-108 Manual de usuario

Sharp

Sharp UX-A760 Manual de usuario

Sharp

Sharp FACSIMILE FO-2950M Manual de usuario

Sharp

Sharp FO-77 Manual de usuario

Sharp

Sharp UX305 - UX 305 B/W Thermal Transfer Manual de usuario

Sharp

Sharp MX-B201D Manual de usuario

Sharp

Sharp FO-155 Manual de usuario

Sharp

Sharp FO-3150 Manual de usuario

Sharp

Sharp XUX-510 Manual de usuario

Sharp

Sharp UX-B800SE - B/W Inkjet - Fax Manual de usuario

Sharp

Sharp UX-1100 Manual de usuario

Sharp

Sharp FO-IS115N Manual de usuario

Sharp

Sharp UXB700E Manual de usuario

Sharp

Sharp UX-B30 Manual de usuario

Sharp

Sharp FO-155 Manual de usuario

Sharp

Sharp UX-B700 Manual de usuario

Sharp

Sharp FO-145 Manual de usuario

Manuales populares de Máquina de fax de otras marcas

Samsung

Samsung SF-515 Manual de usuario

Radio Shack

Radio Shack TFX-1031 Manual de usuario

imagistics

imagistics 2030 Manual

Panasonic

Panasonic KX-FL501C Manual de usuario

Panasonic

Panasonic KX-FP200L Manual de usuario

Furuno

Furuno FAX-30 Manual de usuario

Savin

Savin 3740 Manual

Muratec

Muratec MFX-C3035 Manual de usuario

Panasonic

Panasonic KX-PD505DL Manual de usuario

Panasonic

Panasonic KX-FC265CX-S Manual de usuario

Canon

Canon FAX-L400 Manual de usuario

Ricoh

Ricoh 1000L Guía de inicio rápido

Kyocera

Kyocera KM-F1060 Manual de usuario

Panasonic

Panasonic KX-F850 Manual de usuario

Panasonic

Panasonic KX-FLM652CX Manual de usuario

Panasonic

Panasonic KX-F1000BX Manual de usuario

Canon

Canon JX510P Manual de usuario

Mita

Mita LDC-870 Manual
