Sharp Shuttle PN-SPCi5W7 Manual de usuario

PN-SPCi5W7H

INSTALLATION

GUIDE

CONTENTS

INSTALLATION INSTRUCTIONS

Computer Bracket Installaon

Power Adapter Bracket Installaon

Peripheral Connecon

SOFTWARE

Power On-O Instrucon

Windows 8 Language Opons

Recovery Paron

COMPUTER HARDWARE

Computer Specicaons

Warranty Statement

Windows Product Key Locaon

COMPUTER BRACKET INSTALLATION:

VESA Mount Instruction

INSTALLATION INSTRUCTIONS

1

Line up the four VESA Mount holes in the center to the four 100x100

Paern holes furthest to the right of the panel. Ensure the VESA Mount

has the two pins facing the boom and Thumb Screw Slits on the top.

It is recommended to slide the VESA mount bracket furthest to the

right before ghtening. Use the four screws provided in the accessory

box to retain the VESA Mount to the Display.

Remove the PC Media Player from the packaging and begin to remove

the two thumb screws by twisng counter-clockwise. Aer removing

the thumb screws, separate the PC Media Player from the VESA mount.

You should have the PC Media Player in one hand and the VESA mount

in the other.

INSTALLATION INSTRUCTIONS

2

Take the Computer and posion the Power Buon facing outwards.

Place the boom of the Computer on the two pins and push the top

of the Computer into the VESA Mount.

Now to install the Computer to the Aquos Board using the VESA

Mount. Use the thumb screws that were originally used

to aach the VESA mount to the Computer and rst go through

the VESA Mount then into the Computer. Installing your PC

Media players VESA mount is now complete.

POWER ADAPTER

BRACKET INSTALLATION

INSTALLATION INSTRUCTIONS

3

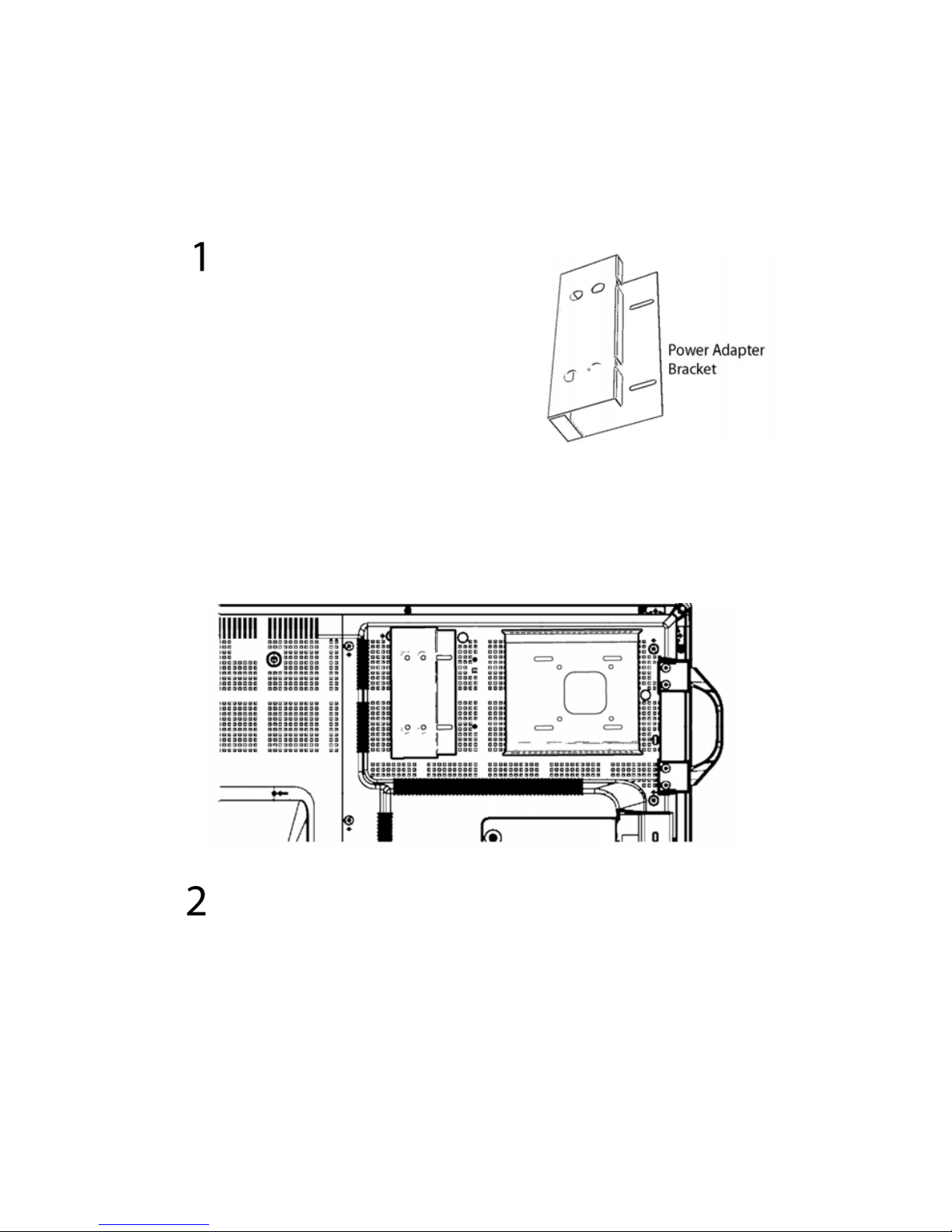

Remove the Power Adapter Bracket

from the Accessory box. Posion

the long solid edge inwards and the

empty edge facing outwards. Screw

the Power Adapter Bracket onto the

available holes to the le of the

panel. Move the Power Adapter

Bracket le to right for proper

adjustments to give more space

around your cables.

Slide the Power Adapter into the bracket with the Three

Prong on top and the Power Connecon to the PC Media

Player at the boom. Procedure for mounng the Power

Adapter Bracket is now complete.

INSTALLATION INSTRUCTIONS

PERIPHERAL CONNECTION GUIDE

PN-L603A/B, PN-L703A/B Series

4

*RJ11 Installation

RJ11 cable must be connected to the two pins furthest to the

right above the power icon. Please insure that the yellow cable

is on the top pin.

*

*

5

SOFTWARE

POWER ON-OFF INSTRUCTION GUIDE

SOFTWARE

6

WINDOWS 8 LANGUAGE OPTIONS

1] Hover over the right corner of your screen and select the sengs buon.

2] Click Change PC Sengs

3] Select Time and Language

SOFTWARE

7

WINDOWS 8 LANGUAGE OPTIONS CONT.

4] Select Region and Language

5] Click on Add a Language

6] Select French Language

SOFTWARE

8

7] Once the download completes, click on the language and set as primary.

8] Click the right corner of your tray and select French (Canada.)
