Sharp PN-TPCi7W7 Manual de usuario
PN-TPCi7W7
User Guide
Version – 1
Getting Started
1
Getting Started
Introduction to PN-TPCi7W7
The PN-TPCi7W7 is a full-featured High Definition PC based upon Intel
H67®architecture, and powered by an Intel®Core™ i7 CPU. Targeted
for Commercial applications such as interactive digital white boards,
the PN-TPCi7W7 has been optimized for reliable operation with Sharp®
PN-L series touch screen displays. The PN-TPCi7W7 includes the Sharp
Pen Software™ installer application loaded on the hard disk. It also has
the flexibility to run most third party software and custom applications.
The PN-TPCi7W7 supports true 1080P video with hardware assisted
support for formats such as MPEG2, H.264, and WM9. The PN-
TPCi7W7 was designed with display integration in mind and features a
full complement of video outputs including HDMI®
and DVI. The unit
also includes an embedded Wireless 802.11 B/G/N module, RS232 port
for display control and a custom mounting bracket specially designed
to attach behind a Sharp PN-L series touch screen display. The PN-
TPCi7W7’s all metal chassis and small form factor make it ideal for
commercial applications requiring a powerful yet compact PC.
Package Contents
The packing box should contain the following
items:
Technovare™ PN-TPCi7W7
AC Power Adapter
Mounting Kit
HDMI®
DVI to VGA adapter
Cable
Connection Diagram
System Recovery Discs
Getting Started
2
Federal Communications Commission (FCC)
Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with instructions contained in
this manual, may cause harmful interference to radio and television
communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following
measures:
- REORIENT OR RELOCATE THE RECEIVING ANTENNA
- INCREASE THE SEPARATION BETWEEN THE EQUIPMENT AND THE RECEIVER
- CONNECT THE EQUIPMENT INTO AN OUTLET ON A CIRCUIT DIFFERENT FROM
THAT OF THE RECEIVER
- CONSULT THE DEALER OR AN EXPERIENCED AUDIO/TELEVISION
TECHNICIAN
NOTES:
Connecting this device to peripheral devices that do not comply with Class B
requirements, or using an unshielded peripheral data cable, could also result in
harmful interference to radio or television reception.
The user is cautioned that any changes or modifications not expressly approved by
the party responsible for compliance could void the user’s authority to operate this
equipment. To ensure that the use of this product does not contribute to
interference, it is necessary to use shielded I/O cables.
Specifications
3
Specifications
Chipset
oIntel®H67
Size
oMini-ITX form factor
oCase: 7.5” x 7.4” x 1.75”
Microprocessor support
oIntel®Core™ i7-3770T®Quad-Core CPU @ 2.5GHz
Operating systems:
oSupports Windows®XP®32bit/64bit, Windows Vista®
32bit/64bit, and Windows 7 ®32bit/64bit
oSupports Linux®
oWindows 7 Pro installed 64bit
Software Included:
oSharp®Pen Software™ Installer
oSharp® SDSS Digital Signage Software Trial
Software Installed:
oMicrosoft®Internet Explorer®
oMicrosoft PowerPoint®Viewer
oWindows Media®Player
oQuickTime®Player
oAdobe®Flash® Player Plug-in
System Memory support
oSupports DDR3 1333/1066
oSupports up to 16GB (2 x 8GB)
o4GB installed – both slots occupied and need to remove
the current memory modules to upgrade
USB 2.0 Ports
oSupports hot plug and play
oFour USB 2.0 ports (rear panel ports)
oTwo onboard USB headers for four extra ports
oSupports USB 2.0 protocol up to 480 Mbps transmission
rate
Hard Disk Drive
o2.5” 500GB SATA
Onboard Serial ATA II/III
oSupports 1x SATA II (300 MB/s transfer rate)
oSupports 2x SATA III (600 MB/s transfer rate)
oRear panel e-SATA
oSupports hot plug and Native Command Queuing
Specifications
4
Specifications (con’t)
On board RealTek™ 8111E Gigabit LAN Chip
oSupports 10/100/1000Mbps operation
o1 x RJ45 LAN Port
Onboard Audio
oRealTek™ ALC888S High-Definition audio chip
oSupports up to 8-channel (2/4/5.1/7.1-channel)
o8-Channel Audio Ports on Back Panel
oSupports Jack-Sensing function (under Windows)
oSupport for S/PDIF Out Header (Internal)
Green Function
oSupports ACPI (Advanced Configuration and Power
Interface)
oSupports EuP Function
oRTC timer to power-on the system
oAC power failure recovery
oSupports S0 (normal), S1 (power on suspend), S3
(suspend to RAM), S4 (suspend to disk), and S5 (soft - off)
Onboard Graphics support
oIntegrated Intel®HD 4000 graphics engine
oDVI-I / HDMI®output support (Dual Header capable)
Integrated HDMI®Interface with HDCP
oSupports DVI or HDMI 1.4 interfaces
oSecure digital audio merged from integrated HDA codec
with no external audio signals required
oSupport for HDCP 1.3 using soft or hard HDCP keys
oHDCP encryption support when configured as DVI or HDMI
link without the need for external HDCP key crypto ROM
Dual Head Display Controller
oEach controller can drive same or different display
contents to different resolutions and refresh rates
Expansion Slots
o1 x PCIe 2.0 x16 slot
o1 x COM1 Header
oLow power consumption and power management features
Specifications
5
Specifications (con’t)
Optional
oWatchdog timer
Environmental
oOperating Temperature: 0° to 40° C
oOperating Humidity: 80% maximum relative humidity,
non-condensing
Power
oInput Voltage: 12V 7A
oPower Dissipation: 70 Watts
Wireless
oWLAN 150Mbps
o2.4GHz 802.11 b/g/n
o6dBi Antenna
Installation
6
Mounting PN-TPCi7W7 on Sharp PN-L Series
Displays
1. Before beginning
Make sure to turn off the monitor and remove the AC power.
2. Items needed
•Sharp PN-L Series Touch-Screen Display
•PN-TPCi7W7
•Mounting Plate
•AC Power Adapter
•4 x M4 (0.7x10mm) screws
•2 x M3 (0.5x5 mm)
•Phillips®Screw Driver
3. Attach the mounting plate
There are 8 holes on the mounting
plate, but only use 4 holes to
match the monitor’s mounting
holes depending on the monitor
model.
The mounting plate is attached to
the Sharp “PN-L” series display as
in Figure 2.
Secure the mounting plate to the
monitor with four included M4 screws.
*NOTE- Do not use the holes marked with the red x
Figure 1
Figure 2
Installation
7

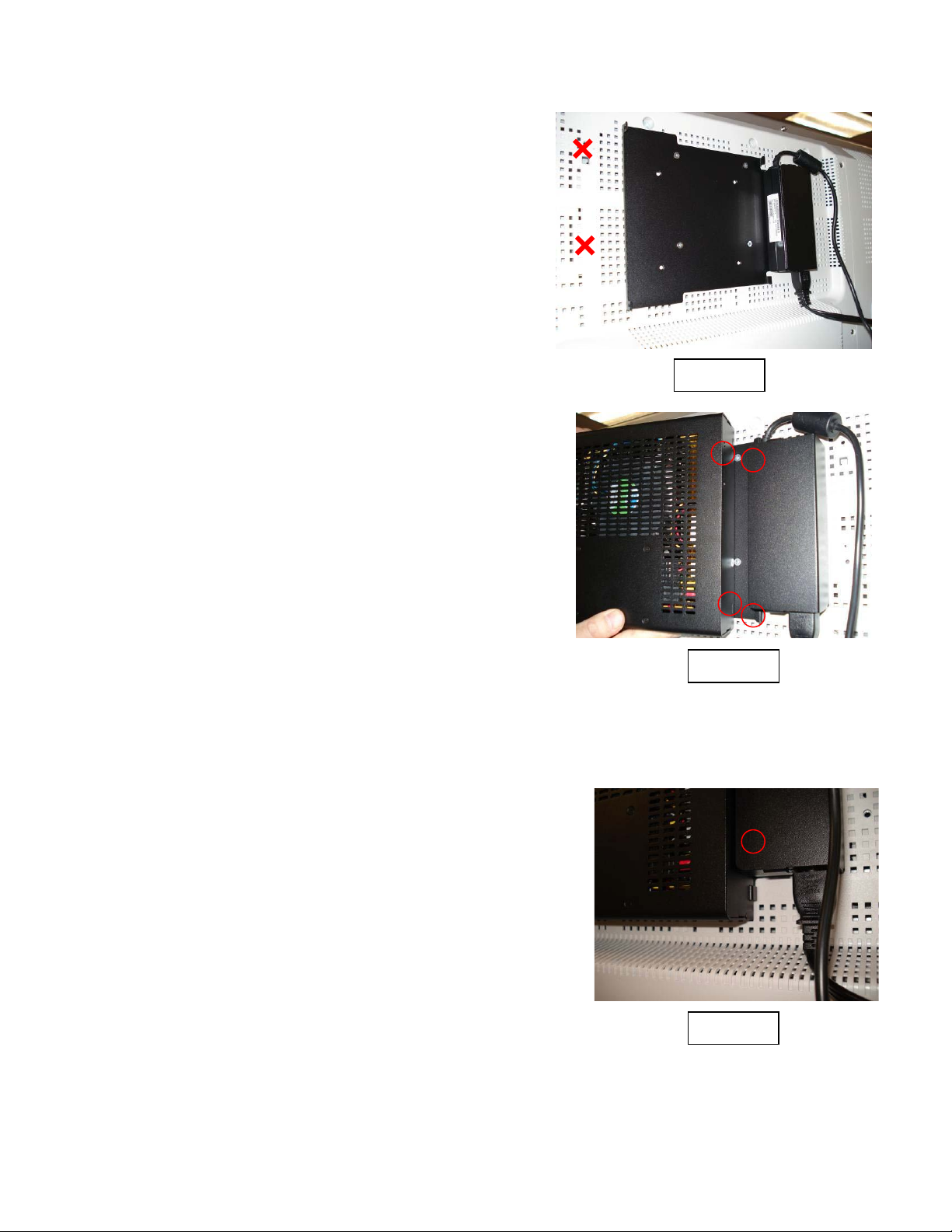

4. Set the AC power adapter in
place
Place the AC power adapter into
the holder on the right side of
the mounting plate as in Figure
3.
AC power cord faces downward
and the DC power cord to the
PN-TPCi7W7 faces upward.
5. Install the PN-TPCi7W7
If you look at the right side of the
PN-TPCi7W7 before sliding it into
the mounting plate as in Figure 4,
there are two small slits near the
edges on the PN-TPCi7W7 and
two small fingers on either side of
AC power adapter holder on the
mounting plate.
As you slide the PN-TPCi7W7 into
the mounting plate, insert the
two fingers into these slits as in
Figure 5.
Figure 4
Figure 3
Figure 5
Installation
8
There are two fingers on the left
side of the mounting plate to
catch the PN-TPCi7W7 in place as
shown in Figure 6, and they need
to be tightened with two include
M3 screws.
6. Connect the HDMI video cable and
the USB cable prior to turning on the
PN-TPCi7W7.
7. Finish
Plug in the DC power cord into
the PN-TPCi7W7’s power
connector as in Figure 7.
Figure 7
Figure 6
Installation
9
Rear Connector Layout
Audio Port 2-Channel 4-Channel 5.1-Channel
Blue Line-In Line-In Line-In
Green Line-Out Front Speaker Out Front Speaker Out
Pink Mic In Mic In Mic In
Orange N/A N/A Center/Subwoofer Out
Black N/A Rear Speaker Out Rear Speaker Out
Grey N/A N/A N/A
Audio Port 7.1-Channel
Blue Line-In
Green Front Speaker Out
Pink Mic In
Orange Center/Subwoofer Out
Black Rear Speaker Out
Grey Side Speaker Out
LAN Connector (with LED status indicator)
Green/Light Up/Blink = 10 Mbps/Link/Activity
Green and Green/Light Up/Blink = 100 Mbps/Link/Activity
Green and Orange/Light Up/Blink = 1000 Mbps/Link/Activity
Wireless Antenna Black 6dBi 2.4GHz wireless antenna
