Sharp AR-120E Manual de usuario

MODEL

AR-120E

•GETTING STARTED

•INSTALLATION

•MAKING COPIES

•SPECIAL FUNCTIONS

•SUPPLIES AND

USER MAINTENANCE

•COPIER TROUBLE?

•APPENDIX

DIGITAL LASER COPIER

OPERATION MANUAL

Page

CLASS 1 LASER PRODUCT

LASER KLASSE 1

LUOKAN 1 LASERLAITE

KLASS 1 LASERAPPARAT

VAROITUS!

LAITTEEN KÄYTTÄMINEN

MUULLA KUIN TÄSSÄ

KÄYTTÖOHJEESSA MAINITULLA

TAVALLA SAATTAA ALTISTAA

KÄYTTÄJÄN

TURVALLISUUSLUOKAN 1

YLITTÄVÄLLE

NÄKYMÄTTÖMÄLLE

LASERSÄTEILYLLE.

VARNING

OM APPARATEN ANVÄNDS PÅ

ANNAT SÄTT ÄN I DENNA

BRUKSANVISNING

SPECIFICERATS, KAN

ANVÄNDAREN UTSÄTTAS FÖR

OSYNLIG LASERSTRÅLNING,

SOM ÖVERSKRIDER GRÄNSEN

FÖR LASERKLASS 1.

CAUTION

VORSICHT

ADVARSEL

ADVERSEL

VARNING

VARO!

INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCKS DEFEATED.

AVOID EXPOSURE TO BEAM.

UNSICHTBARE LASERSTRAHLUNG WENN ABDECKUNG GE FFNET UND

SICHERHEITSVERRIEGELUNG BERER CKT. NICHT DEM STRAHL AUSSETZEN.

USYNLIG LASERSTR LING VED BNING, N R SIKKERHEDSAFBRYDERE ER

UDE AF FUNKTION. UNDGA UDSAETTELSE FOR STR LING.

USYNLIG LASERSTR LING N R DEKSEL PNES OG SIKKERHEDSL S BRYTES.

UNNG EKSPONERING FOR STR LEN.

OSYNLIG LASERSTR LNING N R DENNA DEL R PPNAD OCH SP RRAR R

URKOPPLADE. STR LEN R FARLIG. BETRAKTA EJ STR LEN.

AVATTAESSA JA SUOJALUKITUS OHITETTAESSA OLET ALTTIINA N KYM T NT

LASERS TEILYLLE. L KATSO S TEESEEN.

Laserstrahl

CLASS 1

LASER PRODUCT

LASER KLASSE 1

CONTENTS

1GETTING STARTED

INTRODUCTION 3

CAUTIONS 4

MAIN FEATURES 4

PART NAMES 6

OPERATION PANEL 7

2INSTALLATION

COPIER INSTALLATION 8

CAUTIONS ON HANDLING 9

LOADING COPY PAPER 10

3MAKING COPIES

NORMAL COPYING 11

– Setting a large original 13

EXPOSURE ADJUSTMENT/PHOTO COPYING 13

REDUCTION/ENLARGEMENT/ZOOM 14

BYPASS FEED (including special paper) 15

TWO-SIDED COPYING 15

SPECIAL FUNCTIONS

DESCRIPTION OF SPECIAL FUNCTIONS 17

HIGH IMAGE QUALITY MODE 17

USER PROGRAMS (power save modes, auto clear time) 18

– Setting the power save modes and auto clear time 18

5SUPPLIES AND

USER MAINTENANCE

TD CARTRIDGE REPLACEMENT 20

USER MAINTENANCE 22

– Cabinet 22

– Original table and original cover 22

– Transfer charger 22

– When copier is not in use 23

6COPIER TROUBLE?

MISFEED REMOVAL 24

– A Misfeed in the paper feed area 24

– B Misfeed in the fusing area 25

– C Misfeed in the transport area 26

MAINTENANCE REQUIRED 27

TROUBLESHOOTING 28

STATUS INDICATORS 29

DISPLAYINGTOTAL NUMBER OF COPIES 29

AUTOMATIC EXPOSURE ADJUSTMENT 30

7APPENDIX

SPECIFICATIONS 31

SUPPLIES 32

– Types and sizes of copy paper 32

INDEX

CONTENTS

Getting started

GETTING STARTED

This chapter provides basic information for using the copier.

INTRODUCTION

This copier has been designed to provide intuitive operating ease while requiring a minimum

amount of space.To get full use of all copier features, be sure to familiarise yourself with this

manual and the copier.

For quick reference during copier use, keep this manual in a handy location.

Conventions used in this manual

In this manual, the following icons are used to provide the user with information pertinent to the

use of the copier.

Warns the user that injury to the user or damage to the copier may result if

the contents of the warning are not properly followed.

Cautions the user that damage to the copier or one of its components may

result if the contents of the caution are not properly followed.

Notes provide information relevant to the copier regarding specifications,

functions,performance,operation andsuch, thatmaybeuseful tothe user.

Indicates a letter displayed in the display.

AB series (metric) and inch series references

When references are made to paper sizes and weights, the inch series values are quoted in

brackets.

For example:

Page 32 --------------------- 56 to 80 g/m2(15 to 21 lbs.)

A4 (8-1/2” x 11”)

Getting started

CAUTIONS

Follow the cautions below when using this copier.

●The fusing area is hot. Exercise care in this area when removing misfed

paper.

●Do not look directly at the light source.Doing so may damage your eyes.

●Donot switchthe copierrapidlyonand off.After turningthe copieroff, wait10

to 15 seconds before turning it back on.

●Copier power must be turned off before installing any supplies.

●Place the copier on a firm, level surface.

●Do not install the copier in a humid or dusty location.

●Whenthecopierisnotusedforlongtime,forexampleforconsecutiveholidays,

turn the power switch off and remove the power cord from the outlet.

●When moving the copier, be sure to turn the power switch off and remove the

power cord from the outlet.

●Do not cover the copier with a dust cover, cloth or plastic film while the power

is on.Doing so may prevent heat radiation, damaging the copier.

Use of controls or adjustments or performance of procedures other than those

specified herein may result in hazardous radiation exposure.

Cautions on laser

Wavelength 785 nm ±15 nm

Pulse times (10.7 µs ±4 ns)/7 mm

Output power 0.2 mW - 0.03 mW

MAIN FEATURES

High-speed laser copying

●Sincewarm-up timeis zero,copyingcan bestartedimmediately afterthe power switch is

turned on.

●First-copy time is only 9.6 seconds (normal mode).

●Copying speed is 12 copies/min.(AR-120E) or 15 copies/min.(AR-150E), which adapts

to business use, allowing improvement of working efficiency.

Getting started

MAIN FEATURES

High-quality digital image

●High-quality image copying at 600 dpi can be performed.

●Inaddition tothe automaticexposure mode,themanual exposurecan beadjusted infive

steps.

●Thephoto modecopyingfunction allowsclear copyingof delicatehalftoneoriginalimages

such as monochrome photos and colour photos.

Substantial copying functions

●Zoom copying from 50% to 200% in 1% increments can be performed.

●Continuous copying of maximum 99 sheets can also be performed.

●Toner save mode reduces toner consumption by approximately 10%.

●User programs allow setting/modification of functions for customer’s needs.

Scan once/ Print many (AR-150E only)

●The AR-150E is equipped with a 1-page memory buffer.This memory allows the AR-

150E to scan an original 1 time only and make up to 99 copies.This feature allows for

improved workflow, reduced operating noise from the copier and reduced wear and tear

on the scanning mechanism.This feature provides for a higher reliability.

Printer feature

●This copier can be used as a laser printer by installing an optional printer expansion kit.

Environmentally friendly design

●Paper output tray is housed in the copier for space saving.

●Preheatmode andauto power shut-offmode areprovidedtoreducepowerconsumption

in standby mode.

●This copier does not have an internal calendar or clock.

This copier will not be affected by the year 2000.

●Some models and options may not be available in some countries.

Getting started

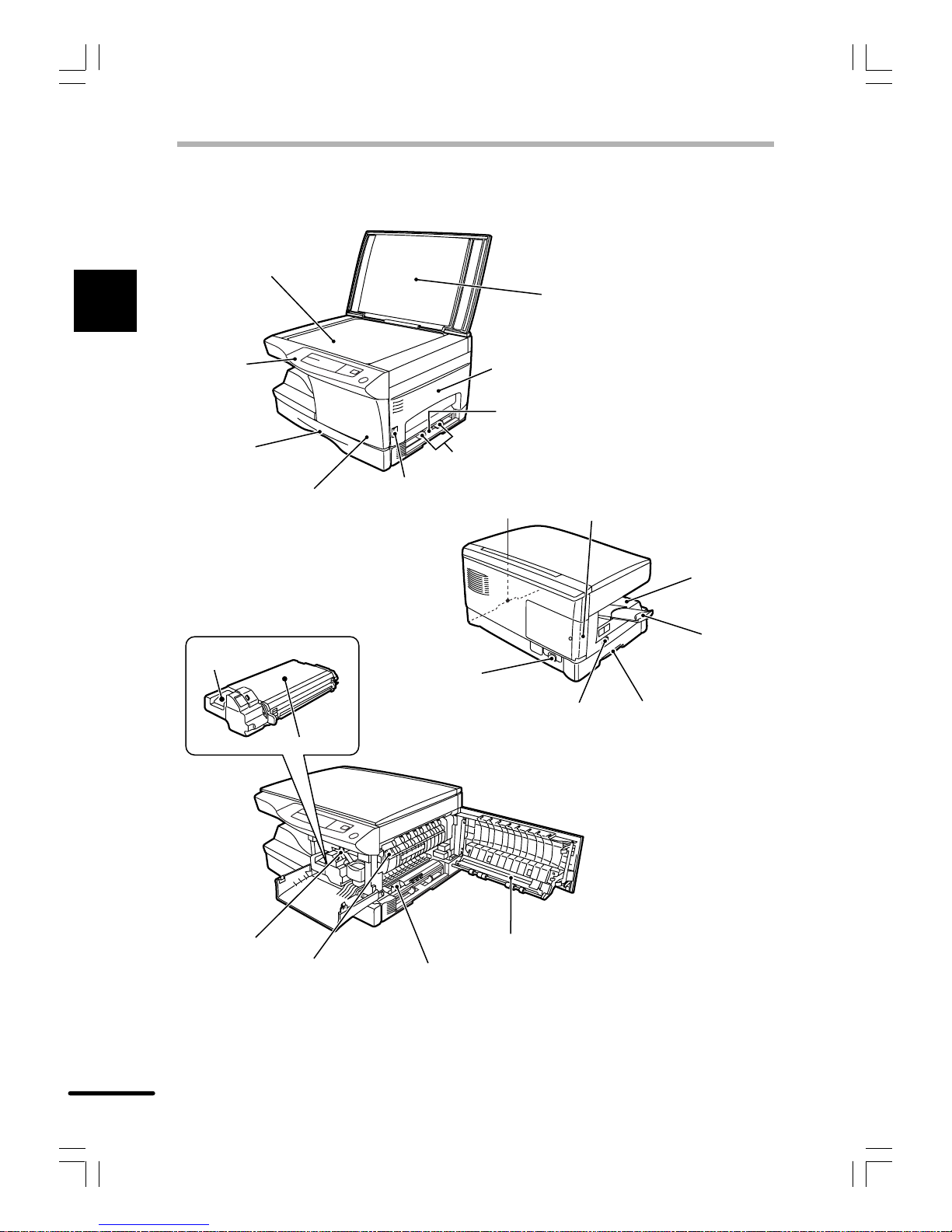

PART NAMES

Original table

Operation

panel

Paper tray

Front cover Side cover

open button

Original cover

Side cover

Power cord socket Handle

Power switch

Handle Cover for optional

printer interface

Paper guides

Manual bypass

Paper output

tray

Paper output tray

extension

Transfer charger

TD cartridge lock release

button

TD cartridge

Paper feed rollerFusing unit

release lever Charger cleaner

Getting started

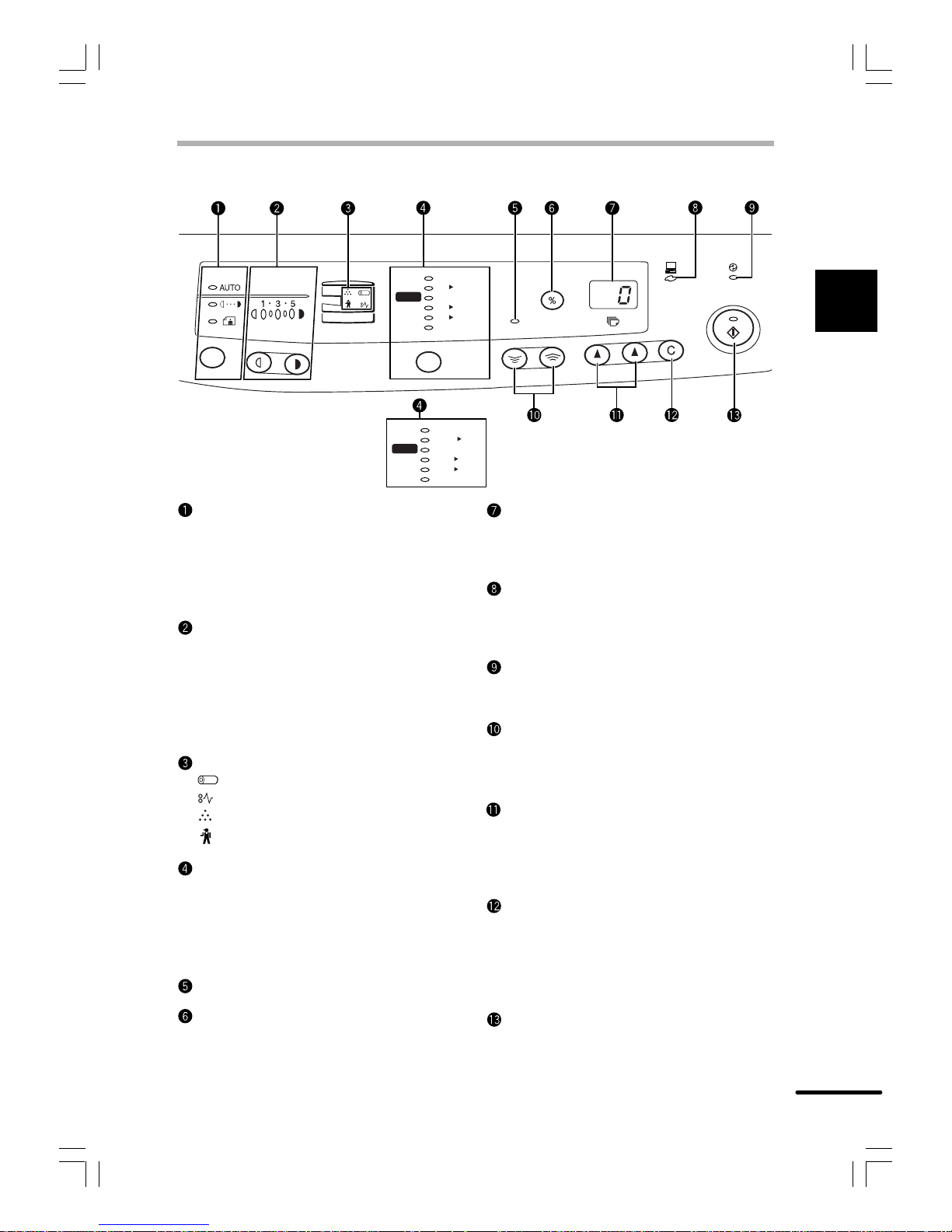

OPERATION PANEL

Exposure mode selector key and

indicators

Use to sequentially select the exposure

modes: AUTO, MANUAL or PHOTO.

Selected mode is shown by a lit indicator.

(p. 13)

Light and dark keys and exposure

indicators

Use to adjust the MANUAL or PHOTO

exposure level.Selected exposure level is

shown by a lit indicator.(p.13)

Use to start and terminate user program

setting.(p.18)

Alarm indicators

: Drumreplacement requiredindicator

: Misfeed indicator (p.24)

: Toner required indicator (p.20)

: Maintenance indicator (p.27)

Copy ratio selector key and copy ratio

indicators

Useto sequentiallyselectpreset reduction/

enlargement copy ratios.

Selected copy ratio is shown by a lit

indicator.(p.14)

Zoom indicator (p.14)

Copy ratio display (%) key (p.14)

Display

Displays thespecified copyquantity, zoom

copy ratio, user program code, and error

code.

ON LINE indicator

Lights up when the machine is used as a

printer. To use the copier as a printer, an

optional printer expansion kit is needed.

Power save indicator

Lightsupwhenthecopier isin apowersave

mode.(p.17,18)

Zoom keys

Useto selectanyreduction orenlargement

copy ratio from 50 to 200% in 1%

increments.(p.14)

Copy quantity keys

●Use to select the desired copy quantity

(1 to 99).(p.12)

●Use to make user program entries.

(p.18)

Clear key

●Pressto clearthedisplay, orpressduring

a copy run to terminate copying.(p.12)

●Press and hold down during standby to

display the total number of copies made

to date.(p. 31)

Print key and ready indicator

●Copying ispossiblewhen theindicatoris

on.

●Use to set a user program.

50%

70%

81%

100%

141%

200%

100%

ZOOM

50%

64%

78%

100%

129%

200%

100%

MAX.

MIN.

281

211

214

211

Inch system

Installation

INSTALLATION

Follow the installation procedure below to use the copier properly.

COPIER INSTALLATION

Improperinstallation may damagethe copier.Please notethefollowingduring initialinstallation

and whenever the copier is moved.

If the copier is moved from a cool place to a warm place, condensation may

form inside the copier. Operation in this condition will cause poor copy quality

and malfunctions. Leave the copier at room temperature for at least 2 hours

before use.

Do not install your copier in areas that are:

●damp, humid, or very dusty

●exposed to direct sunlight

●poorly ventilated

●subject to extreme temperature or humidity

changes, e.g., near an air conditioner or

heater.

Otros manuales para AR-120E

Tabla de contenidos

Otros manuales de Copiador de Sharp

Sharp

Sharp AR-LC1 Manual de usuario

Sharp

Sharp AR-287 Manual de usuario

Sharp

Sharp AR-285 Manual de usuario

Sharp

Sharp AR-287 Manual de usuario

Sharp

Sharp AR-800 imager Manual de usuario

Sharp

Sharp AR-M250 series Online Guía de configuración

Sharp

Sharp AL-1000 Series Manual de usuario

Sharp

Sharp AL-1640 - B/W Laser - Copier Manual de usuario

Sharp

Sharp SF-2314 Manual de usuario

Sharp

Sharp AR-150 SERIES Manual de usuario

Sharp

Sharp SF-2050 Manual de usuario

Sharp

Sharp AR-M161 Manual de usuario

Sharp

Sharp SF-2050 Manual de usuario

Sharp

Sharp AR-160 Manual de usuario

Sharp

Sharp SF-741 Manual de usuario

Sharp

Sharp Multi Access Manual de usuario

Sharp

Sharp MX-M314N Manual de usuario

Sharp

Sharp AR-156 Manual de usuario

Sharp

Sharp AR-M160 Manual de usuario

Sharp

Sharp Z-810 Manual de usuario

Sharp

Sharp AR-160 Manual de usuario

Sharp

Sharp MX-2301N Manual de instalación y funcionamiento

Sharp

Sharp SF-7400 Manual de usuario

Sharp

Sharp AL-2020 Guía de configuración

Manuales populares de Copiador de otras marcas

Canon

Canon iR1210 Manual de referencia

Ricoh

Ricoh FW740 Manual de usuario

Minolta

Minolta CF910 Manual de usuario

Ricoh

Ricoh B003 Manual de usuario

Xerox

Xerox EC70 Manual de usuario

Oce

Oce 9800 Manual de usuario

Olivetti

Olivetti d-Copia 1800 Manual de usuario

Minolta

Minolta Di181 Manual de usuario

Canon

Canon iR5000i Manual de usuario

Telecrane

Telecrane F25 Manual de usuario

Xerox

Xerox WorkCentre Pro 40 Manual de usuario

Canon

Canon NP6317 Cómo utilizar

Ricoh

Ricoh Di-C1 Manual de usuario

Mita

Mita MIP-2400 Manual

Muratec

Muratec MFX-C2280 Manual de usuario

Ricoh

Ricoh FT5034C Manual de usuario

Minolta

Minolta EP4000 Manual de usuario

Ricoh

Ricoh V-C3 Guía de instalación
