Sharp AL-841 Manual de usuario

PRINTED IN CHINA

TINSE7318XCZZ

SHARP CORPORATION

99M

Page

●

GETTING STARTED

●

PRINTING

●

SCANNING

●

TROUBLE?

●

APPENDIX

AL-841

MODEL

DIGITAL LASER COPIER/

PRINTER/SCANNER

OPERATION MANUAL

AL-841

This device complies with Part 15 of the FCC rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference,

and (2) this device must accept any interference received, including interference

that may cause undesired operation.

WARNING:

FCC Regulations state that any unauthorized changes or modifications to this

equipment not expressly approved by the manufacturer could void the user’s

authority to operate this equipment.

Note:

This equipment has been tested and found to comply with the limits for a Class

B digital device, pursuant to Part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and

on, the user is encouraged to try to correct the interference by one or more of

the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

●

♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠

♠

♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠

♠

♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠

♠

♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠

♠

Shielded cables must be used with this equipment to maintain compliance

with FCC regulations.

CONTENTS

1GETTING STARTED

INTRODUCTION 2

– Making floppy disks from CD-ROM 3

MAIN FEATURES 3

CONNECTINGTHE INTERFACE CABLE 4

INSTALLINGTHE PRINTER DRIVER SOFTWARE 5

– Description of the printer driver 5

– Checking the hardware and software requirements 5

– Installing the printer driver 5

– “SHARP AL-841” driver group 11

2PRINTING

PRINTING A PAGE 12

– Executing printing 12

– Indicators on the operation panel 13

SETTING PRINT CONDITIONS FROM PRINTER DRIVER 14

PRINTING FROM AN MS-DOS APPLICATION 16

– Print setting from the MS-DOS prompt 16

– Setting on the front panel 17

– Software printer setting 17

3SCANNING

SCANNING AN IMAGE 18

– Scanning from aTWAIN-compatible application 19

– Exiting from AL-841TWAIN software 19

4TROUBLE?

TROUBLESHOOTING 20

USING OTHER INSTALLED DRIVERS 22

UNINSTALLING DRIVERS 23

APPENDIX

PRINTER SPECIFICATIONS 24

SCANNER SPECIFICATIONS 25

PARALLEL INTERFACE 26

PRINT AREA 27

Getting Started

GETTING STARTED

This chapter provides basic information for using the SHARP AL-841 and its features.

INTRODUCTION

This manual describes only the printer and scanner features of the AL-841.To get full use of all

printer and scanner features, familiarize yourself with this manual.

For quick reference during machine use, keep this manual in a handy location.

For a description of other features, refer to their separate manuals.

Conventions used in this manual

In this manual, the following icons are used to provide the user with information pertinent to the

use of the machine.

Cautions the user that damage to the machine or one of its components may

result if the contents of the caution are not properly followed.

Notes provide information relevant to the machine regarding specifications,

functions, performance, operation and such, that may be useful to the user.

●When you try to execute printing while copying is being performed, printing

will be executed after copying is finished.

●When you try to make a copy while printing is being performed, printing will

beinterruptedandyoucanmake a copy.Printingwillberesumedaftercopying

is finished.

Trademark acknowledgments

Windows, MS-DOS, Windows NT and Windows Printing System are trademarks of Microsoft

Corporation in the U.S.A.and other countries.

IBM, PC/AT and OS/2 are trademarks of International Business Machines Corporation.

HP, LaserJet and PCL are trademarks of Hewlett-Packard Company.

All other trademarks and copyrights are the property of their respective owners.

Getting Started

INTRODUCTION

Making floppy disks from CD-ROM

The driver data in the CD-ROM can be copied to floppy disks.

Windows 95/Windows 98/Windows NT 4.0:

Insert the installation CD-ROM into the CD-ROM drive.

Double-click My Computer, Al_841 (CD-ROM), and Makedisk.

Double-click Makedisk.exe.

Follow the on-screen instructions.

Windows 3.1x:

Insert the installation CD-ROM into the CD-ROM drive.

Double-click the File Manager in the Main window of Program Manager and select

CD-ROM and the Makedisk directory.

Double-click Makedisk.exe.

Follow the on-screen instructions.

MAIN FEATURES

Printing from Windows 3.1x,Windows 95,Windows 98, and Windows

NT 4.0 applications

●High-speedandhigh-qualityprinting can be performed fromWindows3.1x,Windows 95,

Windows98,andWindowsNT4.0applicationsthrough theSHARPGDI(GraphicsDevice

Interface) system.

●Since print data is processed in the computer, waiting time during printing is short.

Scanning fromWindows 3.1x,Windows 95,Windows 98,andWindows

NT 4.0 applications

●The SHARP TWAIN interface software enables the AL-841 to perform high-quality

monochrome scanning directly from aTWAIN-compatible application.

TWAIN is an application programme interface (API) standard which is used to

scan images from scanners.The SHARP TWAIN interface software supports

theTWAIN standard, version 1.6.

Getting Started

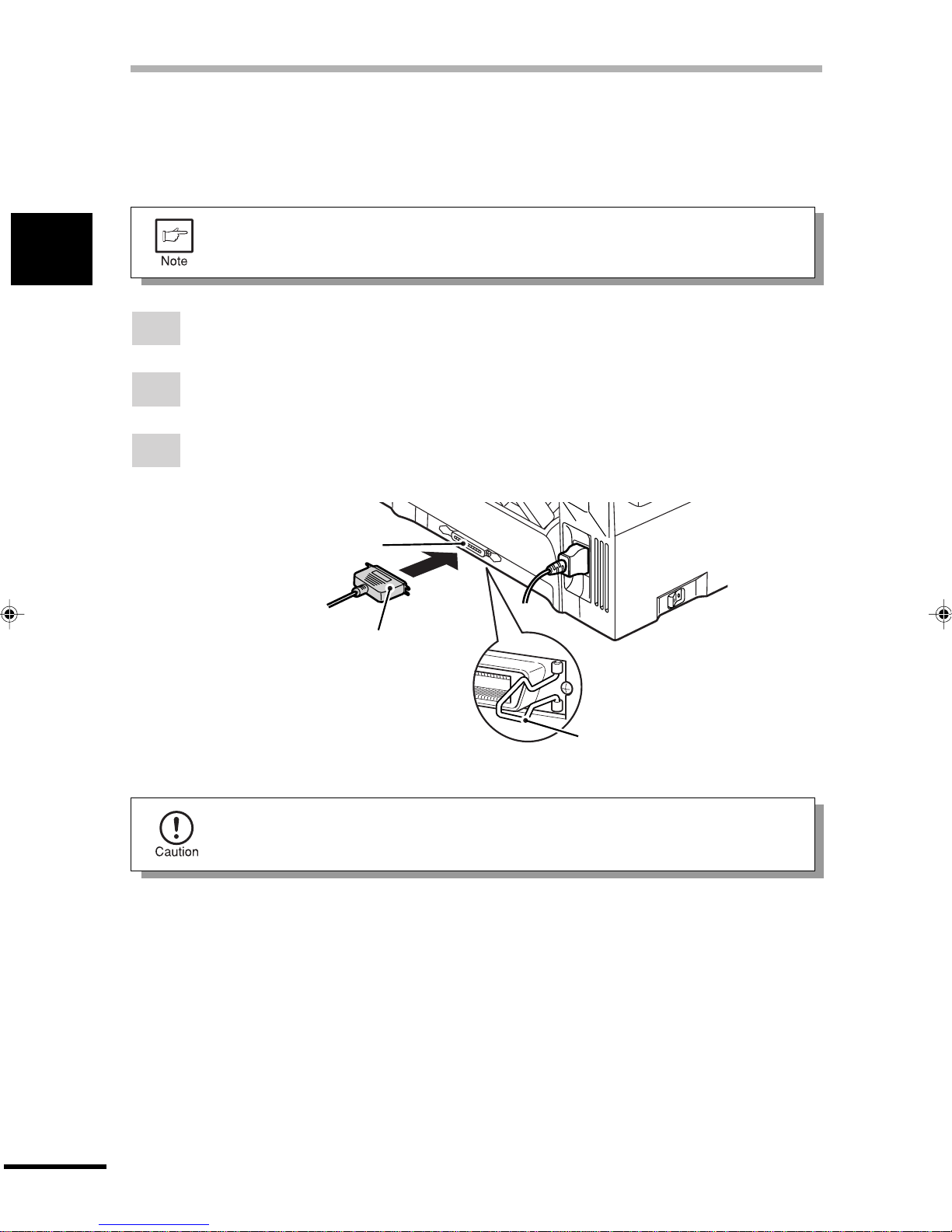

CONNECTING THE INTERFACE CABLE

To use the AL-841 as a laser printer or scanner, connect it to your computer using a parallel

interface cable.

Use the parallel interface cable included with the AL-841.

For specifications of the parallel interface, see page 26.

Check that the power switches of both the machine and the computer are in the OFF

position.

Plugtheparallelinterface cableinto the printer interface connector.Fasten the twobail

clips at the side of the printer connector to hold the interface connector in place.

Plug the other end of the cable into the parallel interface connector on your computer.

(Refer to your computer manual for details.)

Interface connector

Cable

Parallel interface

connector

Bail clip

Thismachinesendsandreceivesdata bi-directionally and at high speed.Some

switch boxesandpass-throughdevicescannotsupporthigh-speed,bi-directional

transfer of data, and using them may cause printing errors.

Getting Started

INSTALLINGTHE PRINTER DRIVER SOFTWARE

Description of the printer driver

The printer driver is the software program which runs the printer.It converts the data in your file

into information that the printer can understand. It also controls communication between the

printer and computer as the data is printed.

Checking the hardware and software requirements

You will need the following hardware and software in order to install the printer driver.

Computer type IBM PC/AT or compatible computer equipped with ECP

mode-equivalentbi-directional parallelinterfaceandCD-

ROM drive

Windows type Windows 3.1x,Windows 95,Windows 98,Windows NT

4.0

CPU 486DX 66MHz or better

Physical RAM Windows 95, Windows 3.1x: 8MB (16MB or more is

recommended.)

Windows NT 4.0:12MB (16MB or more is recommended.)

Windows 98:16MB (32MB or more is recommended.)

Virtual storage (swap file) 8MB or more

Display 640 x 480 dots (VGA) or better

Hard disk free space 11MB or more

The printer driver included in this product cannot be used underWindows NT

3.5x,OS/2,pureMS-DOS and other operatingsystemswhicharenotdescribed

above.

Installing the printer driver

Thesoftwareforyourmachine isprovidedontheCD-ROMwhichwaspackedwithyourmachine.

Before installing the printer driver, be sure to check the following items.

●Is the machine connected properly to the computer?

●Does the machine have paper?

●Is there another GDI printer driver or Windows Printing System printer driver already

installed? If installed, change the printer port setting. For instructions on changing the

printer port setting, see USING OTHER INSTALLED DRIVERS on page 22.

TheTWAIN software is automatically installed at the same time you install the

printer driver.See page 18.

Getting Started

INSTALLINGTHE PRINTER DRIVER SOFTWARE

Windows 95/Windows NT 4.0:

Load paper into the paper tray of the machine.For instructions on loading paper, see

the section LOADING COPY PAPER in the copier operation manual.

Turn on the machine.

Turn on your computer and start Windows.

Before installing the printer driver, be sure to close all other applications which

may be open.

WhenusingWindows 95 on apersonalcomputerwithplug&play*,the“UpdateDevice

Driver Wizard” window will appear. Insert the installation CD-ROM into the CD-ROM

drive.Click the Next buttonandfollow the on-screen instructions.If the“CopyingFiles”

window appears during this operation, enter R:\ (if the CD-ROM is designated as

drive R), click the OK button and follow the on-screen instructions.

●If you use Windows 95 and the “New Hardware Found” window will appear, select

Driver from Disk Provided by Hardware Manufacturer and then click the OK

button.Proceed to step 6.

●If you useWindows 95 and the screen shown above or the “New Hardware Found”

window does not appear, proceed to step 5.

●If you use Windows NT 4.0, proceed to step 5.

* Plug & Play

Thisfeatureiseffectiveif both thecomputerandperipheralequipmentareequipped

with an IEEE 1284 compliant parallel interface.

The screen displayed depends on the version of Windows you are using.

Getting Started

INSTALLINGTHE PRINTER DRIVER SOFTWARE

Insert the installation CD-ROM into the CD-ROM drive.

Click the Start button and select Run.When the screen shown below appears, type

R:\SETUP (if the CD-ROM is designated as drive R) and click the OK button.Follow

the on-screen instructions.

The “Install From Disk” window will appear. Insert the installation CD-ROM into the

CD-ROM drive.Type R:\ (if the CD-ROM is designated as drive R) and click the OK

button.Follow the on-screen instructions.

Ifyouhaveanyproblemwith the test print, see TROUBLESHOOTING onpage

20 and check the symptoms and solutions. Print the test page again after

removing the problem.

Getting Started

INSTALLINGTHE PRINTER DRIVER SOFTWARE

Windows 98:

Load paper into the paper tray of the machine.For instructions on loading paper, see

the section LOADING COPY PAPER in the copier operation manual.

Turn on the machine.

Turn on your computer and start Windows.

Before installing the printer driver, be sure to close all other applications which

may be open.

When using Windows 98 on a personal computer with plug & play*, the “Add New

HardwareWizard”window will appear.Click the Next button and follow the on-screen

instructions.

●If the “Add New Hardware Wizard”window does not appear, proceed to step 8.

* Plug & Play: For plug & play information, see page 6.

Select Search for the best driver for your device and click the Next button.

Insert the installation CD-ROM into the CD-ROM drive. Select CD-ROM drive and

click the Next button.

Otros manuales para AL-841

Tabla de contenidos

Otros manuales de Impresora todo en uno de Sharp

Sharp

Sharp B750 - UX B/W Inkjet Manual de usuario

Sharp

Sharp AR-208S Guía de configuración

Sharp

Sharp MX-M503N Manual de usuario

Sharp

Sharp AL-1631 Manual de usuario

Sharp

Sharp FO-3800M Manual de usuario

Sharp

Sharp AR-810 Imager Manual de usuario

Sharp

Sharp MX-3070N Guía rápida

Sharp

Sharp MX-M753 Manual de usuario

Sharp

Sharp MX-M264U N Manual de usuario

Sharp

Sharp MX-3640N Manual de usuario

Sharp

Sharp MX-2300N Guide Manual de usuario

Sharp

Sharp AR-M160 Guía de configuración

Sharp

Sharp MX-5001N Manual de instalación y funcionamiento

Sharp

Sharp 3800M - B/W Laser - All-in-One Manual de usuario

Sharp

Sharp MX-M354U N Manual de usuario

Sharp

Sharp AR 168D - Digital Imager B/W Laser Manual de usuario

Sharp

Sharp AR-M256 Manual de usuario

Sharp

Sharp MX-2310U Manual de usuario

Sharp

Sharp AR-C360P Manual de usuario

Sharp

Sharp MX 5500N - Color Laser - Copier Manual de instalación y funcionamiento

Sharp

Sharp AM 900 - Digital Office Laser Copier Manual de usuario

Sharp

Sharp AR-M160 Manual de usuario

Sharp

Sharp MX-M260 Manual de usuario

Sharp

Sharp AL-1655CS Manual de usuario

Manuales populares de Impresora todo en uno de otras marcas

Triumph Adler

Triumph Adler DC 2016 Manual

Epson

Epson WorkForce WF-2510 Guía del usuario

Epson

Epson Stylus Scan 2000 Manual de instalación y operación

Epson

Epson PictureMate Snap PM 240 Manual de instrucciones

Konica Minolta

Konica Minolta bizhub C35 Manual de usuario

Brother

Brother MFC-J430w Manual de usuario

Konica Minolta

Konica Minolta BIZHUB 558 Manual de usuario

Lexmark

Lexmark MX710 Series Manual

Brother

Brother MFC-9760 Manual de usuario

Lexmark

Lexmark XC8155 Manual de usuario

Lexmark

Lexmark X642E Manual de usuario

Aficio

Aficio 200 Manual de usuario

Canon

Canon ImageCLASS 2300 Manual

Ricoh

Ricoh Pro C900 Manual de usuario

Lexmark

Lexmark X925 Manual de usuario

Brother

Brother Business Smart MFC-J4510dw Manual de usuario

Epson

Epson Stylus CX8400 Series Manual de usuario

Oce

Oce VarioLink 5022 Manual de usuario
