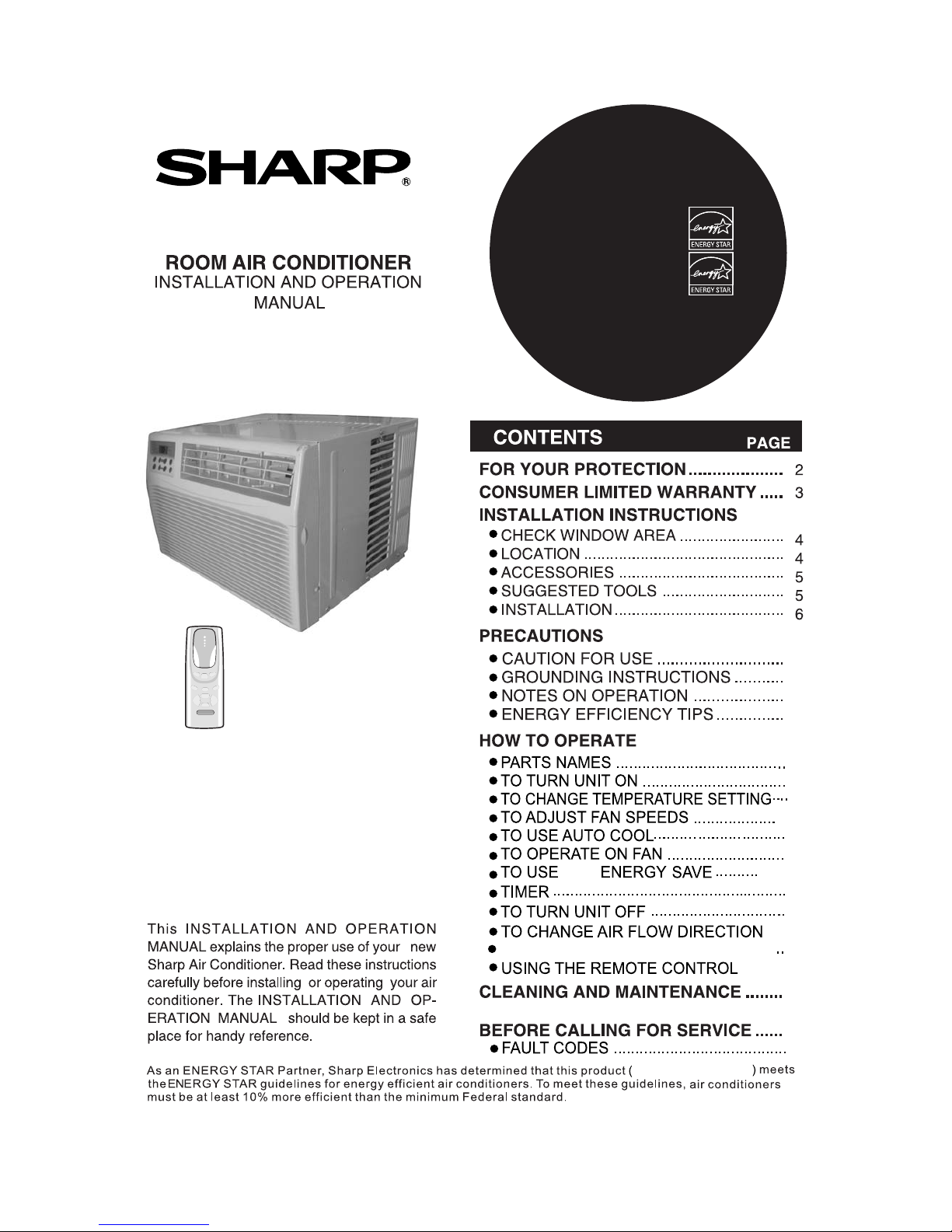

Sharp AF-Q100RX Manual de usuario

AF-Q100RX

AF-Q120RX

ORR&

RWX$

QD)

HYD6\JUHQ(

7LPHU

)DQ

6ORZHU

)DQ

)DVWHU

212))

AF-Q100RX,AF-Q120RX

THE

TO EXHAUST AIR FROM THE ROOM

PRECAUTIONS................................... 19

.........

....

.....

AF-Q100RX,AF-Q120RX

remote control

07495-1163

7\SH$

5LJKW

DFFRUGLRQ

SDQHO

)RDPWRS

ZLQGRZJDVNHW

:LQGRZVDVKVHDO

WKLQDGKHVLYHEDFNHG

/HIW

DFFRUGLRQ

SDQHO

7\SH%

7RSPRXQWLQJUDLO

:LQGRZORFNLQJ

EUDFNHW

6LOOVXSSRUW

1XW

%ROW

7\SH& 7\SH'

7RSPRXQWLQJUDLO

VHDOVWULS

ORR&

RWX$

QD)

HYD6\JUHQ(

7LPHU

)DQ

6ORZHU

)DQ

)DVWHU

212)) Remote control

WINDOW REQUIREMENTS

•These instructions are for a standard

double-hung window. You will need to

modify them for other types of windows.

CAUTION:

If the sill support

bolts do not contact the window sill, or

if you have a window without a sill, you

must order accessory kit RAK87 to

properly install this air conditioner.

•All supporting parts must be secured

to firm wood, masonry or metal.

•The electrical outlet must be within

reach of the power cord.

STORM WINDOW REQUIREMENTS

A storm window frame will not allow the air

conditioner to tilt toward the outside, and

will keep it from draining properly. To adjust

for this, attach a piece of wood to the sill.

WOOD PIECES –

WIDTH: 2″

LENGTH: Long enough to fit inside the

window frame.

THICKNESS: To determine the thickness,

place a piece of wood on the sill to make

it 1/2″higher than the top of the storm

window frame or the vinyl frame.

Attach securely with nails or screws

provided by the installer.

1/2″ higher

than storm

window

frame

Storm window

frame

Wood

Sill

1/2″ higher

than vinyl frame

(on some windows)

Vinyl frame

REMOVE THE AIR CONDITIONER

FROM THE CASE

Remove and save the 2 screws from the

lower sides of the front grille.

Grasp the lower corners of the grille while

pressing in on the case sides with your

finger tips. Pull out to release and lift it up.

NOTE: Do not pull the bottom edge

toward you more than 3 Ǝor you may

damage the tabs of the grille.

Remove the ground screw from each side

of the case. Keep them in a safe location.

ATTACH THE TOP MOUNTING

RAIL SEAL STRIP

Remove the backing from the top mounting

rail seal strip and attach the seal strip to

the bottom of the top mounting rail, along

the front edge. Allow the seal strip to

overlap 3/8″on each end.

INSTALL THE TOP MOUNTING

RAIL ONTO THE CASE

Attach the top mounting rail onto the top

of the case with 3 Type B screws.

INSTALL THE

SIDE ACCORDION PANELS

Slide the left and right accordion panels

into the top and bottom mounting rails.

Attach the accordion panels to the case

using 3 Type A screws on each side.

PREPARE THE WINDOW

•Cut the window sash seal to the window

width and stick the adhesive side to the

bottom of the sash.

Window

sash seal

INSIDE

Top mounting rail

Remove

backing

from seal

strip

3/8″

3/8″overlap 3/8″overlap

Top mounting rail

Seal strip

FRONT VIEW

Slide the air conditioner from the case by

gripping the base pan handle and pulling

forward while bracing the case. Do not

pull or lift on the styrofoam discharge area.

Replace the 2 ground screws removed

earlier, one on each side of the case.

IMPORTANT: The ground screws must

be reinstalled to ensure a proper ground.

Attach the front grille to the case by

inserting the tabs on the grille into the

slots on the front top of the case. Push

the grille in.

Secure the front grille to the case by

replacing the 2 screws removed earlier.

Press on the top of the grille to help with

side screw installation.

Connect power.



INSTALL THE AIR CONDITIONER

IN THE CASE

Slide the air conditioner into the case by

the base pan. Do not push on the controls,

styrofoam air discharge housing or the

finned coils. Make sure the air conditioner

is firmly seated.

SECURE THE CASE IN WINDOW AND

INSTALL FOAM TOP WINDOW GASKET

Attach the window

locking brackets (one

on each side) with

Type C screws.

Cut the foam top window gasket to the

window width.

Stuff the foam

between the

glass and the

window to

prevent air and

insects from

getting into the room.

NOTE: If the gasket supplied does not fit

your window, obtain appropriate material

locally to provide a proper installation seal.

ACAUTION:

To prevent broken glass

or damage to windows,

on vinyl or other

similarly constructed

windows, attach the

support bracket to the

window side jam.

Vinyl
