Sharp IG-EX20B Manual de usuario

IG-EX20B

“Plasmacluster” and “Device of a

cluster of grapes” are trademarks

of Sharp Corporation.

* The number in this technology mark indicates

an approximate number of ions supplied into air

of 1 cm3, which is measured around the center

of a room applicable floor area (at 1.2 m height

above the floor) when the product is placed

close to a wall at the MED mode setting.

PLASMACLUSTER

ION GENERATOR

OPERATION MANUAL

IG-EX20B_EN(Singapore).indd 1 2020/07/22 11:58:39

Thank you for purchasing this Plasmacluster ion generator.

Please read this manual carefully before using the product.

Please be sure to read “IMPORTANT SAFETY

INSTRUCTIONS” before using the product.

This manual should be kept in a safe place for future reference.

IG-EX20B_EN(Singapore).indd 2 2020/07/22 11:58:41

CONTENTS

IMPORTANT SAFETY INSTRUCTIONS ................. 2

PART NAMES .......................................................... 4

PREPARATION BEFORE USE ............................... 6

OPERATION ............................................................ 8

CARE AND MAINTENANCE / REPLACEMENT..... 9

TROUBLESHOOTING............................................. 14

SPECIFICATIONS.................................................... 16

IG-EX20B_EN(Singapore).indd 1 2020/07/22 11:58:41

IMPORTANT SAFETY INSTRUCTIONS

Please be sure

to follow.

WARNING To prevent electric shock, an accident or

injury caused by electric leakage or ignition

• For USB cable, Do not damage it, do not deform it, do not

process it, do not bend it forcibly, do not twist it, do not place

heavy load on it.

(It could cause a damage to the cord and it could cause of a fire and

an electric shock. )

• Do not remove the plug when your hands are wet.

(Otherwise, it could lead to electric shock or injury)

• Do not connect many USB cables to one USB adapter.

(Otherwise, it could lead to fire.)

• Do not use the USB cable if it is damaged or loose.

(Otherwise, it could lead to electric shock, short circuit or fire.)

• Be sure to connect the included USB cable to the PC or USB

adapter. (Otherwise, it could lead to fire, electric shock or malfunction.)

• Insert the USB cable connection terminal firmly into the PC or

USB adapter. (Otherwise, it could lead to electric shock, smoke or fire.)

• Periodically remove dust from the USB cable.

(Otherwise, it could lead to fire.)

• Be sure to disconnect the USB cable when cleaning or replacing

the unit. (Otherwise, it could lead to electric shock or injury.)

• When thunder starts, stop operation and unplug the USB cable.

(Otherwise, it could lead to fire, electric shock or malfunction.)

• If the power cord is damaged, it must be replaced by the

manufacturer, its service agent, a Sharp authorized Service

Center or similarly qualified persons in order to avoid a hazard.

Contact the nearest Service Center for any problems, adjustments

or repairs.

• Do not apply liquid such as water. When water is applied to the

product, remove from the body the USB cable. (Otherwise, it

could lead to heat generating, fire, electric shock or failure.)

• Do not insert such as a pin or a wire into the air intake or air outlet.

(Otherwise, it could lead to electric shock, injury or abnormal action.)

• Do not let a child use it by himself/herself.

(Otherwise, it could lead to electric shock or injury.)

IG-EX20B_EN(Singapore).indd 2 2020/07/22 11:58:41

CAUTION To prevent an accident or injury

such as electric shock and fire

• Unplug the USB cable when not in use. Also, when plugging

and unplugging the USB cable, hold the USB cable plug.

(Otherwise, electric shock, electric leakage, or fire due to insulation

deterioration is generated.)

• Do not climb or put anything on the product.

(Otherwise, it could cause injury or damage.)

• When installing the product on the wall, do not pass through or

place anything under the product.

(Otherwise, it could cause leading to injury or failure.)

• Do not use the product at the following places:

• Places that are wet or humid, such as bathrooms.

• Where the oil component such as edible oil is floating.

• Places where sprays and chemicals are used, such as

hairdressing and beauty salons and laundry shops.

(Otherwise, it could cause electric shock or damage.)

• Do not use fluororesin or silicone-containing

products* near the product.

* Hair care products (split end coatings, hair mousses,

hair treatments, etc.), cosmetics, antiperspirants,

antistatic agents, waterproofing sprays, polishes, glass

cleaners, chemical impregnated cloths, wax, etc.

• This product is not designed to be waterproof or

moisture-proof. Do not use it in places where it

may spill into water or moisture.

The fluororesin or silicone could get stuck inside the

product, preventing it from producing Plasmacluster

ions. If this happens, remove the taint from the

electrode section of the Plasmacluster Ion Generating

Unit. (Page 12)

NOTE

IG-EX20B_EN(Singapore).indd 3 2020/07/22 11:58:41

PART NAMES

Top / Control panel / Indication

“LOW”, ”MED” operation light

(Blue)

“FULL POWER” operation

light (Purple)

Filter clean light (Orange)

Air outlet

Operation button

Power button (Louver)

Filter reset button

Plasmaclueter ion sign

(Blue)

Main unit

Unit replacing light (Red)

IG-EX20B_EN(Singapore).indd 4 2020/07/22 11:58:46

Wall hook hole Air inlet

Stand

mounting hole

Bottom cover

Filter

Stand

Power supply

input terminal

USB cable

USB connection terminal

(The inside of the bottom cover)

Bottom / Side / Back

* 1 Unit means Plasmacluster Ion Generating Unit. (It means the same thereafter.)

Do not remove except the cleaning of the electrode or exchanging.

* 2 Do not use the unit cleaning brush, except when you clean the Plasmacluster

Ion Generating Unit.

Plasmacluster Ion

Generating Unit *1Unit holder

Unit cleaning brush *2

IG-EX20B_EN(Singapore).indd 5 2020/07/22 11:58:52

PREPARATION BEFORE USE

Precautions on installation

Please observe the following:

Connecting the USB cable

• Be sure to place the product on a stable flat surface.

• When installing the product on the wall, hang the product on

a firmly fixed hook. Use a hook with a screw head diameter

of 5 mm to 7 mm. When installing on gypsum board, use the

gypsum board hook.

• Do not install the product at 120 cm or higher.

• Do not block the air inlet and the air outlet.

• Keep away the product from the TV, the radio or the atomic

clock when the TV or the radio are influenced by noise or

the atomic clock time is not displayed correctly.

• To use in a room at 0 oC to 35 oC.

• Do not install in a location where it may spill into water or moisture.

• Connecting to a commercially

available USB adapter • Connecting to PC

When connected to a

PC, it will operate in

conjunction with the

PC power ON / OFF.

IG-EX20B_EN(Singapore).indd 6 2020/07/22 11:58:55

Precautions on installation

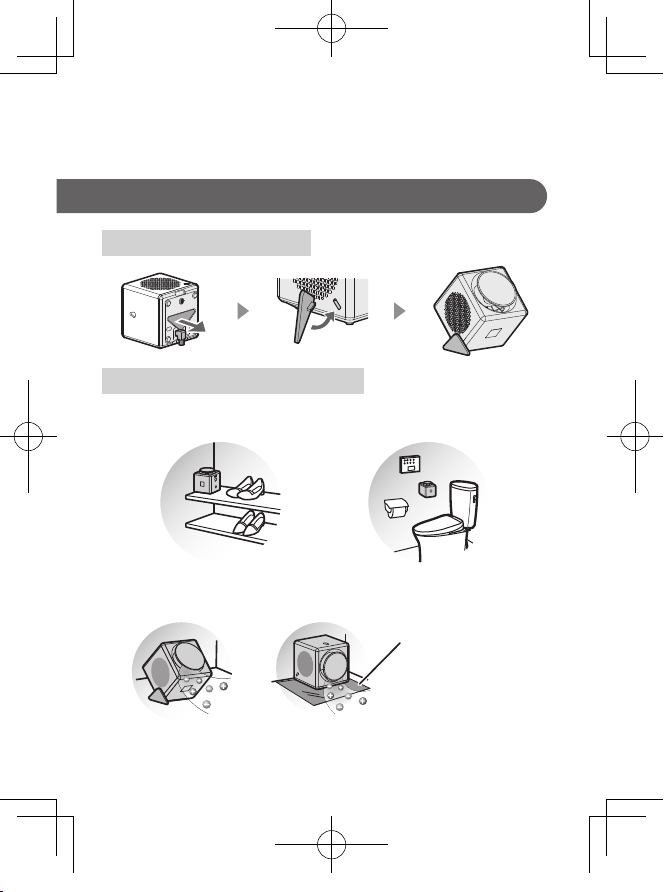

Attaching the stand

How to place the product

• It is even more effective to use the air outlet toward a

place where odors are a concern.

• When used in place • When hanging on the wall

When you use to

defeat the product, lay

a rug slip under the

product to fix the

product. (Do not block

the air inlet and

outlet.)

IG-EX20B_EN(Singapore).indd 7 2020/07/22 11:59:08

OPERATION

Press (Power button raised)

Operation Start

Blue light is emitted

Stop

Press

(Power button down state)

Operation Start / Stop

Operation switching

• The product restarts operation in the previously selected mode.

(Blue)

LOW

Reduce the operation sound and

release high-density

Plasmacluster ions quietly.

(Blue)

MED

Release high-density of

Plasmacluster ion more to improve

the effect of the Plasmacluster ion.

(Purple)

FULL

Release high-density of

Plasmacluster ion to approx. 2

times of “MED” at strong flow rate.

• When the product is fixed on the wall, remove it and operate.

NOTE

If you want to operate the product quietly

If you want to operate the product with strong flow rate

If you want to remove an odor rapidly

IG-EX20B_EN(Singapore).indd 8 2020/07/22 11:59:20
