SGM LEKTRA AGRITHERM T5 Manual de usuario
AGRITHERM T5
Display unit for small plants
technical documentation GB Rev. of 05/03/2021
Page 2 of 24 www.sgm-lektra.com
AGRITHERM T5 - index
INDEX
1-WARRANTY
2-PRODUCT
3-TECHNICAL FEATURES
4-DIMENSIONS
5-INSTALLATION
6-ELECTRIC CONNECTIONS
7-DISPLAY
8-SETTING
9-SETTING UPDATE
10-FACTORY TEST AND QUALITY CERTIFICATE
page 3
page 4
page 5
page 6
page 7
page 9
page 17
page 19
page 21
page 24
Page 3 of 24
www.sgm-lektra.eu
Products supplied by SGM LEKTRA are guaranteed for a period of 12 (twelve) months from delivery date
according to the conditions specified in our sale conditions document.
SGM LEKTRA can choose to repair or replace the Product.
If the Product is repaired it will maintain the original warranty terms, whereas if the Product is replaced it will have
12 (twelve) months of warranty. The warranty will be null if the Client modifies, repairs or uses the Products for
other purposes than the normal conditions foreseen by instructions or Contract.
In no circumstances shall SGM LEKTRA be liable for direct, indirect or consequential or other loss or damage
whether caused by negligence on the part of the company or its employees or otherwise howsoever arising out of
defective goods.
1-WARRANTY
AGRITHERM T5 - warranty
Page 4 of 24 www.sgm-lektra.com
AGRITHERM T5 - product
2-PRODUCT
2.1 IDENTIFICATION
Every instrument is supplied with an adhesive plate with the main data:
2
Model: AGRITHERMT5
Input power: 24 Vdc ±20%
Max: 400mA @ 24Vdc,Class2
Serial number: TM0041800103
1. Model
2. Power supply
3. Serial Number
12 3 4
5
1. Ethernet
2. USB Host
3. COM1 RS-232, RS-485 2W/4W
COM3 RS-485 2W
4. Removable power connector
5. Skintop M20x1.5
1
2
3
VERSION FRONT PANEL VERSION WALL OR DIN RAIL
Page 5 of 24
www.sgm-lektra.eu
3-TECHNICAL FEATURES
Display
4.3” TFT color LCD resistive touch screen, 480 x 272 resolution, LED backlight (Life Time >30000h)
Digital port
USB 2.0 (1x) for set up upload. COM port: COM1 RS485 Isolated Half Duplex for TM probes connection or MUX02
RTC battery
Integrated
Power supply
Version “A” 24Vdc ±20%
Version “B” 85-230Vac (50/60Hz) ; 24Vdc/ac
Consumption
Version “A” Max 500mA, 12W@24Vdc
Version “B” Max 14W (display + with 10 points)
Dimensions l x h x w (mm)
Version “A” 128x102x32
Version “B” 183.5x250x126
Drilling template for panel mounting version “A” (mm)
119x93
Mounting
Version “A” front panel
Version “B” wall or DIN rail, with ABS enclosure with transparent lid
Frontal IP rating
Version “A” IP65 / NEMA4 - Version “B” IP66
Storage temperature
-20°÷60°C
Working temperature
0÷50°C
Relative humidity
10÷90% (not condensing)
Power supply for optional relay module
20.4÷28.8Vdc
Power consumption for optional relay module
2.5W
Mounting for optional relay module
DIN rail
Optional relay module output
< 250Vac, 30Vdc - 2A for single contact
Optional relay module storage temperature
-25°÷+70°C
Optional relay module working temperature
5÷55°C
Optional relay module Relative humidity
5÷95% (not condensing)
AGRITHERM T5 - technical features
Page 6 of 24 www.sgm-lektra.com
AGRITHERM T5 - dimensions
4-DIMENSIONS
4.1 MECHANICAL DIMENSIONS VERSION “A/D”
102mm
128mm
92mm
118mm
32mm
126mm 183.5mm
250mm
4.2 MECHANICAL DIMENSIONS VERSION “B/E”
Page 7 of 24
www.sgm-lektra.eu
AGRITHERM T5 - installation
5.1 PANEL MOUNTING VERSION “A/D”
Secure the instrument into the arranged hole (119x93mm) using the provided brackets and screws.
(Screw torque: 0.3÷0.45 Nm for reaching waterproof eect and preventing the panel from being deformed)
5-INSTALLATION
Page 8 of 24 www.sgm-lektra.com
AGRITHERM T5 - installation
5.2 WALL OR DIN RAIL MOUNTING VERSION “B/E”
• Installation must be only performed by qualified personnel and in accordance with local governing regulations.
• Make sure that the housing material is compatible with environmental conditions. In case of outdoor installation it is
recommended to protect the unit from the direct sunlight and from the rain.
• An improper use of the unit can cause serious injuries to operators and damages to the product and to the connected
equipments.
125mm
183.5mm
35mm
149mm
Page 9 of 24
www.sgm-lektra.eu
AGRITHERM T5 - electrical connection
6.1 ELECTRICAL CONNECTION VERSION “A/D” (PANEL MOUNTING)
CONNECTION TO TM PROBES (n.5 max) VIA MODBUS PORT
MODBUS connection to TM probes must be made with 2 wires in COM1 [RS485]:
• Pin 1 > B
• Pin 2 > A
6-ELECTRICAL CONNECTION
B
A
+
-
SCH
B
A
+
-
SCH
B
A
+
-
SCH
TM 1 TM 2
B
A
+
-
SCH
TM 25
B
A
+
-
SCH
B
A
+
-
SCH
24Vdc
0V
SCH
24Vdc supply - min. 500mA
Female connector 9 pin
5
4
3
21
GND
678 9
6.2 POWER SUPPLY CONNECTION 24VDC
24Vdc power supply must be connect to the removable power connector.
Ground
0V
+24Vdc
B
A
MUX02
5
4
3
21
GND 678 9
Page 10 of 24 www.sgm-lektra.com
AGRITHERM T5 - electrical connections

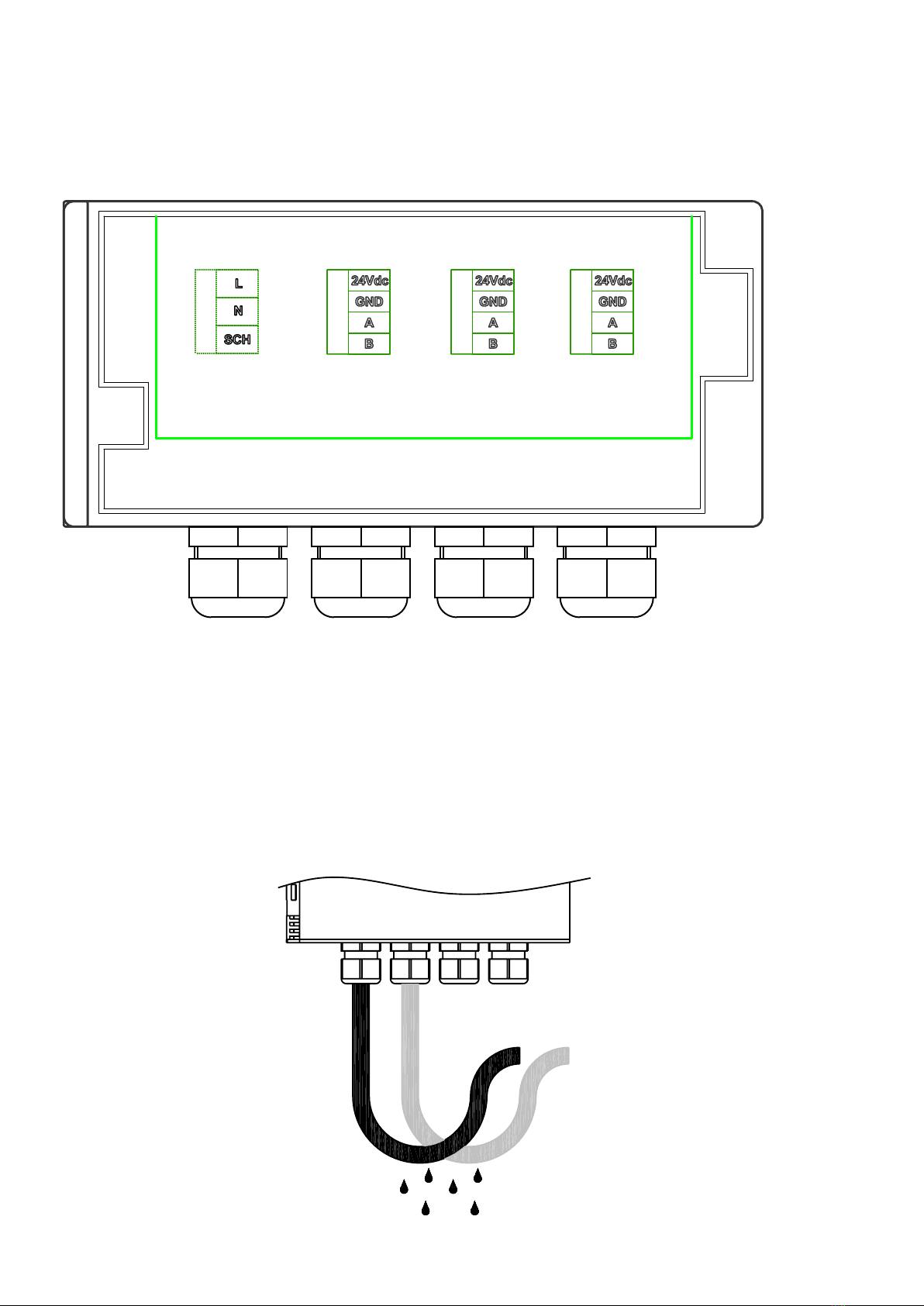

6.3 TERMINAL CONNECTION VERSION “B”
1) Separate the power cables of the Agritherm T5 from the signal cables
2) Remove the plugs of the cable glands and open the lid unscrewing the screws.
3) Insert the cables into the transmitter through the cable glands.
4) Close the lid and tighten the cable glands.
6.4 HUMIDITY INFILTRATIONS
In order to avoid humidity infiltrations inside the enclosure it is recommended:
- to use a cable with outer diameter of 6÷12mm and to fully tighten the M20 cable glands.
- to close the lid well
- to position the cable so that it forms a downward curve at the M20 output; in this way the
condensate and/or the rain water will tend to drip from the bottom curve.
