SEZER PLS-1 Manual de usuario

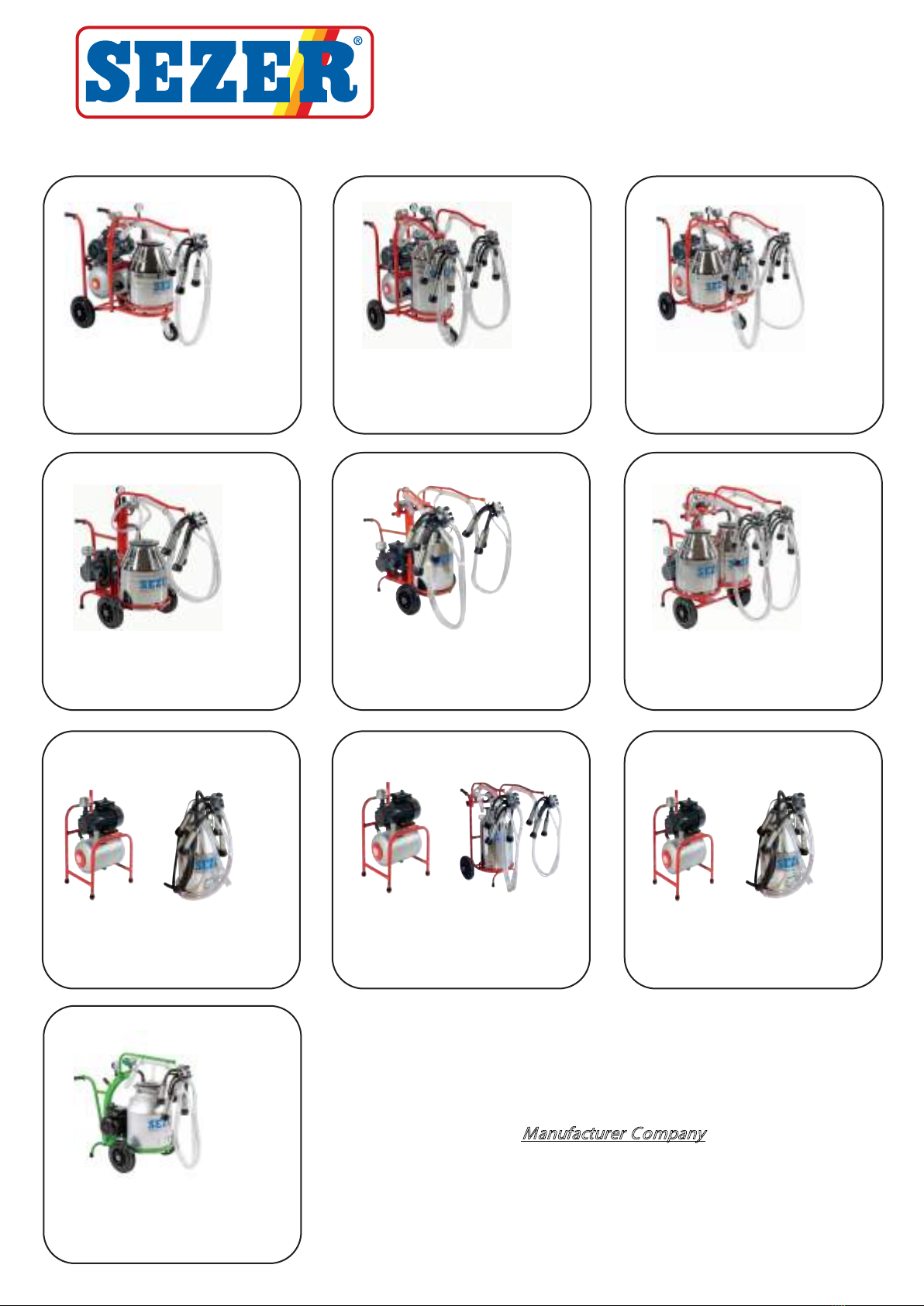

PLS- 1 PLS - 2/1 PLS - 2

IMPLS - 1 IMPLS - 2/1 IMPLS - 2

SSPLS - 1 SSPLS - 2/1 SSPLS - 2

ELMAS

+ +

One bucket, one cluster, one

pulsator, tank type is vacuum

reservoir, trolley

One bucket, two clusters,

Two pulsators, Tank Type is

Vacuum reservoir, trolley

Two buckets, two clusters ,

pulsators, Tank Type is Vacuum

reservoir, trolley

two

One bucket, one cluster, one

pulsator, tank type is chassis

reservoir, trolley

One bucket, two clusters, two

pulsators, vacuum type is

chassis reservoir, trolley

Two buckets, two clusters, two

pulsators, vacuum type is

chassis reservoir, trolley

One cluster, one pulsator, one

inox bucket, vacuum type is

vacuum reservoir, semi-trolley

Two clusters, two pulsators,

one inox bucket, vacuum type

cuum reservoir, semi-trolley

Two clusters, two pulsators,

two inox buckets, cuum type is

vacuum reservoir,semi-trolley

One bucket, one cluster, one

pulsator, tank type is chasis

reservoir, trolley

MILKING MACHINE

USER’S GUİDE

Milking Technologies

“Please do not use your machines before reading this user’s guide’’

Manufacturer Company

SEZER TARIM VE SAĞIM TEKNOLOJİLERİ SAN. LTD. ŞTİ.

Sırabademler Mah. Karacabey-Bursa Karayolu Kümeevler No:14 Karacabey/Bursa/Türkiye

Tel : +90 224 671 80 04 Fax : +90 224 671 81 65

Web : www.sezermac.com E-mail : [email protected]

Sezer Milking Machine

Thank you very much for purchasing a SEZER milking machine,

which was produced in response to bring solution with experience

gained during many years, very careful work for your trust placed in

our company.

Above all, please do not use your machine before reading this

user’s guide and maintenance.

CONTENT

* Description of The Manual ..............................................................................................................

* Preparation for Delivery ....................................................................................................................

* Transportation and Standards ........................................................................................................

* Technical Characteristics and Standards .....................................................................................

* Parts of Milking Machine ..................................................................................................................

* Cleaning Before Milking With Milking Machine .......................................................................

* Milking With Machine ........................................................................................................................

* Usage of Cluster ...................................................................................................................................

* Cleaning of Milking Machine ..........................................................................................................

* Attentions and Fixing The Problems ............................................................................................

* Scheme of Electric ...............................................................................................................................

* Technical Drawings and List of Parts .............................................................................................

* Warranty Certicate ............................................................................................................................

5-9

9-10

14-25

26-27

DESCRIPTION OF THE MANUAL

The manual is a part of the machine and is prepared by SEZER Agri and Milking

TechnologiesSan.Tic.Ltd.Sti.Themain goal ttelotsi he user know the machine and let

run the machine according to rules that are described in the manual for safety.

Therefore, the manual must be protected permanently.

Above all, please do not use your machine before you read this user’s guide and

maintenance.

You can contact our company or our dealers and you can get information about your

milking machine.

Otherwise, our society is not guilty of failure that can occur.

PREPARATION FOR DELIVERY

TOPICS YOU NEED TO BE CAREFUL DURING SHIPPING AND TRANSPORT

- You should protect the machines against the friction and impact during loading.

- You should use the materials that are determined and set against the friction and

impact, for protecting the machines that are loaded into carrier

- You should use equipment that is necessary during loading and unloading.

TRANSPORTATION WITH WOOD PROTECTION

GROUP PLS

TRUE

FALSE

TRUE

FALSE

GROUP IMPLS

GROUP SSPLS

TRUE

FA LSE

Damage during transportation

Check them if there is any damage during transportation. If there is damage, notify

the transport company, our dealer of the region and our company SEZER Milking

Technologies as soon as possible.

WHEN YOU LIFT THE MACHINE BY HAND;

- Demand the help of your team when you lift the machine.

- Move it together with your assistant.

DO NOT LIFT THE MACHINE BY TAKING;

From pot, cover of pot, milk pipes, pulsator, pulse hose, vacuum gauge, electrical

cable.

TEMPORARY STORAGE

Protect the machine and its accessories against climate, keep the environment clean.

(For example, rain, snow, powder, sludge etc.).

THE TRANSPORTATION OF THE MACHINE

The machine is delivered as its assembly is complete and ready for use.

Caution: Operate the machine with grounding that is mounted by a qualified

electrician.

ATTENTION: OPERATE YOUR MACHINE WITH A PLUG THAT

IS MOUNTED BY A QUALIFIED TECHINICIAN

THE LIFE OF USAGE

Life of the machine is 10 years which is determined and announced by the Ministry of

Industry and Trade of Turkey.

THE VALUE OF MACHINE NOISE

The value of the noise is 70 dB.

STANDARDS

The machines are produced according to established standards of Turkey, and

milking machines

TS 4798 and TS EN 60355-2-70 SUT and according to the rules of the special

trolleys by ministry industry and commerce 98/37/AT 73/23/AT

SEZER MOBIL MILKING MACHINE TECHNICAL FEATURES

PLS-1 PLS-2/1 PLS-2 IMPLS-1 IMPLS-2/1 IMPLS-2 SSVP-200 SSSA ELMAS

LENGHT (cm) 95 95 96 100 100 94 36 90 97

WIDHT (cm) 58 58 75 99 58 65 44 56 58

HEIGHT (cm) 90 90 95 102 102 103 61/71 99 94

WEIGHT (kg) 54 60 68 46 53 60 34 50 41

COLOR RED RED RED RED RED RED RED RED GREEN

MOTOR POWER (kw) 0,55 0,55 0,55 0,55 0,55 0,55 0,55 - 0,55

VOLTAGE (V) 220V-50Hz 220V-50Hz 220V-50Hz 220V-50Hz 220V-50Hz 220V-50Hz 220V-50Hz - 220V-50Hz

FLOW RATE (litre) 200 200 200 200 200 200 200 - 180

TANK CAPACITY (litre) 17 17 17 4 4 4 17 - 4

BUCKET QUANTITY 1 1 2 1 1 2 1 - 1

VOLUME OF BUCKET (lt) 30 40 30 30 40 30 30 - 30

QUANTITY OF PULSATOR 1 2 2 1 2 2 1 - 1

CLAW WEIGHT (gr) 2300 2300 2300 2300 2300 2250 2400 - 2400

SEZER

CHASIS PAINTING

CHASIS

CYCLE/MINUTE

PALETTE TYPE and

DIMENSION (mm)

VACUUM PUMP

TYPE OF BUCKET

MILK HOSE

PULSE HOSE

MILKING GROUP

Stac Powder

Paint

1500

Graphite

4,9x41x85

INOX,

ALUMINIUM,

TRANSPARENT

BUCKET

Lenght:233 cm

Ø24x14 mm

Transparent

Lenght:235 cm

Ø13x7 mm

Transparent

Stac Powder

Paint

1500

Graphite

4,9x41x85

Stac Powder

Paint

Stac Powder

Paint

Graphite

4,9x41x85

1500

Lenght:233 cm

Ø24x14 mm

Transparent

Lenght:235 cm

Ø13x7 mm

Transparent

1500

Graphite

4,9x41x85

INOX,

ALUMINIUM,

TRANSPARENT

BUCKET

Lenght:233 cm

Ø24x14 mm

Transparent

Lenght:235 cm

Ø13x7 mm

Transparent

Lenght:235 cm

Ø24x14 mm

Transparent

Lenght:250 cm

Transparent

Lenght:235 cm

Ø13x7 mm

Transparent

Lenght:233 cm

Ø24x14 mm

Transparent

INOX,

ALUMINIUM,

BUCKET

Lenght:233 cm

Ø24x14 mm

Transparent

Lenght:235 cm

Ø13x7 mm

Transparent

INOX,

ALUMINIUM,

BUCKET

Lenght:235 cm

Ø13x7 mm

Transparent

Lenght:233 cm

Ø24x14 mm

Transparent

INOX,

ALUMINIUM,

BUCKET

Lenght:233 cm

Ø24x14 mm

Transparent

Lenght:235 cm

Ø13x7 mm

Transparent

Stac Powder

Paint

Stac Powder

Paint

1500

Graphite

4,9x40x70

INOX,

ALUMINIUM,

TRANSPARENT

BUCKET

1500

Graphite

4,9x40x70

INOX,

ALUMINIUM,

TRANSPARENT

BUCKET

Graphite

4,9x41x85

1500

Graphite

4,9x41x85

1500

INOX,

ALUMINIUM,

TRANSPARENT

BUCKET

Stac Powder

Paint

Stac Powder

Paint

Stac Powder

Paint

CHASSIS

TWIN(MILK-PULSE)

HOSE

TWIN(MILK-PULSE)

HOSE

PLS GROUP

IMPLS GROUP

GROUPSSPLS

Our machines are tested for

-Vacuum capacity

-Stability of vacuum

-Stability and performance of pulsation.

These values, prevent the deformation of udders, increase milk yield and make the usage life

longer.

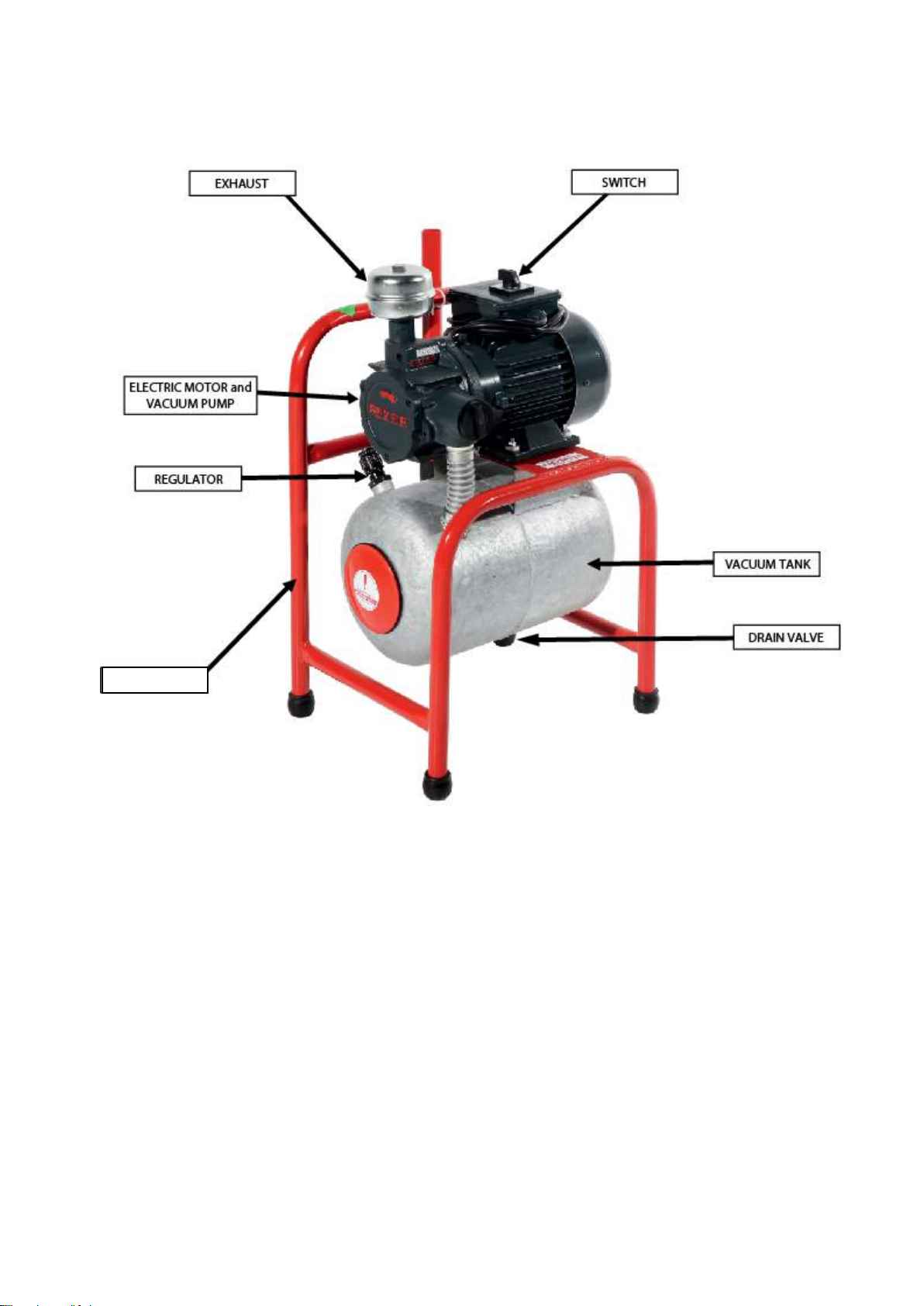

CHASSIS

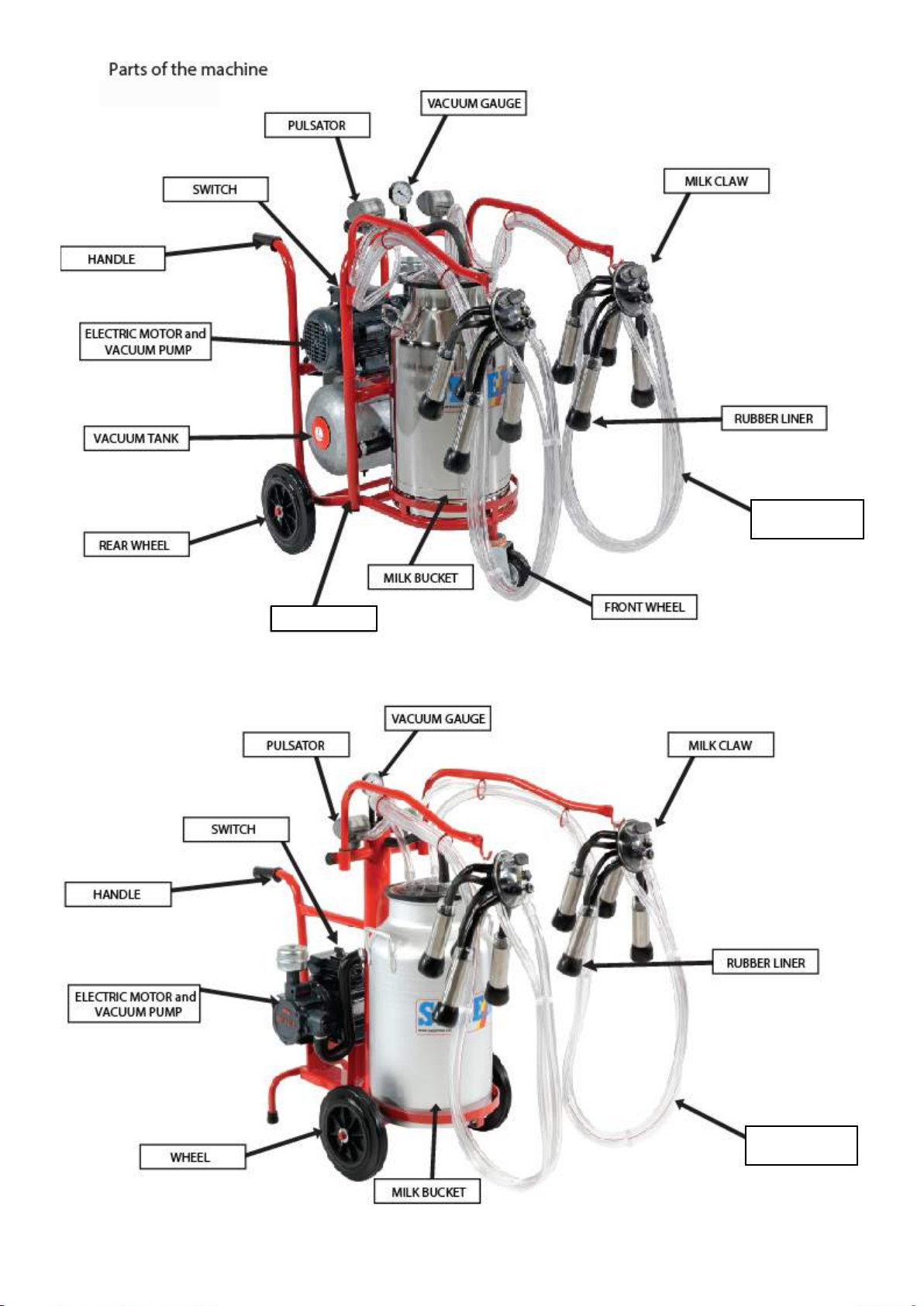

The basic parts of the machine

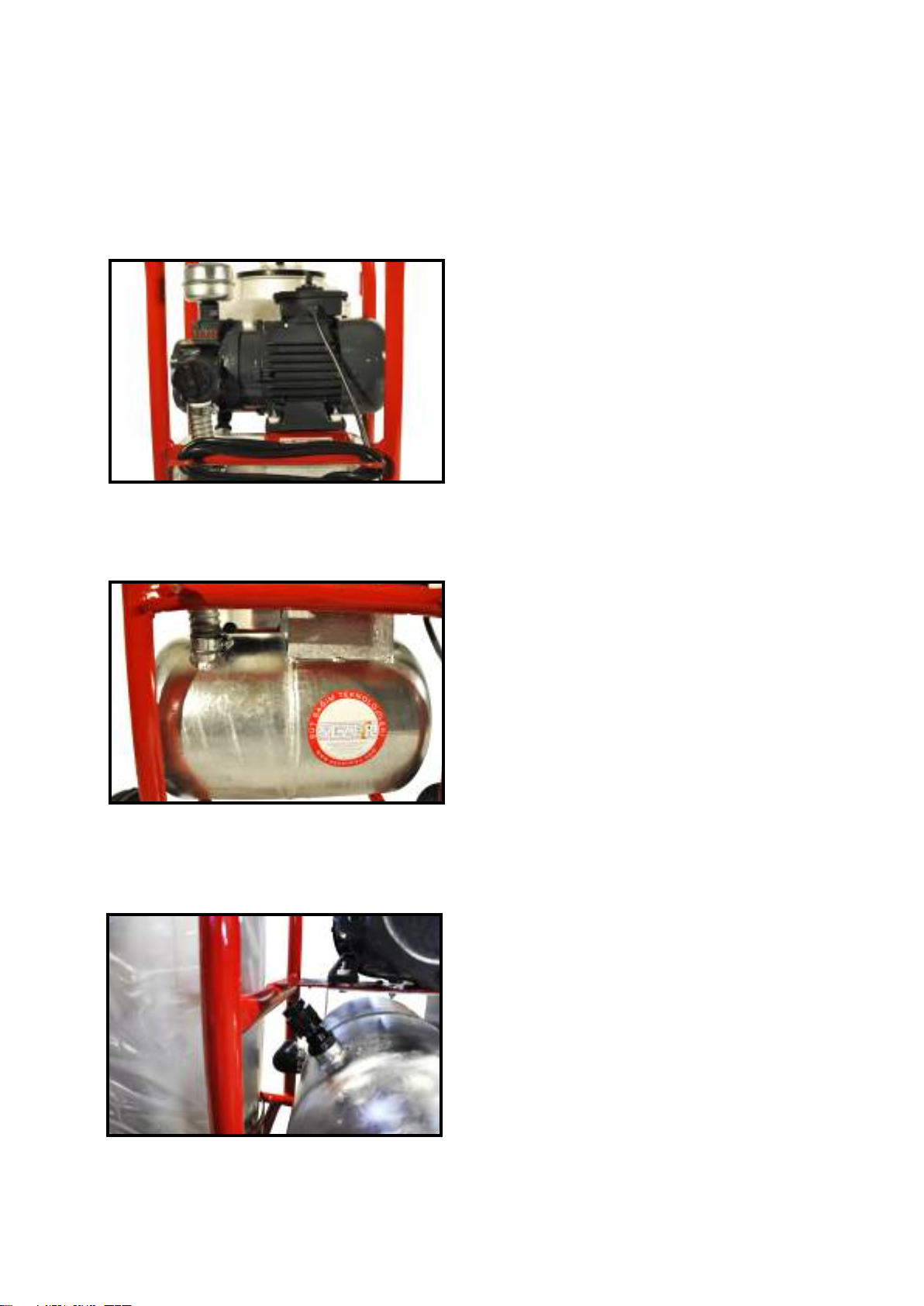

Vacuum pump (VP 200)

Vacuum pump is connected to electric motor directly,

it is mounted on chassis.

Dry vacuum pump runs with graphite pallets

Technical specications

Pump capacity (l/d): 200

Pump Cycle (d/d) : 1450

Electric motor (Kw) : 0,55

Type : IP 56, 220V 50 Hz

Connections in and out : 1”

Pallet material: Saturated Tack

Vacuum Tank :

It is produced by at DKP and its capacity is 17 lt.

It is covered hot galvanize.

Regulator :

Vacuum regulator regulate air for stability.

To increase the vacuum, turn the nut to clockwise, to

decrease the vacuum, turn the nut to counterclockwise.

When you arrange it, x the nut.

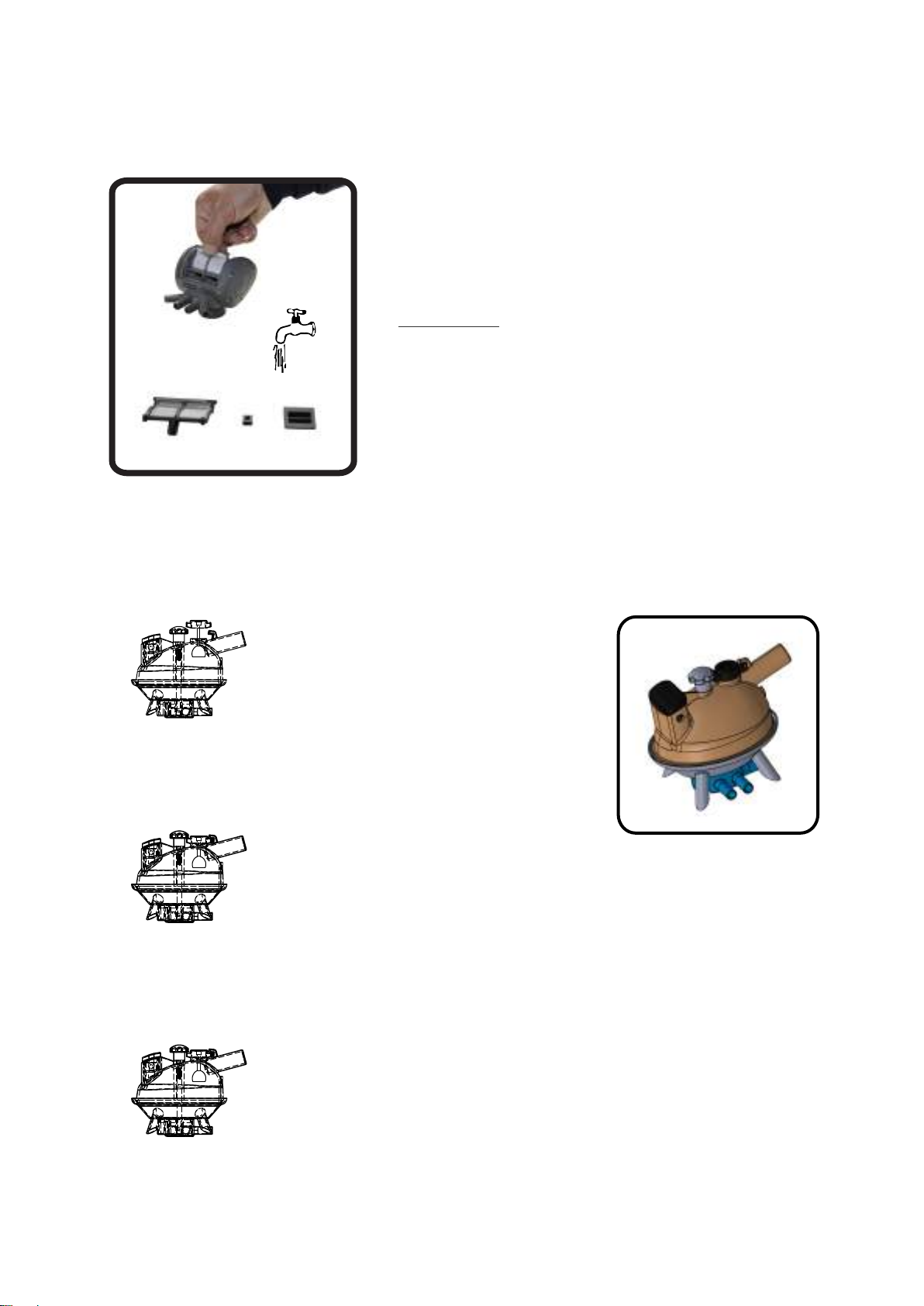

CLEANI NG PULSATOR

Do not lubricate any part of the pulsator-

Clean the pulsator filter once a month.

Open the lid on top of the pulsator, clean inside only with warm

water by a clean toothbrush (do not use detergents)

Place the pulsator after drying.

Don’t change the adjustment of thepulsator.If it’s necessary,

go tothe nearest service.

IMPORTANT: Never open the latter covers of the pulsator.

LINERS:

You must change the liners each 6 months.

Otherwise, the bacteria layer can exist inside it and the liners

can cause diseases.

And also the micro-cracks can let the milk pass into vacuum

line.

Do not let the liners be under the sunlight.

Milk Claw: 240 cc

The working position of the milk claw SEZER 240cc;

Closed Position

Sphere pin is drawn.

Milk way is CLOSED

Milking Position:

Sphere pin is pushed, locked, milk channel is OPENED.

Entrance of poor air helps the milk flow.

Cleaning Position. :

In the pushed position of sphere pin, it locks

to the chassis. By making the circulation of the

cleaning water, it makes the cleaning process.

CLEANING, BEFORE MILKING WITH MACHINE

Before milking with the machine, the main principle is the barn area must be clean, have a

good ventilation and be in conformance with hygienic conditions.

Before milking, cleaning of the teats is mandatory. The udder should be cleaned with a clean

white fabric or a soft sponge which is given with machine. You should do it with warm water.

Before each milking, you should milk a couple of drop of milk by hand into ground or another

little pot.

And also this pre-milking by hand lets us see potential udder diseases.

MILKING WITH MACHINE

Above all, be sure the bucket lids to be placed properly. Turn on the switch. After running the

electric motor (only for machine type PLS-2 open the taps, they should be parallel to the

ground). Get the vacuum increase by pulling up the butterfly pin, which is located on the

claw. When the needle reaches to the blue dot (44 kPa) the machine is ready for milking.

Meanwhile, the pulsator starts working.

USAGE OF CLUSTERS

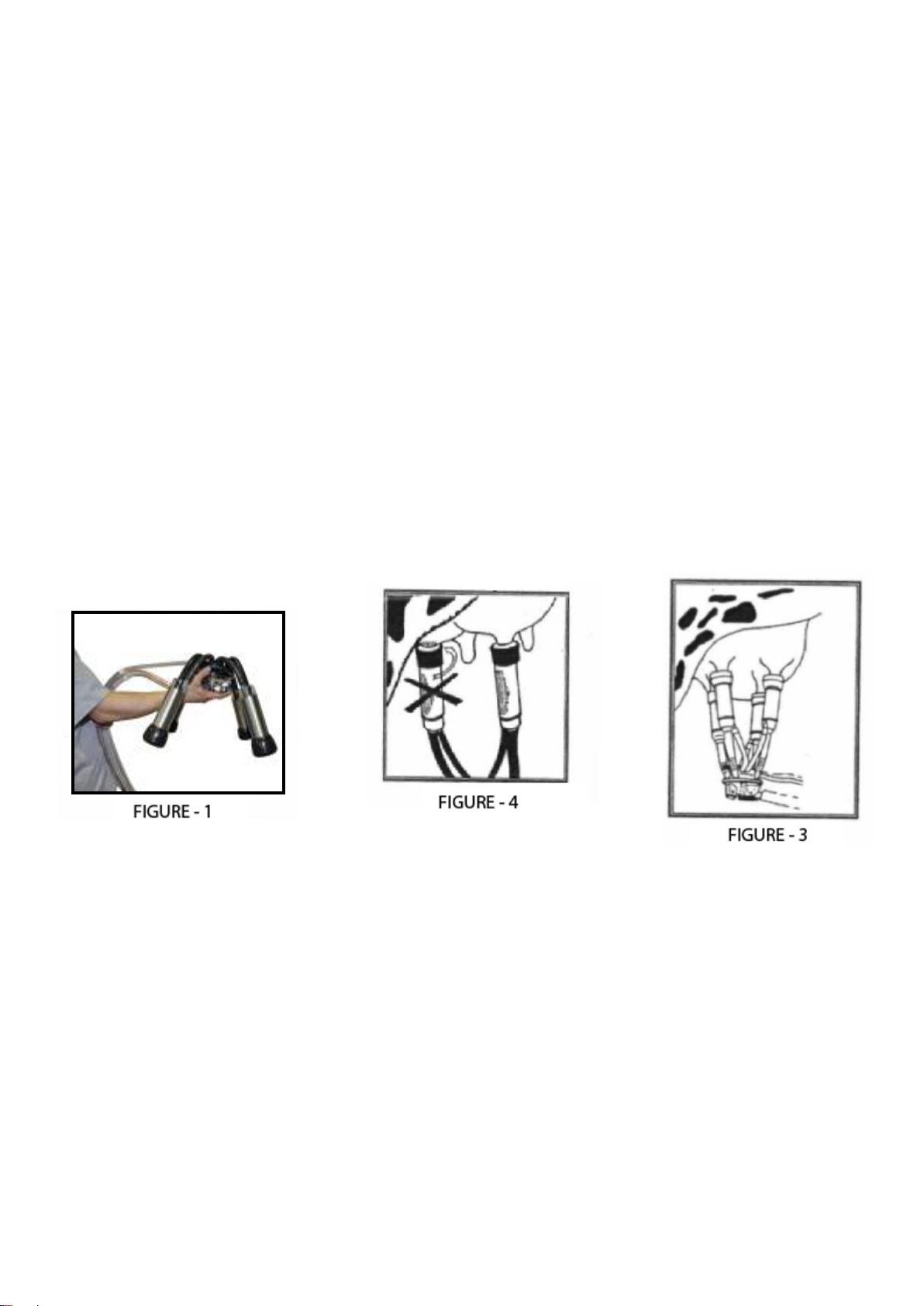

Take the claw by your left hand as in Figure (1) The liners will be automatically positioned

breast down. Push the throttle valve located on the milk claw. Put the liners to udders as

shown in Figure (2). At the same time, be sure not to lost vacuum and then milking get

started.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Manuales populares de Maquinaria agrícola de otras marcas

GSi

GSi PNEG-2314 Manual de usuario

Checchi & Magli

Checchi & Magli TEXDRIVE Manual de usuario

Amazone

Amazone Cenius 4003-2TX Manual de usuario

MASSEY FERGUSON

MASSEY FERGUSON MF 9313S Manual de usuario

Cima

Cima BLITZ Instrucciones de funcionamiento y mantenimiento

Amazone

Amazone CombiDisc 3000 Instrucciones de instalación

HE-VA

HE-VA Disc-Roller XL Contour Manual de usuario

AGT

AGT AGT-SSFM Manual de usuario

Milestone

Milestone 72-84 Manual de usuario

KUHN

KUHN Hector 3000 Manual de usuario

Krone

Krone X-Disc 6200 Manual de usuario

Eliet

Eliet DZC450 Manual de usuario

Taarup

Taarup BIO+ B4000 Manual de usuario

Garland

Garland SHAKER 310 DPG Manual de usuario

stable comfort

stable comfort StableWall System Manual de usuario

Raven

Raven AccuBoom Manual de usuario

International

International 710 Manual de usuario

Ashland

Ashland HDW-3217-14 Manual de usuario
