Seyeon FlexWatcher FW2170 Manual de usuario

FW2170 User’s Manual

M4067-00 1 Seyeon Tech Co., Ltd

FW2170 User’s Manual

(Product Guide)

Version 4.16(Rev.E)

Sep. 27, 2012

Class A Digital Device (industrial & commercial environment)

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to CE

and FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the

equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful

interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the interference at his own expense.

FW2170 User’s Manual

M4067-00 2 Seyeon Tech Co., Ltd

FW2170 User’s Manual

Document Part Number: M4067-00

Document Version: 4.16(Rev.E)

Revised: September 27, 2012

About This Document

This document is prepared for users of FW2170 supplied by Seyeon Tech Co., Ltd. It is assumed that the

users are familiar with Microsoft Windows operating systems and Web browsers such as Internet Explorer.

It is also assumed that the users are well aware of how to install and use the network equipment such as

LAN, Hub, router, and having basic knowledge of network terminologies. If you have any questions

regarding network installations, please contact your network equipment vendor or network administrator

or Internet service providers.

For updated contents, detailed features and other applications from Seyeon Tech, please refer to the user’s

manual in CD-ROM provided with the product you purchased, or visit Seyeon Tech’s Internet homepage at

http://www.flexwatch.com/.

No part of this document may be reproduced in any form or by any means without the prior written

permission of Seyeon Tech Co., Ltd.

Disclaimer

Seyeon Tech Co., Ltd. (Seyeon Tech) Makes no representations or warranties with respect to the contents

hereof. In addition, information contained herein is subject to change without notice. Every precaution has

been taken in the preparation of this manual, nevertheless, Seyeon Tech assumes no responsibility for

errors or omissions or any damages resulting from the use of the information contained in this document.

Trademarks

FlexWATCH®and FlexWATCH®Logo are trademarks of Seyeon Tech Co., Ltd.

Windows and Internet Explorer are a trademark of Microsoft Corporation.

All other trademarks belong to their respective owners.

Technical Support

For technical support call, email, or visit our web site.

Telephone: +82-2-2192-6840~1

Email: sales@flexwatch.com

Web site: http://www.flexwatch.com or http://www.seyeon.co.kr

FW2170 User’s Manual

M4067-00 3 Seyeon Tech Co., Ltd

Contents

1. PRODUCT OVERVIEW ......................................................................................................................... 5

1.1. FW2170 ........................................................................................................................................................................ 5

1.2. KEY FEATURES ................................................................................................................................................................6

1.3. PRELIMINARY SPECIFICATION........................................................................................................................................ 7

1.4. FW2170 PACKING LIST ................................................................................................................................................8

1.5. NETWORK DIAGRAM......................................................................................................................................................9

1.5.1.

Private Network.....................................................................................................................................................9

1.5.2.

Wide Area Network............................................................................................................................................. 9

1.5.3.

FW2170 with the existing Analog System..............................................................................................10

1.6. APPLICATION .................................................................................................................................................................11

2. HARDWARE DESCRIPTION .............................................................................................................. 12

2.1. FRONT VIEW..................................................................................................................................................................12

2.2. REAR VIEW.....................................................................................................................................................................13

2.2.1.

CTL Port Description .........................................................................................................................................14

2.2.2.

Speaker V-out Jack Description...................................................................................................................14

2.2.3.

MIC Jack Description ........................................................................................................................................14

3. FW2170 INSTALLATION AND BASIC SETUP ................................................................................ 15

3.1. BEFORE INSTALLATION.................................................................................................................................................15

3.2. FACTORY DEFAULT SETTINGS .....................................................................................................................................15

3.3. INSTALLING FW2170 ..................................................................................................................................................15

3.4.

NETWORK CONFIGURATION

.......................................................................................................................................15

4. ADMIN MENU .................................................................................................................................... 17

4.1. ENTERING ADMIN MENU............................................................................................................................................17

4.2. ADMIN MENU STRUCTURE .........................................................................................................................................18

FW2170 User’s Manual

M4067-00 4 Seyeon Tech Co., Ltd

5. SYSTEM CONFIGURATION MENU .................................................................................................. 18

5.1. SERVER NAME SETUP...................................................................................................................................................19

5.2. ADMIN PASSWORD ......................................................................................................................................................19

6. NETWORK CONFIGURATION .......................................................................................................... 20

6.1. NETWORK CONFIGURATION .......................................................................................................................................20

6.1.1.

Static IP Configuration .....................................................................................................................................20

6.1.2.

DHCP Client Configuration ............................................................................................................................21

6.2. NETWORK PORTS..........................................................................................................................................................21

6.3. VIEW NETWORK STATUS .............................................................................................................................................22

6.4. NETWORK STATUS NOTIFY .........................................................................................................................................22

7. DISPLAY CONFIGURATION ............................................................................................................244

7.1. DISPLAY OUTPUT DEVICE............................................................................................................................................24

7.1.1.

Channel Configuration.....................................................................................................................................25

8. DEVICE CONFIGURATION ................................................................................................................ 26

8.1. DEVICE NUMBER CONFIGURATION............................................................................................................................26

8.2. SERIAL PORTS CONFIGURATION.................................................................................................................................26

8.2.1.

Transparent Mode..............................................................................................................................................27

9. UTILITIES ............................................................................................................................................. 28

9.1. REBOOT ..........................................................................................................................................................................28

9.2. FACTORY DEFAULT .......................................................................................................................................................28

9.3. SYSTEM UPDATE ...........................................................................................................................................................29

9.3.1.

All (Kernel, RAM disk, System, Web) Update........................................................................................30

9.3.2.

System and Web Update................................................................................................................................32

9.3.3.

Web Only Update ..............................................................................................................................................32

FW2170 User’s Manual

M4067-00 5 Seyeon Tech Co., Ltd

1. Product Overview

1.1. FW2170

FlexWATCH™ 2170 is a stand-alone 4ch network media decoder which converts four streams of

Motion JPEG or H. 264 from 4 different FlexWATCH™Video/Camera servers in real-time into the high

quality analog signals. It support 4 screens output and the FlexWATCH™Video/Camera input sources from

the encoder device

The server of FlexWATCH™ 2170 Network media decoder is used in combination with FlexWATCH™

video & camera servers. Users are able to use existing video matrices and other analog technology to

receive video and audio from distant analog cameras or systems

FlexWATCH™ 2170 is ideal package solution with FlexWATCH™cameras or servers for remote

monitoring using TV sets and Analog monitors. Also, instead of these multi channeled servers, you can use

single channel servers together. Thus, if you install cameras in remote site, you can watch the remote site

using video server and FlexWATCH® 2170 even though it might be located in a different city.

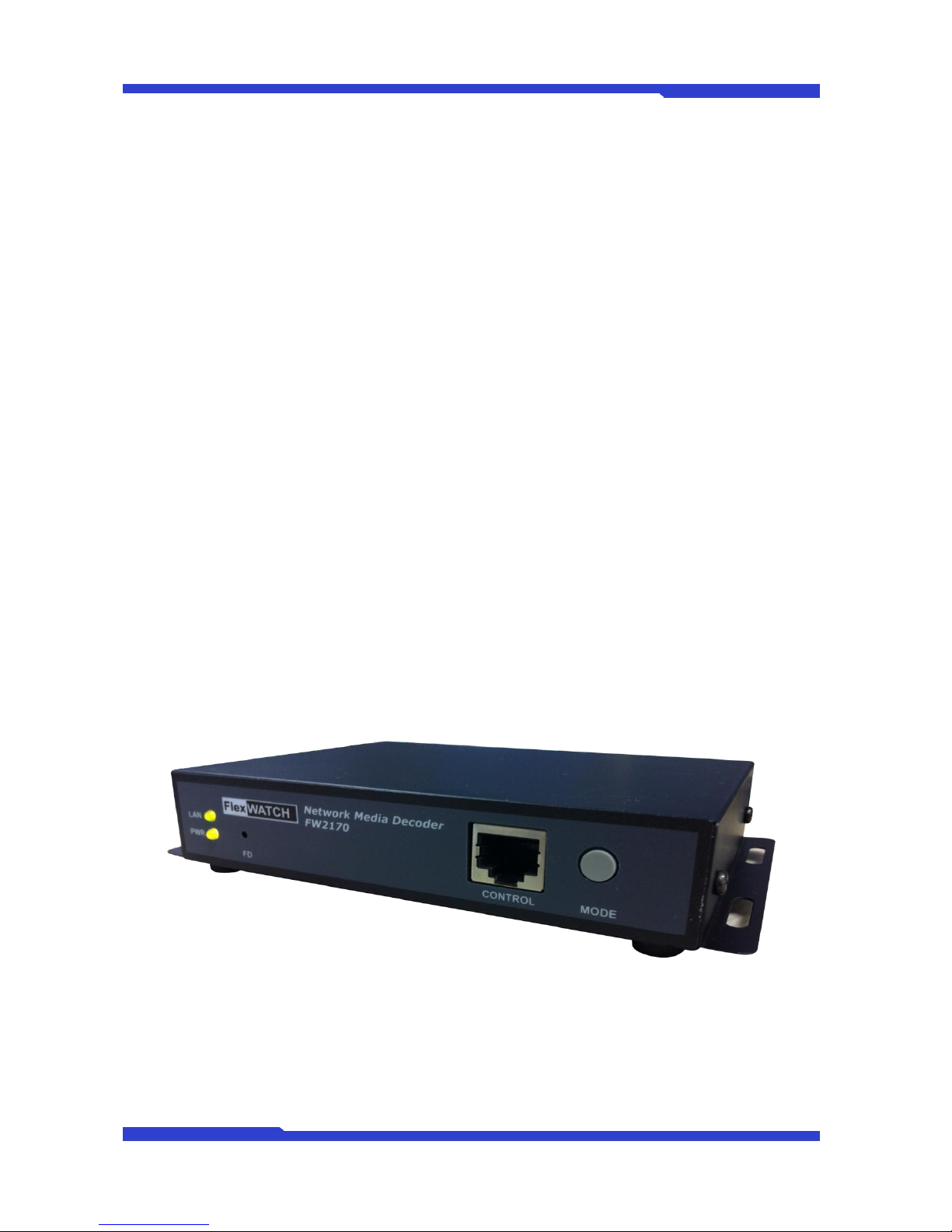

Picture 1 : FW2170

FW2170 User’s Manual

M4067-00 6 Seyeon Tech Co., Ltd

1.2. Key Features

Decodes network video without the need of a PC

Provides four channels of video up to 30fps decoding 1.3M per each channel.

Single Serial interface for Voice kit. Two way voice communication will be supported by software

upgrade later.

Single RS-485, RS-232 interface for future use. It can be used for Pan Tilt Zoom device control

using controller.

Supports dynamic IP at remote site using IPCCTVDNS.

Built-in Web server for administration.

Advanced alarm notification and service

When sensor or motion is triggered at FlexWATCH™2170 Network media decoder invokes the

4ch Rotation view immediately and displays the alarm status.

Factory Default Button for system initialization.

FW2170 User’s Manual

M4067-00 7 Seyeon Tech Co., Ltd

1.3. Preliminary Specification

Model

FW2170-DB

System

CPU

32bit Embedded Processor

Embedded Linux

Flash

128M Byte

SDRAM

128M Byte

Video

Output

HDMI : HDMI Connector

Component : RCA Connector

Composite : BNC Connector

Input

M-JPEG, H.264 IP stream ( JES format stream only )

Decoding

Performance

Max

resolution

1.3M, @1024P

Max Rate

30 fps@1024p

Interoperable Devices

FlexWATCH®-IP Camera/NVS/NVR

( FW-1xxx / 3xxx/ 5xxx series )

Audio

Codec

1ch in & 1ch out, Mono Audio

8 bit PCM (G.711-u-low), Sampling rates 8KHz, Bandwidth: 8KByte/sec

Min/Max Audio Freq.: 300Hz ~ 3.4KHz

Network Protocol

HTTP, RTP/RTSP, TCP/IP, FTP, Telnet, RARP, PPPoE, PAP, CHAP,

DHCP, SMTP client(e- mail), NTP

Network I/F

LAN

10/100BaseT Ethernet auto sensing

Serial I/F

RS-232

RS-485

COM : console, serial input/output

RS-485 : joystick or Transparent mode

Alarm I/F

DI/DO

1 Photo-coupled Input and 1 Relay Output

Management

Web based configuration / Control

Web based upgrade

Function ( reserved )

Multi-Channel Circulation

Various Display Mode Selection by Push Button

Alarm / Status display

Operating Condition

Temperature -5℃~ +50℃, humidity 20~80% ( non-condensing )

Power

DC 12V/1A [SMPS], max power consumption ( DC12V, 600mA )

Certification

FCC / CE / KCC

Dimension(WXDXH) /

Weight

148(W)X118(D)X25(H) mm / about 0.25 Kg

* All specifications are subject to change without prior notice.

Table 1 : Specification for FW2170

FW2170 User’s Manual

M4067-00 8 Seyeon Tech Co., Ltd

1.4. FW2170 Packing List

FW-2170

1ea

Power Supply Unit

(Power Cable & SMPS DC12V 1A Adapter)

1ea

CD (User’s Manual, installation wizard and

Pictures)

1 ea

Table 2 : FW2170 Packing List

Note: Please check all the listed items are included in your package. For any missing items,

please contact your local distributor.

FW2170 User’s Manual

M4067-00 9 Seyeon Tech Co., Ltd

1.5. Network Diagram

FW2170 works over IP network such as leased line, cable model, XDSL modem, PSTN modem. FW-

2170 can also works over public network or private network. The network environment will vary with users’

goals and needs; however, basic applications with FW2170 can be as below.

1.5.1. Private Network

Private network without Internet connection.

1.5.2. Wide Area Network

FW2170 is able to decode Video stream Over IP network by IP Address and domain name, and AOIP

Service. Once FW2170 is assigned Dynamic IP Address, it is possible to decode Video stream from Wide

Area Network.

FW2170 User’s Manual

M4067-00 10 Seyeon Tech Co., Ltd

1.5.3. FW-2170 with the existing Analog System

FW2170 decode and transmits Video stream to analog system so that it an can be applied with Video

Matrix.
