Sensit TKX Manual de usuario
851 Transport Drive • Valparaiso, IN 46383
219.465.2700 • www.gasleaksensors.com
Combustible Gas Leak Detector
Warning: To prevent ignition of ammable
or combustible atmospheres, disconnect
power before servicing.
7WA6
Approved UL913, For Class I,
Division 1, Groups C & D
hazardous locations when used
with alkaline batteries and approved
Lithium Ion (LiON) rechargeable
battery.
INSTRUCTION MANUAL

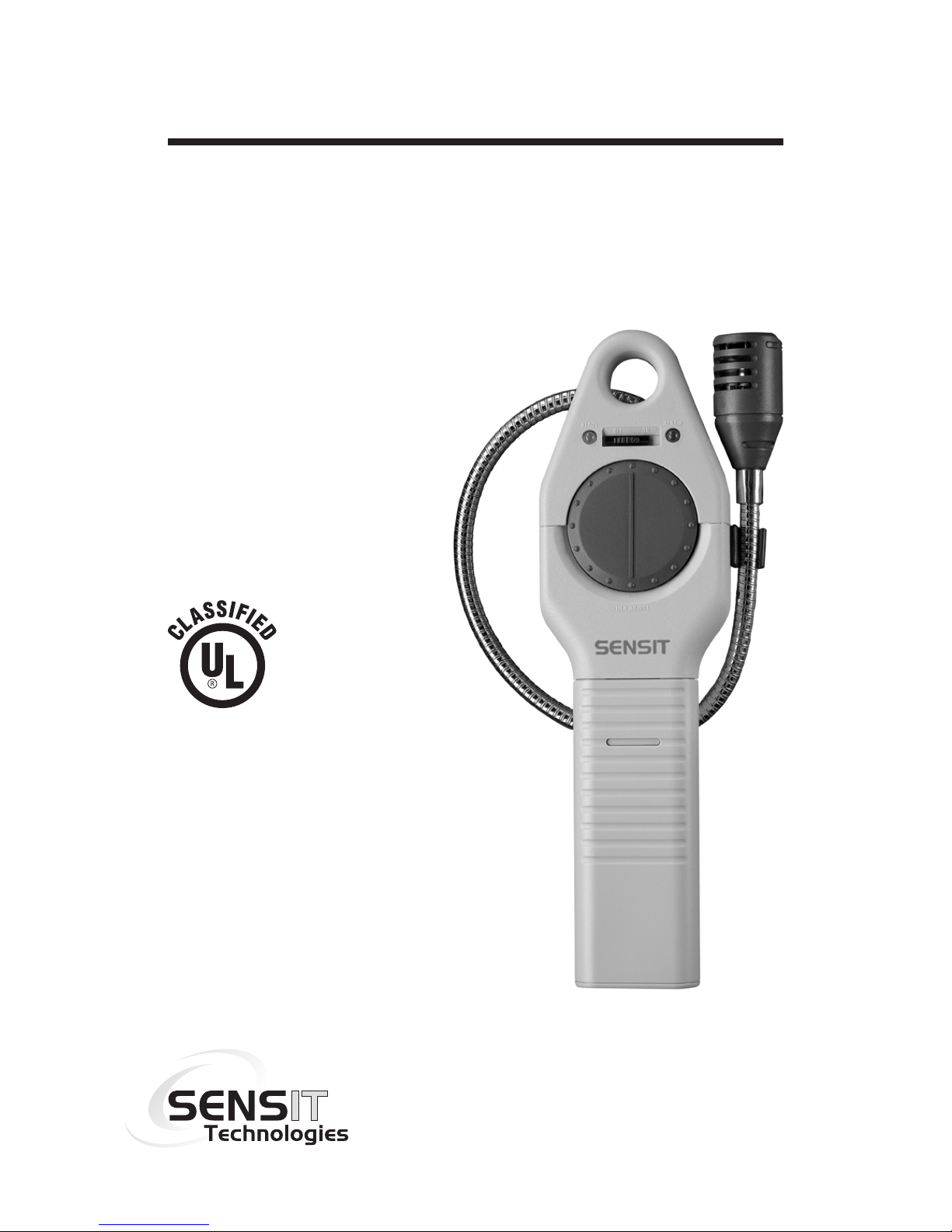

SENSIT®TKX
Read and understand
instructions before use.
Model with
alkaline battery shown.
⚠ Warning: For models powered by alkaline
batteries - To prevent the risk of ignition of
ammable atmospheres, batteries must only be
changed in an area known to be non-hazardous.
For models powered by alkaline batteries - Do not
mix batteries of different age or type.
⚠ Warning: For models with built-in LiON
rechargeable batteries - To prevent the risk of
ignition of ammable atmospheres, batteries must
only be charged in an area known to be non-
hazardous.
⚠ Warning: For models with built-in LiON
rechargeable battery - Do not attempt to remove the
rechargeable battery. This battery is not intended to
be removed by the end user.
⚠ Warning: To prevent ignition of ammable
or combustible atmospheres, disconnect power
before servicing.
FOR YOUR SAFETY
NOTICE: ⚠ CAUTION: This safety symbol
is used to indicate a potentially hazardous
situation which, if not avoided, may result
in minor or moderate injury.
ii
3
CONTENTS
Preparation
For Your Safety ..................................................... ii
Parts and Accessories ..........................................4
General Description ..............................................5
Product Specications ..........................................6
Product Features ..................................................7
Operation
Preparation Alkaline Battery Powered Model ..............8
Preparation LiON Rechargeable Battery Model ...........9
Operation and Use ........................................10-11
Battery Replacement - Alkaline .................... 12-13
Battery Recharging - LiON Rechargeable .... 14-15
Operation Check.................................................16
Sensor Replacement ..........................................17
Warranty .............................................. Back Cover
PARTS AND ACCESSORIES
Standard Accessories (Included)
Carrying Pouch 360-00002
Instruction Manual 750-00043
Alkaline Batteries* 310-00004
Wall Charger (US)** 871-00050
Optional Accessories / Parts
Sensor 375-2611-00
Wall Charger (International)** 871-00049
* for models powered by alkaline batteries
** for models powered by the LiON rechargeable
battery
4
GENERAL DESCRIPTION
The SENSIT® TKX instrument is an advanced
state-of-the-art leak detector capable of detecting
many combustible, noncombustible and toxic gases.
The SENSIT® TKX solid state sensor is sensitive
to most combustible and/or toxic gases.
A partial list of these gases is:
Acetone, Alcohol, Ammonia, Steam, Butane,
Gasoline, Jet Fuel, Hydrogen Sulde, smoke,
Industrial Solvents, Methane, Lacquer Thinner,
Naphtha, Propane, Natural Gas.
⚠ CAUTION This instrument is not to be used as
a carbon monoxide investigative tool or to quantify
any gas concentration.
5
SPECIFICATIONS
PRODUCT SPECIFICATIONS
Power Supply: 3 “C” Alkaline Batteries
/ Built-in rechargeable battery
Sensor: Solid State
Sensitivity: 20 ppm Methane
Warm up: Approx. 1 Minute
Response Time: Instantaneous
Duty Cycle: Continuous
Battery Life: Approx. 30 Hours Alkaline
Approx. 20 Hours LiON
Size: 3.5” x 10” x 1.6” (89 x 254 x 40 mm)
Weight: 2.4 lbs. (1.1 kg) Alkaline
2.0 lbs. (0.9 kg) LiON
Operating Temp.: 0 to 120º F (-20 to 50º C)
Charging Temp.: 32 - 104º F (0 - 40º C)
Probe Length: 16”
Approvals: UL913 Intrinsically Safe
6
7WA6
SENSIT® TKX is approved by Underwriters
Laboratories to UL913, for Class I, Division 1,
Groups C & D hazardous locations when
used with alkaline batteries or approved LiON
rechargeable battery.
7
PRODUCT FEATURES
Model with
Rechargeable Battery Shown
SENSOR
ON / OFF SWITCH
SENSING INDICATOR
TICK ADJUST DIAL
FLEXIBLE GOOSENECK
BATTERY COVER
LOCKING TAB
BATTERY COMPARTMENT
COVER
CHARGING LED
(RECHARGEABLE MODEL ONLY)
CHARGING
PORT AND COVER
(RECHARGEABLE MODEL ONLY)
8
PREPARATION
ALKALINE BATTERY
POWERED MODEL
1. Depress the locking tab on the front of the battery
compartment cover with a coin or at object and pull
the battery sleeve handle away from the top of the
instrument.
2. Place three (3) approved batteries into the battery
compartment. BE SURE TO OBSERVE AND
FOLLOW THE POLARITY MARKING on the inside
of the battery holder for proper battery installation.
The instrument will not function with improperly
installed batteries.
3. Replace the battery compartment cover pushing
it in place until the locking tab snaps into position.
Check to be sure the battery compartment cover is
secure to the instrument body by rmly pulling the
handle away. The handle will remain in place if cover
is properly in place.
9
PREPARATION
LiON RECHARGEABLE
BATTERY MODEL
For safety during shipping, the TKX with LiON
rechargeable battery has been packaged with a
special label covering the ON/OFF Switch to insure
the device does not turn on during shipment. This
label must be removed before the TKX can be
powered on.
Follow the procedure in the section titled “Battery
Charging” (page 14) to perform an initial charge to
the battery.
10
OPERATION AND USE
1. Turn the unit on in an uncontaminated / gas free
environment by moving the switch from the “OFF”
to the “ON” position.
2. The green ready LED will illuminate if there is
ample battery power. The red LED may icker and
the tick may sound during the warm up. To silence
the tick, rotate the tick wheel fully counterclockwise.
3. Adjust the “TICK ADJUST” by rotating it in a
clockwise direction until a uniform tick begins to
sound. A uniform tick rate indicates a fully warmed
up instrument. The red LED will ash at the same
time the tick sounds.
4. Approach suspected leak areas with the sensor
until the tick begins to increase. When the tick
increases do not move the sensor from the
suspected leak area, rotate the tick adjust slightly
counterclockwise to slow the ticking sound and
continue to approach the leak. Continue to use this
method to pinpoint the leak.
REMEMBER: An increase in tick indicates you are
approaching a leak, a decrease in tick indicates you
are moving away.
