English

HSP 2/HSP 4

High-qualityback-electretcondenserheadmics,designedfor

professional “hands free” applications. The adjustable

neckband is visually unobtrusive and very comfortable to

wear.

The 12 available HSP variants differ in pick-up pattern,

colour and connector.

There are two pick-up patterns available:

HSP 2: omni-directional

HSP 4: cardioid

Features

Individually adjustable to all head sizes

Neckband design keeps the microphone clear from shirt-

collar or clothing

Thin microphone boom, interchangeable

Microphone boom can be attached to the left or right side

Angle of microphone boom can be adjusted inthree steps

Microphone boom is adjustable in length

Connection cable can easily be interchanged

All metal parts are coated in a physical vapour deposition

process (scratch-resistant)

HSP2.book Seite 15 Donnerstag, 27. Januar 2005 10:11 10

English

Delivery includes

Boom microphone

yNeckband

Neckband connecting cable

Plastic transport case, foam-lined with cut-outs

Instructions for use

Warranty Certificate

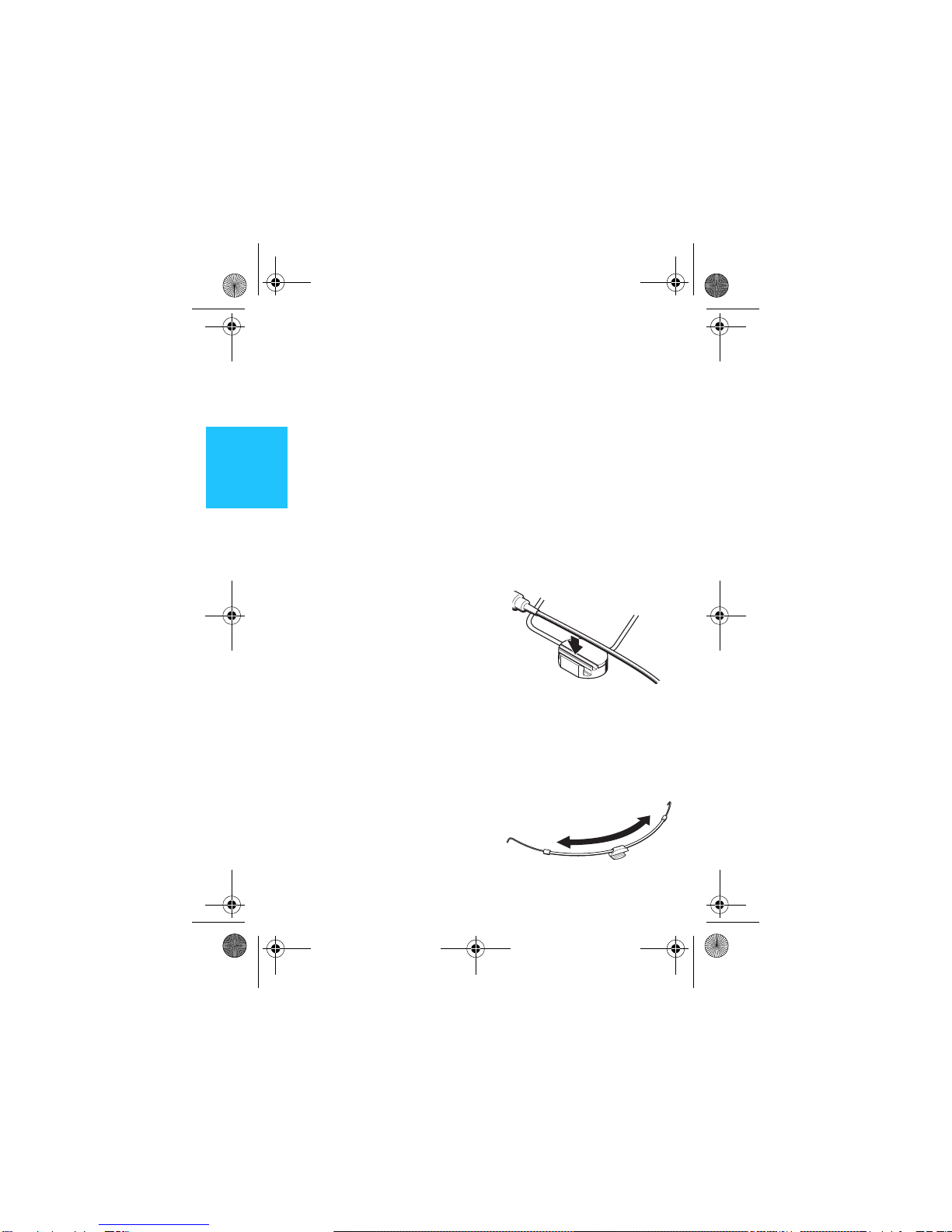

Attaching the microphone boom

The neckband has two holders which are designed so that

the microphone booms can be worn on either side of the

mouth.

To change the microphone

boom, carefully lever it out of

theholder.To attachthemicro-

phone boom, press it into the

holder until it snaps in. The up-

perroundrecess isforthe HSP 2

(

∅

1.1 mm). The lower square recess at the front keeps the

HSP 4 in a fixed, non-rotating position, thus ensuring that

the sound inlet is reliably directed towards the mouth.

Adjusting the neckband

You can adjust the neckband to

fit all head sizes. To do so,

change the length of the

neckband by pushing in or

pulling out the ear bows.

HSP2.book Seite 16 Donnerstag, 27. Januar 2005 10:11 10

English

Cable holder

Attach the microphone cable to

the holder in the centre of the

neckband.

Note:

When attaching the thin cable,

make sure you also press the snall

cable sleeve into the holder or

the cable will fall out.

Changing the microphone

The connection between the

microphone boom and the

microphonecableistverytight.

To loosen this connection, in-

sertyourfingernailintothejoin

andthenpulltheconnectorand

the socket apart as shown .

Note:

When pulling apart, make sure you hold the thick end of

the connector and the socket (NOT the cable).

Pullingthethinmicrophoneboomorthecablesleevecan da-

mage the microphone boom or cable. This will invalidate the

Sennheiser warranty

HSP2.book Seite 17 Donnerstag, 27. Januar 2005 10:11 10

English

Positioning the microphone capsule (HSP 2)

It is best to keep the microphone

capsule at the side of the mouth

to minimise the risk of popping

noises caused by plosives from

the mouth.

To position the microphone

capsule, push the microphone

boom backwards or forwards in

the holder.

To adjust the angle of the

microphoneboom, moveitto one

of the three possible positions

until it snaps in.

HSP2.book Seite 18 Donnerstag, 27. Januar 2005 10:11 10

English

Positioning the microphone capsule (HSP 4)

The microphone capsule has a

cardioid pick-up pattern and is best

placed directly at the corner of the

mouth.

Note:

Do not position the microphone

directly in front of your mouth as

it will pick up your breathing and

plosive noises from your mouth.

To position the microphone capsule, push the microphone

boom backwards or forwards in the holder.

The microphone capsule can be precisely positioned using

the flexible gooseneck.

Cleaning the pop protection (HSP 4 only)

Thepop protectionisintegratedintothemicrophone capsule

of the HSP 4. To clean or replace the pop protection, lever it

from the capsule .

Note:

When attaching the pop protection, it is important not to

cover the sound inlet!

HSP2.book Seite 19 Donnerstag, 27. Januar 2005 10:11 10

English

Accessories

The following accessories and/or replacement parts are

available for the HSP 2 / HSP 4:

Replacement parts for HSP 2

Part Cat. No.

Neckband with two holders, anthracite 511709

Neckband with two holders, beige 511710

Omni-directional boom microphone, beige 511711

Omni-directional boom microphone, anthracite 511712

Cardioid boom microphone, beige 511713

Cardioid boom microphone, anthracite 511714

Windshield cap for HSP 4, anthracite 511715

Windshield cap for HSP 4, beige 511716

OFC copper/Kevlar cable with

3-pin screw special connector, black 511717

OFC copper/Kevlar cable with

3-pin screw special connector, beige 511718

Steel wire cable with

3.5 mm lockable mini-jack, black 511719

Steel wire cable with

3.5 mm lockable mini-jack, beige 511720

Steel wire cable with open ends, black 511721

Steel wire cable with open ends, beige 511722

Plastic transport case 511723

MZA 900 P phantom power adaptor 500226

MZC 2-1 cap, short, anthracite 085842

MZC 2-2 cap, long, anthracite 085839

MZC 2-1 cap, short, beige 085843

MZC 2-2 cap, long, beige 085840

MZW 2 windshield, black 047185

MZW 2 windshield, beige 047186

HSP2.book Seite 20 Donnerstag, 27. Januar 2005 10:11 10

English

Replacement parts for HSP 4

Part Cat. No.

Neckband with two holders, anthracite 511709

Neckband with two holders, beige 511710

Omni-directional boom microphone, beige 511711

Omni-directional boom microphone, anthracite 511712

Cardioid boom microphone, beige 511713

Cardioid boom microphone, anthracite 511714

Windshield cap for HSP 4, anthracite 511715

Windshield cap for HSP 4, beige 511716

OFC copper/Kevlar cable with

3-pin screw special connector, black 511717

OFC copper/Kevlar cable with

3-pin screw special connector, beige 511718

Steel wire cable with

3.5 mm lockable mini-jack, black 511719

Steel wire cable with

3.5 mm lockable mini-jack, beige 511720

Steel wire cable with open ends, black 511721

Steel wire cable with open ends, beige 511722

Plastic transport case 511723

MZA 900 P phantom power adaptor 500226

HSP2.book Seite 21 Donnerstag, 27. Januar 2005 10:11 10

English

Overview of product variants

Feature

Microphone (Cat. No.)

3-pin screw special connector

ew 3.5mm lockable mini-jack

Open-ended cable

Platinum cable

Flexible gooseneck

Anthracite

Beige

HSP 2 (009862) √ √ √

HSP 2-3 (009863) √ √ √

HSP 2-ew (009866) √ √

HSP 2-ew-3 (009872) √ √

HSP 2-5 (009868) √ √

HSP 2-5-3 (009869) √ √

HSP 4 (009864) √√√√

HSP 4-3 (009865) √√√ √

HSP 4-ew (009867) √ √ √

HSP 4-ew-3 (009873) √ √ √

HSP 4-5 (009870) √ √ √

HSP 4-5-3 (009871) √ √ √

HSP2.book Seite 22 Donnerstag, 27. Januar 2005 10:11 10
