Sena ACS 10 Manual de usuario

1.0.0

SENA

QUICK START GUIDE

ENGLISH

For Arai Quantic Helmet

SENA Technologies, Inc.

Customer Support: sena.com

Downloadable Sena Software

Download the Sena Utility App at Google Play Store or

App Store.

Sena Utility

Download the following items at sena.com.

Firmware

Sena Device Manager

• Firmware upgrade

• Device conﬁguration setting

Quick Start Guide,

User’s Guide

the latest information and helpful tips.

Product Details

Main Unit

Antenna

Microphone Connector

Speakers Connectors

Status LED

DC Power Charging &

Firmware Upgrade Port

Pinhole Fault Reset Button

(–) Button

(+) Button

Center Button

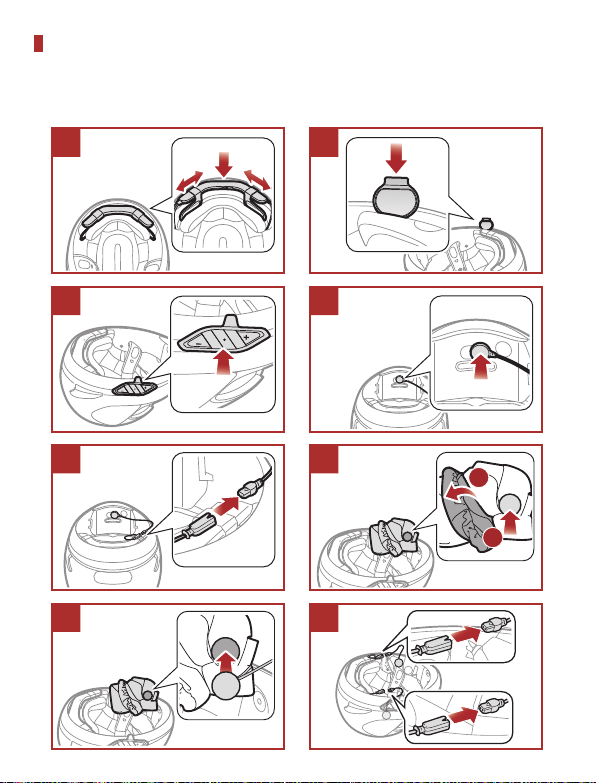

Installation

• The ACS10 is compatible with Arai Quantic Helmets.

• For more information about installation, refer to the User’s Guide.

1 2

3 4

5 6

7 8

Icon Legend

TAP Tap button the speciﬁed

number of times 10s

HOLD Press and Hold button for the

speciﬁed amount of time

“Hello” Audible prompt

Basic Operations

Powering On

HOLD

Volume Up

TAP

Powering Off

TAP

Volume Down

TAP

Checking the Battery Level

Powering On

Phone Pairing

When you initially turn on the headset:

① 1s

HOLD Blinking

“Phone Pairing”

② Select ACS10 in the list of

Bluetooth devices detected.

Device B

Bluetooth

ACS10

• For more information on phone pairing, refer to the User’s Guide.

Using the Phone

Answer a Call

TAP

Reject a Call

HOLD

End a Call

HOLD

Voice Dial

HOLD in

stand-by

mode

Music Control

Play/Pause

HOLD

Track Forward

HOLD

Track Backward

HOLD

Bluetooth Intercom

Up to three other people can be paired with the headset for

Bluetooth intercom conversations.

YOU

Intercom Pairing

There are two ways to pair the headset.

Using the Smart Intercom Pairing (SIP)

SIP allows you to quickly pair with your friends for intercom

communication by scanning the QR code on the Sena Utility App

without remembering the button operation.

① Pair the mobile phone with the headset.

② Open the Sena Utility App.

③ Click the Smart Intercom Pairing Menu.

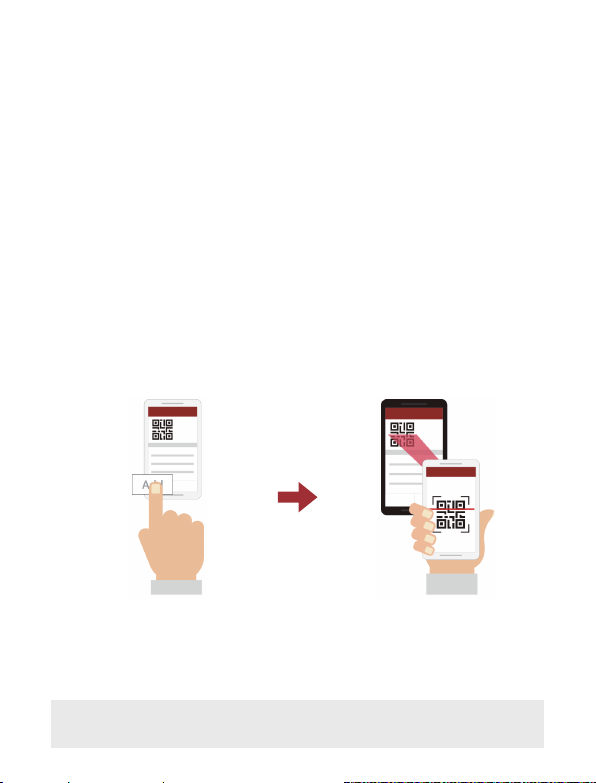

④ Click the Add Button to open the QR scanning screen.

⑤ Scan the QR code displayed on your friend (B)’s mobile phone.

• Your friend (B) can display the QR code on the mobile

phone by opening the Sena Utility App and clicking the

Smart Intercom Pairing Menu.

⑥ Click the Conﬁrm Button and check that your friend (B) is paired

with you (A) correctly.

⑦ Repeat steps 4-6 to pair with Intercom Friends (C) and (D).

Note: The Smart Intercom Pairing (SIP) is not compatible with

Sena products that use Bluetooth 3.0 or below.

Using the Button

YOU

① Users (You, B) enter into Intercom Pairing.

HOLD Blinking

“Intercom Pairing”

② Tap the Center Button on either headset.

TAP

Turns blue

Conﬁrms intercoms are paired

YOU

③ Repeat the steps above to pair with other headsets (C and D).

Last-Come, First-Served

If a headset has multiple paired headsets for intercom conversations,

the last paired headset is set as the ﬁrst intercom friend.

Intercom Pairing Order Last-Come, First-Served

YOU

ADCB

YOU Intercom

Friend 1

Intercom

Friend 2

Intercom

Friend 3

Two-way Intercom

Start/End Conversation with the First Intercom Friend D

TAP

Start/End Conversation with the Second Intercom Friend C

TAP

Start/End Conversation with the Third Intercom Friend B

TAP
