QUICK START GUIDE ENGLISH / 1.0.0

SRL–EXT

MOTORCYCLE MESH & BLUETOOTH®

COMMUNICATION SYSTEM FOR SHOEI HELMETS

SENA Technologies, Inc.

Customer Support: sena.com

Downloadable Sena Software

Download the SENA MOTORCYCLES App on Google Play

Store or App Store.

SENA MOTORCYCLES

• Device Conﬁguration Setting

Download the following items at sena.com.

Firmware

Sena Device Manager

• Firmware upgrade

• Device conﬁguration setting

Quick Start Guide,

User’s Guide

Follow us on Facebook, YouTube, Twitter and Instagram to check

the latest information and helpful tips.

Product Details

Mesh Intercom

Antenna

Status LED

Charging LED

DC Power

Charging &

Firmware Upgrade

Port

Center Button

(-) Button

Mesh Intercom Button

(+) Button

Speaker(L)

Connector

Wired

Microphone

connector

Battery

Connector

Speaker(R)

Connector

Installation

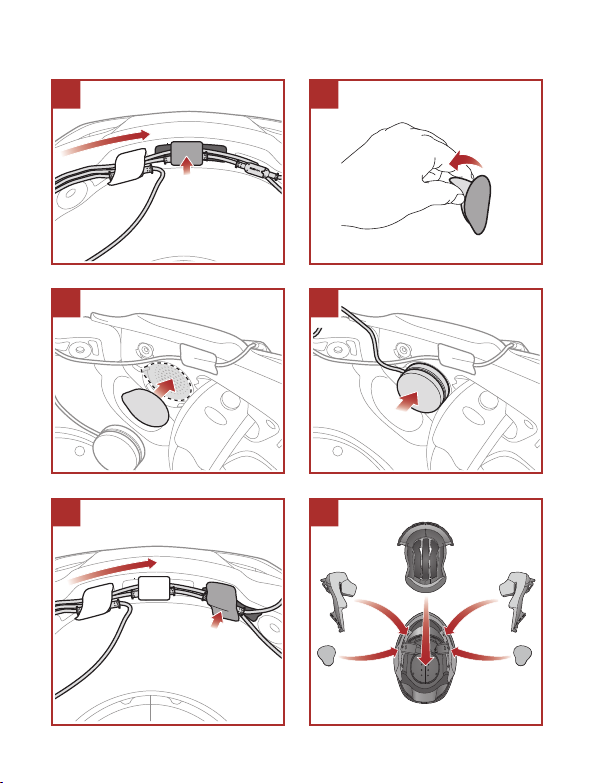

The SHOEI’s RF-1400 Helmet is compatible with the SRL-EXT.

The model name of the RF-1400 Helmet varies depending on the

region.

• RF1400(US), NXR 2(EU), Z-8(JP)

• For more information about installation, refer to the User’s Guide.

1 2

3

EMERGENCY USE ONLY

PULL RED TAB AND REMOVE CHEEK PAD

4

EMERGENCY USE ONLY

PULL RED TAB AND REMOVE CHEEK PAD

EMERGENCY USE ONLY

PULL RED TAB AND REMOVE CHEEK PAD

5

EMERGENCY USE ONLY

PULL RED TAB AND REMOVE CHEEK PAD

6

7

EMERGENCY USE ONLY

PULL RED TAB AND REMOVE CHEEK PAD

8

EMERGENCY USE ONLY

PULL RED TAB AND REMOVE CHEEK PAD

9

EMERGENCY USE ONLY

PULL RED TAB AND REMOVE CHEEK PAD

10

EMERGENCY USE ONLY

PULL RED TAB AND REMOVE CHEEK PAD

11 12

13 14

15 16

17 18

19 20

21 22

23 24

2

1

25 26

27 28

29 30

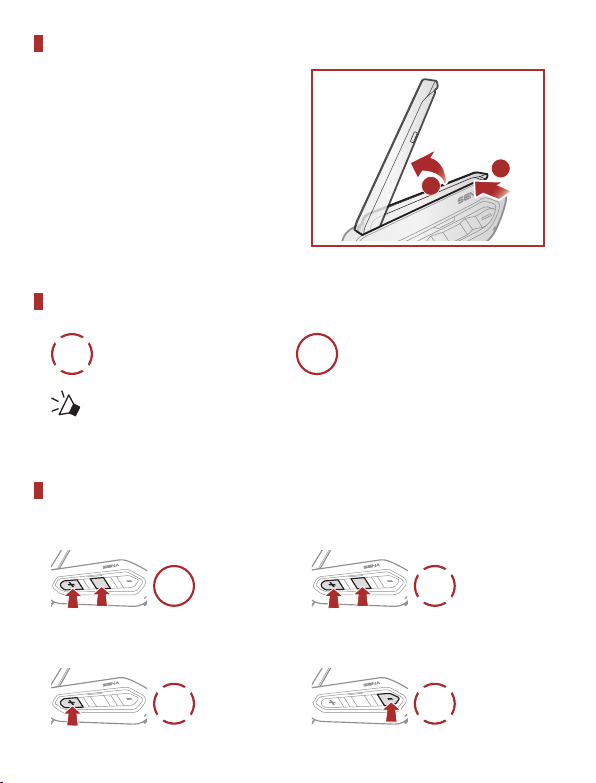

Mesh Intercom Antenna

Pull the Mesh Intercom Antenna

inwards slightly to unfold it.

2

1

Icon Legend

1x

TAP Tap button the speciﬁed

number of times 10s

HOLD Press and Hold button for the

speciﬁed amount of time

“Hello” Audible prompt

Basic Operations

Powering On

1s

HOLD

Volume Up

1x

TAP

Powering Off

1x

TAP

Volume Down

1x

TAP

Checking the Battery Level

Powering On

=

=

=

Phone Pairing

① 10s

HOLD “Conﬁguration menu”

② 1x

TAP

Blinking

“Phone pairing”

③ Select SRL-EXT in the list of

Bluetooth devices detected.

Device B

Pi

Bluetooth

SRL-EXT

• For more information on phone pairing, refer to the User’s Guide.
