Sena +MESH Manual de usuario

+MESH

BLUETOOTH TO MESH INTERCOM ADAPTER

2.2.0

QUICK START GUIDE

ENGLISH

RIDE CONNECTED

The +Mesh features Sena’s Mesh Intercom

technology allowing your group to seamlessly

communicate, even if a rider falls out of range.

Pair your headset or helmet from Sena to the

+Mesh to start talking with other riders using

Mesh Intercom. With built-in Bluetooth®, HD

Intercom™, technology has never felt so minimal

or freeing.

Mesh Intercom™

800 meters/880 yards*

Bluetooth®4.1

* in open terrain

GETTING STARTED

1. Update this product for free with the latest

ﬁrmware to fully enjoy the new advanced

features built into this product. Visit sena.com

to see how to update your product.

2. Users can follow Sena on Facebook, YouTube,

Twitter and Instagram to receive the most up

to date information on products, helpful tips

and all other announcements regarding Sena

products.

SENA Technologies, Inc.

sena.com

Customer Support: support.sena.com

TABLE OF CONTENTS

1. ABOUT THE +MESH 6

1.1 Product Details 6

1.2 Package Contents 6

1.3 Installing the +Mesh 7

1.3.1 Using the Handlebar Mounting Kit 7

1.3.2 Placing on the Mounting Cradle 7

2. BASIC OPERATION 8

2.1 Downloadable Sena Software 8

2.1.1 Sena +Mesh App 8

2.1.2 Running the Sena +Mesh App 8

2.1.3 Sena Device Manager 9

2.2 Powering On and Off 9

2.3 Charging 9

2.4 Checking the Battery Level 9

3. MESH INTERCOM 10

3.1 What is Mesh Intercom 10

3.1.1 Open Mesh 10

3.2 SENA Products That Can Communicate with

+Mesh via Mesh Intercom 11

3.3 Using the Mesh 11

3.3.1 Bluetooth Pairing with a Sena Headset

or Helmet 12

3.3.2 Mesh Intercom On and Off 12

3.3.3 Mesh Intercom Reconnection 13

3.4 Using the Mesh in Open Mesh 14

3.4.1 Channel Setting (Default: channel 1) 14

4. TROUBLESHOOTING 15

4.1 Firmware Upgrade 15

4.2 Fault Reset 15

4.3 Factory Reset 15

QUICK REFERENCE 16

1. ABOUT THE +MESH

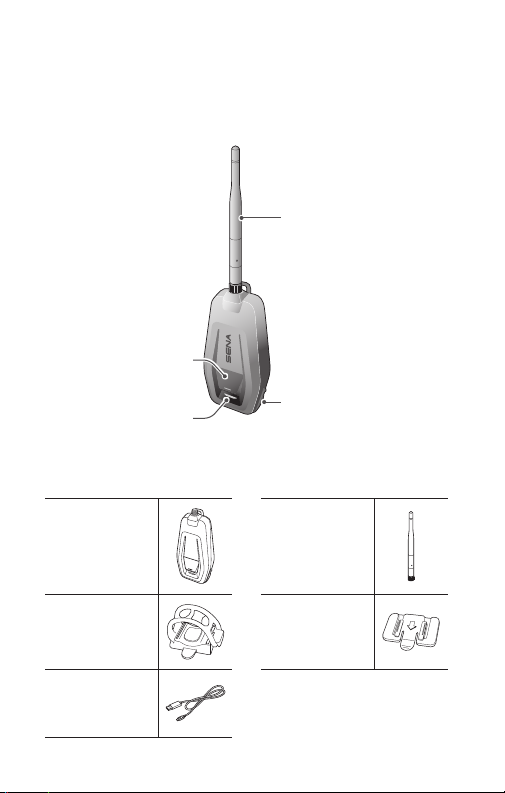

1.1 Product Details

Mesh Intercom

Antenna

Status LED

Multi-function Button

DC Power Charging &

Firmware Upgrade Port

1.2 Package Contents

Main Unit Mesh Intercom

Antenna

Handlebar

Mounting Kit

Mounting

Cradle

USB Power &

Data Cable

ABOUT THE +MESH

1.3 Installing the +Mesh

Install the +Mesh where the antenna is not blocked by the

human body as much as possible.

When the human body is blocking the antenna, the Mesh

intercom signal strength will be weakened.

1.3.1 Using the Handlebar Mounting Kit

1. Place the handlebar mounting kit on the handle bar, wind

the rubber band around the handle bar, and hang it on

the hook.

2. Attach the handlebar mounting kit on the back of the

main unit along the guide rail until you hear a click.

1.3.2 Placing on the Mounting Cradle

1. Locate a proper surface on your motorcycle body, clean

the body surface location with a moistened towel, and

allow to dry thoroughly.

2. Peel off the cover of the adhesive tape of the mounting

cradle and attach the unit on the proper surface of your

motorcycle.

3. Attach the mounting cradle on the back of the main unit

along the guide rail until you hear a click.

Note: Make sure that the main unit sticks on your

motorcycle body ﬁrmly. Maximum adhesion occurs after

24 hours.

2.1 Downloadable Sena Software

2.1.1 Sena +Mesh App

You can use the Sena +Mesh App without pairing your

Smartphone to the +Mesh.

• Download

– Android: Google Play Store > Sena +Mesh App

– iOS: App Store > Sena +Mesh App

2.1.2 Running the Sena +Mesh App

1. Turn on the product.

2. Press and hold the Multi-function Button for 5 seconds

to enter Bluetooth Pairing.

3. Launch the Sena +Mesh App on your Smartphone.

4. Scan the product in the app.

• When you launch the app, the product is automatically

scanned.

• Tap the Scan icon ( ) to manually scan the product.

5. After scanning is complete, select the scanned product in

the app.

Note:

• If the product has not been scanned in the app, please

update the product to the latest ﬁrmware.

• How to identify the scanned product in the app

You can identify the product by the

six-letter code on the label on the

back of your product. XXXX

XXXX

XXXXXX

XXXXX

2. BASIC OPERATION

BASIC OPERATION

2.1.3 Sena Device Manager

The Sena Device Manager allows you to upgrade the

ﬁrmware from your PC or Apple computer. Download the

Sena Device Manager from sena.com.

2.2 Powering On and Off

To power on the +Mesh, press and hold the

Multi-function Button for 1 second.

To power off the +Mesh, press and hold the

Multi-function Button for 1 second.

2.3 Charging

The +Mesh can be charged using many common methods

via the supplied USB power & data cable. The LED turns

red while the headset is charging and turns blue when it is

fully charged. Depending upon the charging method, the

headset will be fully charged in about 2 hours.

Note: The +Mesh is compatible with 5 V input USB-

charged devices only.

2.4 Checking the Battery Level

When the +Mesh is powering on, the red LED ﬂashes

rapidly indicating the battery level.

4 ﬂashes = High, 70~100%

3 ﬂashes = Medium, 30~70%

2 ﬂashes = Low, 0~30%

3.1 What is Mesh Intercom

Sena proposes using Mesh Intercom™, which provides

instant and effortless bike-to-bike communication without a

pre-grouping process.

Mesh Intercom allows riders to connect and communicate

with nearby users without the need to pair each headset

together.

The working distance between each +Mesh in Mesh

Intercom can be up to 800 meters (880 yards) in open

terrain. In open terrain, the Mesh can be extended up to 3.2

km (1.9 miles) between a minimum of 6 users. 6 users can

talk at the same time for an optimized, open group intercom

conversation. Users can freely connect with each other.

3.1.1 Open Mesh

Open Mesh is an open group intercom function. Users

can freely communicate with each other in the same Open

Mesh channel and select which channel (1-9) to use through

the Sena +Mesh App.

It can connect with a virtually unlimited number of users in

each channel.

3. MESH INTERCOM
