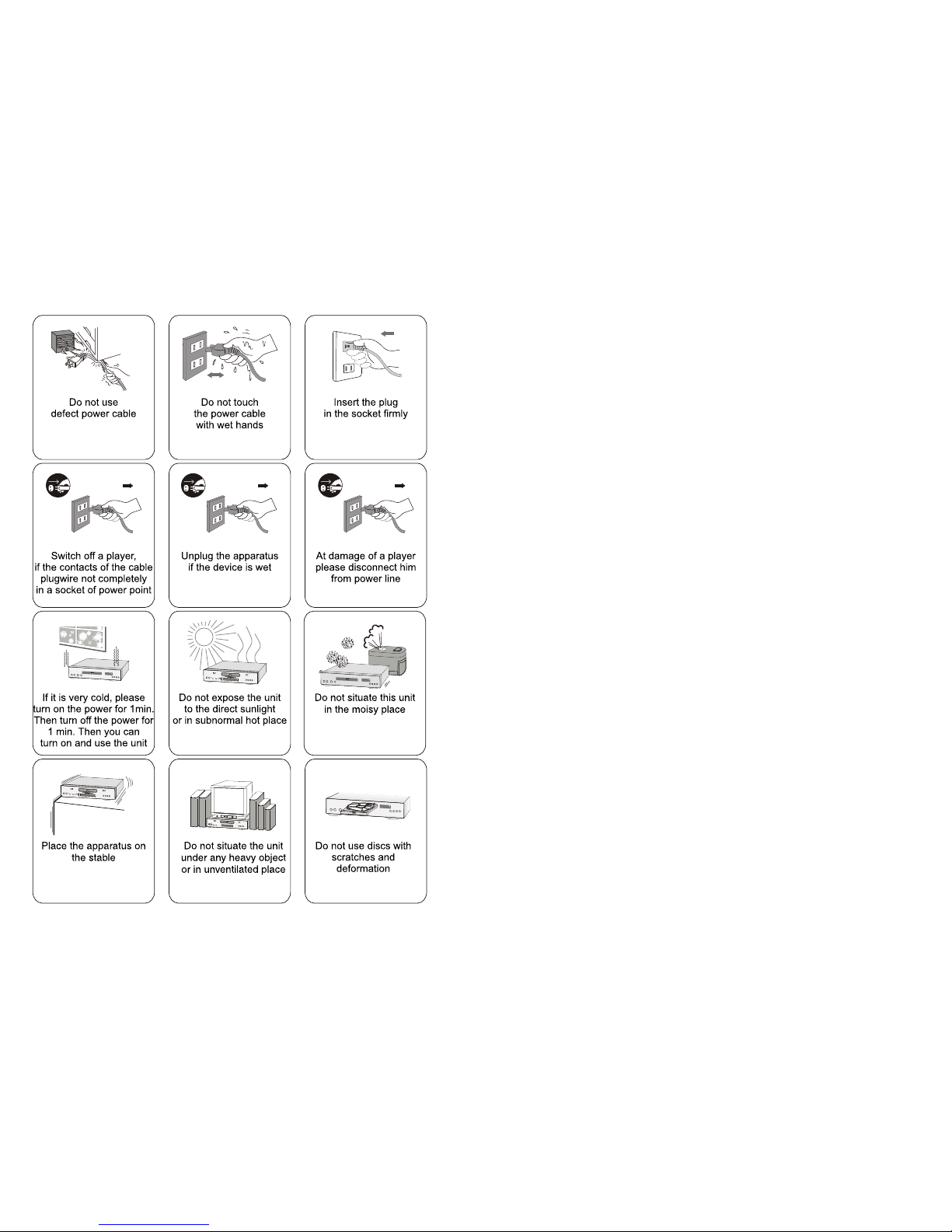

100-240V
50/60Hz 13W MODEL:DVD-300
INPUT:100~240V 50/60Hz 13W
MADE IN CHINA
Serial no:
4. Preparations
4.1 Accessories
1. Remote controller 2. Audio/Video cable 3. User's manual 4.Battery
(check whether be fully equipped after open the box)
4.2 Battery installation of remote controller
Place two AA batteries in the battery compartment. Be sure the polarities are correct. There should
be no large obstacles between the remote controller and the main unit.
4.3 System connection
1. When making connection between this unit and other components, be sure all connection with
power-off.
2. Audio/Video cables are connected according to the different colour identification and they should
be fitted firmly.
Yellow to video terminal
White to audio terminal
Red to audio terminal
3. Scheme of connection
Once it has read the disc, this machine will
start playing automatically.
If it is a DVD, the machine will show the DVD
menu or title menu.
If it is a VCD2.0 disc, the machine will activate
PBC playback control status.
If it is a CD, this machine will start playing in
the sequence.
POWER
If there is no disc, NO DISC shown on screen:
Step 2: Press OPEN/CLOSE key on the front
panel , the tray comes out automatically.
Step 3: Place disc on the tray, press
OPEN/CLOSE key to close the tray, the disc type
will beshown on the up-left corner of the screen.
Note: Press POWER key on the remote
controller to bring the unit into standby status.
5.1 Play disc
Press <REV> key to get 2X, 4X, 8X, 16X,
32X or normal play circular fast reverse function
on disc playing.
4
4.4 Play mode setting
If you found the picture could not spread all
screen or no color, please select PAL, NTSC or
Multi by pressing <N/P> key.
5. Basic operation
Once all the connection of the system have
been done, this machine will be ready for service.
Prior to play, make sure to complete the following
preparatory operations.
1. Switch on TV and select AV mode. If it's
S-Video connect select S-Video mode.
2. Switch on amplifier if it connected, select
AC-3 or DVD mode.
3. Plug-in of DVD player.
Step 1: Press POWER button, DISC LOADING
shown on screen.
PAUSE/PLAY key:
Press
<PAUSE/PLA
Y>
key
to
return
playback while disc stop, pause or step.
Press<PAUSE>key toput the playbackin
temporary halt.
Press <FWD> key to get 2X, 4X, 8X, 16X,
32X or normal play circular fast forward function
on disc playing.
Press
<PAUSE>
key
to
put
the
playback
in
temporary halt.
PREV key:
NEXT key:
Press
<PREV>
key
to
skip
backward
to
the
title
before current.
Press <NEXT> key to skip forward to the title
after current.
Press <STOP> key first time to followed by a
<PLAY> key will allow a auto resume to the last
played location. Press <STOP> key twice will halt the
playback completely.
REV key:
FWD KEY:
STOP KEY:
6. Description of function
6.1 Screen display
DISPLAY
In the condition of DVD disc playing, press
<DISPLAY> key on the remote controller to display
the single elapsed time, single remain time, total
elapsed time, total remain and other information of
the disc.
In the condition of VCD disc playing, press
<DISPLAY> key on the remote controller to display
single elapsed time, single remain time, display off
and other information of the disc circular.
READY
()
SRS
ProLogic
Digital3-stereo
AC3IN 5.1CH
WIDE
NORMAL
PHANTOM
LIVE ROCK DISCO SIMUL MATR CLAS HALL POPS
DIRECT BYPASS AUTO TUNED STEREO MEMORY
LC R
S
S
KHz
MHz 100 300 1K 3K 10K
STANDBY
REMOTE
SENSOR
TEST
VCD
CD
VCR
AC-3
DVD
DOLBY
TAPE
CENTERMODE DELAY TIME
AUX BAND PRESET MEMO TUNING
CHANNELSELECT FMMODE AUTO
L/R SW/CEN SURL/R
DSP
3D BOOST
DIRECT BASS TREBLE
DSP
AP-7610
STANDBY/ON
1 2
MIC
AVSURROUND INTEGRATED AMPLIFIER
POWER
Digital Home Theater amplifier
Optical, coaxial input
LOUNDESS
POWER
ON OFF
BASS
VOLUME
TREBLE
MIN
MIN
MAX
MAX
DOWN UP
2910HPOWER AMPLIFIER
D
REMOTE
VCD
PROLOGIC 3 STEREO BYPASS NORMAL WIDE PHANTOM DSP TEST
LD DVD VCR TUNER AC-3 15ms 20ms 25ms 30ms LOUNDESS CEN- CEN+
BAL-L BAL-R
SUR- SUR+
MUTE RESET
ECHO MIC VOL
1 2
MIC
1 2
5.1CH input
Multi Standard TV
6.2 Play mode
Press <N/P> key one by one to get NTSC.
PAL, MULTI display on the screen.
6.3 Subtitle
This function may enable you to select multi
subtitle languages (as many as 32 kinds and only
for the disc with multi subtitle encoded). Press
<SUBTITLE> key to get desired display.
For example, to select language 2 from
8 options.
6.4 Angle
During athletic match, concert or theatrical
program, press ANGLE key continually on
remote controller to select various angle to
view the same image (This operation works
only for the disc with multi angle encoded).
