Selecon PLPROFILE4 MKII Manual de usuario

For PLPF4MKII-03 &

PLPF4MKII-01

The material in this manual is for information purposes only and is subject to change without notice.

Selecon assumes no responsibility for any errors or omissions which may appear in this manual. For comments and

suggestions regarding corrections and/or updates to this manual, please visit the Selecon web site at

www.seleconlight.com or contact your nearest Selecon office.

El contenido de este manual es solamente para información y está sujeto a cambios sin previo aviso.

Selecon no asume responsabilidad por errores o omisiones que puedan aparecer. Cualquier comentario, sugerencia

o corrección con respecto a este manual, favor de dirijirlo a la oficina de Selecon más cercana.

Der Inhalt dieses Handbuches ist nur für Informationszwecke gedacht, Aenderungen sind vorbehalten.Selecon

uebernimmt keine Verantwortung für Fehler oder Irrtuemer, die in diesem Handbuch auftreten. Für

Bemerkungen und Verbesserungsvorschlaege oder Vorschlaege in Bezug auf Korrekturen und/oder

Aktualisierungen in diesem Handbuch, moechten wir Sie bitten, Kontakt mit der naechsten Selecon-

Niederlassung aufzunehmen.

Le matériel décrit dans ce manuel est pour information seulement et est sujet à changements sans préavis. La

compagnie Selecon n'assume aucune responsibilité sur toute erreur ou ommission inscrite dans ce manuel.Pour

tous commentaires ou suggestions concernant des corrections et/ou les mises à jour de ce manuel, veuillez s'ilvous

plait contacter le bureau de Selecon le plus proche.

Note: Information contained in this document may not be duplicated in full or in part by any person without prior written

approval of Selecon. Its sole purpose is to provide the user with conceptual information on the equipment mentioned. The use of

this document for all other purposes is specifically prohibited.

Document Number: 02.9694.4202 A

Version as of: 25 February 2016

PLPROFILE4 MKII LED Luminaire QuickStart Guide



Website:

www.vari-lite.com

PLPROFILE4 MKII LED Luminaires QuickStart Guide

TABLE OF CONTENTS

6elecon Offices....................................................................................................... Inside Front Cover

TABLE OF CONTENTS

IMPORTANT INFORMATION

Warnings and Notices ..................................................................................................................................... 2

Additional Resources for DMX512 ................................................................................................................ 2

Selecon Limited Three-Year Warranty............................................................................................... 2

PREFACE

About this Guide..................................................................................................................................................... 3

Product Descriptions .............................................................................................................................................. 3

Included Items ........................................................................................................................................................ 3

INSTALLATION AND SET UP

Top Box Connections ............................................................................................................................................. 4

Power Requirements............................................................................................................................................... 4

Connecting Power .................................................................................................................................................. 5

Connecting to the DMX512 Network .................................................................................................................... 5

Mounting ................................................................................................................................................................ 6

Using Supplied C-Clamp ................................................................................................................................ 6

Pan and Tilt Adjustments ....................................................................................................................................... 7

Pan Adjustment ............................................................................................................................................... 7

Tilt Adjustment ............................................................................................................................................... 7

FOCUS AND BEAM ADJUSTMENTS

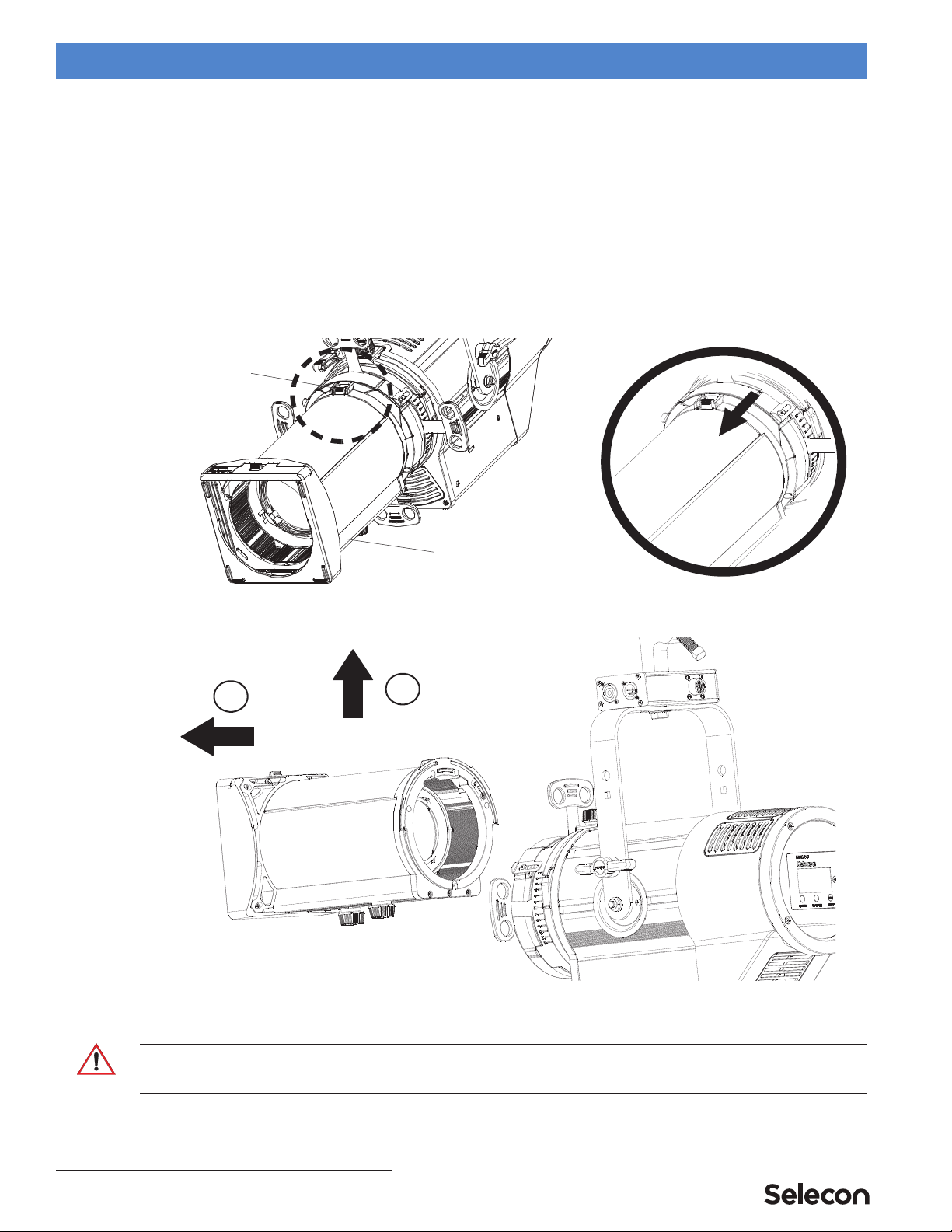

Lens Tube Removal and Installation ...................................................................................................................... 8

Zoom and Focus Adjustments (Zoomspot Models) ............................................................................................... 9

Beam Shutter Operation ....................................................................................................................................... 10

Gobo/Iris Access Panel......................................................................................................................................... 10

OPERATION AND PROGRAMMING

LCD Menu Operation........................................................................................................................................... 12

LCD Menu System ............................................................................................................................................... 13

Security................................................................................................................................................................. 13

Locking Fixture ............................................................................................................................................. 14

Presets................................................................................................................................................................... 14

Editing Preset Names .................................................................................................................................... 14

Settings ................................................................................................................................................................. 14

TROUBLESHOOTING

Troubleshooting Guide ......................................................................................................................................... 16

CLEANING AND CARE

Special Cleaning and Care Instructions................................................................................................................ 17

Service and Maintenance...................................................................................................................................... 17

QuickStart Guide PLPROFILE4 MKII LED Luminaires

2IMPORTANT INFORMATION

IMPORTANT INFORMATION

Warnings and Notices

Additional Resources for DMX512

For more information on installing DMX512 control systems, the following publication is available for purchase

from the United States Institute for Theatre Technology (USITT), "Recommended Practice for DMX512: A Guide

for Users and Installers, 2nd edition" (ISBN: 9780955703522). USITT Contact Information:

USITT

315 South Crouse Avenue, Suite 200

Syracuse, NY 13210-1844

Phone: 1.800.938.7488 or 1.315.463.6463

www.usitt.org

Selecon Limited Three-Year Warranty

Selecon offers a three-year limited warranty of its luminaires against defects in materials or workmanshipfrom

the date of delivery. A copy of Selecon three-year limited warranty containing specific terms andconditions

can be obtained from the Selecon web site at www.seleconlight.com or by contacting your localSelecon office.

When using electrical equipment, basic safety precautions should always be followed including the following:

a. READ AND FOLLOW ALL SAFETY INSTRUCTIONS.

b. Do not use outdoors.

c. Do not mount near gas or electric heaters.

d. Equipment should be mounted in locations and at heights where it will not readily be subjected to

tampering by unauthorized personnel.

e. The use of accessory equipment not recommended by the manufacturer may cause an unsafe

condition.

f. Do not use this equipment for other than intended use.

g. Refer service to qualified personnel.

h. Luminaire exterior surface temperatures:

• After 5 minutes of operation: 45oC

• When steady state is achieved: 50o C

SAVE THESE INSTRUCTIONS.

WARNING: You must have access to a main circuit breaker or other power disconnect device

before installing any wiring. Be sure that power is disconnected by removing fuses or turning the

main circuit breaker off before installation. Installing the device with power on may expose you to

dangerous voltages and damage the device. A qualified electrician must perform this installation.

WARNING: Basic insulation has been maintained between low-voltage supply and control

conductors.

WARNING: Refer to National Electrical Code® and local codes for cable specifications. Failure to

use proper cable can result in damage to equipment or danger to personnel.

WARNING: This equipment is intended for installation in accordance with the National Electric

Code® and local regulations. It is also intended for installation in indoor applications only. Before

any electrical work is performed, disconnect power at the circuit breaker or remove the fuse to avoid

shock or damage to the control. It is recommended that a qualified electrician perform this

installation.

About this Guide 3

PLPROFILE4 MKII LED Luminaires QuickStart Guide

PREFACE

1. About this Guide

This Quickstart Guide is intended for a knowledgeable user to unpack, install, and use the PLPROFILE4 MKII LED

Luminaire in a short time period. For the complete manual in PDF format, please visit our web site at:

www.seleconlight.com and click the user manual download link on the product page. The complete manual provides

you all information related to accessories, menu structures, DMX channel mapping/modes, and care for your new

luminaire.

Please read all instructions before installing or using this product. Retain this guide for future reference. Additional

product information and descriptions may be downloaded at www.seleconlight.com.

2. Product Descriptions

The document provides installation and operation instructions for the following products:

• PLPROFILE4 MKII LED Luminaire, Black Body (PLPF4MKII-03).

• PLPROFILE4 MKII LED Luminaire, White Body (PLPF4MKII-01).

Note: All PLPROFILE4 MKII LED Luminaires are universal voltage (100VAC to 240VAC, Auto-ranging).

3. Included Items

The following items are supplied with the luminaire.

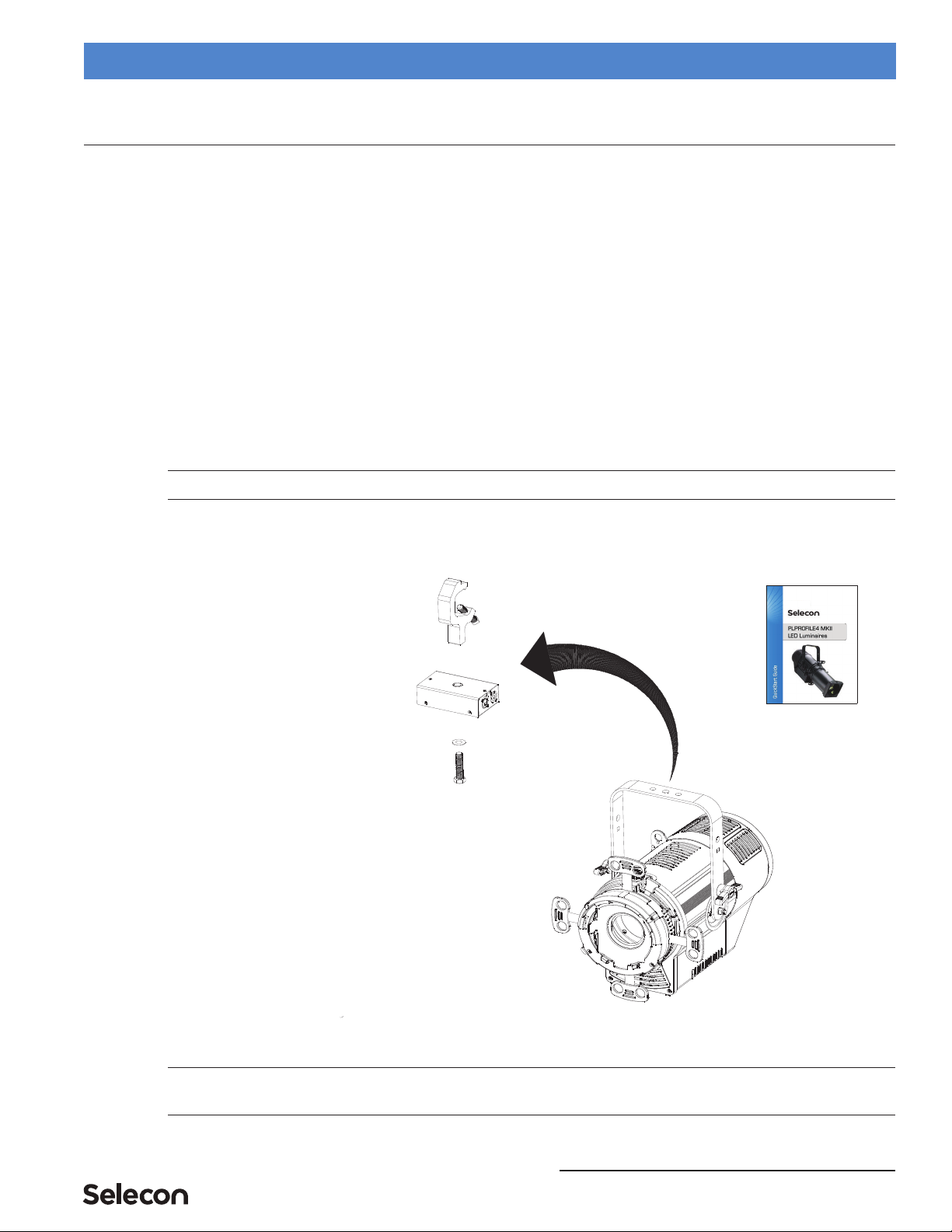

Figure 1: Included Items

Note: For all accessories and options for this luminaire, please refer to the product specification sheet - available

for download from the Selecon or Strand Lighting web sites in PDF format.

C-Clamp

Top Box

Belleville Washer

C-Clamp Bolt

Luminaire Body

QuickStart Guide

(this document)

Not Shown:

• Depending on order configuration, a lens tube may be

provided. Luminaire body available without lens tube.

• Safety Cable (provided with unit)

• Unit provided with a PowerCON to bare end AC input

cable. Others available. Specify at time of ordering.

QuickStart Guide PLPROFILE4 MKII LED Luminaires

4INSTALLATION AND SET UP

INSTALLATION AND SET UP

1. Top Box Connections

All PLPROFILE4 MKII LED Luminaires are supplied with a "Top Box" for AC Input/Output and DMX512 Input/

Output Connections. Figure 2 shows the AC and DMX512 Input and Output (Thru) Connections.

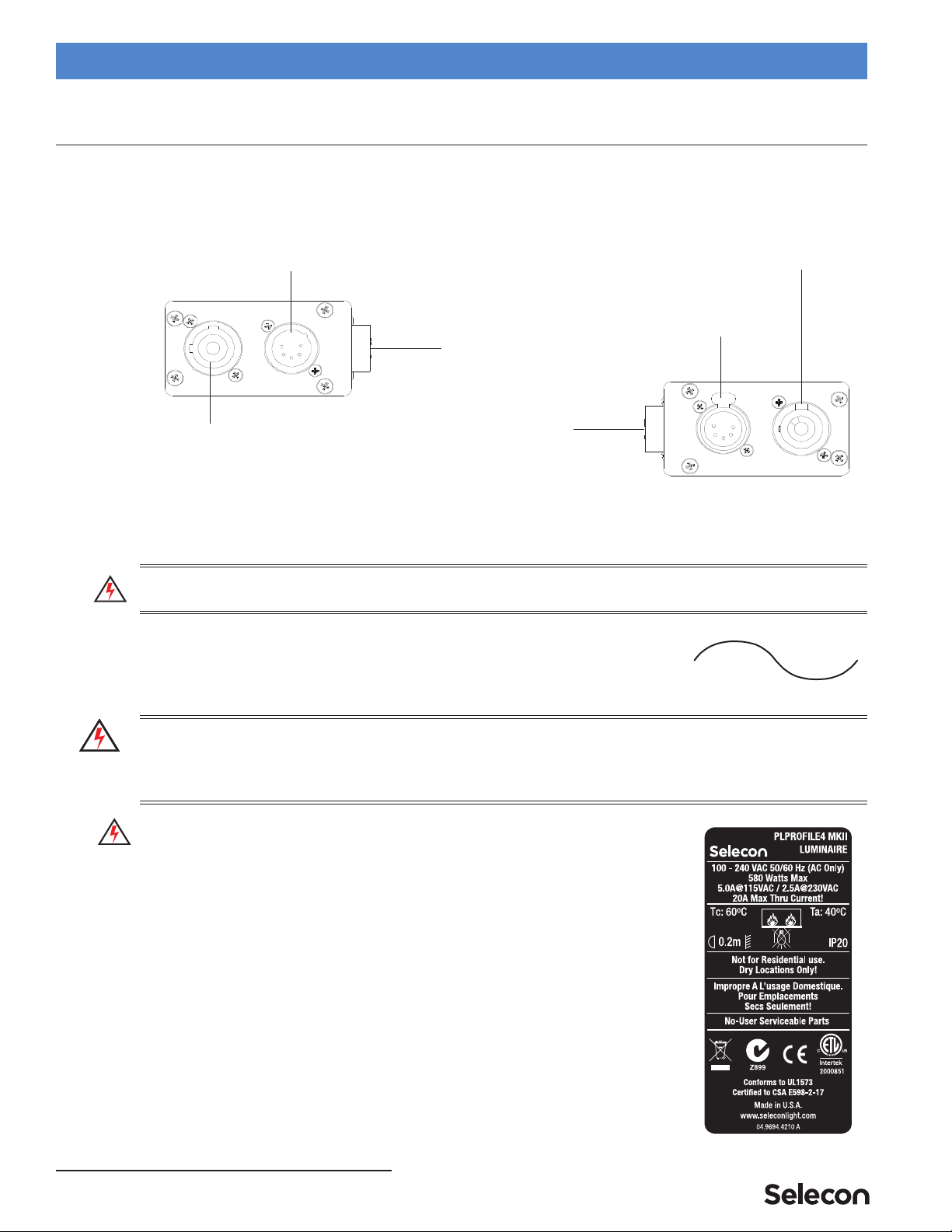

Figure 2: PLPROFILE4 MKII LED Luminaire Top Box Connections

2. Power Requirements

WARNING! The PLPROFILE4 MKII LED Luminaire should be connected to a constant circuit or a relay device. It

should never be connected to a dimmer or circuit controlled by a dimmer.

The PLPROFILE4 MKII LED Luminaire operates on 100 to 240 volts AC (+/- 10%,

auto-ranging). The luminaire contains an auto-ranging power supply. Depending on

supply voltage, each luminaire can draw up to 580 Watts. The maximum through

current should not exceed 20 Amps*.

WARNING! *Maximum Allowable Input Current of 20 Amps (maximum power supply limit of 580 Watts). Do not

overload circuits! Must be supplied by a branch circuit protected by a maximum 20 Amp circuit protector. Doit

être alimenté par un circuit de dérivation protégé par un maximum de 20 ampères circuit protecteur. Do not

overload circuits!

IMPORTANT AC POWER CONNECTION NOTES:

a. Must be supplied by a branch circuit protected by a maximum 20 Amp

circuit protector. Doit être alimenté par un circuit de dérivation protégé

par un maximum de 20 ampères circuit protecteur.

b. When using the daisy-chain connection method, ONLY connect

PLPROFILE4 MKII LED Luminaires to AC Output Connection of

PLPROFILE4 MKII LED Luminaires. DO NOT CONNECT OTHER

TYPES OF LUMINAIRES OR DEVICES!

c. Use only approved cable types.

d. Do not overload circuits!

e. Do not connect PLPROFILE4 MKII LED Luminaires to dimmed circuits.

f. The MAXIMUM allowable number of PLPROFILE4 MKII LED

Luminaires which can be 'daisy-chained' on one power feed should not

exceed ratings. DO NOT EXCEED!

DMX512 Output/Thru

DMX512 Input AC (Power) Output

AC (Power) Input

Multi-Conductor Top Box

to Luminaire Connection

Multi-Conductor Top Box

to Luminaire Connection

Side View 1

Side View 2

AC Input Only!

Connecting Power 5

PLPROFILE4 MKII LED Luminaires QuickStart Guide

3. Connecting Power

Note: Refer to Figure 2 on page 4 for AC Input and Output connections.

If the unit is supplied with an AC input cable, Table 1 describes how to connect power to your PLPROFILE4 MKII

LED Luminaire. Field wiring of the PLPROFILE4 MKII LED Luminaire is straight forward. A total of 3 wires/

conductors need to be brought to the unit. The following wiring scheme is required:

Table 1: PLPROFILE4 MKII LED Luminaire AC Input

Connections

4. Connecting to the DMX512 Network

Note: Refer to Figure 2 on page 4 for DMX512 Input and Output/Thru connections.

Basic DMX512 installation consists of connecting multiple PLPROFILE4 MKII LED Luminaires together (up to 30

luminaires) in "daisy-chain" fashion. A cable runs from the control console (or DMX512 control source) to the DMX

connector on the first PLPROFILE4 MKII LED Luminaire. Another cable runs from the other DMX connector on the

first unit to a DMX connector on the next PLPROFILE4 MKII LED Luminaire (or DMX512 device to be controlled)

Note: For more information on DMX512 networking and systems, refer to "Additional Resources for DMX512" on

page 2. For PLPROFILE4 MKII LED Luminaire DMX Mapping, refer to the product user’s manual.

Figure 3: Connecting DMX512

Wire Color Purpose

Brown Main / Line (100 to 240VAC)

Blue Neutral

Green/Yellow Ground

Neutral Main /

Ground / Earth

Line

AC Input Connector

(on top box)

DMX512

DMX512 (out from first

to second luminaire)

DMX512 (out to the next luminaire or

DMX512 controlled device)

(from console or

control device)

DMX512 Connections

Data Thru

Cable Pinout

Male Conn

Pin 1

Common

(Drain)

Pin 2

Data (-)

Pin 3

Data (+)

Pin 4

Not Used

Pin 5

Not Used

Data In

Cable Pinout

Female Conn

PLPROFILE1 MKII LED Luminaires

QuickStart Guide PLPROFILE4 MKII LED Luminaires

6INSTALLATION AND SET UP

5. Mounting

WARNING! Before attempting any installation or service, disconnect all power at power source. Dimming the

luminaire does not disconnect power. Installation and service should only be performed by a trained and qualified

professional.

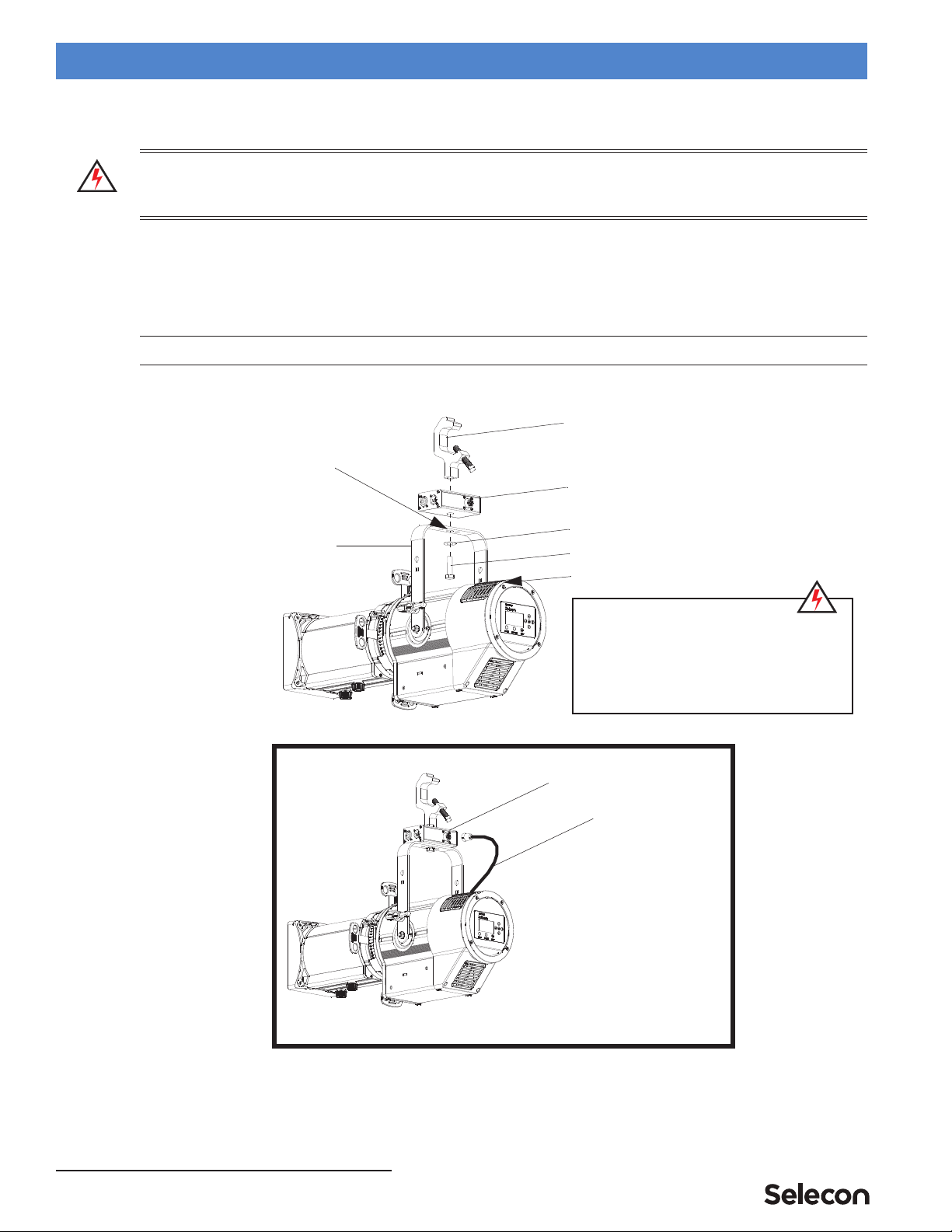

Using Supplied C-Clamp

As illustrated in Figure 4 on page 6, at yoke assembly, thread clamp mounting bolt (with washer installed) through

center clamp mounting hole at top of yoke, through Top Box Assembly, and thread bolt into C-Clamp. Securely

tighten bolt (by hand) into clamp (but do not over-tighten).

Note: Top box will be able to swivel once bolt is tightened by design. DO NOT OVER-TIGHTEN!

Figure 4: Luminaire Mounting

To mount on a telescopic stand, reverse the yoke under the luminaire and bolt to stand. Please note luminaire

orientation (see note in Figure 4) for proper cooling.

Yoke Assembly

Center Clamp Mounting Hole

Luminaire Cooling Vents**

NOTES:

• * Only use supplied bolt when mounting top box

as shown. Using another bolt may damage top

box when tightening.

• **To allow for proper cooling, make sure lumi-

naire head is orientated as shown (with cooling

vents pointed upwards).

Top Box Assembly

C-Clamp

Flat Washer

C-Clamp Bolt*

Top Box Assembly

Luminaire Cable

Assembly

Pan and Tilt Adjustments 7

PLPROFILE4 MKII LED Luminaires QuickStart Guide

Note: After installing Clamp and Top Box assembly, connect luminaire cable assembly to Top Box Assembly before

mounting luminaire. Please note that the cable connector is keyed.

The supplied safety cable MUST always be used when rigging luminaires on bars, truss, etc. (as shown in Figure 5).

The supplied safety cable is recommended for all hanging installation and may be required by national and local

codes. Loop or attach safety cable to luminaire safety cable anchor point as shown and attach to structure. You should

always consult and follow all local and national codes and regulations for mounting and installation of luminaire.

6. Pan and Tilt Adjustments

Pan Adjustment

The pan adjustment of a PLPROFILE4 MKII LED Luminaire is achieved by loosening the yoke bolt of the securing

clamp attached to the luminaire's yoke assembly. Loosen the bolt, set the luminaire to the desired position and re-

tighten.

Tilt Adjustment

PLPROFILE4 MKII LED Luminaires offer variable tilt settings. The unit can be set at a specific angle (in relation to

its mounting position) or at an angle between 0 to 90 degrees. When the yoke is in the position shown in Figure 5,

you have full range access to shutters the gate etc. If you flip the yoke over some access is reduced but the over all

volume the luminaire takes up is reduced. This is particularly useful in tightly hung lighting positions or in theatres

with low grids.

Figure 5: Luminaire Tilt Adjustment

To adjust and set tilt angle of the luminaire:

Step 1. Mount luminaire in desired location (see "Mounting" on page 6 for more information).

Step 2. Loosen, but do not remove, T-Handle Tilt Lock at base of yoke assembly as shown in Figure 5.

Step 3. Position luminaire to desired tilt position.

Step 4. Re-tighten T-Handle Tilt Lock to set position.

SAFETY CABLE: FOR LUMINAIRE, the supplied safety cable is recommended for

all hanging installation and may be required by national and local codes. Loop

safety cable through luminaire safety cable anchor point. FOR LENS TUBE, attach

a safety cable (sold separately) to lens tube anchor point and to yoke assembly.

Yoke Assembly

Cooling Vents (see note below)

T-Handle Tilt Lock

NOTE: To allow for proper cooling, make

sure luminaire head is orientated as shown

(with cooling vents pointed upwards).

(one on each side)

Safety Cable

Sliding Yoke Assembly

(supplied with

luminaire)

Safety Cable

(sold separately)

Safety Cable

Anchor Point

QuickStart Guide PLPROFILE4 MKII LED Luminaires

8FOCUS AND BEAM ADJUSTMENTS

FOCUS AND BEAM ADJUSTMENTS

1. Lens Tube Removal and Installation

It is easy and quick to change to the lens tubes on a PLPROFILE4 MKII LED Luminaire. Fixed beam and zoom lens

tubes are interchangeable.

To remove and install lens tubes:

Step 1. Loosen (but do not remove) move lens knob(s) towards front of lens tube assembly. See "Zoom and Focus

Adjustments (Zoomspot Models)" on page 9 for more information.

Step 2. As illustrated Figure 6, side lens tube locking catch forward.

Figure 6: Lens Tube Assembly Removal - Lens Locking Catch

Step 3. Lift lens tube assembly up and away from light engine assembly.

Figure 7: Lens Tube Assembly Removal

Step 4. To install perform process in reverse.

CAUTION: Ensure the lens tube locking catch is fully engaged and safety cable is attached before putting fixture

into use. For safety cable attachment, refer to Figure 5 on page 7 for more information.

Lens Tube Assembly

Lens Tube Lock

Tabla de contenidos

Otros manuales de Equipo de iluminación de Selecon

Selecon

Selecon PLPROFILE1 MKII Manual de usuario

Selecon

Selecon 5.5-13 Manual de usuario

Selecon

Selecon MaxAV Manual de usuario

Selecon

Selecon High Performance Fresnel Manual de usuario

Selecon

Selecon Rama Fresnel Series Manual de usuario

Selecon

Selecon Pacific 19PACLMCOV Manual de usuario

Selecon

Selecon ACCLAIM FRESNEL Manual de usuario

Selecon

Selecon Pacific Dowser Manual de usuario

Manuales populares de Equipo de iluminación de otras marcas

Brizo

Brizo 8SP-MU-4 Manual de usuario

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Manual de usuario

IKEA

IKEA BJÖRKSPIREA Manual de usuario

Laserworld

Laserworld Evolution Series ES-400RGB Manual de usuario

Alien

Alien RG STAR Manual de usuario

EuroLite

EuroLite LED B-40 Manual de usuario

Qazqa

Qazqa Suplux SL 3 Black 103062 Manual de usuario

Commercial Electric

Commercial Electric 54568141 Manual de usuario

CREE LIGHTING

CREE LIGHTING 304 Series Manual de usuario

Goobay

Goobay 49867 Manual de usuario

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Manual de usuario

Alkalite

Alkalite Krypton KT-81 Manual de usuario

Clas Ohlson

Clas Ohlson GU10 Manual de usuario

DTS

DTS DELTA 10 F Manual de usuario

ring

ring Solar Steplight Manual de usuario

One Stop Gardens

One Stop Gardens 57696 Instrucciones de montaje

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Manual de usuario

SIREM

SIREM Swimeo A2 Manual de usuario
