SEI FA580800TX Manual de usuario

FA580800TX

Antique Gold Brush Leaf Motif

Wall Mount Fireplace

Assembly Instruction

For assistance with assembly contact:

Southern Enterprises Inc.

Customer Service 1-800-633-5096

[email protected]

www.seidal.com

©©

Tool List: 1/4" drill bit, drill, tape measure and pencil.

FA580800TX

Antique Gold Brush Leaf Motif Wall Mount Fireplace

Parts List

Please review all parts and hardware before disposing of any packaging.

Call Customer Service if missing hardware. Do not return to store/retailer.

Screws shown actual size. Using a screw that is too long will cause damage.

Before beginning assembly, separate each type of screw. Carefully study

the screw diagrams below (SHOWN ACTUAL SIZE). You may receive extra

hardware with your unit.

Suggested tools: Phillip head screw driver, power drill, ¼” drill bit, 24”

level, and a tape measure. Unit needs to be hung on wall stud for more

security and stability.

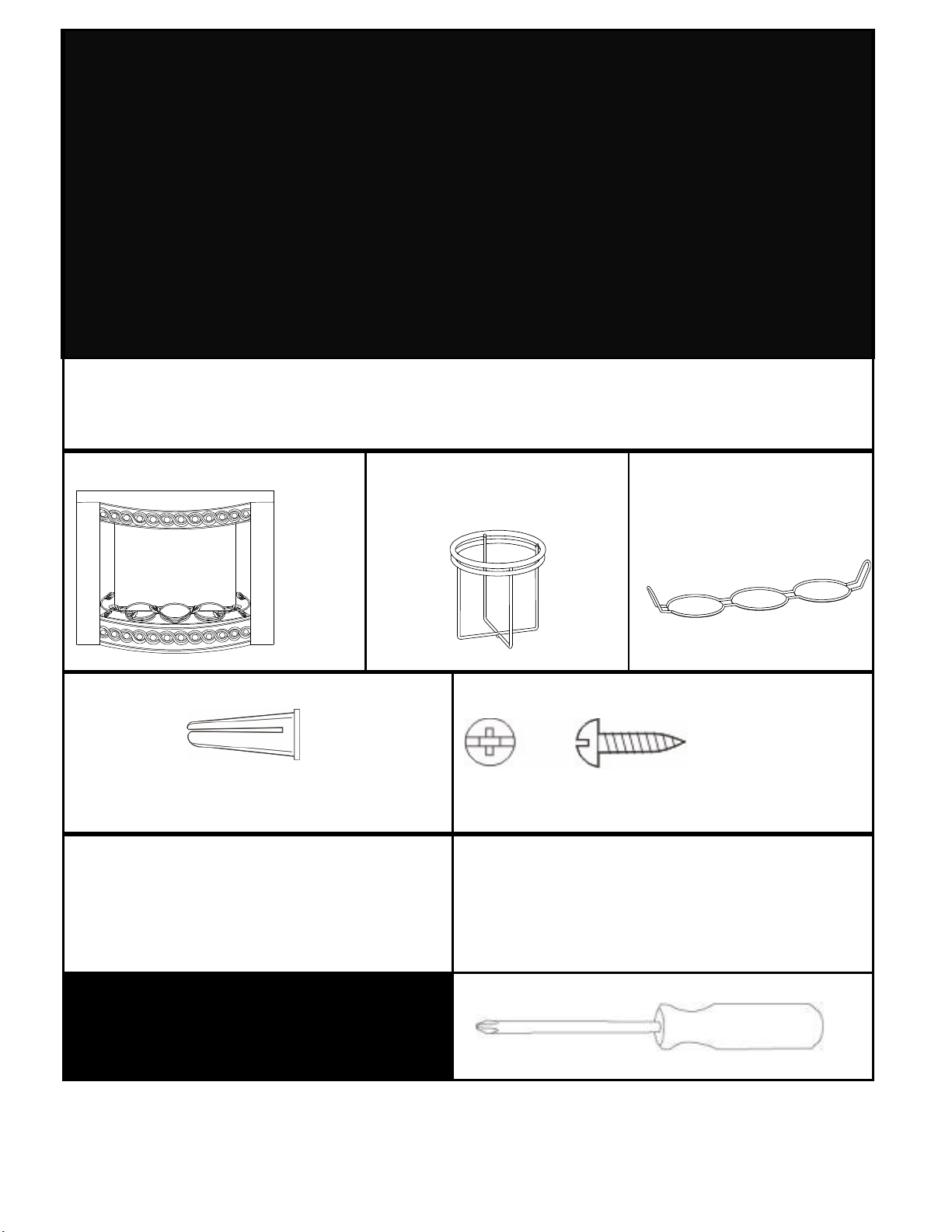

(1) Fireplace assembly

1 PC

(2) Fuel canister holder

3 PCS

(3)Candle holder

1 PC

(4)Plastic wall anchor

4PCS

1 extra included

(5) Phillip head screw

4PCS

￠

￠￠

￠4mm ×1-3/4″

1 extra included

Care and Cleaning Instructions:

Before using , wipe with a clean , dry cloth.

Periodically apply furniture wax to renew

The finish. Avoid rubbing or scratching the

surface with rough or abrasive objects.

For replacement parts or questions, please

call Customer Service at 1-800-633-5096.

Do not return product to store. Please call

manufacturer for assistance, questions or

parts.

Assembly Tool Required

No.2 Phillips Screwdriver

FA580800TX

Antique Gold Brush Leaf Motif Wall Mount Fire

Assembly Instructions

DANGER

PLEASE USE IN WELL VENTILATED AREA

The fireplace will have open flames and will generate heat.

Make sure to keep all combustible items away from the fireplace when the gel fuel is

burning.

DO NOT touch the fireplace when the gel fuel is burning.

Not recommended for use on wall paper or wood paneled walls due to risk of

discoloration over time.

1. Locate the fireplace on a solid

wall and at a comfortable height

off the floor, normally eye level.

2.Measure the wall and mark the

fireplace width and height. See

Figure 1.

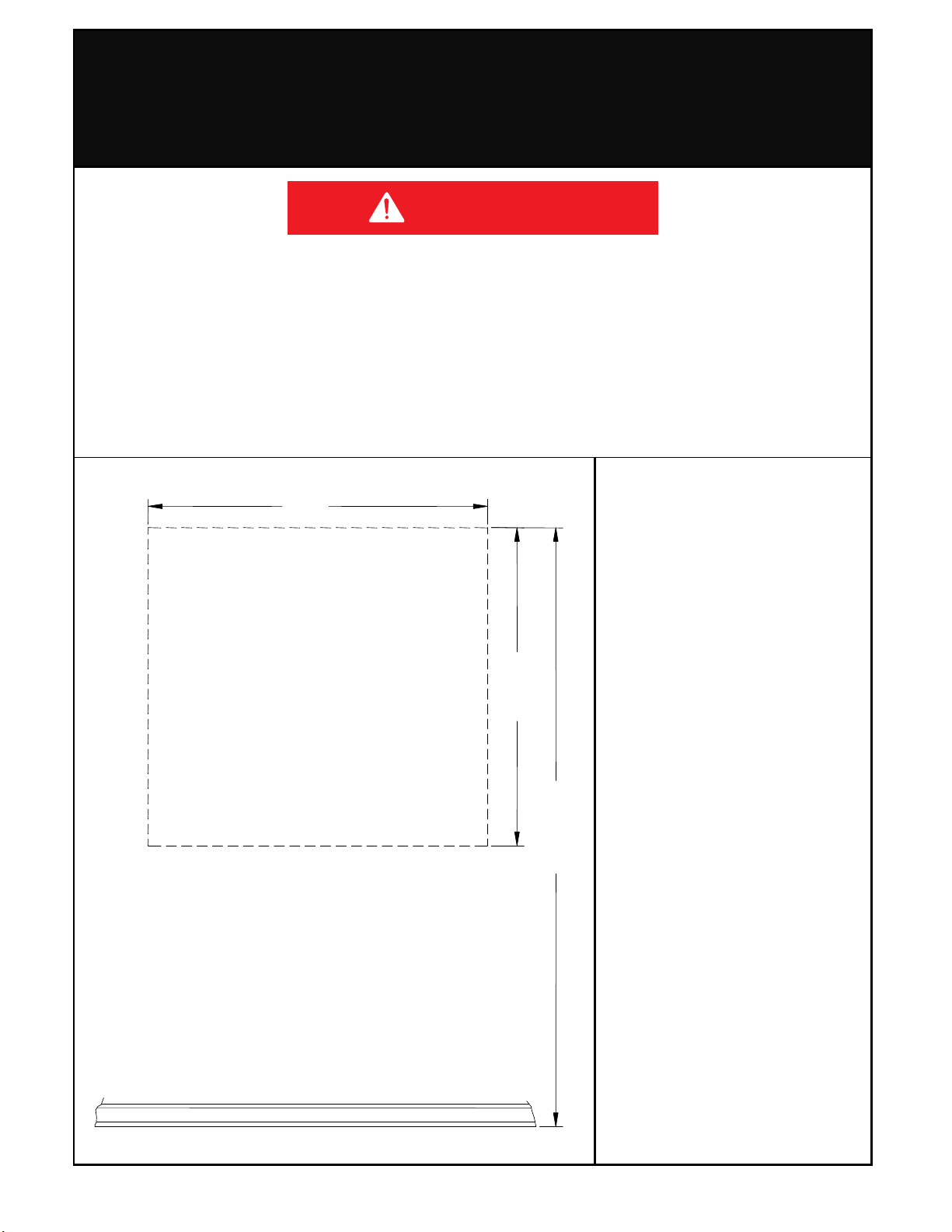

Figure 1 – Installation Measurements

Eye Level

2727

27"

22-1/2"

Phillip head screw

Anchor

3. Measure the wall and mark the

location of the center of each of

the three screw mounting holes.

See Figure 2.

Using the level, make sure that all

three marks are level on the wall.

It’s highly recommended that

middle screw is inserted into a

wall stud.

4. Using the power drill and

1/4″drill bit, drill three 1/4″holes

through the wallboard at the

mounting hole marks.

NOTICE

Make sure not to drill into

electrical wiring or plumbing

pipes.

5. Insert one of the furnished

plastic anchors into each of the

three 1/4″holes. See Figure 3.

Make sure that the wall anchor is

flush with the wall.

NOTE: It may be necessary to

use a small hammer to gently tap

the anchor into place.

6. Using the phillip head

screwdriver, install one Phillip

Head Screw into each of the

anchors. See Figure 3. Turn the

screw in until there is a gap of

1/4″between the head of screw

and the wall surface.

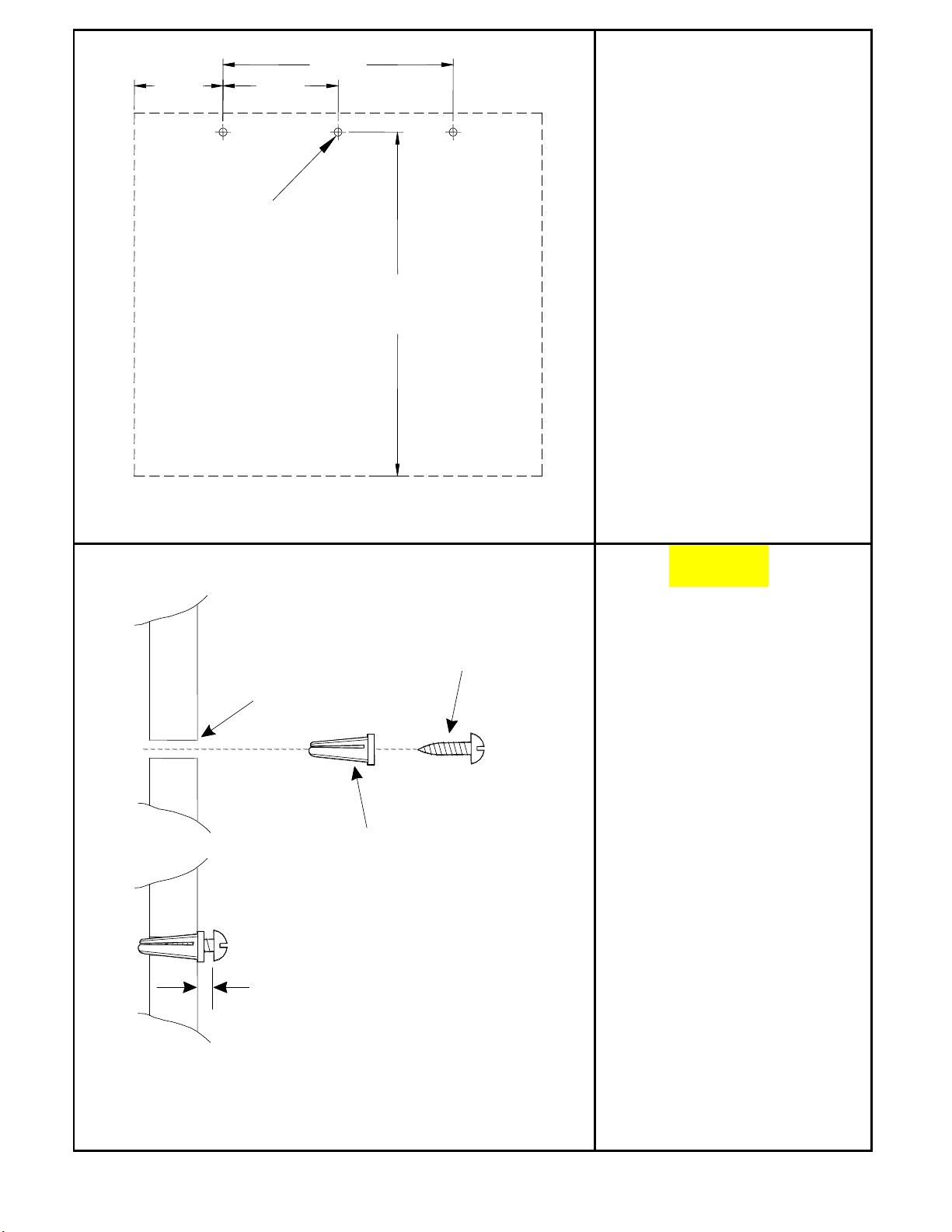

Figure 2 – Screw Hole Location

Figure 3 – Wall Anchor Installation

1-5/8

1/8"

Drill three 1/4" holes

into wall

/8"

1/4

1/4" Gap

1/4" Hole

7. Install the fireplace (1, Figure

4) onto the three mounting

screws using the mounting holes

(2, Figure 4). The proper and

secure mounting of the fireplace

is when the top edge of each of

the mounting holes is resting

securely on the mounting screw

(3, Figure 4).

NOTICE

Using the level, check to make

sure that the fireplace is

horizontally level and vertically

plumb (straight up and down).

8. Remove the three fuel canister

holders (2,Figure 5) from the

fireplace and install one gel fuel

canister(1, Figure 5) into each of

the holders.

NOTICE

Make sure to remove the gel fuel

canister paper label (4,Figure 5)

before installing the canister into

the holder.

Shake the gel fuel canister before

installing it into the canister

holder.

Figure 4 – Install Fireplace

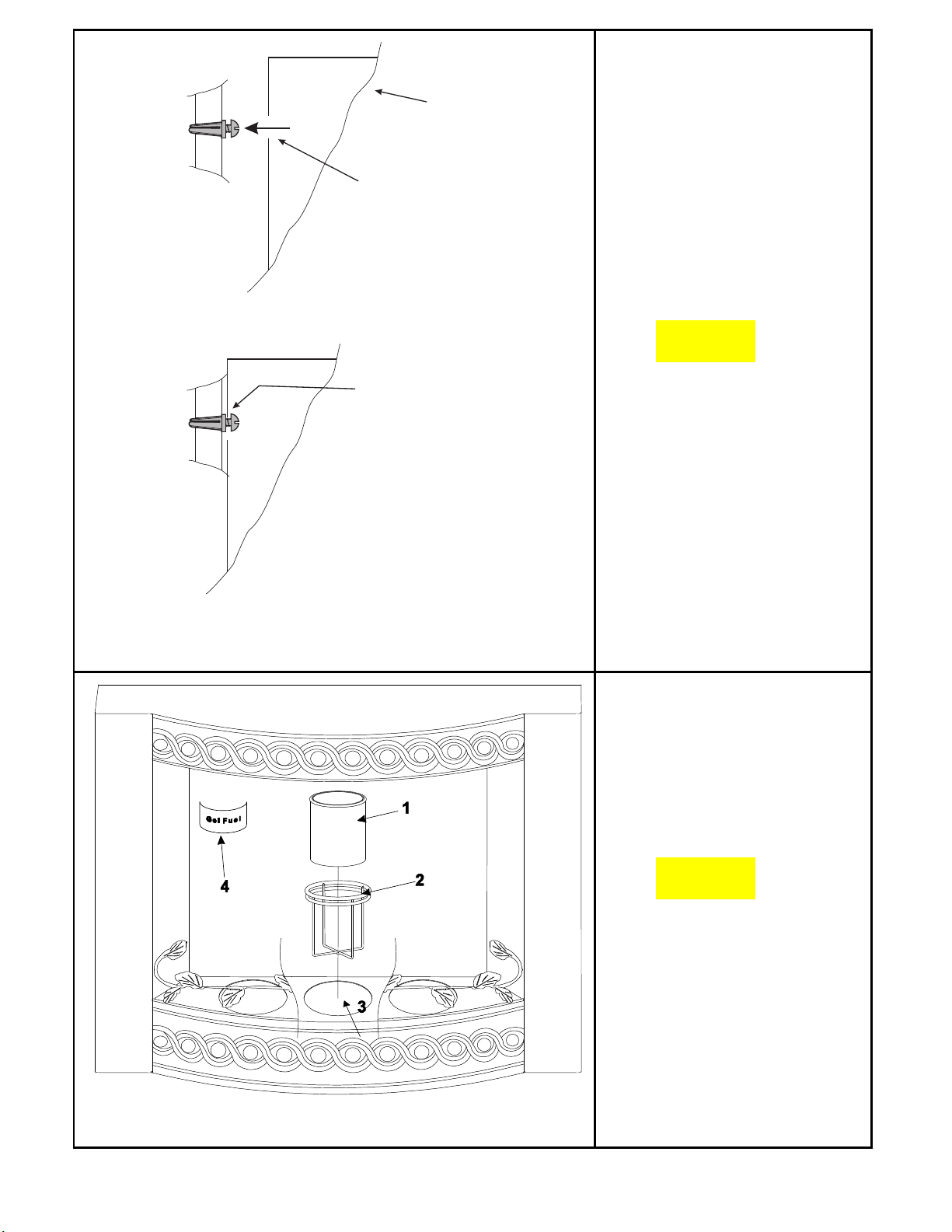

Figure 5 –Fuel Canister Holder and Gel Fuel Canister

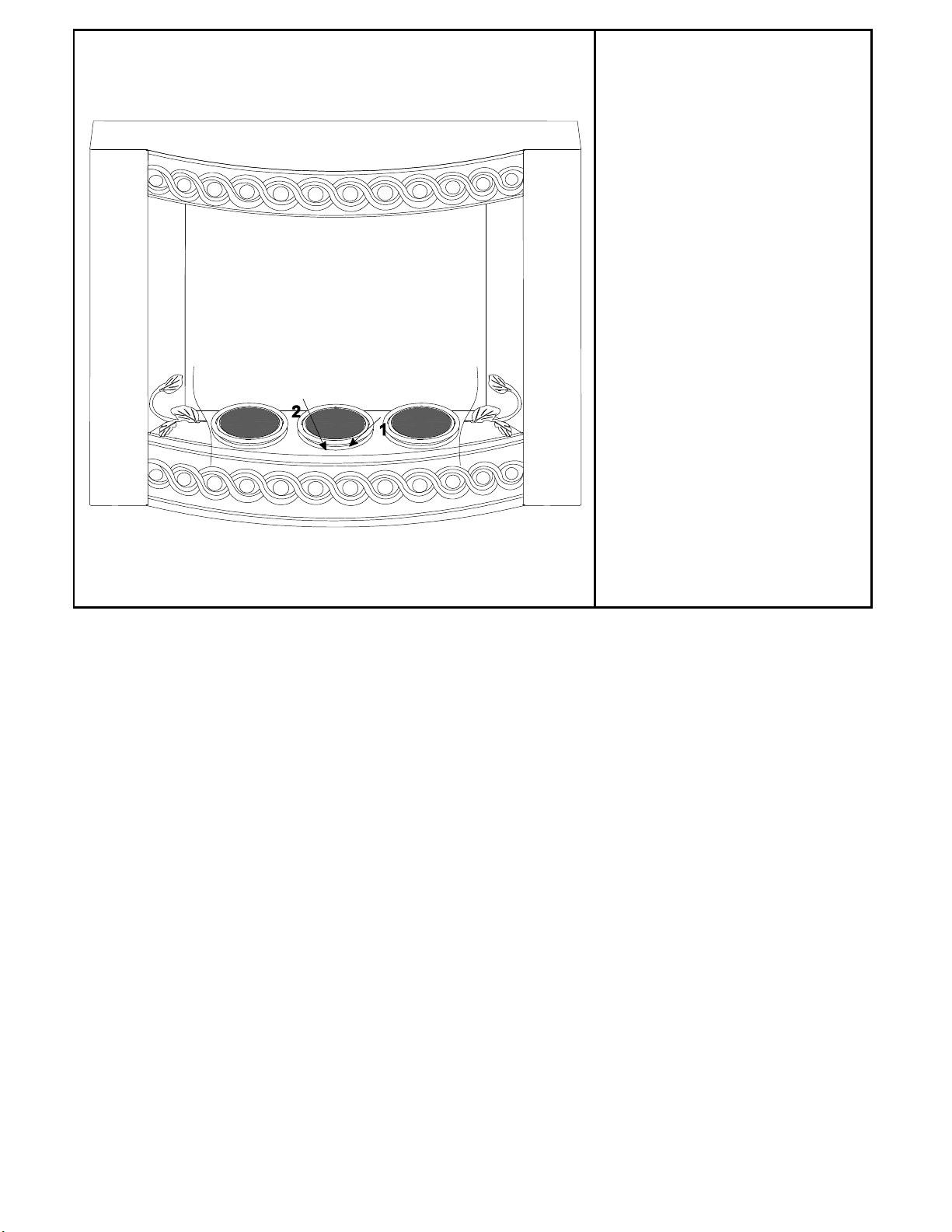

Figure 6 – Fuel Canister Installed

9. Install the gel fuel holders into

the fireplace into the appropriate

mounting hole (3, Figure 5) in the

fireplace.

10. Following the instructions on

the gel fuel canister, remove the

lid (2,Figure 6) from the gel fuel

canister (1,Figure 6), and using a

long match, light the fuel in each

of the canister. Candle holder can

be used to extinguish fire.

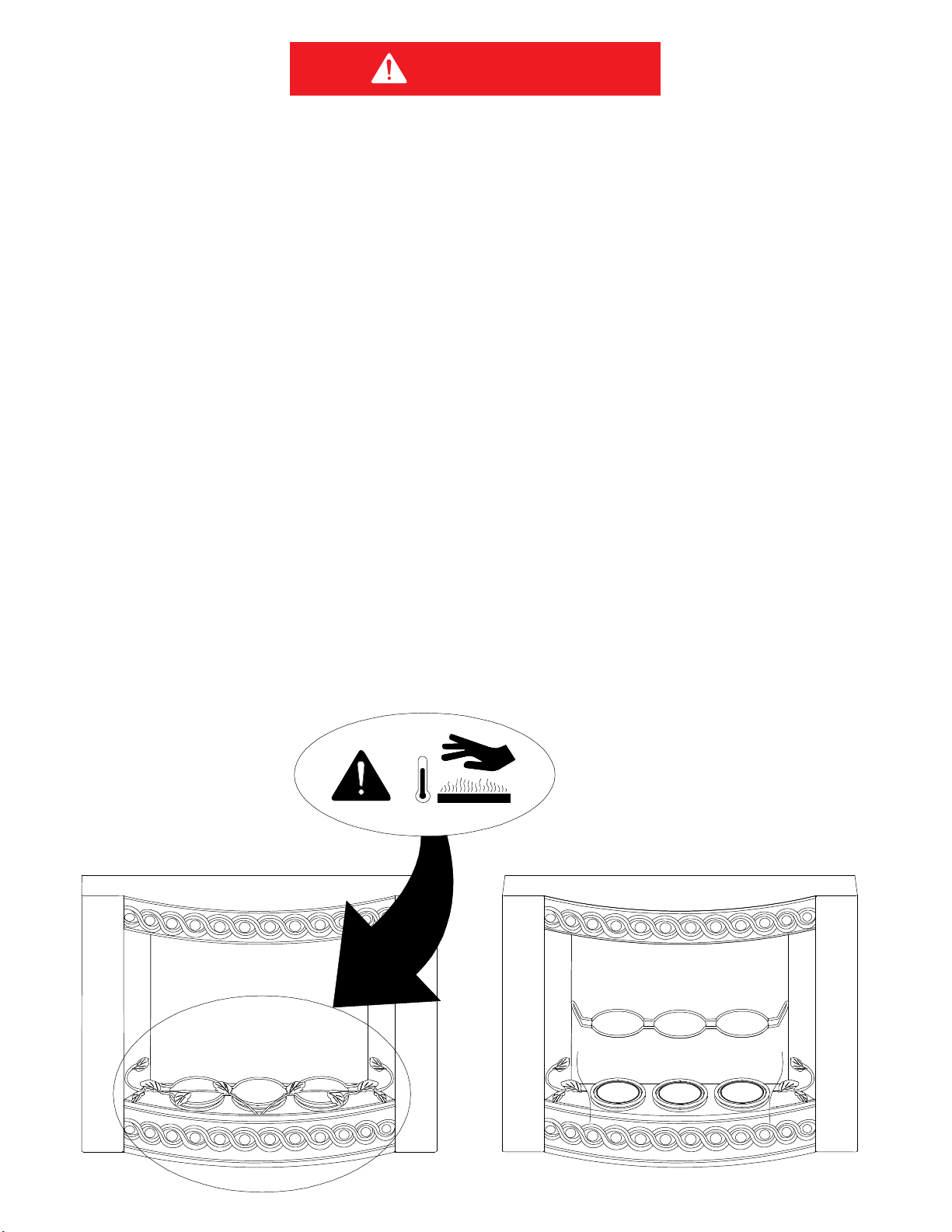

DANGER

PROLONGED USE OF THE GEL FUEL IN THE FIREPLACE WILL CAUSE THE FIREPLACE

TO BECOME HOT AND POTENTIALLY CAN CAUSE BURNS IF TOUCHED.

DO NOT BURN MORE THAN THREE CANISTERS OF FUEL AT ONE TIME.

BEFORE LIGHTING THE FUEL, MAKE SURE THAT THE PAPER LABEL IS REMOVED

FROM EACH OF THE GEL FUEL CANISTERS.

USE LONG MATCHES TO LIGHT EACH CANISTER OF FUEL.

DO NOT TOUCH THE CANISTERS WITH BARE HANDS UNTIL THE FLAME HAS BEEN

EXTINGUISHED FOR 20 MINUTES.

DO NOT BURN ANYTHING EXCEPT THE SPECIFIED CANISTERS OF GEL FUEL IN THE

FIREBOX.

KEEP CHILDREN AWAY FROM THE FIREPLACE WHEN IN USE.

KEEP FLAMABLE OBJECTS, SUCH AS CURTAINS OR DRAPERYS, AWAY FROM THE

FIREPLACE WHEN THE GEL FUEL HAS BEEN IGNITED.

MAKE SURE THE CUSTOMER DOES NOT PLACE ANY DECORATIVE ITEMS ON TOP OF

THE UNIT AT ANYTIME.

DO NOT TOUCH THE UPPER PART OF THE UNIT WHILE IT IS STILL IN OPERATION.

THE CANDLE HOLDER ACTS AS A COVER TO PUT OUT FIRE IF ONE WISHES TO STOP

THE FLAME.

NEVER LEAVE BURNING GEL FUEL UNATTENDED.

CARE INSTRUCTION: WIPE DOWN UNIT AND CANDLE HOLDER WITH SOFT DAMP

CLOTH.

WHEN USING THE CANDLE HOLDER PLEASE MAKE SURE THAT THE CANNISTER

HOLDERS ARE IN PLACE.

We'd love to hear from you! Email us photos of our products in your home at

[email protected] and we might feature it on our site or use it to model one of our

inspirational photos.

“PARTS WILL BE SENT IF AVAILABLE FROM SEI”

Parts Replacement Form

Customer Information

Name

Address

City/State/Zip Code

Phone Number

Please indicate where you purchased this item: Store/ Website/ Catalog

Please indicate color/size/style number:

Style No Parts Letter Parts Description Quantity Needed

Customer Service 1-800-633-5096

[email protected]

Southern Enterprises, Inc.

2915 Merrell Road

Dallas, Texas 75229
