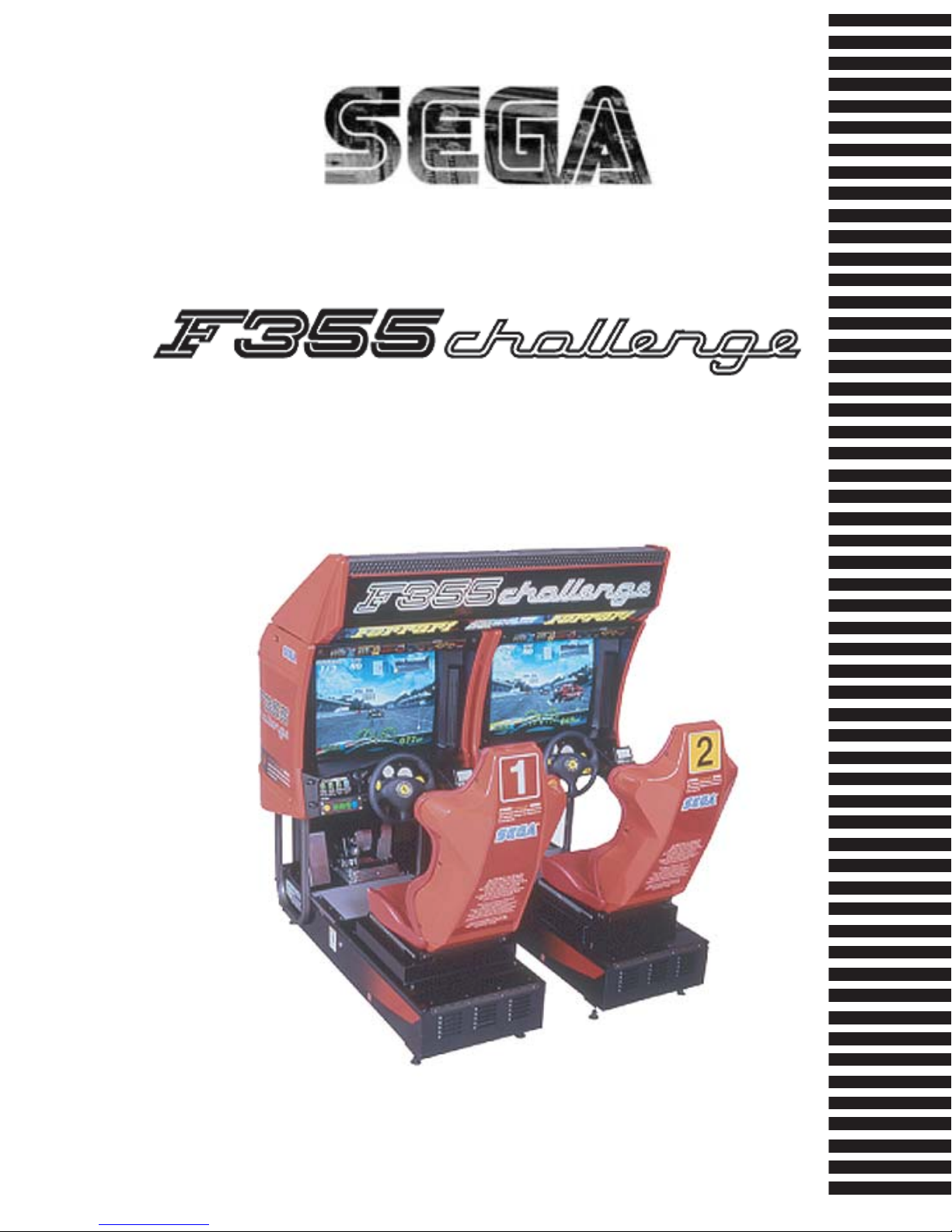

Sega F355 Challenge Manual de usuario

1ST PRINTING FEB. 01

MANUAL NO. 420-6507-05

OWNER’S MANUAL

SEGA ENTERPRISES, INC. USA

TWIN TYPE

www.seuservice.com

BEFORE USING THE PRODUCT, BE SURE TO READ THE FOLLOWING:

To maintain the safety:

To ensure the safe usage of the product, be sure to read the following before using the product. The following

instructions are intended for the users, operators and the personnel in charge of the operation of the product.

After carefully reading and sufficiently understanding the warning displays and cautions, handle the product

appropriately. Be sure to keep this manual nearby the product or elsewhere convenient for referring to it

when necessary.

Herein, explanations which require special attention are enclosed with dual lines. Depending on the poten-

tially hazardous degrees, the terms of WARNING, CAUTION, etc. are used. Be sure to understand the

contents of the displays before reading the text.

Indicates that mishandling the

product by disregarding this

warning will cause a potentially

hazardous situation which can

result in death or serious injury.

Indicates that mishandling the product

by disregarding this caution will cause

a slight hazardous situation which can

result in personal injury and or material

damage.

For the sage usage of the product, the following pictographs are used:

Indicates “HANDLE WITH CARE.” In order to protect the human body an equipment, this

display is attached to places where the Owner’s Manual and or Service Manual should be referred

to.

Perform work in accordance with the instructions herein stated.

Instructions for work are explained by paying attention to the aspect of accident prevention. Failing to

perform work as per the instructions can cause accidents. In the case where only those who have techni-

cal expertise should perform the work to avoid hazardous situation, the instructions herein state that the

serviceman should perform such work.

Be sure to turn off power before working on the machine.

To prevent electric shock, be sure to turn off power before starting the work in which the worker touches

the interior of the product. If the work is to be performed in the power-on status, the Instruction Manual

herein always states to that effect.

Be sure to ground the Earth Terminal (this, however, is not required in the case where a power cord

with earth is used).

This product is equipped with the Earth Terminal. When installing the product, Connect the Earth Termi-

nal to the “accurately grounded indoor earth terminal” by using an earth wire. Unless the product is

grounded appropriately, the user can be subject to electric shock. After performing repair, etc. for the

Control equipment, ensure that the Earth Wire is firmly connected to the Control equipment.

Ensure that the Power Supply used is equipped with an Earth Leakage Breaker.

This product does not incorporate the Earth Leakage Breaker. Using a power supply which is not

equipped with the Earth Leakage Breaker can cause a fire when earth leakage occurs.

Be sure to use fuses which meet the specified rating. (only for the machines which use fuses).

Using fuses exceeding the specified rating can cause a fire and electric shock.

Specification changes (removal of equipment, conversion and addition) not designated by SEGA

are not allowed.

The parts of the product include warning labels for safety, covers for personal protection, etc. It is very

hazardous to operate the product by removing parts and or modifying the circuits. Should doors, lids

and protective parts be damaged or lost, refrain from operating the product, and contact where the

product was purchased from or the office herein stated. SEGA shall not be held responsible for any

accidents, compensation for damage to a third party, resulting from the specifications not designated by

SEGA.

Ensure that the product meets the requirements of appropriate Electrical Specifications.

Before installing the product, check for Electrical Specifications. SEGA products have a nameplate on

which Electrical Specifications are described. Ensure that the product is compatible with the power

supply voltage and frequency requirements of the location. Using any Electrical Specifications different

from the designated Specifications can cause a fire and electric shock.

Install and operate the product in places where appropriate lighting is available, allowing warning

labels to be clearly read.

To ensure safety for the customers, labels and printed instructions describing potentially hazardous

situation are applied to places where accidents can be caused. Ensure that where the product is operated

has sufficient lighting allowing the warnings to be read. If any label is peeled off, apply it again imme-

diately. Please place an order with where the product was purchased from or the office herein stated.

When handling the Monitor, be very careful. (Applies only to the product w/monitor.)

Some of the monitor (TV) parts are subject to high tension voltage. Even after running off power, some

portions are still subject to high tension voltage sometimes. Monitor repair and replacement should be

performed only be those technical personnel who have knowledge of electricity and technical expertise.

Be sure to adjust the monitor (projector) properly. (Applies only to the product w/monitor.)

Do not operate the product leaving on-screen flickering or blurring as it is. Using the product with the

monitor not properly adjusted may cause dizziness or a headache to an operator, a player, or the custom-

ers.

When transporting or reselling this product, be sure to attach this manual to the product.

In the case where commercially available monitors and printers are used in this product, only the

contents relating to this product are explained herein. Some commercially available equipment has

functions and reactions not stated in this manual. Read this manual together with the specific Instruc-

tion Manual of such equipment.

Descriptions herein contained may be subject to improvement changes without notice.

The contents described herein are fully prepared with due care. However, should any question arise or

errors be found, please contact SEGA.

•

INSPECTIONS IMMEDIATELY AFTER TRANSPORTING THE PRODUCT TO THE LOCATION.

Normally, at the time of shipment, SEGA products are in a status allowing for usage immediately after

transporting to the location. Nevertheless, an irregular situation may occur during transportation. Before

turning on power, check the following points to ensure that the product has been transported in a satisfac-

tory status.

Are there any dented portions or defects (cuts, etc.) on the external surfaces of the cabinet?

Are Casters and Adjusters, damaged?

Do the power supply voltage and frequency requirements meet with those of the location?

Are all wiring connectors correctly and securely connected? Unless connected in the correct direction,

connector connections can not be made accurately. Do not insert connectors forcibly.

Do power cords have cuts and dents?

Do the fuses used meet specified rating? Is the Circuit Protector in an energized status?

Are all accessories available?

Can all Doors and Lids be opened with the Accessory keys? Can Doors and Lids be firmly closed?

BEFORE USING THE PRODUCT, BE SURE TO READ THE FOLLOWING:

TABLE OF CONTENTS

INTRODUCTION OF THE OWNER’S MANUAL

1. HANDLING PRECAUTIONS ................................................................................................

2. PRECAUTIONS CONCERNING INSTALLATION LOCATION ........................................

3. OPERATION ...........................................................................................................................

4. NAME OF PARTS ...................................................................................................................

5. ACCESSORIES .......................................................................................................................

6. ASSEMBLING AND PRECAUTIONS...................................................................................

7. PRECAUTIONS TO BE HEEDED WHEN MOVING THE MACHINE .............................

8. CONTENTS OF GAME............................................................................ ..............................

9. EXPLANATION OF TEST AND DATA DISPLAY................................................................

9 - 1 SWITCH UNIT AND COIN METER...................................................................

9 - 2 SYSTEM TEST MODE.........................................................................................

9 - 3 GAME TEST MODE.............................................................................................

10. CONTROL PANEL.................................................................................................................

10- 1 REMOVING THE CONTROL PANEL................................................................

10- 2 ADJUSTING AND REPLACING

THE HANDLE’S (STEERING WHEEL’S) V.R. .................................................

10- 3 GREASING............................................................................................................

11. ACCELERATOR & BRAKE.................................................................................................

11- 1 ADJUSTING AND REPLACING THE V.R. .....................................................

11- 2 GREASING...........................................................................................................

12. PADDLE (WING) SHIFT.......................................................................................................

13. COIN SELECTOR..................................................................................................................

14. MONITOR...............................................................................................................................

14- 1 CAUTIONS AND WARNINGS CONCERNING THE SAFETY FOR

HANDLING THE MONITORS...........................................................................

14- 2 CAUTIONS TO BE HEEDED WHEN CLEANING THE CRT SURFACES.....

14- 3 ADJUSTMENT METHOD...................................................................................

15. REPLACING THE FLOURESCENT LAMP.........................................................................

16. PERIODIC INSPECTION TABLE.........................................................................................

17. TROUBLESHOOTING..........................................................................................................

18. GAME BOARD......................................................................................................................

18- 1 REMOVING THE BOARD.................................................................................

18- 2 FILTER BOARD..................................................................................................

18- 3 ERROR DISPLAY (DRIVE CONTROL BOARD)..............................................

19. DESIGN RELATED PARTS...................................................................................................

20. COMMUNICATION PLAY....................................................................................................

20 - 1 INSTALLATION PRECAUTIONS....................................................................

20 - 2 CONNECTING THE COMMUNICATION CABLES.......................................

20 - 3 SETTING FOR COMMUNICATION PLAY......................................................

20 - 4 CAUTIONS TO BE HEEDED WHEN USING THE TEST MODE..................

21. PARTS LIST............................................................................................................................

22. WIRE COLOR CODE TABE..................................................................................................

23. WIRING DIAGRAM..............................................................................................................

TABLE OF CONTENTS

1 - 2

3 - 4

5 - 6

8 - 10

11 - 23

24 - 25

26 - 32

33 - 54

35 - 47

48 - 54

55 - 57

58 - 59

60 - 61

62 - 65

66 - 70

66 - 67

69 - 70

71 - 72

73 - 74

75 - 77

78 - 82

78 - 79

81 - 82

83 - 84

85 - 88

90 - 134

135

136 - 140

SPECIFICATIONS

INTRODUCTION OF THE OWNERS MANUAL

This Owner's Manual is intended to provide detailed descriptions together with all

the necessary information covering the general operation of electronic assemblies,

electromechanicals, servicing control, spare parts, etc. as regards the product,

F355 challenge TWIN TYPE.

This manual is intended for the owners, personnel and managers in charge of

operation of the product. Operate the product after carefully reading and sufficiently

understanding the instructions. If the product fails to function satisfactorily, non-

technical personnel should under no circumstances touch the internal system. Please

contact where the product was purchased from.

SEGA ENTERPRISES, INC. (U.S.A.)/CUSTOMER SERVICE

45133 Industrial Drive, Fremont, California 94538, U.S.A.

Phone : (415) 701-6580

Fax : (415) 701-6594

Use of this product is unlikely to cause physical injuries or damages to property. However,

where special attention is required this is indicated by a thick line, the word "IMPORTANT"

and its sign in this manual.

Indicates that mishandling the product by disregarding this display can cause the

product's intrinsic performance not to be obtained, resulting in malfunctioning.

STOP

IMPORTANT

Installation Space : 1,632 mm (W) X 1,700 mm (D)

(64.3 in. X 66.9 in.)

Height : 1,864 mm (73.3 in.)

Weight : Approx 507 kg. ( 1,117.7 lbs.)

Power, maximum current : 555 W 6.50 A (AC 110V 50 Hz AREA)

558 W 6.50 A (AC 110V 60 Hz AREA)

536 W 5.70 A (AC 120V 60 Hz AREA)

558 W 3.30 A (AC 220V 50 Hz AREA)

547 W 3.20 A (AC 220V 60 Hz AREA)

568 W 3.30 A (AC 230V 50 Hz AREA)

544 W 3.10 A (AC 230V 60 Hz AREA)

563 W 3.10 A (AC 240V 50 Hz AREA)

533 W 2.90 A (AC 240V 60 Hz AREA)

For TAIWAN

Power, current : 575 W 7.00 A (MAX.)

440 W 5.30 A (MIN.)

MONITOR : 29 TYPE COLOR MONITOR

DEFINITION OF LOCATION MAINTENANCE MAN AND SERVICEMAN

Non-technical personnel who do not have technical knowledge and expertise should

refrain from performing such work that this manual requires the location's

maintenance man or a serviceman to carry out, or work which is not explained in

this manual. Failing to comply with this instruction can cause a severe accident

such as electric shock.

Ensure that parts replacement, servicing & inspections, and troubleshooting are performed by the

location's maintenance man or the serviceman. It is instructed herein that particularly hazardous

work should be performed by the serviceman who has technical expertise and knowledge.

The location's maintenance man and serviceman are herein defined as follows:

"Location's Maintenance Man" :

Those who have experience in the maintenance of amusement equipment and vending machines,

etc., and also participate in the servicing and control of the equipment through such routine work

as equipment assembly and installation, servicing and inspections, replacement of units and

consumables, etc. within the Amusement Facilities and or locations under the management of the

Owner and Owner's Operators of the product.

Activities of Location's Maintenance Man :

Assembly & installation, servicing & inspections, and replacement of units & consumables as

regards amusement equipment, vending machines, etc.

Serviceman :

Those who participate in the designing, manufacturing, inspections and maintenance service of

the equipment at an amusement equipment manufacturer.

Those who have technical expertise equivalent to that of technical high school graduates as re-

gards electricity, electronics and or mechanical engineering, and daily take part in the servicing &

control and repair of amusement equipment.

Serviceman's Activities :

Assembly & installation and repair & adjustments of electrical, electronic and mechanical parts of

amusement equipment and vending machines.

LISTED

5K92

AMUSEMENT MACHINE

1www.seuservice.com

1. HANDLING PRECAUTIONS

When installing or inspecting the machine, be very careful of the following points and pay

attention to ensure that the player can enjoy the game safely.

Non-compliance with the following points or inappropriate handling running counter to the

cautionary matters herein stated can cause personal injury or damage to the machine.

STOP

IMPORTANT!

For the IC board circuit inspections, only the logic tester is allowed. The use

of a multiple-purpose tester is not permitted, so be careful in this regard.

When cleaning the CRT surfaces, use a soft, dry cloth. Do not apply

chemicals such as thinner, benzine, etc.

The electronic parts on the IC Board could be damaged due to human body's

static electricity. Before performing IC Board related work, be sure to

discharge physically accumulated statics by touching grounded metallic

surfaces, etc.

Before performing work, be sure to turn power off. Performing the work

without turning power off can cause an electric shock or short circuit. In the

case work should be performed in the status of power on, this manual always

states to that effect.

To avoid electric shock or short circuit, do not plug in or unplug quickly.

To avoid electric shock, do not plug in or unplug with a wet hand.

Do not expose Power Cords and Earth Wires on the surface, (floor, passage,

etc.). If exposed, the Power Cords and Earth Wires are susceptible to damage.

Damaged cords and wires can cause electric shock or short circuit.

To avoid causing a fire or electric shock, do not put things on or damage

Power Cords.

When or after installing the product, do not unnecessarily pull the power cord.

If damaged, the power cord can cause a fire or electric shock.

In case the power cord is damaged, ask for replacement through where the

product was purchased from or the office herein stated. Using the cord as is

damaged can cause fire, electric shock or leakage.

Be sure to perform grounding appropriately. Inappropriate grounding can

cause an electric shock.

Be sure to use fuses meeting specified rating. Using fuses exceeding the

specified rating can cause a fire or electric shock.

Completely make connector connections for IC BD and others. Insufficient

insertion can cause an electric shock.

To avoid causing a fire or electric shock, do not make Specification changes

by removing, converting and making additions unless otherwise designated by

SEGA.

Be sure to perform periodic maintenance inspections herein stated.

www.seuservice.com

CONCERNING THE STICKER DISPLAY CONCERNING WARNING DISPLAYS

Serial No. Display

SEGA product has Stickers describing the product

manufacture No. (Serial No.) and Electrical

Specifications. Also it has a Sticker describing where to

contact for repair and for purchasing parts.

When inquiring about or asking for repair, mention the

Serial No. and Name of Machine indicated on the

Sticker. The Serial No. indicates the product register.

Identical machines could have different parts depending

on the date of production. Also, improvements and

modifications might have been made after the

publication of this Manual. In order to meet the above

situations, mention the Serial No. when contacting the

applicable places.

SEGA product has warning displays on Stickers, Labels

and or printed instructions adhered / attached to or

incorporated in the places where a potentially hazardous

situation can arise. The warning displays are intended

for accident prevention for the customers and for

avoiding hazardous situation relating to maintenance

and servicing work. There are some portions in the

Cabinet, which are subject to high tension voltage, etc.

where accidents can be caused merely by touching.

When performing the servicing work , be very careful of

the warning displays. Especially, any complex repair

and replacement work not mentioned herein, should be

performed by those technical personnel who have

knowledge of electricity and technical expertise.

For the prevention of accidents, caution any customer

whose act runs counter to the warnings, as to the effect

that he must stop the act.

440-WS0002XEG

440-WS0012XEG

440-WS0002XEG

Electrical Specifications Display

3www.seuservice.com

2. PRECAUTIONS CONCERNING INSTALLATION

LOCATION

This product is an indoor game machine. Do not install it outside. Even indoors,

avoid installing in places mentioned below so as not to cause a fire, electric shock,

injury and or malfunctioning.

Places subject to rain or water leakage, or places subject to high humidity in

the proximity of an indoor swimming pool and or shower, etc.

Places subject to direct sunlight, or places subject to high temperatures in the

proximity of heating units, etc.

Places filled with inflammable gas or vicinity of highly inflammable/volatile

chemicals or hazardous matter.

Dusty places.

Sloped surfaces.

Places subject to any type of violent impact.

Vicinity of anti-disaster facilities such as fire exits and fire extinguishers.

The operating (ambient) temperature range is from 5°C to 40°C.

Only in the case a projector is employed, the temperature range is from 5°C

to 30°C.

LIMITATIONS OF USAGE REQUIREMENTS

Be sure to check the Electrical Specifications.

Ensure that this product is compatible with the location's power supply,

voltage and frequency requirements.

A plate describing Electrical Specifications is attached to the product.

Non-compliance with the Electric Specifications can cause a fire and electric

shock.

This product requires the Breaker and Earth Mechanisms as part of the

location facilities. Using them in a manner not independent can cause a fire

and electric shock.

Ensure that the indoor wiring for the power supply is rated at 10A or higher

(AC single phase 100 ~ 120V area), and 5A or higher (AC 220 ~ 240V area).

Non-compliance with the Electrical Specifications can cause a fire and

electric shock.

Be sure to independently use the power supply equipped with the Earth

Leakage Breaker. Using a power supply without the Earth Leakage Breaker

can cause an outbreak of fire when earth leakage occurs.

Putting many loads on one electrical outlet can cause generation of heat and a

fire resulting from overload.

When using an extension cord, ensure that the cord is rated at 10A or higher

(AC 100 ~ 120V area) and 5A or higher (AC 220 ~ 240V area). Using a cord

rated lower than the specified rating can cause a fire and electric shock.

www.seuservice.com

For transporting the machine into the location's building, the minimum

necessary dimensions of the opening (of doors, etc.) are 0.85m(W) and

1.55m(H).

For the operation of this machine, secure a minimum area of 2.2m (W) X 2.3m

(D). For ventilation, provide an approximately 20cm. space between the rear

part of the cabinet and the wall.

STOP

IMPORTANT!

FIG. 2

Electric current consumption

MAX. 6.50 A (AC 110V 50 Hz)

MAX. 6.50 A (AC 110V 60 Hz)

MAX. 5.70 A (AC 120V 60 Hz)

MAX. 3.30 A (AC 220V 50 Hz)

MAX. 3.20 A (AC 220V 60 Hz)

MAX. 3.30 A (AC 230V 50 Hz)

MAX. 3.10 A (AC 230V 60 Hz)

MAX. 3.10 A (AC 240V 50 Hz)

MAX. 2.90 A (AC 240V 60 Hz)

MAX. 7.00 A (For TAIWAN)

Otros manuales para F355 Challenge

Tabla de contenidos

Otros manuales de Videojuego de Sega

Sega

Sega Amazing Island Manual de usuario

Sega

Sega SHENMUE II Manual de usuario

Sega

Sega Sonic Rivals ULUS 10195 Manual de usuario

Sega

Sega PSO Episode I Manual de usuario

Sega

Sega House of the Dead Manual de usuario

Sega

Sega Virtua Striker 2002 Manual de usuario

Sega

Sega PSO Episode III Manual de usuario

Sega

Sega GT Manual de usuario

Sega

Sega Sega Rally 2 Manual de usuario

Sega

Sega Jet Set Radio Future Manual de usuario

Sega

Sega Rippin Riders Manual de usuario

Sega

Sega After Burner Black Falcon Manual de usuario

Sega

Sega NCAA Football 2K2 Manual de usuario

Sega

Sega Home Run KING Manual de usuario

Sega

Sega NBA 2K Manual de usuario

Sega

Sega Sonic Shuffle Manual de usuario

Sega

Sega Sonic Adventure Manual de usuario

Sega

Sega ChuChu Rocket Manual de usuario

Sega

Sega NFL 2K1 Manual de usuario

Sega

Sega ToeJam & Earl III Manual de usuario

Sega

Sega Super Monkey Ball 2 Manual de usuario

Sega

Sega Maken X Manual de usuario

Sega

Sega Outtrigger Manual de usuario

Sega

Sega Sonic Adventure 2: Battle Manual de usuario

Manuales populares de Videojuego de otras marcas

Disney

Disney Nintendo DS DGamer Manual de usuario

Disney

Disney NTR-CI7E-USA Manual de usuario

Microsoft game studios

Microsoft game studios INSIDE PITCH 2003 Manual de usuario

Disney

Disney Ultimate Band NTR-CUBE-USA Manual de usuario

Microsoft

Microsoft HALO Manual de usuario

Bizarre Creations

Bizarre Creations PROJECT GOTHAM-RACING 2 Manual de usuario

Nintendo

Nintendo Pokemon Colosseum Manual de usuario

XBOX

XBOX TOPSPIN Manual de usuario

Nintendo

Nintendo Street hoops Manual de usuario

Electronic Arts

Electronic Arts SSX 3 Manual de usuario

Microsoft game studios

Microsoft game studios HALO 2 Manual de usuario

Activision

Activision TENCHU-RETURN FROM DARKNESS Manual de usuario

PlayStation

PlayStation VirtuaTennis 3 061213 Manual de usuario

Xavix

Xavix PowerBoxing Manual de usuario

Tiger Electronics

Tiger Electronics Paperboy 2 78-508 Manual de usuario

Xavix

Xavix Bowling Manual de usuario

Tiger Electronics

Tiger Electronics Marvel Spider-Man 7-853 Manual de usuario

CodeMasters

CodeMasters COLIN MCRAE RALLY 2004 Manual de usuario
