Sega Buster Bubble Manual de usuario

Buster Bubble

Table of Contents

Setup - Calibration - Cleaning Page 3 - 6

Entering Setup

Calibration

Cleaning Touch Screen

Programming

Assembly diagrams

Lower assembly Page 7

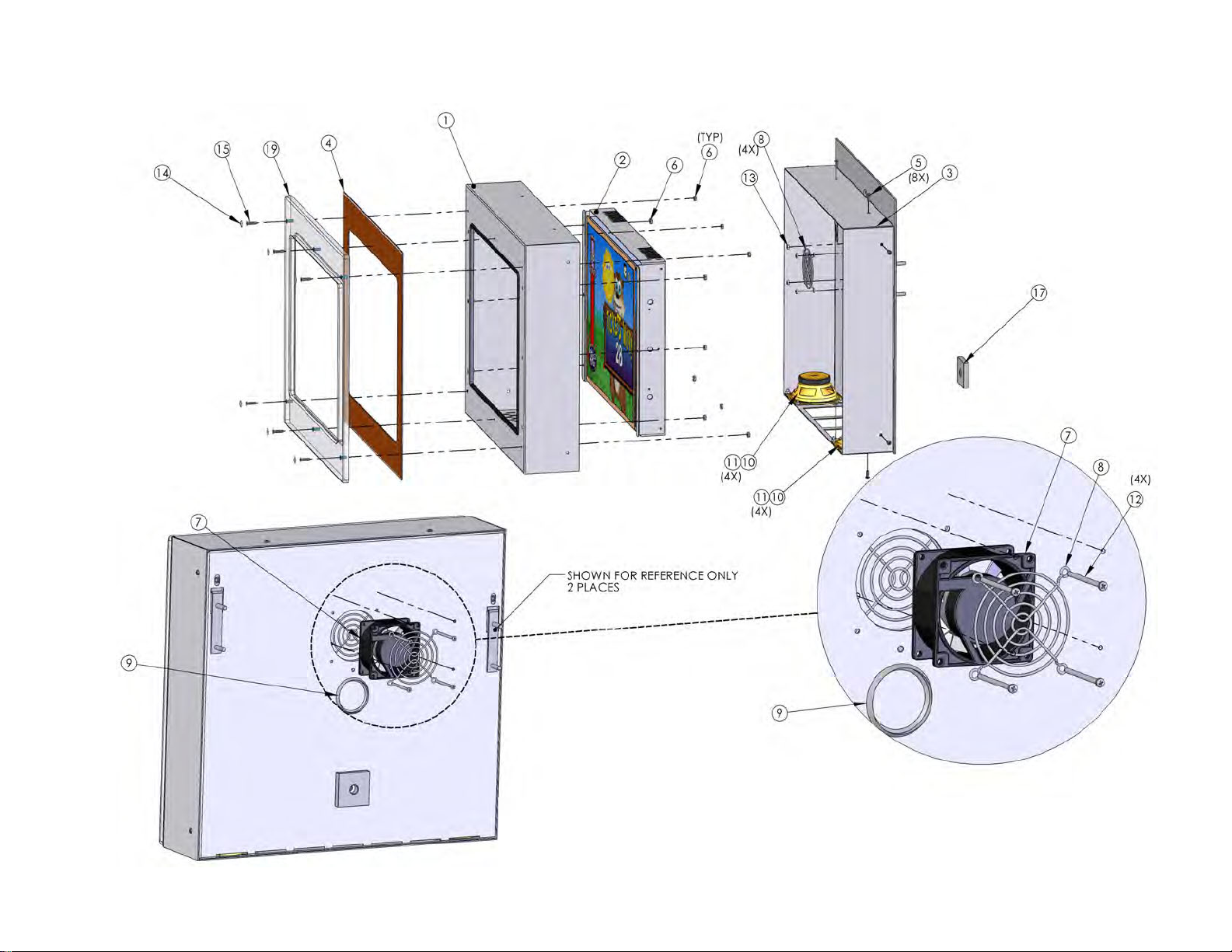

Monitor assembly Page 8 - 9

Back Door assembly Page 10

Bottom plate assembly Page 11 - 12

I/O board assembly Page 13

Jamma Harness Pinout Page 14

Parts list Page 15

Rev D - 10/13/2008 Buster Bubbles

Setup

Located inside the coin door are the coin and ticket meters, volume up and down

buttons, service button, and test button. You can lower or raise the volume by

pressing the UP and DOWN VOLUME buttons or set the volume through settings.

To test play your game without adding to the coin meter, press the SERVICE but-

ton. To enter programming options, press the TEST button.

To navigate through the menus, press volume up and down to move to different

options and press test to select that option.

000155 000041

Coin Tickets Volume

Up Service

Volume

Down Test

Touch Screen - Calibration and Cleaning

When you have installed your game on location it is a good idea to entering pro-

gramming and adjust the calibration. Doing so will ensure reliable operation at

that location. If at anytime you upgrade the software to a newer version you

should also enter programming and perform a calibration.

When cleaning your touch-screen monitor it is important to never use a ammonia

based cleaner. Any non-ammonia based glass cleaner can be used to clean the

screen. Always spray the glass cleaner on the cloth or towel and then clean the

touch-screen.

Setup - Programming

Software version 1.00.01

Main Menu

Operation Adjustments

Game Adjustments Default Options

Invert Touch Input Off On/Off

Use Bonus Bar On Off/On

Bonus Payout Amount Small Small/Medium/Large

Ticket Adjustments

Minimum Tickets 1 0 or 1

Ticket Value (in cents) .01 0 - 100

Credit Value (in cents) .25 0 - 100

Coin Settings

Free play Off On/Off

Currency Type Dollar Country or Coins

Currency Unit Value .25

Coin 1 Value .25

Coin 2 Value .25

Coin 3 Value/DBV Pulse .25

Maximum Credits $500

Player Cost/Payout

Cost to Play .25

Target Payout Percentage 40% 25 - 50

Volume

Game Volume 8 1-32

Attract Volume 6 1-32

Attract Sounds occasionally off/always/occasionally

Setup - Programming

Software version 1.00.01

Main Menu

General Audits

Game Audits

Games played

Average game time

Ticket Audits

Total tickets dispensed

Average tickets per play

Current payout percentage

Total tickets (500 games)

Average tickets (500 games)

Payout percentage (500 games)

Tickets owed

System Audits

Playtime

Up time

Watch dogs

Exceptions

Bad traps

Coin Audits

Total Coin 1

Total Coin 2

Total Coin 3 (DBV)

Lifetime coin count

Service credits

Setup - Programming

Software version 1.00.01

Main Menu

Reset Menu

Reset game audits

Reset credits

Reset tickets

Reset coin counters

Reset adjustments

Factory reset

System Tests

Version list

Switch test

Screen tests

Sound test

File test

Coin meter test

Ticket dispenser test

Dipswitch settings

Watchdog test

Screen Calibration
