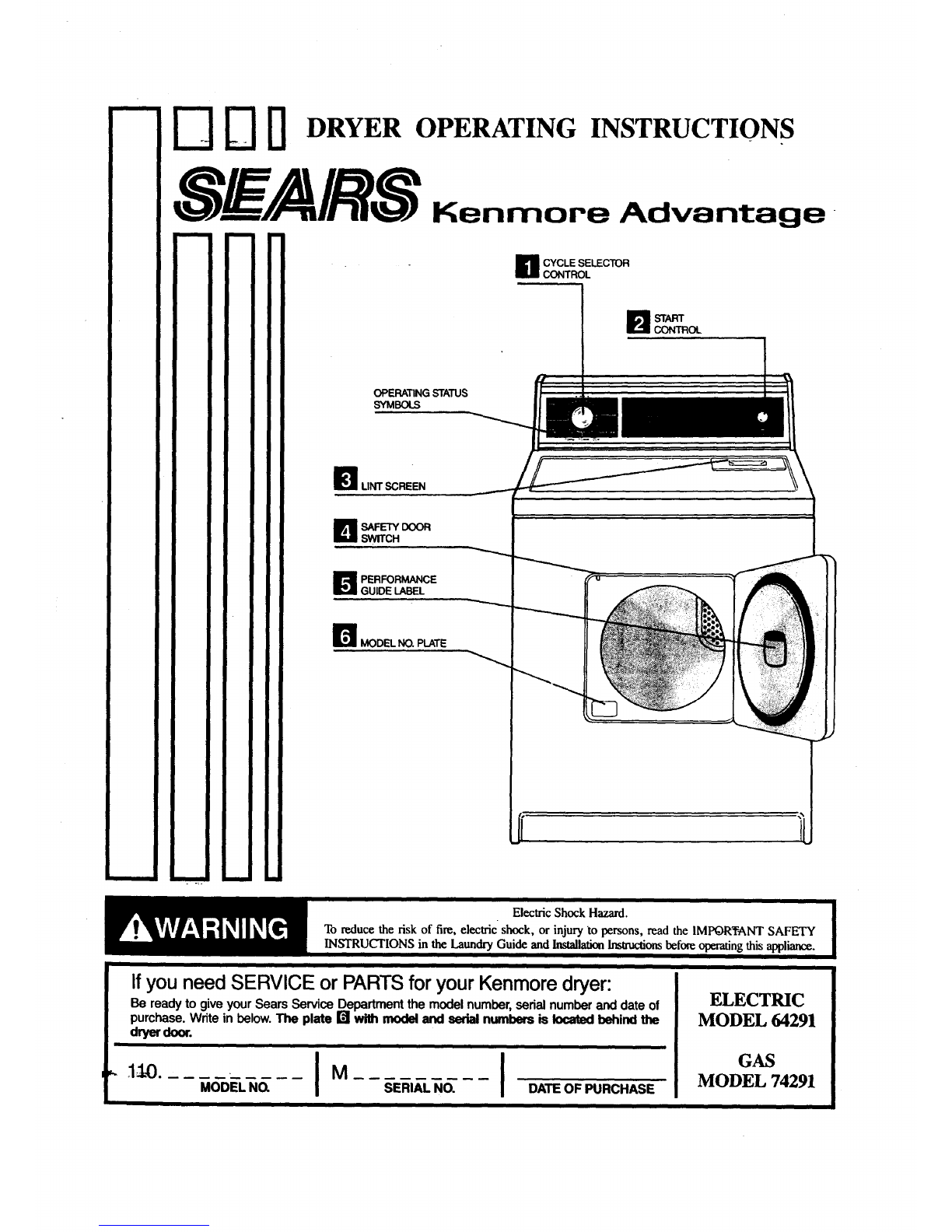

Sears Kenmore Advantage 64291 Manual de usuario

e STAR'I"

CONTROL

OPERATINGSTATUS

SYMBOLS

_Jl LINT SCREEN

B SAFETY DOOR

SWITCH

1_ ERFORMANCE

GUIDE LABEL

_DEL NO. PLATE

mm m

If you need SERVICE or PARTS for your Kenmore dryer:

Be ready to give your Sears Service Department the model number, serial number and date of

purchase. Write in below. The plate i¢1with model and serial numbers is located behind the

dryerdoor.

iii

,.1tO. [ M

MODEL NO. SERIAL NO. IDATE OF PURCHASE

ELECTRIC

MODEL 64291

GAS

MODEL 74291

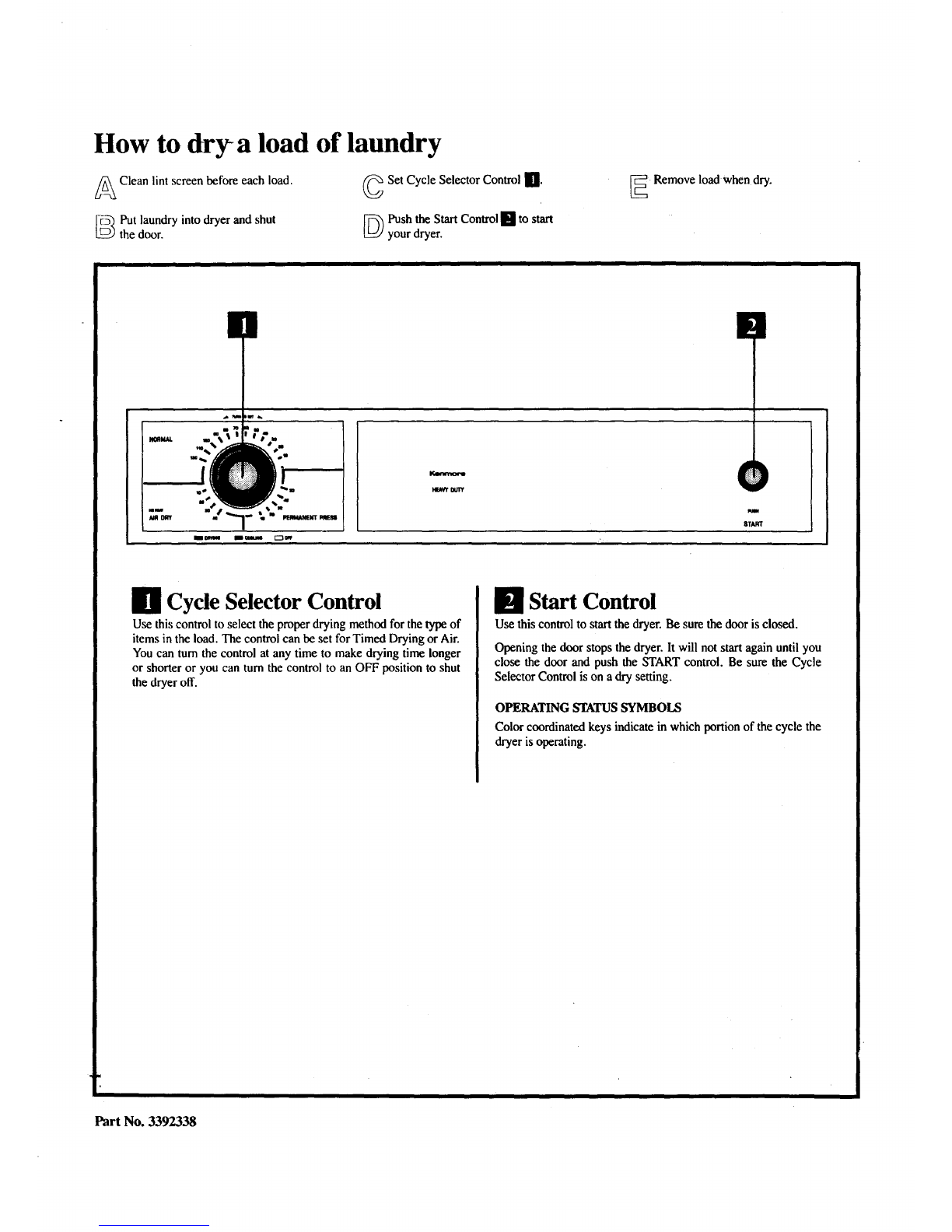

How to dry a load of laundry

b/_ Clean lint screen before each load.

Put laundry into dryer and shut

the door.

Set Cycle Selector Control Ill.

[_) ush the Start Control Ill1to start

your dryer.

Remove load when dry.

I! |l

Ill Cycle Selector Control

Use this control to select the proper drying method for the type of

items in the load. The control can be set for Timed Drying or Air.

You can turn the control at any time to make drying time longer

or shorter or you can turn the control to an OFF position to shut

the dryer off.

il Start Control

Use this control to start the dryer. Be sure the door is closed.

Opening the door stops the dryer. It will not startagain until you

close the door and push the START control. Be sure the Cycle

Selector Control is on a dry setting.

OPERATING STATUS SYMBOI__

Color coordinated keys indicate in which portion of the cycle the

dryer is operating.

Part No. 3392338

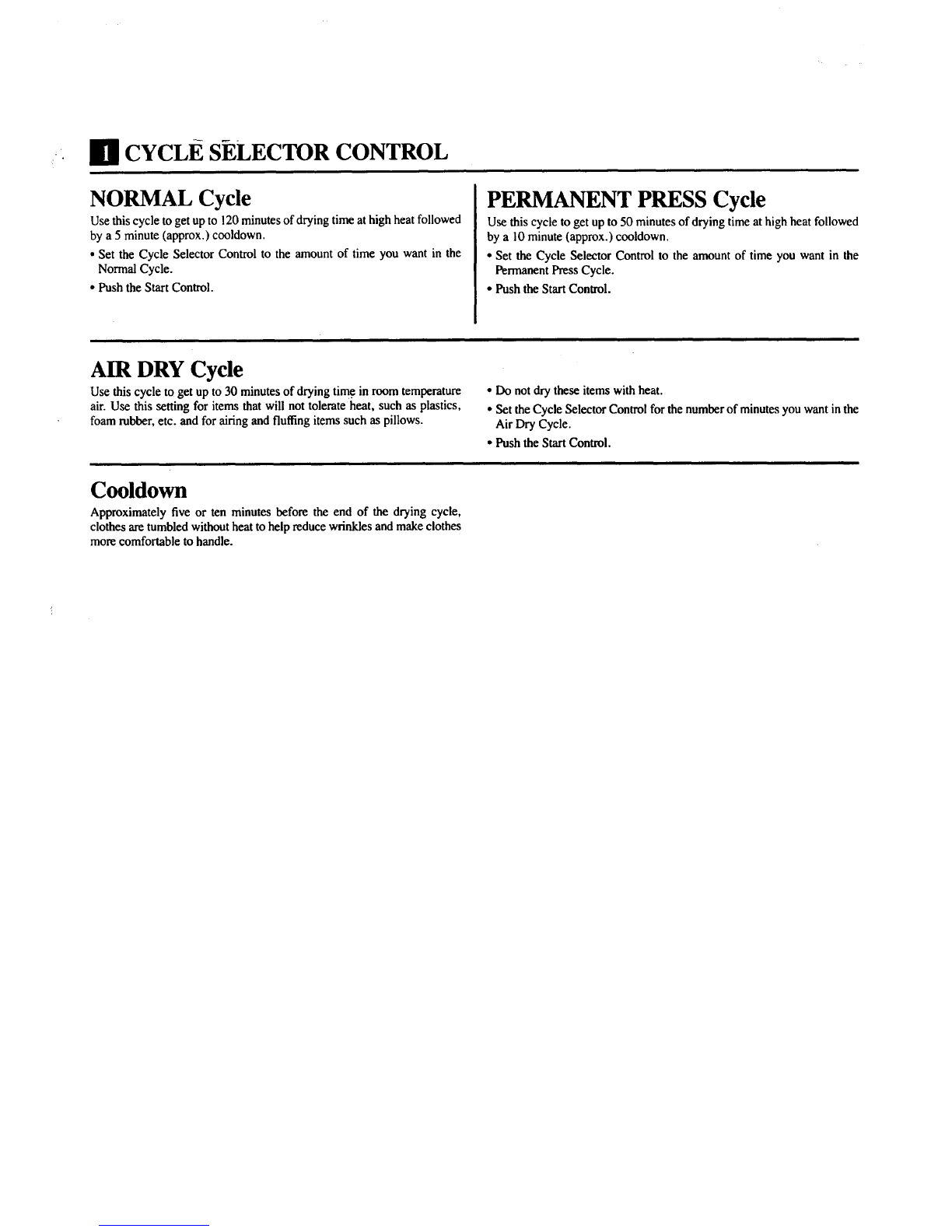

Ill CYCLi_ SELECTOR CONTROL

NORMAL Cycle

Use this cycle to get upto 120 minutesof drying time athigh heat followed

by a5minute (approx.) cooldown.

• Set the Cycle Selector Control to the amount of time you want in the

Normal Cycle.

•Push the Start Control.

PERMANENT PRESS Cycle

Use this cycle to get up to 50 minutes of drying time at high heat followed

by a 10 minute (approx.) cooldown.

• Set the Cycle Selector Control to the amount of time you want in the

Permanent Press Cycle.

• Push the Start Control.

AIR DRY Cycle

Use this cycle to get up to 30 minutes of drying tirn.ein room temperature

air. Use this setting for items that will not tolerate heat, such as plastics,

foam rubber, etc. and for airing and fluffing items such as pillows.

•Do not dry these items with heat.

• Set the Cycle Selector Control for the number of minutes you want in the

Air Dry Cycle.

•Push the Start Control.

Cooldown

Approximately five or ten minutes before the end of the drying cycle,

clothes are tumbled without heat to help reduce wrinkles and make clothes

more comfortable to handle.

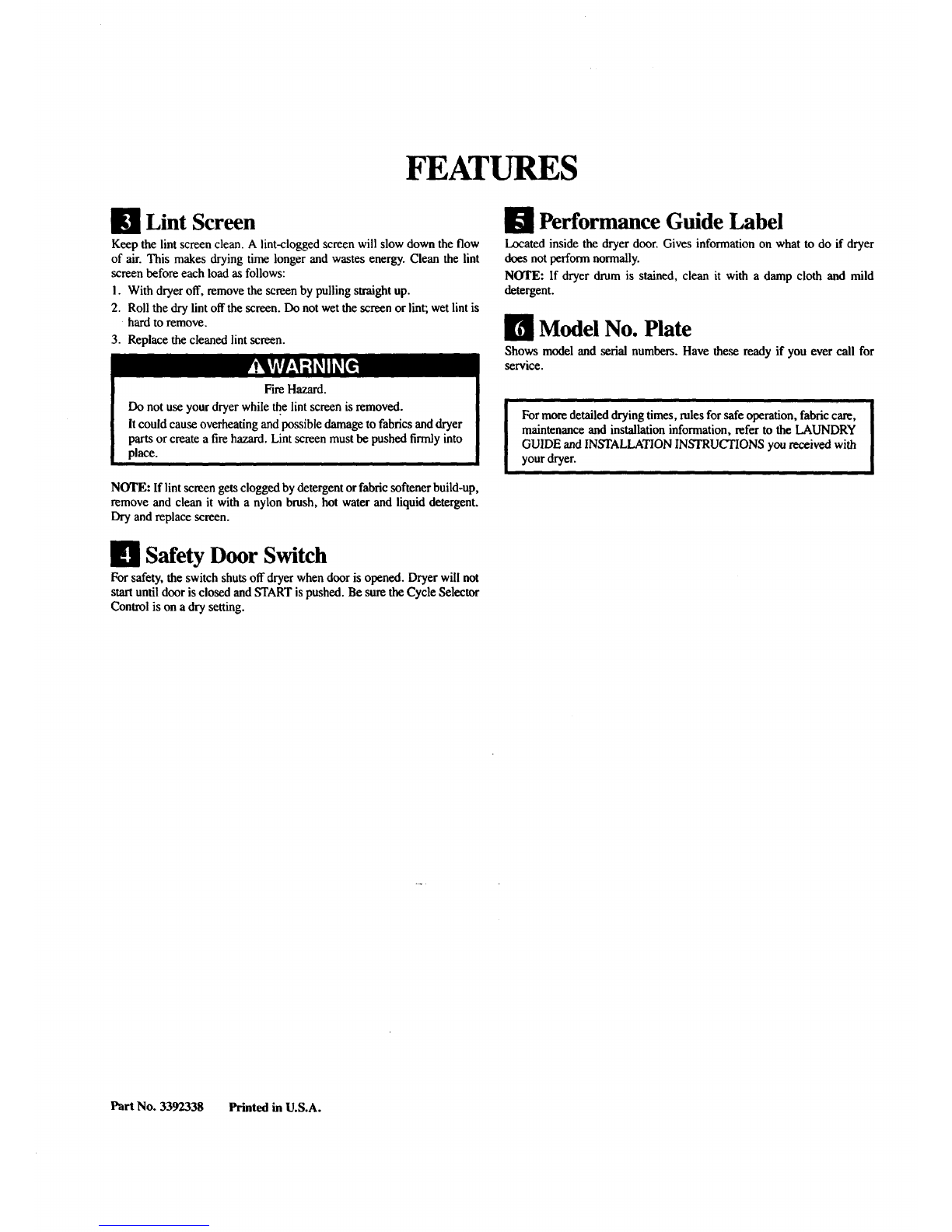

FEATURES

E1 Lint Screen

Keep the lint screen clean. A lint-clogged screen will slow down the flow

of air. This makes drying time longer and wastes energy. Clean the lint

screen before each load as follows:

!. With dryer off, remove the screen by pulling straight up.

2. Roll the dry lint off the screen. Do not wet the screen or lint; wet lint is

hard to remove.

3. Replace the cleaned lint screen.

_Yir_!i_JlXe]

Fire Hazard.

Do not use your dryerwhile the lint screen is removed.

It could cause overheating and possible damage to fabrics and dryer

parts or create a fire hazard. Lint screen must be pushed firmly into

place.

NOTE: If lint screen gets clogged by detergent orfabric softener build-up,

remove and clean it with a nylon brush, hot water and liquid detergent.

Dry and replace screen.

E1 Safety Door Switch

For safety, the switch shuts off dryer when door is opened. Dryer will not

start until door is closed and START is pushed. Be sure the Cycle Selector

Control is on a dry setting.

[[3 Performance Guide Label

Located inside the dryer door. Gives information on what to do if dryer

does not perform normally.

NOTE: If dryer drum is stained, clean it with a damp cloth and mild

detergent.

l_l Model No. Plate

Shows model and serial numbers. Have these ready if you ever call for

service.

Formore detailed drying times, rules for safe operation, fabric care, |

maintenance and installation information, refer to the LAUNDRY I

GUIDE and INSTALLATION INSTRUCTIONS you rex_ived with

your dryer.

II I

Part No. 3392338 Printed in U.S.A.
