Sealife Sea Dragon 2000 Light Manual de usuario
2
Contents:
I. Safety Warnings........................................................3-4
II. Check What You Got ...................................................5
III. Product view with call-outs.........................................6
IV. Charging and Loading the Battery ...............................7
V. Operating the light ......................................................8
VI. Battery Status Indicator................................................8
VI. Maintaining a waterproof seal (Before your dive) ........9
VII. Care and maintenance (After your dive) ....................10
VIII. Replacing the O-rings................................................11
IX. Attaching light to underwater camera........................12
X. Expanding your Flex-Connect™ Lighting System ....13-14
XI. Recommended Camera Settings ................................15
XII. Great pictures made easy.....................................16-19
XIII. Advanced Settings .....................................................20
XV. Troubleshooting Guide ..............................................21
XVI. Specifications ...........................................................22
XVII. Parts and Service .......................................................23
www.sealife-cameras.com/service/manuals.html
Español - Deutsch - Français - Italiano - Nederlands
3
I. Safety Warnings
Make sure you follow these important safety warnings to avoid the risk
of fire or injury.
Avoid using the light above water for prolonged periods of time. The
light is designed for underwater use and water is needed to displace
heat. The metal light head at full power will reach temperature of about
140F (60C) degrees within a few minutes, which may cause burning if
touched. A thermal sensor will automatically dim the light if internal
temperatures reaches 150F (65C) degrees. Immediately turn off light if
any parts of the light become hot to the touch.
If water has entered the light, immediately turn off power and follow
these instructions: Remove and dry the battery. DO NOT use the
battery once it has become wet. Wet batteries must be replaced. Allow
battery to dry and dispose it in accordance with local battery recycling
regulations. The battery chamber is waterproof. If no water has entered
the LED light head, the chamber may be cleaned without causing
permanent damage to the electronics. Rinse the waterproof battery
compartment with fresh water and allow the inside to dry. Replace the
o-rings and apply lube. Install new, fully-charged battery and test light.
If light does not operate properly, please contact your local SeaLife
dealer or the SeaLife service center in your country.
Do not use battery if the outer casing is cracked, separated, damaged
or has become wet. Dispose battery in accordance with local battery
recycling regulations.
4
I. Safety Warnings
Never expose battery to fire or intense heat. Do not expose light to
direct sunlight for prolonged periods of time.
Airlines impose strict safety regulations for handling and shipping
lithium ion batteries. Spare lithium batteries may not be packed in your
checked baggage but may be packed in your carry-on baggage. It is
important to pack spare batteries in such a way as to prevent metal
objects from touching the contacts and potentially short-circuiting the
battery. Always use protective battery cover included when the battery
is not inside the light or charging tray to prevent accidental short-
circuiting the battery contacts.
Remove batteries from light before transporting, traveling or long
periods of storage. Remember to use the protective battery cover
included when the battery is not inside the light or charging tray to
prevent accidental short-circuiting the battery contacts.
Only use the specified battery and battery charger approved by SeaLife.
Using any other battery or charger may cause fire, injury and
permanently damage the light.
Observe all SCUBA dive safety rules and control your buoyancy at all
times. Consult your dive instructor for dive safety questions.
Visit www.sealife-cameras.com for updates to this manual and
underwater photography tips.
5

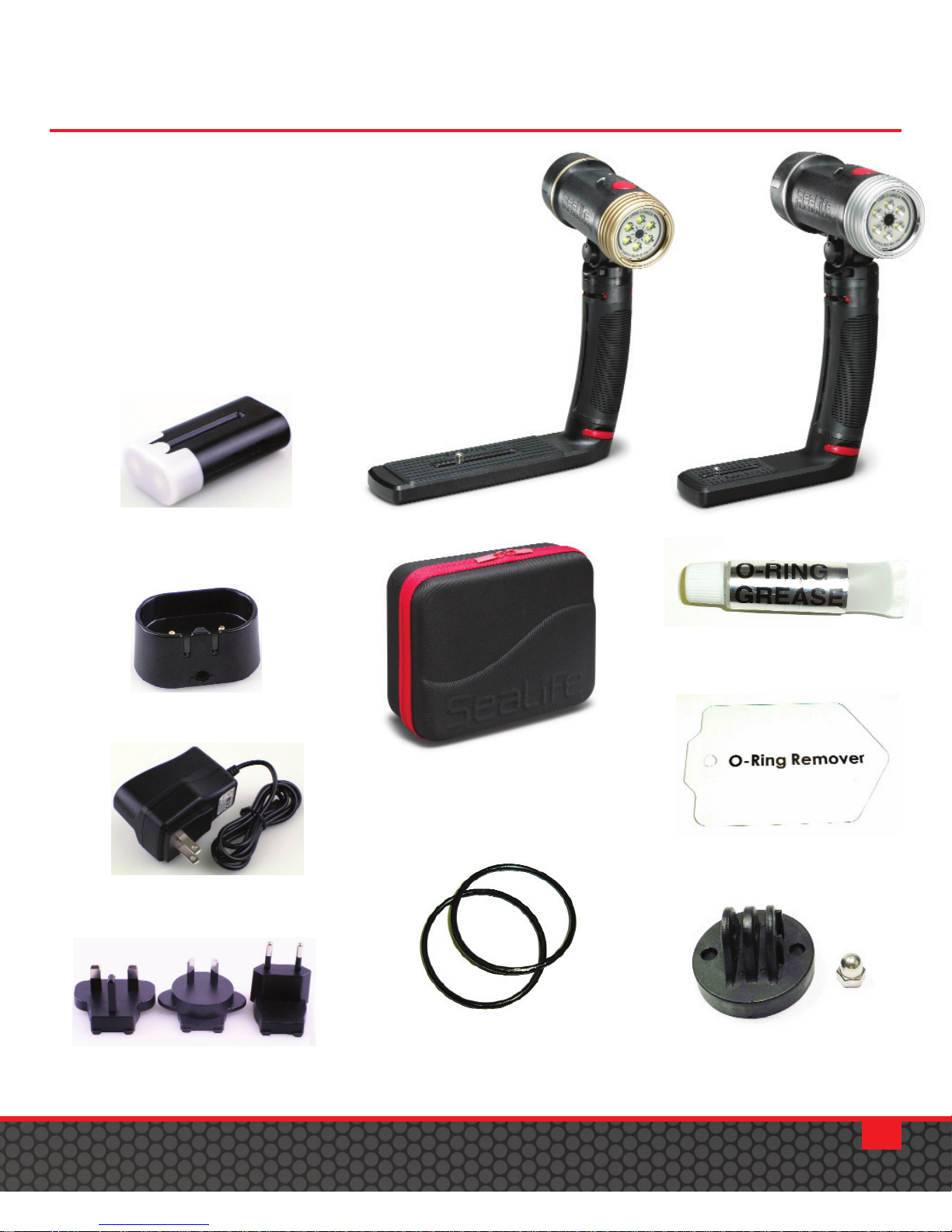

II. Check What You Got
Spare O-rings (SL98303)
O-ring Lube (SL9807)
O-ring remover (SL9808)
Sea Dragon Case
(Small SL941 or Large SL942)
Sea Dragon 2000 Light
(with grip and standard tray)
-OR-
Sea Dragon 1200 Light
(with grip and micro tray)
Li-ion Battery
(SL9831)
w/protective cover
Charging tray (SL98311)
AC Power Adapter (SL98312)
Int'l Plug Inserts (SL98306) Adapter for GoPro
camera (SL9813)
6
III. Product view with call-outs
Major parts
1 – Light head
2 – Metal cooling bezel
3 – Release buttons
4 – Flex-Connect grip
5 – Tray
6 – Mounting screw
7 – Rubber friction pad
8 – Power button / Brightness adjust
9 – Battery status indicator
10 – Battery cap
11 – Pressure safety valve
12 – Flex-Connect swivel connector
7
IV. Charging and Loading the Battery
1) Charge battery (green light = fully charged)
2) Unscrew the battery cap
3) Insert fully charged battery.
Important: Make sure O-ring and sealing surfaces are
perfectly clean and undamaged.
4) Screw on battery cap.
(Do not overtighten or use tools.)
8
V. Operating the light
1) Push and hold the power
button for 1 second to
power ON the light.
2) Push the power button
to change between the
following light modes:
100% §50% §25%
§100%........
3) Push and hold the mode
button for 2 seconds to
power OFF the light.
VI. Battery Status Indicator
3 status lights indicate remaining battery power:
Status lights Battery power
3 solid 100%
2 solid 75%
1 solid 50%
1 blinking 25%
9
VII. Maintaining a waterproof seal (Before your dive)
1) The light uses two O-rings to maintain a waterproof seal.
2) Every time you open the battery cap make sure the O-rings and
sealing surfaces are clean, undamaged and lubricated.
3) Dampen a clean cotton cloth and wipe it around the o-ring
and o-ring contact surfaces to remove any hair, sand or debris.
4) Carefully inspect the o-ring for cuts, tears or other damage.
Replace o-rings if damaged.
5) Lube O-rings regularly. Apply a small amount of silicone lube on
your finger tip and wipe it around the O-rings. Wipe off excess
lubricant. The o-ring surface should have shiny, wet appearance.
Important:
Replace O-rings every year if damaged or not. Visit your local SeaLife dealer
or www.sealife-cameras.com for information on ordering spare o-rings.
10
VIII. Care and maintenance (After your dive)
1) After each dive, soak the sealed light in fresh water for about
15 minutes to remove any residual salt, sand and dirt. Never
allow the saltwater to dry on the light.
2) Push the power button about 10 times to clean any saltwater
or sand trapped under the button.
3) Let the water drain out of the small holes located at the bottom
of flex arm. (If using Flex Arms - see page 13 for optional
accessories).
4) Dry off the light with a towel. Make sure you and the light are
dry before opening the waterproof battery cap.
5) Remove battery before storing the light.
6) Allow light to thoroughly dry before storage.
7) Never use any detergents, cleaners, solvents or chemicals to
clean the light.
8) Insert a fresh Moisture-Muncher capsule (item #SL911) inside
the battery compartment during storage to help keep the inside
dry and free of corrosion or mildew during storage.
