Seagate Medalist 8421 Manual de usuario
......................................
Medalist 8421 (ST38421A)
..... . ..... . ............. . ..... . .....
Medalist 6421 (ST36421A)
.. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. .
Medalist 4311 (ST34311A)
.. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. .
Medalist 2112 (ST32112A)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation Guide
..... . ..... . ............. . ..... . .....
© 1999 Seagate Technology, Inc. All rights reserved.
Publication Number: SG35126-001, Rev. A, February 1999
Seagate, Seagate Technology, the Seagate logo, Medalist and
the Medalist logo are registered trademarks of Seagate Technol-
ogy, Inc. DiscWizard, SeaFAX, SeaFONE, SeaTDD and Sea-
BOARD are either trademarks or registered trademarks of
Seagate Technology, Inc. or one of its subsidiaries. All other
trademarks or registered trademarks are the property of their
respective owners.
Medalist 8421, 6421, 4311 and 2112, Rev. A -1
Contents
The easiest way to install your drive.................................... 1
What you need........................................................................ 2
Before you begin .................................................................... 2
Handling precautions............................................................. 3
Master/slave jumpers............................................................. 4
Attaching cables and mounting the drive............................ 6
Configuring your computer................................................... 9
Addressing drive-capacity limitations ............................... 11
Preparing your drive for use ............................................... 13
Installation using Disk Manager........................................ 14
Windows 95 or Windows 98 installation ........................... 15
Standard DOS installation................................................ 16
Additional installation options............................................ 18
Non-ATA compatible slave jumper.................................... 18
Cable select jumper.......................................................... 18
Advanced Disk Manager options........................................ 19
Troubleshooting ................................................................... 22
Seagate Technology support services............................... 28
Storing and shipping your drive......................................... 35
iii
0 Medalist 8421, 6421, 4311 and 2112, Rev. Aiv
Medalist 8421, 6421, 4311 and 2112, Rev. A 1
The easiest way to install your drive
DiscWizardis Seagate’s exclusive Win-
dows program, provided on a diskette, that
makes it easy to install your Medalistdrive.
DiscWizard helps you configure your new
drive and your computer. It analyzes your
system, lets you select various installation
options and creates customized step-by-
step instructions. It also allows older computers to access the full
capacity of large-capacity drives.
You can run DiscWizard to install your new hard drive if:
•You already have an existing, bootable hard drive in your com-
puter with at least 3 Mbytes of available disc space,
and
•You are running Windows 95
or Windows 98.
If you can run DiscWizard, follow the instructions on the
DiscWizard diskette to install your drive. If you need additional
information, refer to this installation guide.
If you cannot run DiscWizard, follow the instructions in this
installation guide to install and configure your new drive.
2 Medalist 8421, 6421, 4311 and 2112, Rev. A
What you need
•Straight-edge and Phillips screwdrivers
•Four 6-32 UNC drive mounting screws
•A standard 40-pin ATA interface cable,
or
an 80-conductor cable if your system runs Ultra DMA mode 3
or 4 (max length: 18 inches)
•An unused drive power cable for your new drive
Before you begin
•Make sure your computer is turned off before you open the
case.
•Read the handling precautions at the right and inspect the
drive to make sure that it is not damaged.
•Save your foam-lined Seagatedisc drive box. This box has
been approved by Seagate for shipping a Seagate disc drive.
Using any other container or packing material voids your drive
warranty.
Medalist 8421, 6421, 4311 and 2112, Rev. A 3
Handling precautions
Disc drives are extremely fragile. Do not drop or jar
your drive.
Keep the drive in its antistatic bag until you are
ready to install it.
Protect your drive from static discharge by making
sure you are well grounded before touching the
drive. We recommend wearing a grounded wrist
strap throughout the installation process. Do not
touch the connectors or any part of the printed cir-
cuit board.
Always handle the drive by its edges or frame.
Do not apply pressure or attach labels to the circuit
board or the top of the drive.
4 Medalist 8421, 6421, 4311 and 2112, Rev. A
Master/slave jumpers
If you already have one hard drive in your computer and you are
installing a second drive, you must configure one drive as a mas-
ter and the other as a slave.
Note. If you need to change the jumpers on your existing hard
drive, see the Disk Manager online manual, look on the
drive label, or contact the drive manufacturer.
To configure the drive as a master or one drive only:
•The drive is configured at the factory for a master or single-
drive operation with a jumper set on pins 7 and 8.
Note. The master drive usually defaults to being the “boot” drive
(drive C), from which the computer loads system soft-
ware when it first starts up.
To configure the drive as a slave:
•Remove the jumper to configure the drive as a slave.
Medalist 8421, 6421, 4311 and 2112, Rev. A 5

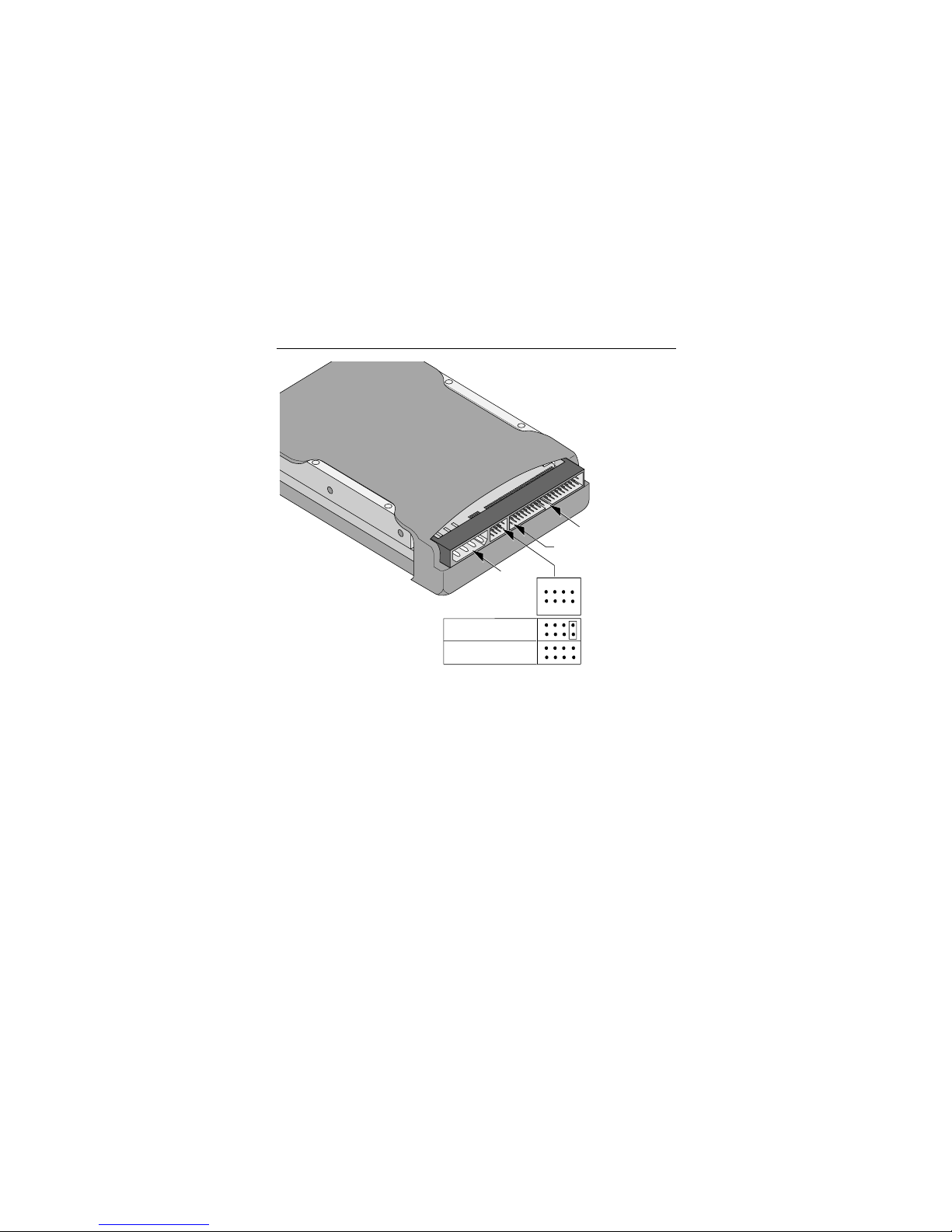

Figure 1. Master and slave jumper settings
Master or single drive
Drive is slave
135
2468
7
Master/slave
jumper block
pin 1
4-pin power
connector
40-pin ATA
interface
connector
6 Medalist 8421, 6421, 4311 and 2112, Rev. A
Attaching cables and mounting the drive
1. If you are attaching an ATA (IDE) interface cable to a single
drive, attach one end of the cable to the interface connector
on your motherboard. Most computers provide two IDE con-
nectors, primary and secondary, usually labeled as
IDE
or
HDD
on your motherboard. See your computer manual for
connector locations.
Note. If you are running Ultra DMA mode 3 or 4, you must use a
special 40-pin 80-conductor cable or these modes will not
be enabled. For information on how to obtain this cable,
contact your dealer.
Figure 2. Attaching the cables
2. Thread the interface cable through the drive bay and attach
the connector at the end of the interface cable to your new
drive (the maximum ATA cable length is 18 inches (457 mm)
long).
Computer
Motherboard
Pin 1
