Seagate Medalist 1721 Manual de usuario

......................................

Medalist 1721 (ST31721A)

......................................

Medalist 1010 (ST31010A)

......................................

for ATA (IDE)-Compatible PCs

......................................

Installation Guide

......................................

-2 Medalist 1721, 1010, Rev. B

Publication Number: 21200092-001, Rev. B, March 1999

Seagate, Seagate Technology, and the Seagate logo are regis-

tered trademarks of Seagate Technology, Inc. Medalist, DiscWiz-

ard, SeaFAX, SeaFONE, SeaBOARD, and SeaTDD are either

trademarks or registered trademarks of Seagate Technology,

Inc. or one of its subsidiaries. All other trademarks or registered

trademarks are the property of their respective owners.

Medalist 1721, 1010, Rev. B -1

Contents

What you need........................................................................ 1

Before you begin .................................................................... 1

Handling precautions............................................................. 2

Master/slave jumpers............................................................. 3

Attaching cables and mounting the drive............................ 5

Configuring your computer................................................... 8

Addressing drive capacity limitations................................ 10

Partitioning and formatting your drive............................... 12

Installation using Disk Manager........................................ 13

Windows 95 or Windows 98 installation ........................... 14

Standard DOS installation................................................ 15

Additional installation options............................................ 17

Non-ATA compatible slave jumper...................................... 17

Cable select jumper ............................................................. 18

Advanced Disk Manager options........................................ 19

Troubleshooting ................................................................... 22

Seagate Technology support services............................... 28

Storing and shipping your drive......................................... 34

iii

0 Medalist 1721, 1010, Rev. B

Medalist 1721, 1010, Rev. B 1

What you need

•Straight-edge and Phillips screwdrivers

•Four 6-32 UNC drive mounting screws

•An ATA host adapter and interface cable (max length: 18

inches) with enough connectors for all your drives

•An unused drive power cable for your new drive

•A bootable DOS system diskette (Seagate recommends using

DOS Version 5.0 or later.)

•If you are mounting this 3.5-inch drive in a 5.25-inch drive bay,

you need a mounting adapter or frame kit. Also, you may need

drive mounting rails if your drive bay is not designed for direct

mounting.

Before you begin

•Make sure your computer is turned off before you open the

case.

•Read the handling precautions following and inspect the drive

to make sure that it is not damaged.

•Save your foam-lined Seagatedisc drive box. Seagate has

approved this box for shipping a Seagate disc drive. Using any

other container or packing material voids your drive warranty.

2 Medalist 1721, 1010, Rev. B

Handling precautions

Disc drives are extremely fragile. Do not drop or jar

your drive.

Keep the drive in its antistatic bag until you are

ready to install it.

Protect your drive from static discharge by making

sure you are well grounded before touching the

drive. We recommend wearing a grounded wrist

strap throughout the installation process. Do not

touch the connectors or any part of the printed cir-

cuit board.

Always handle the drive by its edges or frame.

Do not apply pressure or attach labels to the circuit

board or the top of the drive.

Medalist 1721, 1010, Rev. B 3

Master/slave jumpers

If your new Seagatedrive will be the only drive in your computer,

you do not have to change any jumper settings. In this case, skip

ahead to “Attaching Cables and Mounting the Drive,” on page 5.

If you already have one hard drive in your computer and you are

installing a second drive, you must configure one drive as a mas-

ter and the other as a slave.

To configure the drive as a master or one drive only:

•Place a jumper on pins 5 and 6 (see Figure 1 on page 4).

The master drive usually defaults to being the “boot” drive

(drive C), from which the computer loads system software

when it first starts up.

To configure the drive as a slave:

•Remove all the jumpers.

•If you need to change the jumpers on your existing hard drive,

see the Disk Manager online manual, look on the drive label,

or contact the drive manufacturer.

4 Medalist 1721, 1010, Rev. B

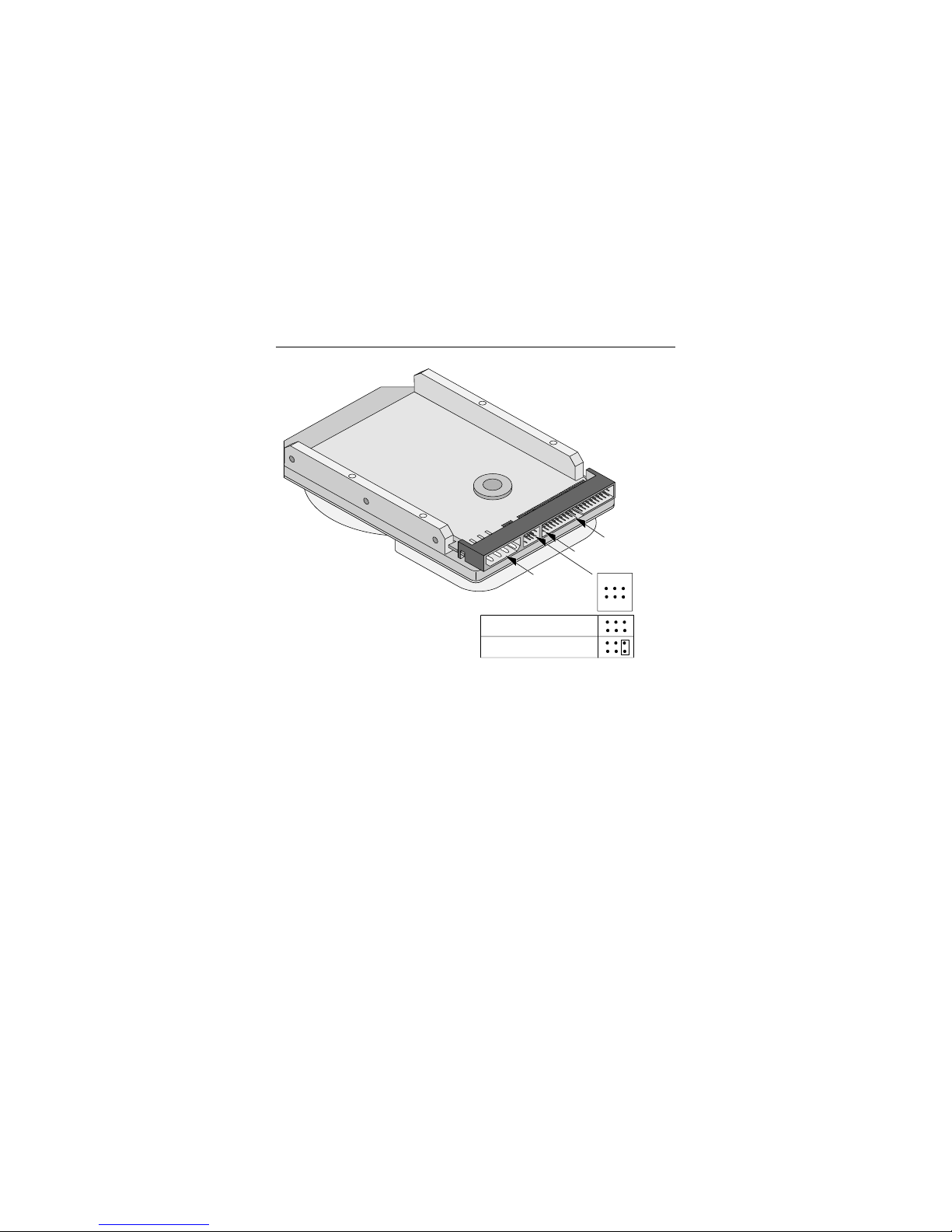

Figure 1. Master and slave jumper settings

pin 1

ATA interface

connector

135

246

Slave

Master or single drive

4-pin power

connector

Medalist 1721, 1010, Rev. B 5

Attaching cables and mounting the drive

1. If you are attaching a new ATA interface cable to a single

drive, attach one end of the cable to the interface connector

on your host adapter or motherboard. Motherboard connec-

tors can be identified by the IDE or HDD 40-pin connector.

The ATA cable must be no more than 18 inches (457 mm)

long.

2. Thread the interface cable through the drive bay and attach

the connector at the end of the interface cable to your new

drive.

Note. If you have two drives, attach the second drive to the sec-

ond connector.

Figure 2. Attaching the cables

Caution. To avoid possible damage to your system,

make sure to align pin 1 on the host adapter or mother-

board with pin 1 on your drive or drives. Pin 1 on the

interface cable is usually indicated by a stripe along the

edge of the cable.

Pin 1

Host

adapter

6 Medalist 1721, 1010, Rev. B

Figure 3. Mounting screws

3. You can mount the drive in any orientation. Usually it is

mounted with the circuit board down.

4. Slide the drive carefully into the drive bay. Secure the drive

with four 6-32 UNC mounting screws in either the side-

mounting holes or the bottom-mounting holes. Insert the

screws no more than 0.22 inch (5.58 mm) into the bottom-

mounting holes and no more than 0.20 inch (5.0 mm) into the

side-mounting holes.

Caution. To avoid possible damage to the drive, do not

overtighten the screws or use metric screws.
