Scott SPARK MY22 Manual de usuario

SPARK MY22

MANUAL

2ENGLISH / SPARK TECH MANUAL

Technical Data:

Seatpost: 31.6mm

Seatpost Clamp: 34.9mm

Travel:

Rear 120mm

Front: RC 120mm

Non RC 130mm

Shock Length: 165mm

Shock Stroke: 45mm

Hardware M/Frame: Trunnion

Hardware Linkage: 20mm Bush x

10mm Bolt

BB Housing: 92x41mm

Chainring Max: 38 Tooth

Chain Line: 55mm

Tyre Width Max: 2.4 Inches

Geometry:

Tyre sizes often vary from brand

to brand. Always ensure the frame,

linkage & swingarm tyre clearance

is adequate when replacing the

rear tyre.

ENGLISH / SPARK TECH MANUAL

MY22 RC // +0,6° head cup //

120mm fork

Small Medium Large X/Large

A HEAD TUBE ANGLE 67.2° 67.2° 67.2° 67.2°

B HEAD TUBE LENGTH 90 mm 90 mm 105.0 mm 115.0 mm

C TOP TUBE HORIZONTAL 562 mm 590 mm 614 mm 642 mm

D STANDOVER HEIGHT 758 mm 765 mm 776 mm 799 mm

E BB OFFSET -45 mm -45 mm -45 mm -45 mm

F BB HEIGHT 330 mm 330 mm 330 mm 330 mm

G WHEEL BASE 1,129 mm 1,159 mm 1,190 mm 1,231 mm

I BB CENTER TO TOP OF SEATTUBE 415.0 mm 440.0 mm 490 mm 540 mm

J SEAT ANGLE 75.9° 76.1° 76.6° 76.9°

K CHAINSTAY 437.5 mm 437.5 mm 437.5 mm 437.5 mm

L REACH 411 mm 441 mm 471 mm 501 mm

MSTACK 602.5 mm 602.5 mm 616 mm 625 mm

N STEM LENGTH 50 mm 60 mm 70 mm 80 mm

P FORK LENGTH 530 mm 530 mm 530 mm 530 mm

Q MAX POST INSERTION 150 mm 175 mm 225 mm 275 mm

CRANK LENGTH 170 mm 175 mm 175 mm 175 mm

MY22 900 // -0,6° head cup //

130mm fork

Small Medium Large X/Large

A HEAD TUBE ANGLE 65.8° 65.8° 65.8° 65.8°

B HEAD TUBE LENGTH 90 mm 90 mm 105 mm 115 mm

C TOP TUBE HORIZONTAL 561 mm 589 mm 613 mm 641 mm

D STANDOVER HEIGHT 759 mm 767 mm 778 mm 801 mm

E BB OFFSET -43.5 mm -43.5 mm -43.5 mm -43.5 mm

F BB HEIGHT 331.5 mm 331.5 mm 331.5 mm 331.5 mm

G WHEEL BASE 1,145 mm 1,174 mm 1,205 mm 1,236 mm

I BB CENTER TO TOP OF SEATTUBE 415mm 440 mm 490 mm 540 mm

J SEAT ANGLE 75.7° 75.9° 76.4° 76.7°

K CHAINSTAY 437.5mm 437.5mm 437.5mm 437.5mm

L REACH 410 mm 440 mm 470 mm 500 mm

MSTACK 607.5 607.5 617.7 mm 627 mm

N STEM LENGTH 50 mm 60 mm 60 mm 70 mm

P FORK LENGTH 540 mm 540 mm 540 mm 540 mm

Q MAX POST INSERTION 150 mm 175 mm 225 mm 275 mm

CRANK LENGTH 170 mm 175 mm 175 mm 175 mm

4ENGLISH / SPARK TECH MANUAL

EASY TECHNICAL STEP

IMPORTANT TECHNICAL STEP

WARNING/CAUTION

THREADLOC

NO GREASE

WITH GREASE

BEARING FIT

TORQUE CHECK

PLEASE TAKE NOTE OF THE BELOW

ICONS THROUGHOUT THIS MANUAL

FOR SAFE PRACTISE.

ENGLISH / SPARK TECH MANUAL

Hangers & Axles:

The Spark has only one rear hanger, this is the SRAM UDH.

This is available from your SRAM agent, also available via an Authorised Scott Dealer.

286000 - SCO Dropout Sram UDH 21

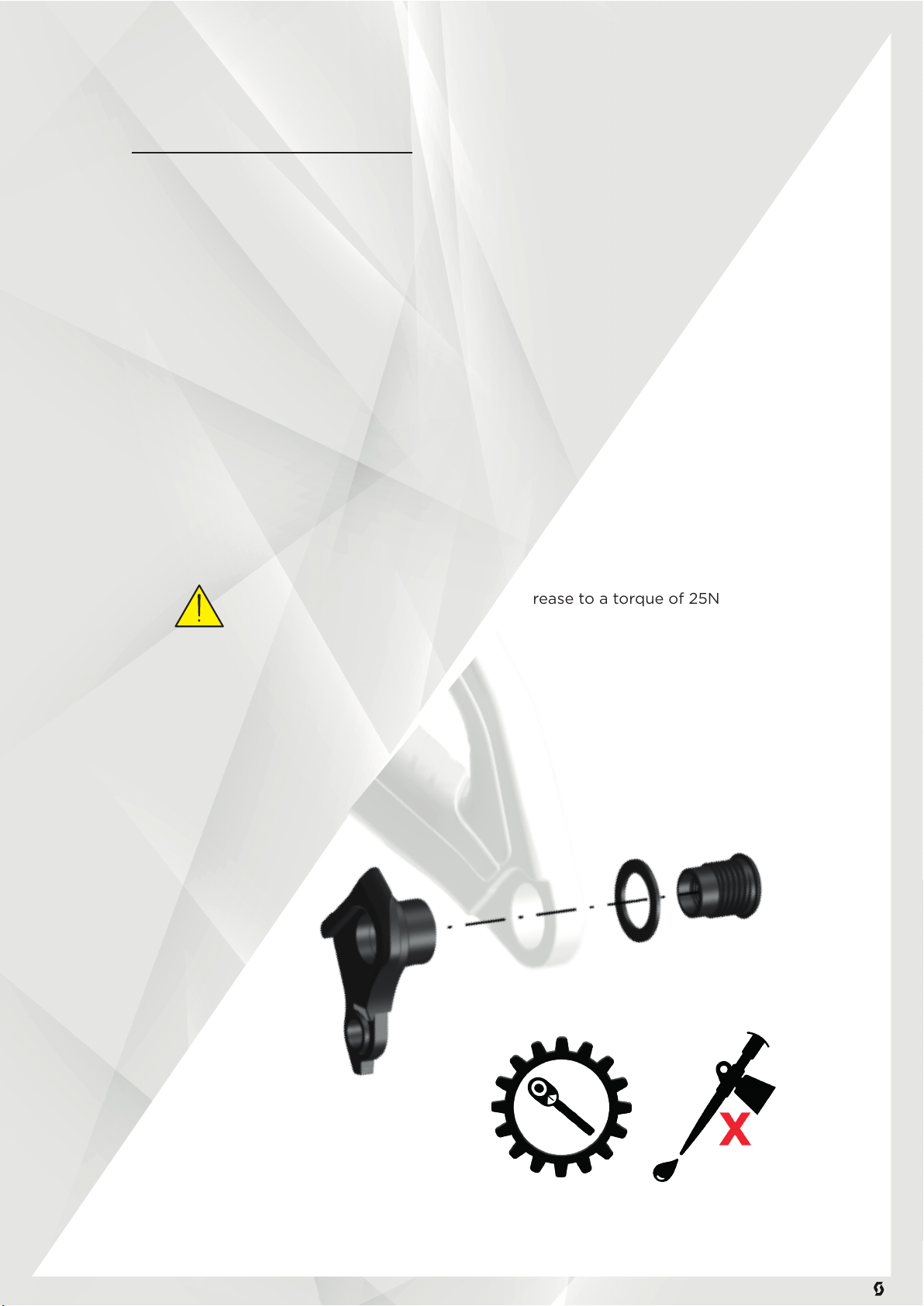

The UDH must be assembled without grease to a torque of 25Nm

reverse thread

6ENGLISH / SPARK TECH MANUAL

The Axle must be assembled with grease, and torqued

to 10Nm.

The new rear axle is speciﬁc for the Spark and contains a “plug in“ tool containing

T30/T25 and M6 Hex key:

290016 - SCO Axle RWS Rear 148x12 Spark Plug 22

ENGLISH / SPARK TECH MANUAL

Rear Brake Mounting:

The brake calliper mount is a standard post mount with a speciﬁc adaptor for the

Spark, this is available in 160 and 180mm only. (No live valve option).

290010 - SCO Brake Mount Spark 22

180mm

160mm

The 180mm mount will need conical washers, as in previous years.

8ENGLISH / SPARK TECH MANUAL

Chain Protectors:

The Chainstay Protectors will come in two options:

290017 - SCO Chainsuck Protector Spark 22

288539 - SCO CS/SS Protector Glue Spark CB 22

288540 - SCO CS/SS Protector Glue Spark AL 22

ENGLISH / SPARK TECH MANUAL

Maximum Seatpost Insertion:

Please observe the maximum seatpost insertion, there is no stopper inside the frame.

This is size speciﬁc:

Small: 150mm

Medium: 175mm

Large: 225mm

XLarge: 275mm

10 ENGLISH / SPARK TECH MANUAL

Headset:

The Spark headset is unique, it has several set up variables:

288251 - SYN Headset ZS56/28.6 - ZS56/40 MTB

This will be bearing, crown race, and compression ring!

290060 - SCO Headset Cup Kit Spark 22

This will include two cups of 0 degree & 0.6 degree. Size Speciﬁc

Do not use a standard Headset Removal Tool to remove the cups.
