Scotsman Prodigy C2148 Guía

This part list contains the service parts for the air

cooled, water cooled and remote air cooled C1448,

C1848, C2148 ice machines.

To avoid costly and time consuming errors, double

check the model and voltage before ordering a part.

The above have been manufactured in several

voltages, which are designated by a voltage code

after the hyphen (-) in the model number. Codes used

included:

·-32 = 208-230/60/1

·-3 = 208-230/60/3

·-6 = 230/50/1

·-63 = 230/380-420/50/3

There was also a panel change in late 2009, denoted

byaBattheendofthemodel number.

Note: These abbreviations are used in this list:

·AC = Air Cooled

·WC = Water Cooled

·RC = Remote Cooled

·HGV = Hot Gas Valve

·TXV = Thermostatic Expansion Valve

·Volt = Voltage

·Sol Vlv = Solenoid Valve

·Hdwe = Hardware

C1448, C1848, C2148 Service Parts

September 2009

Page 1

Table of Contents

Cabinet - A Series ········································ Page 2

Cabinet - B Series ········································ Page 3

Interior Parts ··········································· Page 4

Evaporator Compartment ····································· Page 5

Air Cooled Refrigeration System ································· Page 6

Air Cooled Mechanical & Electrical ································ Page 7

Water Cooled Refrigeration System ······························· Page 8

Remote Refrigeration System ·································· Page 9

Electrical & Control Box - 3, -6, -32 ································ Page 10

Electrical & Control Box, 400 volt, 50 Hz. 3 phase w/neutral (-63) ················ Page 11

Compressors ··········································· Page 12

Compressor Mounting Hardware ································· Page 12

Crankcase Heaters ········································ Page 12

Remote Condenser, ERC311 and ERC611 ···························· Page 13

Scotsman

800-533-6006

www.scotsman-ice.com

17-3140-03

Cabinet - A Series

Item Part

Number Number Description

1 A38941-023 Top panel, w/trim strips

1a 02-4221-01 Left trim strip

1b 02-4221-02 Right trim strip

2 02-4184-01 Evaporator cover

2a 03-0727-05 Screw

3 A39045-001 Front panel stiffener

4 A38552-025 AC Front panel assembly,

includes filters, trim strip, gussets and

labels.

A38552-024 WC, or RC front panel

assembly, includes trim strip, gussets and

labels

4a 02-4216-01 Top gusset

4b 02-4217-01 Bottom gusset

5 03-1735-03 Screw, front panel

6 02-4284-01 Bezel, full window

6a 02-4284-02 Bezel, partial window

7 02-4214-03 Trim strip

8 A38553-022 Right side panel assy

8a 02-4215-01 Receptacle

8b 03-3804-01 Screw receptacle

9 02-4067-03 Side panel support. Fits

water cooled and remote models. Used as

back side panel support for air cooled.

02-4067-04 Front side panel support

for air cooled models

10 A39222-001 Filter guide

11 02-4212-01 Air filter

12 02-4224-01 Louver panel

12a A39238-001 Louver bracket

13 A38551-023 Left side panel, AC

A38551-024 Left side panel WC, RC

14 03-1404-12 Screw

15 A30911-015 Machine straps

16 16-0355-00 Inlet water fitting, flare

17 03-1419-17 Flat head screw

18 03-1405-15 Screw

C1448, C1848, C2148 Service Parts

September 2009

Page 2

8a, 8b

Cabinet - B Series

C1448, C1848, C2148 Service Parts

February 2012

Page 3

Item Part

Number Number Description

1 A39579-023 Top panel

1a 02-4221-01 Left trim strip*

1b 02-4221-02 Right trim strip*

2 02-4184-01 Evaporator cover

2a 03-0727-05 Screw

3 A39045-001 Front panel stiffener

4 A39578-025 AC Front panel assembly,

includes filters, trim strip, gussets

A39578-024 WC, or RC front panel

assembly, includes trim strip, gussets

4a 02-4216-01 Top gusset

5 03-1735-03 Screw, front panel

6 02-4284-01 Bezel, full window

6a 02-4284-02 Bezel, partial window**

7 02-4214-03 Trim strip

8 A39581-022 Right side panel assy

8a 02-4215-01 Receptacle

8b 03-3804-01 Screw receptacle

9 A39571-001 Panel clip

10 A39222-001 Filter guide

11 02-4212-01 Air filter

12 02-4224-01 Louver panel

12a A39238-001 Louver bracket

13 A39580-026 Left side panel, AC

A39580-024 Left side panel, WC, RC

14 03-1404-12 Screw

15 A30911-015 Machine straps

16 16-0355-00 Inlet water fitting, flare**

17 03-1419-17 Flat head screw

18 03-1405-15 Screw

* Side trim strips discontinued mid 2011

** Bezel and fitting discontinued 2/8/2012.

8a, 8b

12a

Interior Parts

Item Part

Number Number Description

1 15-0411-00 Strike - A series only

2 no number Base, insulated

3 03-3804-01 Receptacle

4 A38732-001 Side panel mount

5 A38629-001 Strut

6 A38582-001 Brace

7 A39281-001 Control box top

8 A38537-001 Control box side

9 A38680-001 Right back panel

10 12-2922-02 Inlet water sol vlv, 230 volt

12-2912-01 Water valve rebuild kit

10a 11-0568-02 Inlet water sol vlv, CE mod

11 11-0564-02 Purge valve, 230 volt

12 A38862-002 Drain tube

13 A38862-001 Drain hose

14 02-4177-01 Water pump bracket

15 A39030-021 Water level sensor

15a WLS harness, see page 10

16 12-2920-22 Water pump

17 12-3036-22 Harvest assist solenoid

18 02-4178-01 Reservoir cover (prior)

19 02-4332-01 Sensor cover (prior)

20 02-4182-01 Pump hose

21 13-0674-02 Fill hose order by ft (18")

15-0821-01 Fill hose, -6 CE models

22 02-4175-01 Rt side res cover

23 A39030-022 Level sensor, discontinued

24 11-0572-21 Temp probe assy

25 A38681-001 Chase cover

26 02-4152-01 Gusset

27 02-4646-01 WLS guard, use/w item 28

28 02-4649-01 Sump cover, use/w item 27

C1448, C1848, C2148 Service Parts

December 2011

Page 4

3,4

910

Item 10a

WLS guard kit, Part Number

A39989-023

includes items 15, 15a, 27, 28

Evaporator Compartment

C1448, C1848, C2148 Service Parts

May 2012

Page 5

Item Part

Number Number Description

1 02-4065-01 Water distributor cover

2 02-4064-01 Water distributor, left

2a 02-4064-02 Water distributor, right

3 02-4205-01 Mounting bracket, left

3a 02-4205-02 Mounting bracket, right

4 see table Evaporator

small cube medium cube

Right A38628-023 A38628-024

Left A38628-021 A38628-022

5 A38677-001 Back wall

6 A39031-021 Ice thickness sensor

7 02-4611-21 Curtain

8L 11-0563-06 Curtain switch, left

8R 11-0563-03 Curtain switch, right

9 11-0563-02 Curtain switch magnet*

10 13-0943-01 Gasket tape

11 03-3868-01 Screw

12 02-4156-21 Spillway replacement kit

* Magnet included in replacement curtain 02-4611-21

Air Cooled Refrigeration System

Item Part

Number Number Description

1 18-8892-01 Condenser, AC

2 16-1130-01 TXV

19-0599-06 Insulation Danfoss TXV

3 11-0566-22 Fan cycle pressure sw.

4 02-3319-02 Dryer

5 11-0493-01 Hot gas valve, 230 volt

12-2719-22 230 volt coil

12-2733-30 HGV rebuild kit

6 16-1063-01 Strainer

7 16-0832-20 Access valve

16-0832-03 Port cap

16-0832-02 Stem cap

8 see page 10 Compressors

9 see page 10 Compressor mounting hdw

Alternate Access Valve, use began 4/08

10 16-1137-01 Valve body

10a 16-1139-01 Core

10b 16-1140-01 Cap

11 A38736-001 Left suction line heat ex

C1448, C1848, C2148 Service Parts

September 2011

Page 6

8, 9

Alternate Access

Valve

10a

10b

Air Cooled Mechanical & Electrical

Item Part

Number Number Description

1 18-8927-01 Fan motor

2 18-8882-01 Fan blade

3 02-3692-21 Drain adapter - also for WC and RC

4 A38682-001 Fan shroud - A Series

A39630-001 Fan shroud - B Series

4a A39631-001 Fan shroud top - B series only

5 A38554-001 Fan motor bracket

6 02-4067-04 Side panel support - AC

7 03-1645-01 Screw

8 A38741-001 AC bracket - A Series

A39590-001 AC bracket - B Series

C1448, C1848, C2148 Service Parts

September 2009

Page 7

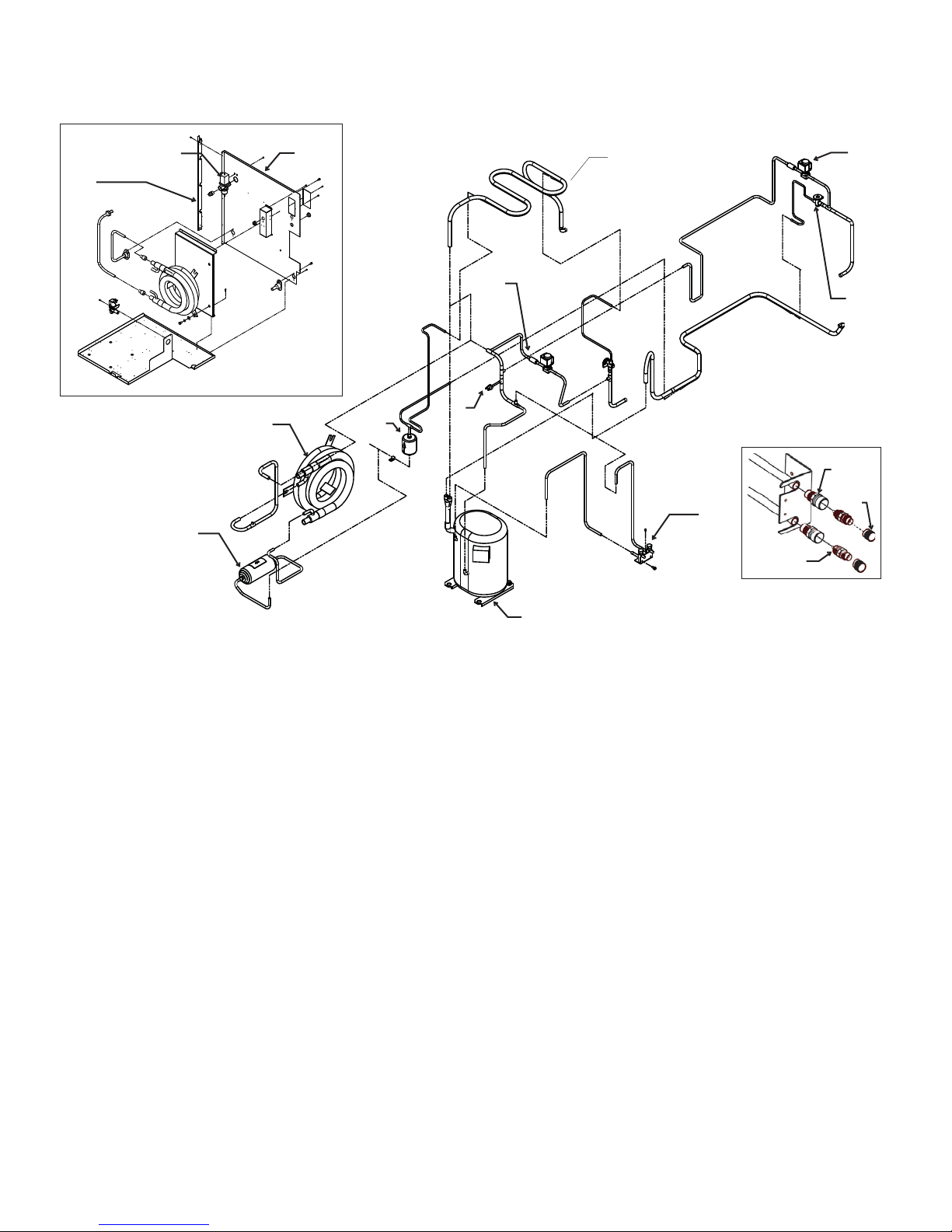

Water Cooled Refrigeration System

Item Part

Number Number Description

1 18-8865-21 Condenser, WC C1448.

C1848

18-8931-21 Condenser, WC C2148

2 16-1130-01 TXV

19-0599-06 insulation Danfoss TXV

3 11-0501-21 High pressure sw.

4 02-3319-02 Dryer

5 11-0493-01 Hot gas valve, 230 volt

12-2719-22 230 volt coil

12-2733-30 HGV rebuild kit

6 16-1063-01 Strainer

7 16-0832-20 Access valve

16-0832-03 Port cap

16-0832-02 Stem cap

8 see page 10 Compressors

9 see page 10 Compressor mounting hdw

10 02-2628-02 Receiver

11 11-0478-01 Water regulating valve,

C1448W, C1848W

11-0478-02 Water regulating valve

C2148W

12 02-4067-03 Side support

13 A38606-001 Back panel, WC - A series

A39574-001 Back panel, WC - B series

Alternate Access Valve, use began 4/08

14 16-1137-01 Valve body

14a 16-1139-01 Core

14b 16-1140-01 Cap

15 A38736-001 Left suction line heat ex

C1448, C1848, C2148 Service Parts

September 2011

Page 8

8, 9

Alternate Access

Valve

14a

14b

Remote Refrigeration System

Item Part

Number Number Description

1 16-1026-01 Receiver

2 16-1130-01 TXV

19-0599-06 insulation Danfoss TXV

3 16-0850-01 Discharge quick connect

4 16-0850-03 Liquid quick connect

5 02-3319-02 Drier

6 16-1030-01 Liquid line access valve

7 see page 10 Compressors

8 see page 10 Compressor mounting hdw

8a see page 10 Crankcase heater

9 02-4067-03 Side panel support,

10 11-0501-22 High pressure cut out

11 11-0493-01 Liquid line valve or HGV,

230 volt

12 16-0832-20 Access valve

16-0832-03 Port cap

16-0832-02 Stem cap

13 16-1063-01 Strainer

14 A37211-001 Top receiver bracket

15 A37212-001 Bottom receiver bracket

16 02-3692-21 Drain adapter

17 16-1122-21 Accumulator, kit w/insul

18 A38679-001 Back panel, rem - A series

A39574-001 Back panel, rem - B series

Alternate Access Valve, use began 4/08

19 16-1137-01 Valve body

19a 16-1139-01 Core

19b 16-1140-01 Cap

C1448, C1848, C2148 Service Parts

September 2011

Page 9

7, 8

15 16

Alternate Access

Valve

19a

19b

Electrical & Control Box - 3, -6, -32

Item Part

Number Number Description

1 12-2469-02 Contactor, 230, single ph

12-2533-02 Contactor, three phase

2 12-2924-02 Transformer, 230 volt

2a 12-2639-01 Transformer, 50 Hz

3 12-1213-11 Snap bushing

4 12-1213-15 Snap bushing

5 11-0550-28 Service controller, fits all

Prodigy cubers

6 02-4076-01 Control box door

02-4189-01 Overlay label

7 A39216-001 Barrier

8 see next page Run capacitor

9 see next page PTCR -

10 12-2686-01 Fuse, 50 Hz only

11 12-2687-01 Fuse holder

12 18-8840-02 Bracket

Wiring Harnesses (not illustrated)

13 12-2931-01 Power harness, A & W

12-2931-02 Power harness, Remote

Power harness connects to J1 on controller

14 12-2937-01 Hi voltage harness, A & W

12-2938-01 Hi voltage harness, Rem

12-2944-01 Hi voltage, 50 Hz A & W

12-2944-02 Hi voltage, 50 Hz, Rem

Hi voltage harness has the 8 pin connector

15 12-2928-01 Water level sensor harness

for one 3 probe sensor. Second sensor discontinued.

C1448, C1848, C2148 Service Parts

January 2012

Page 10

5, 6

10 11

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Máquina de hielo de Scotsman

Scotsman

Scotsman AF 80 Manual de usuario

Scotsman

Scotsman RS100 Manual de usuario

Scotsman

Scotsman 300 lb Cube Ice Machine C0322 Manual de usuario

Scotsman

Scotsman NDE554 Manual de usuario

Scotsman

Scotsman SLD150 Manual de usuario

Scotsman

Scotsman NW-507 Manual de usuario

Scotsman

Scotsman CME456R Manual de usuario

Scotsman

Scotsman HID540 Manual de usuario

Scotsman

Scotsman EC 45 Manual de usuario

Scotsman

Scotsman SCCG30 Manual de usuario

Scotsman

Scotsman FME1200R Manual de usuario

Scotsman

Scotsman Eclipse CME686 Guía de instalación

Scotsman

Scotsman MXG Series Guía de instalación

Scotsman

Scotsman TDE550 Manual de usuario

Scotsman

Scotsman NSE650 Manual de usuario

Scotsman

Scotsman CU50 Guía de instalación

Scotsman

Scotsman Prodigy ELITE A Series Manual de usuario

Scotsman

Scotsman iceValet HD22 Manual de usuario

Scotsman

Scotsman CME1056 Manual de usuario

Scotsman

Scotsman FME 1204 Manual de usuario

Scotsman

Scotsman SCN60 Manual de usuario

Scotsman

Scotsman SCN60 Manual de usuario

Scotsman

Scotsman Prodigy CU1526 Manual de usuario

Scotsman

Scotsman Prodigy Plus E Series Manual de usuario

Manuales populares de Máquina de hielo de otras marcas

Hoshizaki

Hoshizaki KMD-460MWJ Manual de usuario

Sub-Zero

Sub-Zero 315I Instrucciones de uso

Unold

Unold 48945 Manual de usuario

Kenmore

Kenmore 2217402A Manual de usuario

Cornelius

Cornelius WM600 Instrucciones de funcionamiento

GE XPIO43SCSS Manual de usuario

Hoshizaki

Hoshizaki KMD-901MAH Manual de usuario

Whynter

Whynter FIM-450HA Manual de usuario

U-Line

U-Line UMCR014-SC01A Manual de instalación

Andrew James

Andrew James AJ000522 Manual de usuario

Kärcher

Kärcher IP 120 Manual de usuario

U-Line

U-Line SS1095 Manual de usuario

Maytag

Maytag MIM1554WRS - Ice Maker Manual de usuario

Hoshizaki

Hoshizaki KM-630MAH Manual de usuario

Princess

Princess Yonanas Manual de usuario

Unold

Unold 48946 Manual de usuario

Electrolux

Electrolux E15IM60GP Manual de usuario

Cornelius

Cornelius UC150 ICE ONLY Manual de usuario
