Scotsman IS100 Guía

This parts list contains the parts available for the

IS100 and the IS150 ice dispensers.

These two models share many components, but

not all.

Check the model number, and refer to the correct

column list.

Options to the basic model of color, or a lighted

sign add to the details that may alter a part

number.

Check very carefully that the correct part is

ordered.

TABLE OF CONTENTS

MAJOR COMPONENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PAGE 2

CONTROL BOX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PAGE 5

ICE DOOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PAGE 6

WIRING DIAGRAMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PAGE 7

IS100 and IS150 SERVICE PARTS

September 2005

Page 1

17 9

Major Components

IS100 and IS150 SERVICE PARTS

September 2005

Page 2

parts list continued on the next page

IS100 IS150

ITEM PART PART

NUMBER NUMBER NUMBER DESCRIPTION

1 02-3047-02 02-3062-02 Black lid

02-3047-02 02-3062-02 Gray lid

2 A34788-001 A34789-001 Upper front brace

3 A35252-003 A35252-003 Right side panel, Stainless Steel*

A35252-001 A35252-001 Right side panel, painted*

4 A35251-001 A35251-001 Side Panel Extension, painted*

A35257-004 A35257-004 Side Panel Extension, Stainless steel*

5 02-0836-00 02-0836-00 Catch

6 A35454-006 A35455-006 Upper front, black, not pushbutton, for light

A35454-002 A35455-002 Upper front, gray, not pushbutton, for light

A35454-008 A35455-008 Upper front, black, pushbutton, for light

A35454-008 A35455-004 Upper front, gray, pushbutton, for light

02-3084-01 02308401 Turn button for lighted upper front panels, above

7 15-0752-01 15-0754-01 Merch. sign for lighted panel, Coke

15-0752-02 15-0754-02 Merch. sign for lighted panel, Pepsi

15-0752-05 15-0754-05 Merch. sign for lighted panel, generic

8 A34784-002 A34784-002 Right side bracket

9 02-3071-01 02-3071-01 Bezel for Ice Switch Button

10 02-3072-01 02-3072-01 Button

11 A34799-001 A34800-001 Switch bracket

12 12-1570-01 12-1570-01 Microswitch

13 A36852-001 A36852-002 Grill

14 A36058-002 A36058-004 Sink, black

15 13-0674-13 13-0674-13 Drain tubing (1 unit = 1 ft.)

* B models only

Major Components

IS100 and IS150 SERVICE PARTS

September 2005

Page 3

IS100 IS150

ITEM PART PART

NUMBER NUMBER NUMBER DESCRIPTION

16 02-3068-01 02-3068-01 Ice Chute

17 A34797-001 A34798-001 Panel for ice chute

18 A34786-001 A34787-001 Mounting Bracket

19 12-2369-21 12-2369-21 Gearmotor Assembly

20 A34784-001 A34784-001 Left side bracket

21 A34869-001 A34870-001 Hopper

22 A34794-006 A34795-010 Upper splash panel, pushbutton

A34794-005 A34795-009 Upper splash panel, lever

23 A34790-001 A34791-001 Splash Panel

24 03-1419-22 03-141-922 Screw

25 12-2372-01 12-2372-01 Boot for microswitch

26 A34806-001 A34806-001 Lever "Push for Ice" lever models only

27 12-1570-00 12-1570-00 Microswitch

28 A32678-001 A32678-001 Leg

29 A35257-001 A35257-001 Side Panel Extension, painted*

A35257-004 A35257-004 Side Panel Extension, stainless steel*

30 A35252-004 A35252-004 Left side panel, Stainless Steel*

A35252-002 A35252-002 Left side panel, painted*

31 n/a A34985-001 Ice diverter

02-3911-01 Thumb screw for diverter

32 A34783-001 A34783-001 Access Panel, painted

A34783-002 A34783-002 Access Panel, Stainless Steel

33 A35253-001 A35254-002 Back Panel, Stainless Steel

A35253-002 A35254-001 Back Panel, Painted

34 02-3040-01 02-3040-01 Rotor

35 A34760-001 A34760-001 Hub Assembly, includes bearing and seal

02-3075-01 02-3075-01 Bearing

02-3065-01 02-3065-01 Seal

36 A34810-001 A34810-001 Mounting plate

37 A34817-001 A34817-001 Gearmotor plate

38 02-3103-01 02-3103-02 Sweep Arm

39 02-3102-01 02-3102-01 Funnel

40 03-0727-03 Thumb screw, 3/4" long

41 02-3418-01 02-3418-01 Drain top

02-2692-01 02-2692-01 Drain bottom

13-0617-11 13-0617-13 O-ring

* B models only

Major Components

IS100 and IS150 SERVICE PARTS

September 2005

Page 4

12 12

ITEM PART

NUMBER NUMBER DESCRIPTION

1 12-2090-02 Relay "A" or "B" up to serial numbers:

IS100, 368934-06X: IS150, 407527-10K

12-2483-01 Relay after the above serial numbers, up to these serial numbers:

IS100, 601768-07L; IS150, 622505-09L.

12-2483-02 Relay, after above serial numbers

2 12-2390-01 Transformer

3 A34889-001 Right bracket

4 12-2385-01 Bulb Holder

5 A34803-001 Control Box Cover

6 12-2377-01 Fluorescent Tube (15 watt -18") IS100

12-2377-02 Fluorescent Tube (16 watt -26") IS150

7 02-3067-01 Cover

8 13-0882-01 Rubber Mounts

9 A34890-001 Left light bracket (Optional)

10 A34873-001 Angle Bracket

11 12-2371-01 Recycling Timer

12 03-0727-06 Thumb Screw

13 02-3073-01 Spout Adaptor

14 12-2386-01 Starter

15 12-2395-01 Starter Socket

16 A34920-001 Solenoid cover, not shown

17 12-2380-01 Ballast, not shown; up to these serial numbers:

IS100, 601768-07L; IS150, 622505-09L.

12-2484-01 Ballast after the above serial numbers

18 13-0595-00 Door gasket, 5.5"

IS100 and IS150 SERVICE PARTS

September 2005

Page 5

ITEM PART

NUMBER NUMBER DESCRIPTION

1 A34801-001 Ice Door

2 03-0396-01 Cotter Pin

3 02-3089-01 Solenoid Link, for use without plastic bushings

02-3089-02 Solenoid link, use with plastic bushings

02-3187-01 Plastic bushing, used inside solenoid link 02-3089-02

4 02-3088-01 Long axle

5 03-1407-02 Flat Washer

6 A32685-001 Axle, Linkage

7 12-2862-01 Solenoid

8 A32690-002 Door Spring

9 A34802-001 Door Hinge

10 03-0396-08 Cotter pin

11 02-3187-01 Bushing

Ice Door And Solenoid Assembly

IS100 and IS150 SERVICE PARTS

September 2005

Page 6

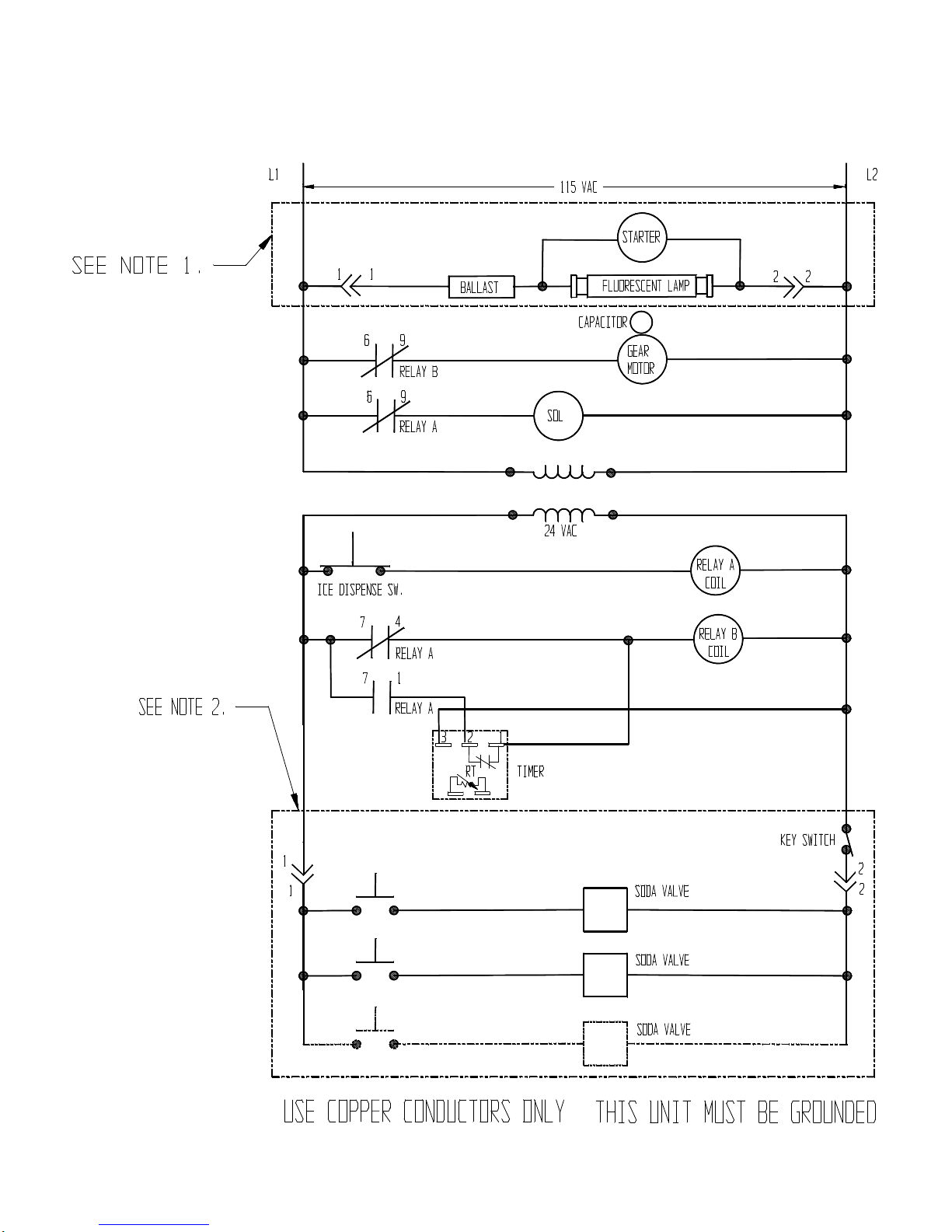

Schematic Diagram

IS100 and IS150 SERVICE PARTS

October 1993

Page 7

Component Layout Diagram

IS100 and IS150 SERVICE PARTS

November 1994

Page 8
