Introduction

This manual includes:

•Installation Information

•Use And Care

•Service Diagnosis

•and Repair Information

A Service Parts Section is also included in the center

of the manual.

July 1999

Page 1

CSW45

Table of Contents

Introduction ,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,Page 1

Specifications ,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,Page 2

Installing The Ice Maker ,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,Page 3

Electrical & Leveling ,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,Page 4

To Adjust The Rear Wheel Height,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,Page 5

Connecting the Ice Maker to a Water Source ,,,,,,,,,,,,,,,,,,,,,,,,,,,Page 6

Water Connection - continued ,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,Page 7

Connecting The Drain ,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,Page 8

Drain Pump Kit ,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,Page 9

Reversing the Door Swing,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,Page 10

Using The Ice Maker ,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,Page 11

Caring For Your Ice Maker ,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,Page 12

Cleaning the Condenser,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,Page 13

Cleaning the Interior Components,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,Page 14

Cleaning Interior - continued ,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,Page 15

Vacation and Moving Care ,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,Page 16

Before Calling for Service ,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,Page 17

Technical Service Diagnosis ,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,Page 18

Technical Service Diagnosis ,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,Page 19

Technical Information ,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,Page 20

Electrical Sequence ,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,Page 21

Repair Information ,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,Page 22

Repair Information ,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,Page 23

Repair Information ,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,Page 24

Specifications

July 2001

Page 2

CSW45

Light Switch

Cutter Grid Cover

Water Pan

Model Serial

Number Label

Ice Retainer Baffle

Lower Access Panel

Control Panel

Ice Level Sensor

Magnetic Door

Catch

Model Cabinet Size, w” x d” x h” Basic

Electrical Drain Type Power Refrigerant

Charge

CSW45A-1B 14 x21 x33 115/60/1 Gravity Cord Supplied, uses

15 amp circuit

6.5 oz

R-134a

CSW45PA-1B same same Drain Pump same same

All units are white enamel.

Optional Kits: Trim Kit: KCSWTRIM,Filler Kit for 18” spaces: KCSWFILL,Drain Pump: A37649-001

Scotsman Ice Systems are designed and manufactured with the highest regard for safety and performance.

They meet or exceed the standards of UL, NSF, and CSA.

Scotsman assumes no liability or responsibility of any kind for products manufactured by Scotsman that

have been altered in any way, including the use of any part and/or other components not specifically

approved by Scotsman.

Scotsman reserves the right to make design changes and/or improvements at any time. Specifications and

design are subject to change without notice.

Installing The Ice Maker

Unpacking

Removing packaging materials

IMPORTANT: Do not remove any permanent

instruction labels inside your ice maker or the Tech

Sheet that is fastened behind the lower access

panel.

•Remove tape and any labels from your ice

maker before using (except the model and serial

number label).

To remove any remaining tape or glue, rub the area

briskly with your thumb. Tape or glue residue can

also be easily removed by rubbing a small amount of

liquid dish soap over the adhesive with your fingers.

Wipe with warm water and dry.

•Do not use sharp instruments, rubbing alcohol,

flammable fluids, or abrasive cleaners to remove

tape or glue. These products can damage the

surface of your ice maker. For more information,

see the “Important Safety Instructions” section.

Cleaning before use

After you remove all of the packaging materials,

clean the inside of your ice maker before using it.

See the cleaning instructions in the “Caring for Your

Ice Maker” section.

Space Requirements

•To ensure proper ventilation for your ice maker,

the front side must be completely unobstructed.

The unit may be closed-in on the top and three

sides, but the installation should allow the ice

maker to be pulled forward for servicing if

necessary.

•Installation of the ice maker requires a cold

water supply inlet of 14“ (6mm) OD soft copper

tubing with a shut-off valve and either a

gravity-drain system or condensate pump to

carry the water to an existing drain.

•Choose a well ventilated area with

temperatures above 55°F (13°C) and below

100°F (38°C). Best results are obtained

between 70°F (21°C) and 90°F (32°C). This unit

MUST be installed in an area protected from the

elements, such as wind, rain, water spray, or

drip.

•When installing the ice maker under a counter,

follow the recommended opening dimensions

shown. Do not place electrical or plumbing

fixtures in the clear zone as indicated by the

gray shaded area.

NOTE: Do not kink or pinch the power supply cord

between the ice maker and cabinet.

1. Clear Zone

2. Floor Level

nYou should choose a location where the floor is

even. It is important for the ice maker to be level in

order to work properly. If needed, you can adjust the

height of the ice maker by changing the position of

the rear wheels. See the “Leveling the Ice Maker”

section.

July 1999

Page 3

CSW45

Excessive Weight Hazard

Use two or more people to move and install ice

maker.

Failure to do so can result in back or other injury.

15”

24”

111

2”

29”

281

2”

34”

min

341

2”

max

Electrical & Leveling

Before you move your ice maker into its final

location, it is important to make sure you have the

proper electrical connection:

A 115 Volt, 60 Hz., AC only 15 ampere electrical

supply, properly grounded in accordance with the

National Electrical Code and local codes and

ordinances, is required.

It is recommended that a separate circuit, serving

only your ice maker, be provided. Use a receptacle

which cannot be turned off by a switch or pull chain.

Recommended Grounding Method

For your personal safety, this appliance must be

grounded. This appliance is equipped with a power

supply cord having a 3 prong grounding plug. To

minimize possible shock hazard, the cord must be

plugged into a mating, 3 prong, grounding-type wall

receptacle, grounded in accordance with the

National Electrical Code and local codes and

ordinances. If a mating wall receptacle is not

available, it is the personal responsibility of the

customer to have a properly grounded, 3 prong wall

receptacle installed by a qualified electrician.

Leveling the Ice Maker

It is important for the ice maker to be level in order to

work properly. Depending upon where you install the

ice maker, you may need to make several

adjustments to level it.

Tools required

•Carpenter’s level

•Adjustable wrench

•14" socket wrench

Undercounter Installation

If you are installing the ice maker under a

countertop, then you may need to adjust the height

of the ice maker. The adjustable rear wheels are

preset to position 1 for a cabinet opening height of

34" (86.4 cm).

1. For cutout height of 34" (86.4 cm)

2. For cutout height of 34 1

8" (86.7 cm)

3. For cutout height of 34 5

16" (87.2 cm)

4. For cutout height of 34 1

2" (87.6 cm)

July 1999

Page 4

CSW45

Electrical Shock Hazard

Plug into a grounded 3

prong outlet.

Failure to follow these

instructions can result in

death, fire, or electrical

shock.

Do not use an extension

cord.

Do not use an adapter.

Do not remove ground

prong.

To Adjust The Rear Wheel Height

1. Using a 14“ socket wrench, remove the seven

screws from the rear access panel and carefully pull

the panel away from the drain hose.

2. Using a 38“ or adjustable wrench, remove the

screw that holds the rear wheel.

NOTE: Pushing up against the top back of the ice

maker takes some of the weight off of the wheels.

This makes it easier to remove the screws.

3. Move the rear wheel and screw to a new position

as needed for your cabinet opening height. Tighten

the screw completely.

4. Repeat Steps 3 and 4 to change the position of

the wheel on the other side.

5. Replace the rear panel and screws. Be sure that

the drain tube is positioned in the opening provided.

6. Use the front leveling legs to make sure the

product is level.

To adjust the front leveling legs

Your ice maker has two adjustable leveling legs to

help you steady the product and make sure it is

level.

SUGGESTION: It is easier to adjust the leveling legs

if you have another person to assist you.

1. Place a carpenter’s level on top of the product to

see if the ice maker is level from front to back and

side to side.

2. Push up on the top front of the ice maker, and

then locate the leveling screws that are on the

bottom front of the product.

3. Using an adjustable wrench, change the height of

the legs as follows:

•Turn the leveling leg to the right to lower that

side of the ice maker.

•Turn the leveling leg to the left to raise that side

of the ice maker.

NOTE: The ice maker should not wobble. Use shims

to add stability when needed.

4. Use a carpenter’s level to re-check the ice maker

to see that it is even from front to back and side to

side. If the ice maker is not level, repeat Steps2&3.

If the ice maker is level, go to the “Connecting the

Ice Maker to a Water Source” section.

Freestanding Installation

If you are not installing your ice maker under a

countertop, you will probably not need to adjust the

rear wheel height. Follow the steps outlined in “To

adjust the front leveling legs” earlier in this section.

NOTE: The ice maker should not wobble. Use shims

to add stability when needed.

July 1999

Page 5

CSW45

Electrical Shock Hazard

Failure to follow these

instructions can result in

death, fire, or electrical

shock.

Disconnect power before

servicing.

Replace all panels before

operating.

Connecting the Ice Maker to a Water Source

Read all directions carefully before you begin.

IMPORTANT:

•All installations must be in accordance with local

plumbing codes requirements.

•Use copper tubing and check for leaks.

•Install copper tubing only in areas where

temperatures will remain above freezing.

Before purchasing, make sure a saddle-type valve

complies with your local plumbing codes. Do not

use a piercing-type or 3/16” saddle valve which

reduces water flow and clogs more easily.

Connecting the water line:

1. Unplug ice maker or disconnect power.

2. Turn off main water supply. Turn on nearest

faucet long enough to clear line of water.

3. Find a 12"to114" vertical cold water pipe near the

ice maker.

NOTE: Horizontal pipe will work, but the following

procedure must be followed: Drill on the top side of

the pipe, not the bottom. This will help keep water

away from the drill. This also keeps normal sediment

from collecting in the valve.

4. Using a grounded drill, drill a 14" (6 mm) hole in the

cold water pipe you have selected.

5. Fasten shut-off valve to cold water pipe with pipe

clamp. Be sure outlet end is solidly in the 14-inch

drilled hole in the water pipe and that washer is

under the pipe clamp. Do not use a piercing-type or

316" saddle-type valve which reduces water flow and

clogs more easily.

6. Now you are ready to connect the copper tubing.

Use 14" (6mm) OD soft copper tubing for the cold

water supply.

•Measure from the connection at the front of the

ice maker to the cold water pipe. Add 3 feet to

ensure that you have the proper length. This is

the length of 14" (6mm) OD soft copper tubing

you need for the job. Be sure both ends of the

copper tubing are cut square.

•Slip compression sleeve and compression nut

on copper tubing as shown. Insert end of tubing

into outlet end squarely as far as it will go.

Screw compression nut onto outlet end with

adjustable wrench. Do not over tighten.

7. Place the free end of the tubing into a container or

sink, and turn on main water supply and flush out

tubing until water is clear. Turn off shut-off valve on

the water pipe.

NOTE: Always drain the water line before making

the final connection to the inlet of the water valve to

prevent possible water valve malfunction.

8. Remove the two screws in the lower access panel

and the two screws in the base grille area of the front

panel support. Pull forward to remove the lower

access panel.

9. Position the tubing so it can enter one of the two

access holes located at the right-hand rear of the

cabinet as shown. The tubing should extend beyond

the cabinet front when the cabinet is pushed back

into position. Move the ice machine into position.

REAR VIEW

1. Upper Water Line Access Hole

2. Lower Water Line Access Hole

10. Bend the copper tubing to meet the water valve

inlet on the water valve which is located in the front

of the ice maker cabinet as shown.

July 1999

Page 6

CSW45

Water Connection - continued

11. Unscrew the water valve inlet cover, and attach

the copper tubing with the compression sleeve and

nut.

NOTE: To prevent rattling, be sure the copper tubing

does not touch the cabinet’s side wall or other parts

inside the cabinet.

FRONT VIEW

Custom Panel (for kit KCSWTRIM):

Customer supplied wood panel must be

•” thick x

•29 3164“ high x

•1433 64“ wide

and be trimmed as shown in the diagram.

12. Turn shut-off valve on. Check for leaks.

Tighten any connections (including connections at

the valve) or nuts that leak. The ice maker is

equipped with a built-in water strainer. If local water

conditions require periodic cleaning or a well is your

source of water supply, a second water strainer

should be installed. Obtain a water strainer from your

nearest appliance dealer and install it at either tube

connection.

13. Replace the lower access panel and screws.

July 1999

Page 7

CSW45

12 316

51116 538“

7516“

1. Water Pan Drain

2. Water Valve

11532“

Route Approx 38“

”

” Thick Panel

Connecting The Drain

Gravity drain system

Connect the drain pump hose (provided with the

product) to your drain in accordance with all state

and local codes and ordinances. If the ice maker is

provided with a gravity drain system, follow these

guidelines when installing drain lines: (This will

prevent water from flowing back into the ice maker

storage bin and potentially flowing onto the floor

causing water damage.)

•Drain lines must have a minimum of 58" (1.6 cm)

inside diameter.

•Drain lines must have a 1" (2.5 cm) drop per 48”

(122 cm) of run (14" per foot [6mm per 30.5cm])

and must not have low points where water can

settle.

•The floor drains must be large enough to

accommodate drainage from all drains.

•The ideal installation has a standpipe with a 112"

to 2" PVC drain reducer installed directly below

the outlet of the drain tube as shown. You must

maintain a 1" air gap between the drain pump

hose and the standpipe.

•It may be desirable to insulate the drain line

thoroughly up to the drain inlet.

After ensuring that the drain system is adequate,

follow these steps to properly place the ice maker:

1. Plug ice maker into a grounded 3 prong outlet.

2. Re-check the ice maker to be sure that it is level.

See the “Leveling the Ice Maker” section.

3. Push the ice maker into position so that the ice

maker drain tube is positioned over the PVC drain

reducer.

SIDE VIEW

1. Drain Hose

2. 1" Air Gap

3. PVC Drain Reducer

4. Center of drain should be 23” (58.4 cm) from front of door

(with or without the C\v” (1.9 cm) panel on the door).

4. If it is required by your local sanitation code, seal

the cabinet to the floor with an approved caulking

compound after all water and electrical connections

have been made.

5. Plug in ice maker or reconnect power.

Drain pump system (on some models)

Connect the drain pump hose (provided with the

product) to your drain in accordance with all state

and local codes and ordinances.

July 1999

Page 8

CSW45

1”

2”

23”

458“

Drain Pump Kit

1. Remove rear cover.

2. Remove old drain tube.

3. Install new drain tube to bin (use old clamp).

4. Install drain pump into machine. Carefully slide in

aligning the tab on the pump to the rectangular slot

in the unit base.

5. Attach bin drain tube from bin to pump.

6. Connect vent tube to vent connection on pump.

Route vent up through the rear cover. Secure vent

tube to back of ice machine using three clamps and

screws from the kit.

7. Route pump outlet tube to household drain.

8. Power cord from ice machine must be plugged

into pump. Coil up and tape power cord together,

insert between compressor and drain pump. Plug the

power cord into the pump.

9. Line up the two screws at the rear of the pump

and secure the pump using two screws from the kit.

10. Install rear cover.

11. Connect power cord (pump’s) into the electrical

power supply. This must be a grounded circuit that

conforms to the National Electrical Code and all local

codes and ordinances.

July 1999

Page 9

CSW45

Pump

Mounting Tab

Vent Tube

Pump

Mounting

Screws

Discharge

Hose

Pump, View from

Front of Cabinet

Reversing the Door Swing

TOOLS NEEDED: 516" wrench, 14" wrench, flat putty

knife,

To remove door from hinges:

1. Unplug ice maker or

disconnect power.

2. Remove the handle screws and

handle (on some models). Keep

the parts together and set

them aside.

3. Remove the hinge pin from the

top hinge.

4. Remove the door from the

hinges and screw the top hinge

pin back into the top hinge.

5. Reverse the door endcaps as follows:

•Remove both the screws and endcaps (top and

bottom).

•Place the top endcap on the bottom of the

opposite side of the door with the long flat side

facing the door front.

•Place the bottom endcap on the top of the

opposite side of the door with the long flat side

facing the door front.

6. Set the door aside.

To reverse the hinges:

1. Unscrew and remove the top hinge. Replace the

screws in the empty hinge holes.

2. Remove the screws from the bottom of the

opposite side of the ice maker cabinet. Turn the top

hinge upside down so that the hinge pin points up.

Place the hinge on the bottom opposite side of the

ice maker and tighten screws.

3. Remove the plastic hinge pin sleeve from the “old”

bottom hinge and replace it on the new bottom hinge

pin.

4. Remove the “old” bottom hinge screws and hinge.

Replace the screws in the empty hinge holes. the ice

maker cabinet. Turn the hinge upside down so that

the hinge pin points down. Place the hinge on the top

opposite side of the ice maker and tighten the

screws.

6. Remove the top hinge pin.

To replace door on hinges:

1. Place plastic hinge pin sleeve in the top hinge hole

on the door. Align the door with the top hinge hole

and replace the top hinge pin.

2. Replace the handle and handle screws.

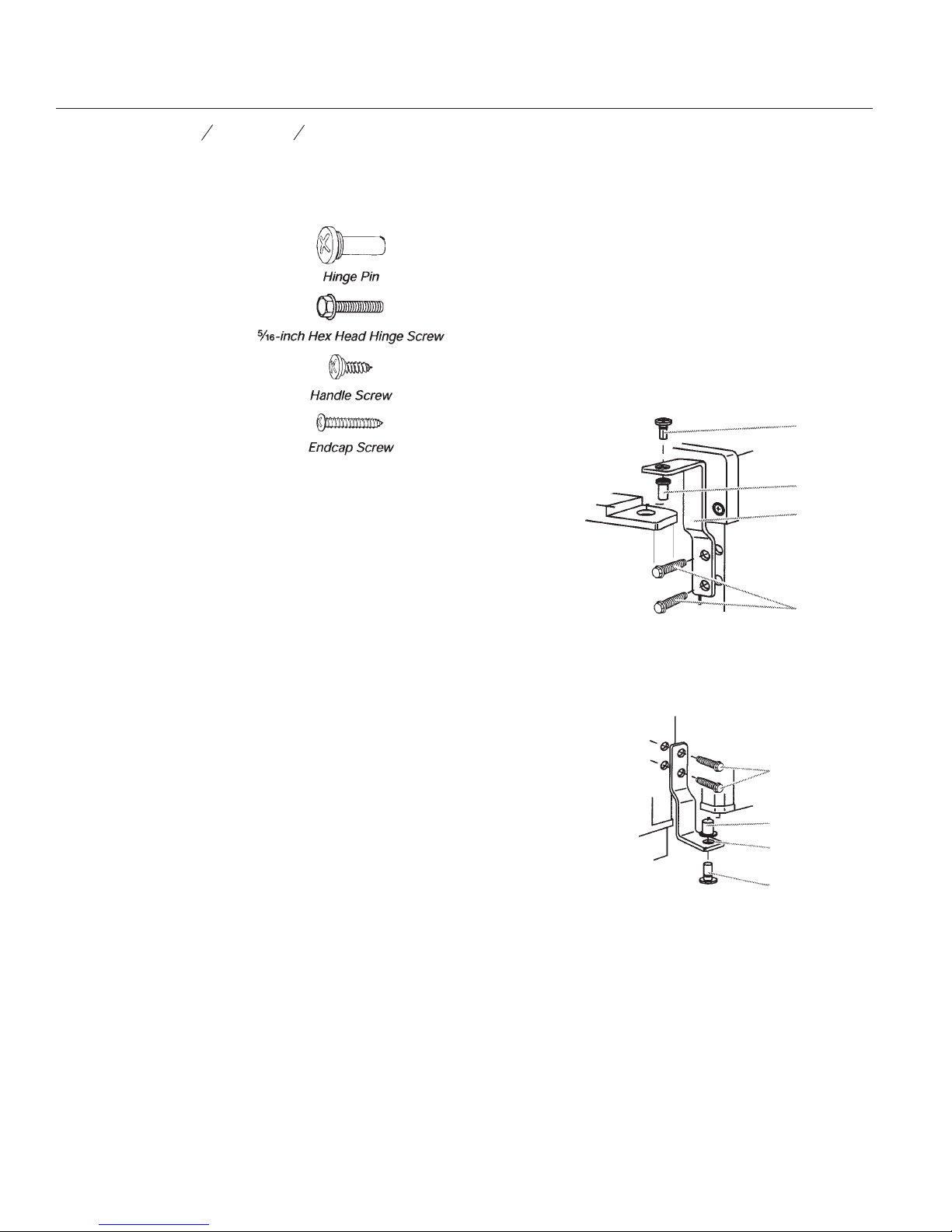

Top Hinge

1. Hinge Pin

2. Hinge Pin Sleeve

3. Hinge

4. Hex Head Hinge

Screw

Bottom Hinge

1. Hex Head Hinge

Screw

2. Hinge Pin Sleeve

3. Hinge

4. Hinge Pin

To reverse the door

catch:

1. Remove the hole plugs from the opposite side of

the door and set aside.

2. Remove the screws from the magnetic door catch

and replace it on the opposite side of the door.

3. Push the hole plugs into place on the opposite

side of the door.

CSW45

July 1999

Page 10

Otros manuales para CSW45

Tabla de contenidos

Otros manuales de Máquina de hielo de Scotsman

Scotsman

Scotsman TC 180 Manual

Scotsman

Scotsman CU0515 Manual de usuario

Scotsman

Scotsman C2648 - Manual de usuario

Scotsman

Scotsman NM1250R Manual de usuario

Scotsman

Scotsman Prodigy ELITE A Series Manual de usuario

Scotsman

Scotsman FME800 Manual de usuario

Scotsman

Scotsman FME2400 Manual de usuario

Scotsman

Scotsman NDE550 Manual de usuario

Scotsman

Scotsman 300 lb Cube Ice Machine C0322 Manual de usuario

Scotsman

Scotsman RS100 Manual de usuario

Scotsman

Scotsman CM3 Manual de usuario

Scotsman

Scotsman AFE325 Manual de usuario

Scotsman

Scotsman Residential Ice Machines SCC50 Hoja de instrucciones

Scotsman

Scotsman SLC400 Manual de usuario

Scotsman

Scotsman MF400 Manual de usuario

Scotsman

Scotsman KDIL-PN-ID3 Manual de usuario

Scotsman

Scotsman EH330 C Series Manual de usuario

Scotsman

Scotsman MDT6N90 Manual de usuario

Scotsman

Scotsman UC2024 Series Manual de usuario

Scotsman

Scotsman 05566 Manual de usuario

Scotsman

Scotsman MCM1462R Manual de usuario

Scotsman

Scotsman FME2400R Manual de usuario

Scotsman

Scotsman Prodigy C1030 Manual de usuario

Scotsman

Scotsman MXG Series Guía de instalación

Manuales populares de Máquina de hielo de otras marcas

Hoshizaki

Hoshizaki KMD-460MWJ Manual de usuario

Sub-Zero

Sub-Zero 315I Instrucciones de uso

Unold

Unold 48945 Manual de usuario

Kenmore

Kenmore 2217402A Manual de usuario

Cornelius

Cornelius WM600 Instrucciones de funcionamiento

GE XPIO43SCSS Manual de usuario

Hoshizaki

Hoshizaki KMD-901MAH Manual de usuario

Whynter

Whynter FIM-450HA Manual de usuario

U-Line

U-Line UMCR014-SC01A Manual de instalación

Andrew James

Andrew James AJ000522 Manual de usuario

Kärcher

Kärcher IP 120 Manual de usuario

U-Line

U-Line SS1095 Manual de usuario

Maytag

Maytag MIM1554WRS - Ice Maker Manual de usuario

Hoshizaki

Hoshizaki KM-630MAH Manual de usuario

Princess

Princess Yonanas Manual de usuario

Unold

Unold 48946 Manual de usuario

Electrolux

Electrolux E15IM60GP Manual de usuario

Cornelius

Cornelius UC150 ICE ONLY Manual de usuario
