SCION tC
!A word about safe vehicle operations
This Pocket Reference Guide is a summary of
basic vehicle operations. It contains brief
descriptions of fundamental operations so you
can locate and use the vehicle’s main
equipment quickly and easily.
The Pocket Reference Guide is not intended
as a substitute for the Owner’s Manual
located in the vehicle’s glove box. We
strongly encourage you to review the Owner’s
Manual and supplementary manuals so you
will have a better understanding of the
vehicle’s capabilities and limitations.
Your dealership and the entire staff of Scion,
a marque of Toyota Motor Sales, U.S.A., Inc.,
wish you many years of satisfied driving in
your new SCION tC.
This Pocket Reference Guide is not a full
description of SCION tC operations. Every
tC owner should review the Owner’s
Manual that accompanies this vehicle.
Pay special attention to the boxed
information highlighted in yellow
throughout the Owner’s Manual. Each box
contains safe operating instructions to
help you avoid injury or equipment
malfunction.
All information in this Pocket Reference
Guide is current at the time of printing.
T
oyota reserves the right to make changes
at any time without notice.

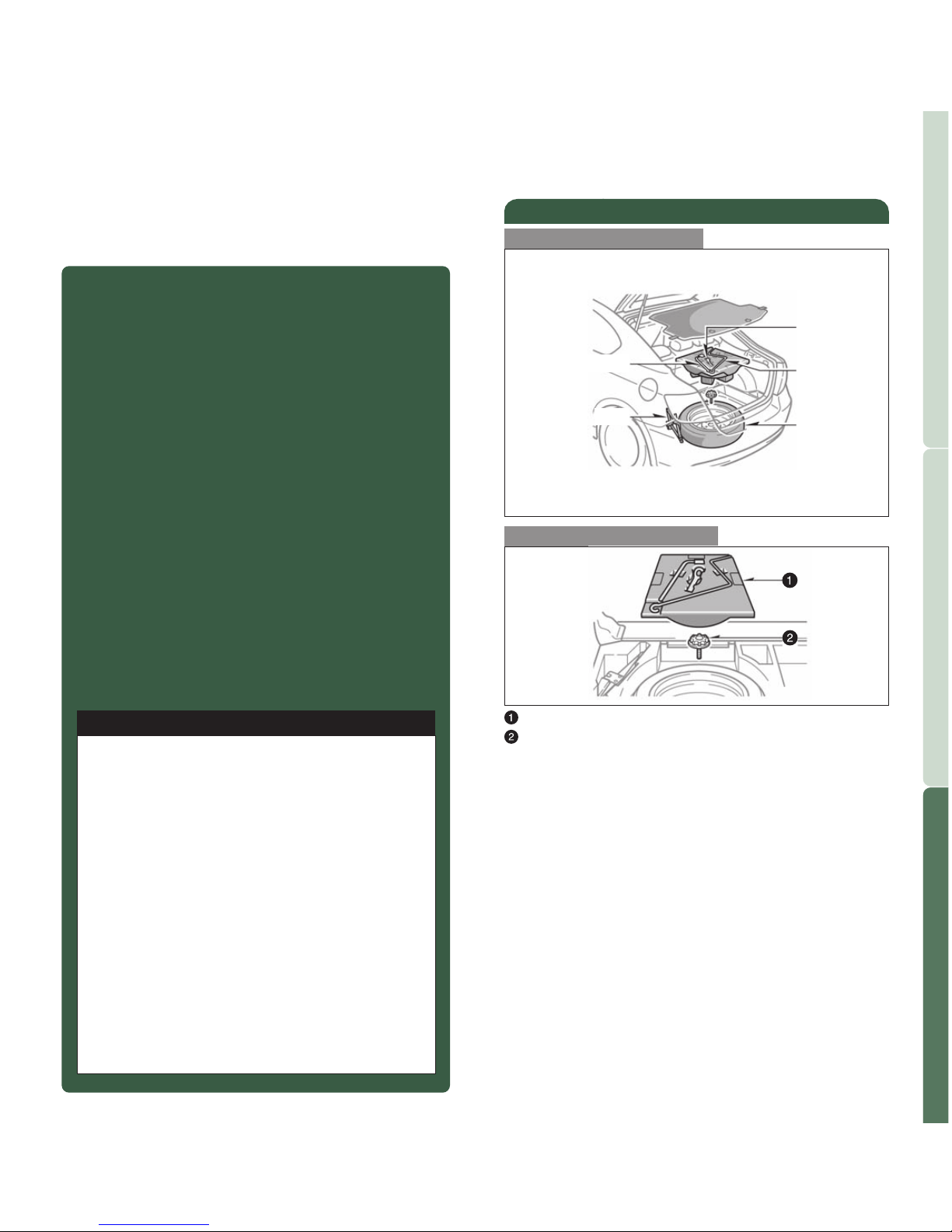

Spare tire & tools
Tool location
Removing the spare tire
17
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Remove the spare tire cover.
Loosen and remove the bolt.
Refer to the Owner’s Manual for jack positioning and
tire changing procedures.
Wheel nut wrench
Front towing
eyelet
Jack handle
Spare tire
Jack
1
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
INDEX
Item Page no.
OVERVIEW
Engine maintenance 7
Fuel tank door opener and cap 6
Hood release 7
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Keyless entry 6
FEATURES/OPERATIONS
Air conditioning/Heating 14
Automatic transmission 8
AUX jack 15
Clock 14
Cruise control 10
Cup holders 14
Door locks 8
Light control-Instrument panel 13
Lights & turn signals 11
Panorama moonroof 12
Parking brake 8
Power outlet 13
Seat adjustments-Front 9
Seat adjustments-Rear 9
Seats-Head restraints 9
Steering wheel switches 15
Tilt steering wheel 10
Windows 13
Windshield wiper & washer 12
SAFETY AND EMERGENCY FEATURES
Seat belts 16
Spare tire & tools 17
Tire Pressure Warning System 16
06 Scion Tc Ins 5/25/05 7:23 PM Page 1
3
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
2
OVERVIEW
Headlight and turn signal controls
Steering wheel switches
Wiper and washer controls
Emergency flasher switch
Clock, air conditioning and outside temperature
display
Air conditioning controls
Rear window defogger switch
Outside temperature display button
Clock adjustment buttons
Front passenger seat belt reminder light
Cigarette lighter
Engine immobilizer system indicator light
Ignition
Cruise control
Tilt steering lock release
Power rear view mirror controls
Instrument panel
06 Scion Tc Ins 5/25/05 7:23 PM Page 2
5
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
4
OVERVIEW
Driver seat belt reminder1
Front passenger seat belt reminder1
Brake system warning1
Battery warning1
Low engine oil pressure warning1
Anti-lock Brake System warning1
Malfunction/Check Engine indicator1
1For details, refer to “Service reminder indicators and warning
buzzers,” Section 1-6, 2006 Owner’s Manual.
2If this light flashes, refer to “Cruise control,” Section 1-7, 2006
Owner’
sManual.
When the Anti-lock Brake System (ABS) function is in
action, you may feel the brake pedal pulsating and
hear a noise. In this situation, to let the Anti-lock
Brake System work for you, just hold the brake pedal
down more firmly. Do not pump the brake as this will
result in reduced braking performance.
Indicator symbols
Open door warning1
Engine oil replacement reminder1
Turn signal indicators
Headlight high beam indicator
Cruise control indicator2
Airbag SRS warning1
Low Tire Pressure Warning1
Engine coolant temperature
Fuel
Speedometer
Tachometer
Service reminder and indicator
Automatic transmission shift range position
Trip meter reset knob
Odometer and two trip meters
Low fuel level warning
Dimmer control knob
Instrument cluster MAINT
REQD
06 Scion Tc Ins 5/25/05 7:23 PM Page 4
Alarm operation
7
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
6
OVERVIEW
Hood release
Pull
Pull up to release
then raise hood
Keyless entry
NOTE: After unlocking, if a door is not opened within
thirty (30) seconds, all doors will relock for safety.
Locking operation Unlocking operation
Push Push ONCE: Driver door
TWICE: All doors
Push
Fuel tank door opener and cap
Turn
Store
Pull up
Driver seat
NOTE: If the cap is not tightened enough, Check
Engine “ ” indicator may illuminate.
Engine maintenance
Power steering fluid reservoir
Engine oil filler cap
Engine oil level dipstick
Windshield washer fluid tank
Engine coolant reservoir
Note: Regularly scheduled maintenance, including
oil changes, will help extend the life of
your vehicle and maintain performance.
Please refer to the “Owner’s Warranty
Information Booklet,” “Scheduled
Maintenance Guide” or “Owner’s Manual
Supplement.”
06 Scion Tc Ins 5/25/05 7:23 PM Page 6
9
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
8
FEATURES/OPERATIONS
Automatic transmission (if equipped)
Park1
Reverse
Neutral
Drive
P
R
N
D
Third gear
Second gear
First gear
1The ignition switch must be ON, and the brake
pedal depressed.
Downshifting increases power going uphill, or
provides engine braking downhill. For best fuel
economy during normal driving conditions, always
drive with the shift lever in the “D” position.
Parking brake
Pull
(2) Push
(1) Pull slightly
(3) Lower
Set Release
Seat adjustments-Front
Position
Cushion angle
Height crank (driver side only)
Seatback angle
Seatback lock release
Seat adjustments-Rear
Seatback/Angle adjusting lever*
Seats-Head restraints
Height
Angle*
Lock release button Lock release button
Front Rear
Lock
Unlock
Door locks
*Driver side only
*Pull the lever up to adjust
seatback angle, or fold down
06 Scion Tc Ins 5/25/05 7:23 PM Page 8
11
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
10
FEATURES/OPERATIONS
Tilt steering wheel
Lock release
lever
Angle
Hold wheel, push lever down, set angle then return
lever.
Note: Do not attempt to adjust while the vehicle
is in motion.
Lights & turn signals
Headlights
Turn signals
Parking lights
High beams
Low beams
Headlights
-Automatic light cutoff system Automatically turns
lights off when driver’s door is opened with the
engine off.
-Daytime Running Light system Automatically turns
on the headlights at a reduced intensity.
Right turn
Left turn
Lane change
Lane change
High beam flasher
Cruise control
1The set speed may also be cancelled by depressing
the brake pedal or pushing ON/OFF
.
2If vehicle speed falls below 25 mph, the set speed
will not resume.
Turning system ON/OFF
Functions
System ON/OFF
Resume2/Increase speed
Set/Decrease speed
Cancel1
06 Scion Tc Ins 5/25/05 7:23 PM Page 10
13
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
12
FEATURES/OPERATIONS
Windshield wiper & washer
Interval wipe
Slow
Fast
Pull to wash and wipe
Adjust interval Single wipe
Windows
Window operation
Window
lock switch
Driver side
Automatic operation Push the switch completely
down or pull it completely up and release to fully
open or close. To stop window mid-way, lightly push
the switch in the opposite direction.
NOTE: If battery is disconnected, the windows need
to be reinitialized. Refer to the Owner’s Manual for
more details.
Up
Down
Up
Down
Panorama moonroof
NOTE: If battery is disconnected, the moonroof
needs to be reinitialized. Refer to the Owner’s
Manual for more details.
Open
Close Push and hold
“CLOSE”
Power outlet
Designed for car accessories. Key must be in the
“ACC” or “ON” position to be used.
Light control-Instrument panel
+
-
Push and hold
“CLOSE”
Brightness
control
Push “OPEN”
Push “OPEN”
again
Push “OPEN”
again
06 Scion Tc Ins 5/25/05 7:23 PM Page 12
15
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
14
FEATURES/OPERATIONS
Clock
H-Set hour
M-Set minutes
Cup holders
Front Rear
Air conditioning/Heating
Fan speed
Climate control OFF
Air Conditioning ON/OFF
Fresh or recirculate cabin air
Vent selector1
Windshield air flow
Rear defogger
Temperature
1“ ” or “ ”, use fresh air to reduce window
fogging (“ ” indicator light “OFF”).
Steering wheel switches
“- +”
Volume control
“ ”
-In radio mode Push to select a preset station,
push and hold to seek the next strong station.
-In tape mode Push to skip up or down to a
next/previous track, push and hold to fast
forward or reverse.
-In CD mode Push to skip up or down to a
next/previous track.
“MODE”
Push to turn audio “ON” and select an audio
mode. Push and hold to turn the audio system
“OFF.”
Refer to the SCION Audio System Owner’s Manual for
more details.
>
>
AUX jack
Refer to the SCION Audio System Owner’s Manual for
more details.
06 Scion Tc Ins 5/25/05 7:24 PM Page 14
Tabla de contenidos
Otros manuales de Automóvil de Scion
Scion
Scion 2011 tC Manual de usuario
Scion
Scion iQ 2014 Manual de funcionamiento
Scion
Scion 2005 xA Manual de usuario
Scion
Scion 2011 xB Manual de usuario
Scion
Scion iM 2016 Manual de usuario
Scion
Scion 2014 xB Manual de usuario
Scion
Scion tC 2015 Manual de usuario
Scion
Scion 2012 tC Manual de usuario
Scion
Scion xB 2012 Manual de usuario
Scion
Scion 2010 xB Manual de funcionamiento
Scion
Scion 2004 xB Manual de usuario
Scion
Scion 2010 tC Manual de usuario
Scion
Scion TC 2016 Manual de usuario
Scion
Scion tC 2015 Manual de usuario
Scion
Scion 2012 iQ Manual de usuario
Scion
Scion 2013 iQ Manual de usuario
Scion
Scion 2014 tC Manual
Scion
Scion 2014 tC Manual de usuario
Scion
Scion 2015 series Manual de funcionamiento
Scion
Scion 2014 iQ Manual de usuario
