Scientific Atlanta AllTouch AT8400 Manual de usuario

AT8400™AllTouch®

Remote Control

User’s Guide

If you program codes to control devices,

record your codes here:

CBL: _____________________

TV: _______________________

VCR: _____________________

AUX: _____________________

In This Guide

Welcome to the Ultimate Control Experience! ............................................................................ 3

How Does a Universal Remote Control Work? ........................................................................... 3

Where Do I Start?............................................................................................................................ 3

Important Information About Power Control ............................................................................... 3

Quick Reference ............................................................................................................................. 4

What Devices Can I Control? ........................................................................................................ 6

What Devices Do I Want to Control? ............................................................................................ 6

Reassign Mode Keys ...................................................................................................................... 6

Program the Remote to Control My Devices ............................................................................... 7

What If None of the Codes Work? ................................................................................................ 8

Which Code Worked?..................................................................................................................... 9

Change Power Control ................................................................................................................. 10

Change Volume Control ............................................................................................................... 12

Change Channel Control ............................................................................................................. 13

Put It Back the Way I Got It .......................................................................................................... 14

Code Tables .................................................................................................................................. 15

FCC Compliance ........................................................................................................................... 20

Welcome to the Ultimate Control Experience!

Your new AT8400™AllTouch®Universal Remote Control (remote) is a true universal

remote, functioning as four remotes in one. As one example, you can use this remote to

operate your TV, VCR, cable box, and receiver.

How Does A Universal Remote Control Work?

You tell the remote which type of device you want to operate using the four keys arched

across the top of the remote. These keys, known as mode keys, are labeled CBL, TV,

VCR, and AUX. Each mode key is associated with a specific device. As an example, if

you want the remote to operate your TV, you simply press the TV key. Other keys you

press on the remote thereafter should operate your TV. Want to switch the remote to

operate a different device? Just press the mode key for the next device you want to

operate. In this guide, you will learn which types of devices you can control and how

to program the remote to control your specific devices.

Note: Some remote keys may not operate in all modes. You can even program your

remote to assign specific functions, such as channel control, to operate one device only.

You will learn more about these advanced functions later in this guide.

Where Do I Start?

Before you begin programming your remote, complete the following initial setup tasks.

Install the Batteries

The remote requires two AA batteries (alkaline recommended). A diagram in the battery

compartment of the remote indicates proper placement of the batteries. When batteries

are properly installed, the light on the remote blinks each time a key is pressed.

Visit the Quick Reference

Timing is often important when you program advanced features. Therefore, knowing

where certain keys are on the remote gives you an edge in pressing the right key at the

right time.

Find a Place to Store Your Remote

Keeping up with one remote is much easier than keeping up with four remotes. How-

ever, it is still a good idea to find a storage location for your remote. The AT8400

AllTouch Remote Control is not a toy. It should be kept out of the reach of children

under the age of 6 years.

Important Information About Power Control

Scientific-Atlanta strongly recommends that you turn off your cable box every time you

turn off your TV. To make this easier, you can program your remote to turn both devices

on or off at the same time. After you program the remote to control your four favorite

entertainment devices, see Change Power Control to learn more about programming

your remote to control power for the TV and cable box at the same time.

Sound

29 Adjusts volume

27 Mutes sound

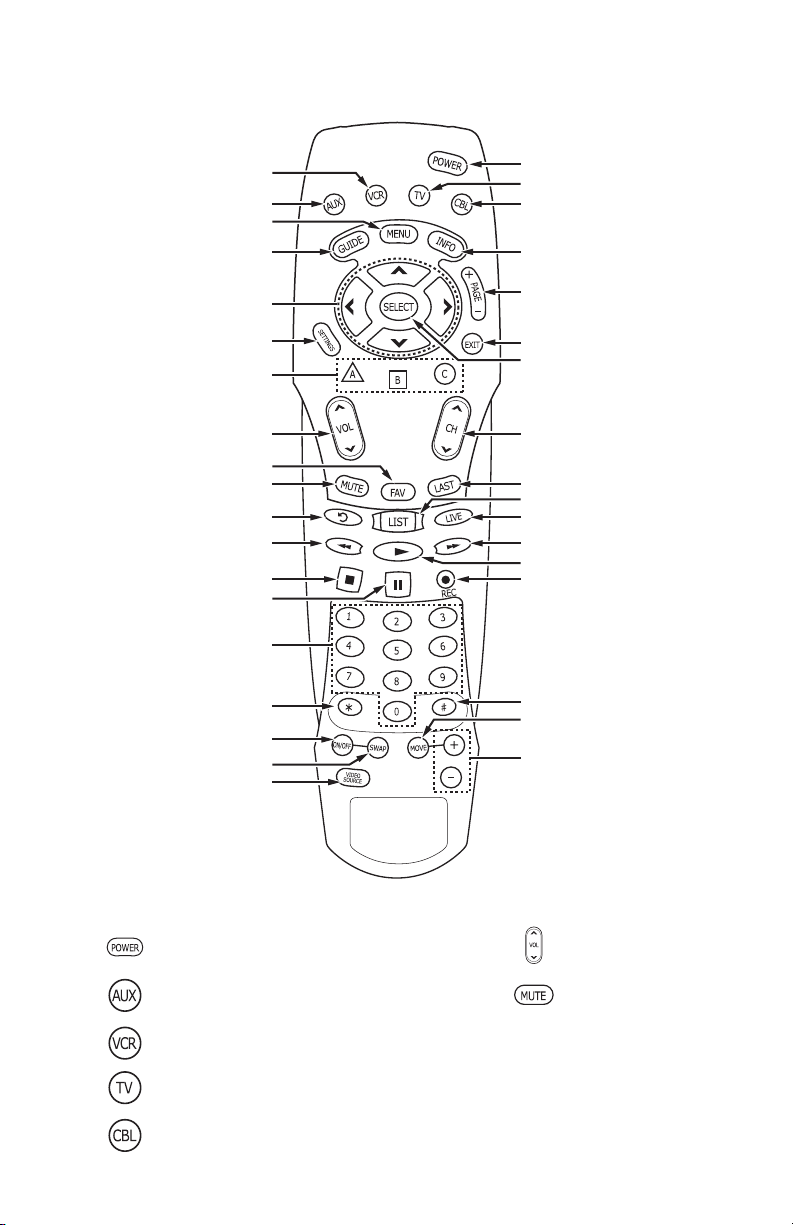

Quick Reference

Device Control

1Powers on or off

35 AUX Mode key

36 VCR Mode key

2TV Mode key

3Cable Mode key

T9857

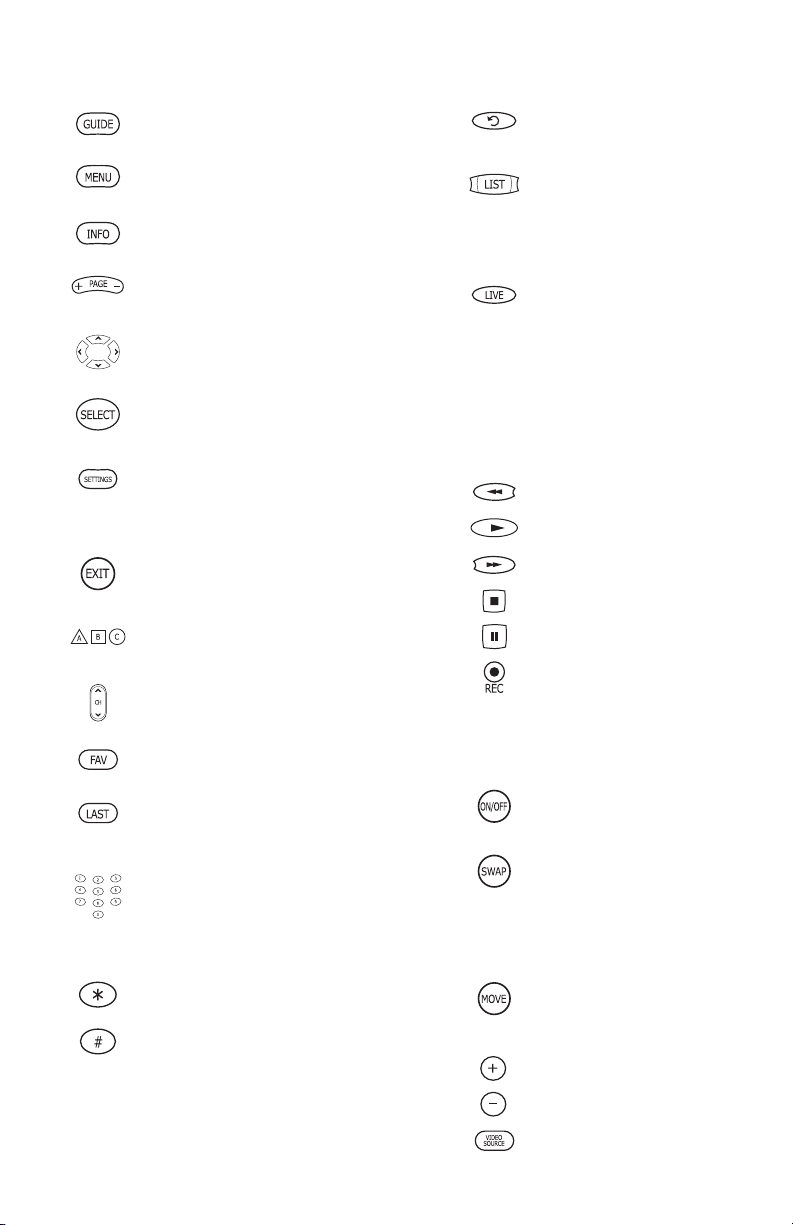

DVR Control

26 Replays the previous few

seconds of a program

10 Displays a list of programs

that you have recorded, so

that you can select one for

viewing

11 Displays live television

programming

VCR/VOD (Video On Demand) Control

Note: In VCR mode, these keys control

your VCR.

25 Rewinds VCR/VOD

13 Plays VCR/VOD

12 Fast forwards VCR/VOD

24 Stops VCR/VOD

23 Pauses VCR/VOD

14 Records program

PIP (Picture In Picture) Control

20 Opens or closes the PIP

window

19 Swaps the contents of the

PIP window and the main

viewing screen so that the

PIP window displays on

the main screen

16 Moves the PIP window

to another location on

the screen

17 Selects the channels in the

PIP window, up or down

18 Selects the video source

Viewing and Browsing Control

33 Displays the program guide

34 Displays the Applications

4Displays channel and

program information

5Navigates through settings or

the program guide

32 Moves through selections

7Selects and deselects screen

item

31 Displays the General

Settings or Quick settings

menus

6Exits settings, menus, and

guides

30 Selects options in menus

and the program guide

8Selects channel, up or down

28 Views favorite channels

9Returns to last channel

viewed

22 Enters channel numbers

and remote codes (also

enters your parental

control PIN)

21 Reserved for future use

15 Reserved for future use

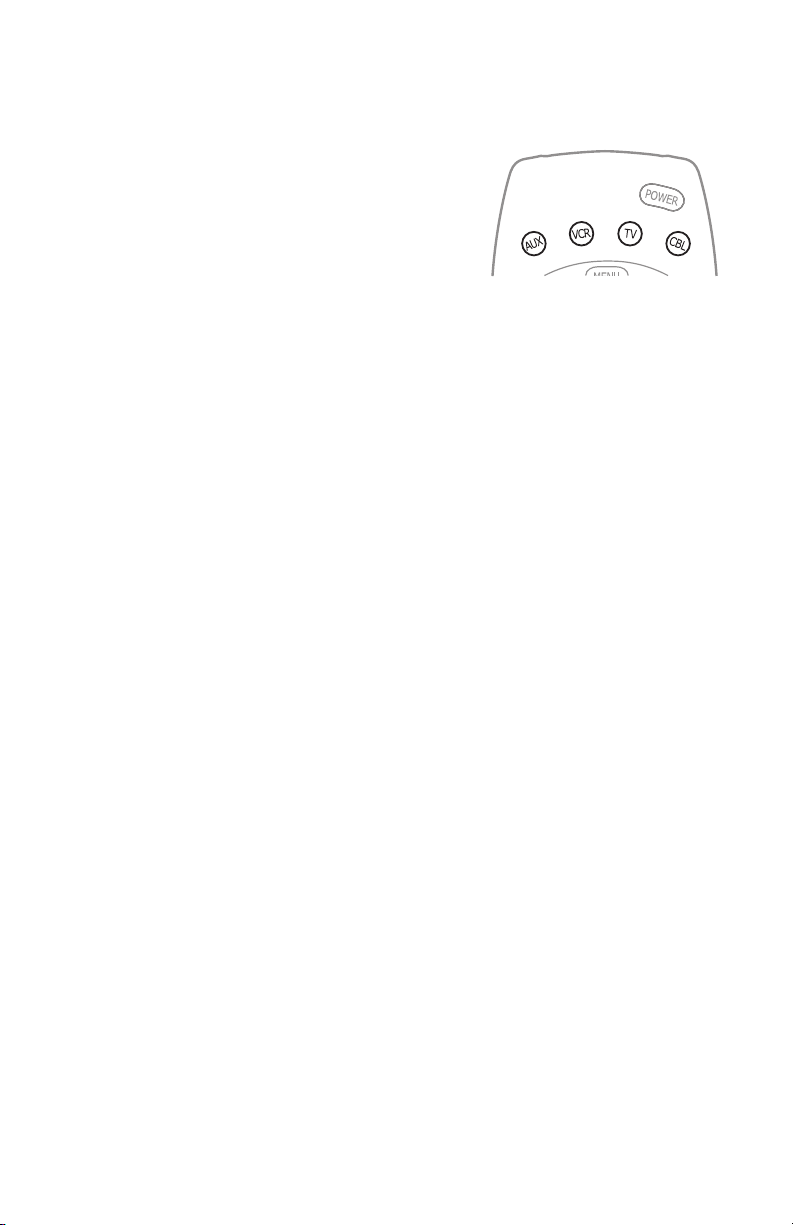

What Devices Can I Control?

The mode keys arched across the top of the remote tell the remote which device you

want to operate.

Each mode key is associated with different groups

of devices. You can use each mode key to control

one of its associated devices:

Mode Key Associated Devices

CBL .......... cable boxes and satellites

TV............. TVs and HDTVs

VCR ......... VCRs, DVD players, PVRs (personal video recorders), and CD players

AUX ......... receivers, amplifiers, and tuners

What Devices Do I Want to Control?

Record the devices (including brand) you want to control here:

1_____________________________ 3_____________________________

2_____________________________ 4_____________________________

Does each mode key relate to only one of your devices? If yes, go to Program the

Remote to Control My Devices. Otherwise, reassign mode keys to match your

combination of devices.

Reassign Mode Keys

If you are a big movie fan, you may want to control two video recording devices.

Perhaps you have a DVD player and a VCR, or a VCR/DVD combination device. How

can you control both the VCR and the DVD player when you only have one VCR key?

With the AT8400, you can reassign a mode key to operate in a different mode. For

example, you can reassign the AUX key to operate in VCR mode. Then, you can

program the AUX key to control your DVD player. You can reassign the AUX key, the

VCR key, or both. The TV key and the CBL key cannot be reassigned.

Reassigning Mode Keys

(Program Code 9 9 2)

1. Press and hold SELECT and CBL until all mode keys blink twice.

2. Press 9 9 2. The CBL mode key blinks twice.

3. Press the mode key associated with the type of device you want to control, and then

press the mode key that you want to change. All mode keys blink three times.

Some Common Examples

•To program the AUX key to operate in VCR mode, press VCR and then AUX.

•To program the VCR key to operate in TV mode, press TV and then VCR.

4. When finished, go to Program the Remote to Control My Devices.

Program the Remote to Control My Devices

Try to use your remote to control your devices. If the remote does not work for a device,

you can assign a different device code to the appropriate mode key. If the remote

provides only limited functionality for a device, you can look for a code that provides

more functionality. Before you begin, make sure you know the brand name of the device

you want to control.

Note: Some remote keys may be assigned to operate one device type only. For example,

volume control may be assigned to the TV only. If this is the case, you can reprogram

power, volume, and channel control using procedures later in this guide.

Assigning a Different Device Code to a Mode Key

1. Find the codes for your brand of device in the appropriate setup code list at the end

of this guide. For example, look under TV Group if you need to program the remote

to operate your TV.

2. Turn on your device.

3. Press and hold SELECT and the appropriate mode key until all of the mode keys

blink twice. For example, to set up the TV, press and hold SELECT and TV.

Note: If you reassigned mode keys, you may, for example, press SELECT and VCR

to program the VCR mode key with a TV code.

4. Enter the first setup code for the device. All mode keys blink twice to indicate that

the code entry was accepted.

5. Point the remote at the device, and press POWER, , or to test the device.

6. Did the device operate correctly?

•If yes, write down the code that worked on the cover of this guide.

You may need it again if the device code is accidentally erased.

•If no, repeat these steps using a different setup code.

Note: If none of the codes listed for your brand of device operate the device

correctly, go to What If None of the Codes Work for instructions.

7. Repeat this procedure for each mode key you want to program.

What If None of the Codes Work?

If none of the codes listed for your brand of device operate the device correctly, you can

search through the code library for a valid code.

Improving Your Reaction Time

When you search the code library, you need to be ready to press SELECT as soon as the

remote turns off your device. Therefore, make sure you are familiar with the location of

the SELECT key before you begin this procedure.

Sizing Up The Libraries

The mode keys blink twice when the remote reaches the last code in a library. You

do not need to count codes. However, knowing the size of each library will help you

determine how long it will take to cycle through all of the codes in the library. Each

library contains the following number of codes:

•CBL mode: 15 •TV mode: 184

•VCR mode: 176 •AUX mode: 21

Searching the Code Library

(Program Code 9 9 1)

1. Turn on the device.

2. Press and hold SELECT and the appropriate mode key (CBL, TV, VCR, or AUX)

until the mode keys blink twice. For example, to search for a TV code, press and

hold SELECT and TV at the same time.

Note: If you reassigned mode keys, you may, for example, press SELECT and

VCR to search for a TV code to assign to the VCR mode key.

3. Press 991. The mode key you selected in step 2 blinks twice.

4. Point the remote toward the device, and press . The remote automatically tests

each code in its library, beginning with the most common codes. The mode key

blinks once each time the remote transmits a new code. The mode key blinks twice

when it reaches the last code.

5. As soon as the device powers off, press SELECT.

6. Verify the new code is correct by pressing POWER.

7. Did the device power on again?

•If yes, press SELECT to assign the code.

•If no, complete the following steps:

a) Turn the device on.

b) Press or to step forward or back to the correct code.

c) When the device turns off, press SELECT to assign the code.

8. Go to Which Code Worked to identify the code that controls your device. After you

identify the code, record the code in the space provided on the cover of this guide.

Which Code Worked?

Find out which code programmed the mode key to control your device.

Finding the Code That Worked

(Program Code 9 9 0)

1. Press and hold SELECT and the appropriate mode key (CBL, TV, VCR, or AUX)

until all mode keys blink twice.

2. Press 990. The mode key you selected in step 1 blinks twice.

3. Press 1; then, count the number of times the mode key blinks. The number of blinks

indicates the first digit in the code. For example, 4 blinks indicates the first digit in

the code is 4. If the mode key does not blink, the digit is 0.

4. Press 2; then, count the number of times the mode key blinks. This number indicates

the second number in the code.

5. Press 3; then, count the number of times the mode key blinks. This number indicates

the third number in the code.

6. Press 4; then, count the number of times the mode key blinks. This number indicates

the fourth number in the code.

After all four numbers in the code are identified, all mode keys blink three times.

7. Record the code in the space provided on the cover of this guide. You may need it

again if the device code is accidentally erased.

Change Power Control

Your remote is originally programmed in one of the following ways:

•The remote controls power for only one device at a time. For example, in CBL mode

the POWER key controls the cable box only. However, in TV mode, the POWER key

controls the TV only.

•The remote controls power for either one device or for multiple devices at once,

based on the selected mode. For example, in CBL mode, the POWER key controls

both the cable box and the TV at the same time.

Before you change how power control works, try your remote to see how the power

control currently works. When trying out your remote, keep in mind that the remote

provides a temporary override for power control. For example, if you press the TV key

and then the POWER key within 3 seconds, the remote turns on the TV only, regardless

of the programmed power settings. To see how the remote is originally programmed,

wait at least 5 seconds before pressing the POWER key after you press any mode key.

Does your remote already control power for your cable box and TV at the same time?

If not, Scientific-Atlanta strongly recommends that you program the remote to turn off

the cable box each time you turn off your TV. Turning off the cable box is especially

important for high-end cable boxes that contain hard drives for recording and storing

TV programs and movies. Not only will you reduce wear and tear from the hard disk

spinning constantly, but you'll also conserve electricity. As long as the cable box remains

plugged in, the cable box will receive programming updates, and, if applicable, record

programs and movies.

Controlling Power for Multiple Devices at Once

(Program Code 9 9 8)

1. Press and hold SELECT and CBL until all mode keys blink twice.

2. Press 998. The CBL key blinks twice.

3. Press the mode key for the first device in the group of devices you want to power on

and off at once. The CBL key blinks twice.

4. Press the mode key for the second device in your power group. The CBL key blinks

twice.

5. If you want the remote to control power for 3 or 4 devices at once, press the mode

keys for the next devices you want to add to the power group. The CBL key blinks

twice after each mode key is pressed.

6. Press SELECT to save your power settings. All mode keys blink three times.

Otros manuales para AllTouch AT8400

Tabla de contenidos

Otros manuales de Mando a distancia de Scientific Atlanta

Scientific Atlanta

Scientific Atlanta AT8450 Manual de usuario

Scientific Atlanta

Scientific Atlanta AllTouch AT8400 Manual de usuario

Scientific Atlanta

Scientific Atlanta ER1 Manual de usuario

Scientific Atlanta

Scientific Atlanta AT8420TM Manual de usuario

Scientific Atlanta

Scientific Atlanta AllTouch AT2300 Manual de usuario

Scientific Atlanta

Scientific Atlanta AllTouch AT8400 Manual de usuario

Scientific Atlanta

Scientific Atlanta AllTouch 2000 Manual de usuario

Scientific Atlanta

Scientific Atlanta AllTouch AT8550 Guía de referencia

Scientific Atlanta

Scientific Atlanta AllTouch AT2400 Manual de usuario

Scientific Atlanta

Scientific Atlanta AllTouch AT8550 Manual de usuario

Scientific Atlanta

Scientific Atlanta AllTouch AT6400 Manual de usuario

Scientific Atlanta

Scientific Atlanta AllTouch AT8400 Manual de usuario

Scientific Atlanta

Scientific Atlanta AT8560 AllTouch Manual de usuario

Scientific Atlanta

Scientific Atlanta AT8560 AllTouch Manual de usuario

Scientific Atlanta

Scientific Atlanta AllTouch AT2400 Manual de usuario

Scientific Atlanta

Scientific Atlanta AllTouch 2000 Manual de usuario

Scientific Atlanta

Scientific Atlanta AT8400TM Manual de usuario

Scientific Atlanta

Scientific Atlanta AT8550TM Manual de usuario

Scientific Atlanta

Scientific Atlanta AllTouch 573480 Manual de usuario

Scientific Atlanta

Scientific Atlanta 8600 Series Manual de usuario

Scientific Atlanta

Scientific Atlanta ER1 Manual de usuario

Scientific Atlanta

Scientific Atlanta AT6420 Manual de usuario

Manuales populares de Mando a distancia de otras marcas

Panasonic

Panasonic EUR7622KB0 Manual de usuario

Bang & Olufsen

Bang & Olufsen Beo4 Manual de usuario

Sunwave Tech.

Sunwave Tech. RemoteComm SRC-7000 Manual de usuario

Multiplex

Multiplex PROFI TX 9 Manual de usuario

One Remote

One Remote RMB4 Manual de usuario

FUTABA

FUTABA 9ZAP - PART2 Manual de usuario

HR Matic

HR Matic HR MULTI 3 Manual de usuario

Yamaha

Yamaha ACC-GNRST-30-20 Manual de usuario

EisSound

EisSound KBSOUND Manual de usuario

Marantz

Marantz RC101 Manual de usuario

Conrad

Conrad FS20 TC6 Manual de usuario

Anritsu

Anritsu MP1777A Manual de usuario

Niles

Niles WVC100 Guía de solución de problemas

RCA

RCA RCU1300 Manual de usuario

Bang & Olufsen

Bang & Olufsen BEO6 Manual de usuario

GE 94901 Manual de usuario

Onbon

Onbon YQ1-75 Manual de usuario

FUTABA

FUTABA R7108SB Instrucciones de instalación
