Schwinn IC Pro Manual de usuario

NS-75

IC Pro / IC Elite

ASSEMBLY INSTRUCTIONS

Ref. # Description Qty.

1. Frame 1

42. Handle Bar 1

3. Seat Slider Assembly with Saddle 1

AFront Stabilizer Bar with Wheels and Feet 1

BRear Stabilizer Bar with Feet 1

51. Water Bottle Cage 2

Small Parts Box 1

Small Part Box Contents

34. Pedals with Toe Clips & Straps (Left & Right) 1 Pair

29. Pop Pin Assembly for Head Tube 1

46. 13mm Hex Bolt 4

44. Flat Washer 8

45. 13mm Lock Nut 4

Tools Supplied

Stamped Steel 13/14/15/17mm Combination Wrench 1

3mm Hex Wrench 1

Prior to assembly of the product, remove all components from the packaging and check them

against the packaged components list supplied above. Once you are certain that all the necessary

parts have been supplied, begin with the first assembly step.

Tools Needed

3mm Hex Wrench

Adjustable wrench (not included)

Grease (not included)

SCHWINN IC BIKE - PACKAGE COMPONENTS LIST

step

IC Pro / IC Elite

17/15 13/14

Stamped Steel

Combination wrench

NS-75

Ref. # Description Qty

1Frame 1

AFront Stabilizer Bar with Wheels and Feet 1

BRear Stabilizer Bar with Feet 1

46 13mm Hex Bolt 4

44 Flat Washer 8

45 13mm Lock Nut 4

Tools Required

Stamped Steel Combination Wrench 1

Adjustable wrench or 13mm Socket (not supplied) 1

ATTENTION

The following steps utilize stainless steel hardware. Stainless steel hardware is susceptible

to “cold welding”, also known as galling, if not handled properly. To reduce the chances for

cold welding, make sure you apply grease to the threads at the end of the stainless hex bolts

#46. When tightening the 13mm lock nuts #45, turn them at a fairly low rotational speed.

High rotational speeds as well as lack of grease are common causes for cold welding of

stainless steel hardware.

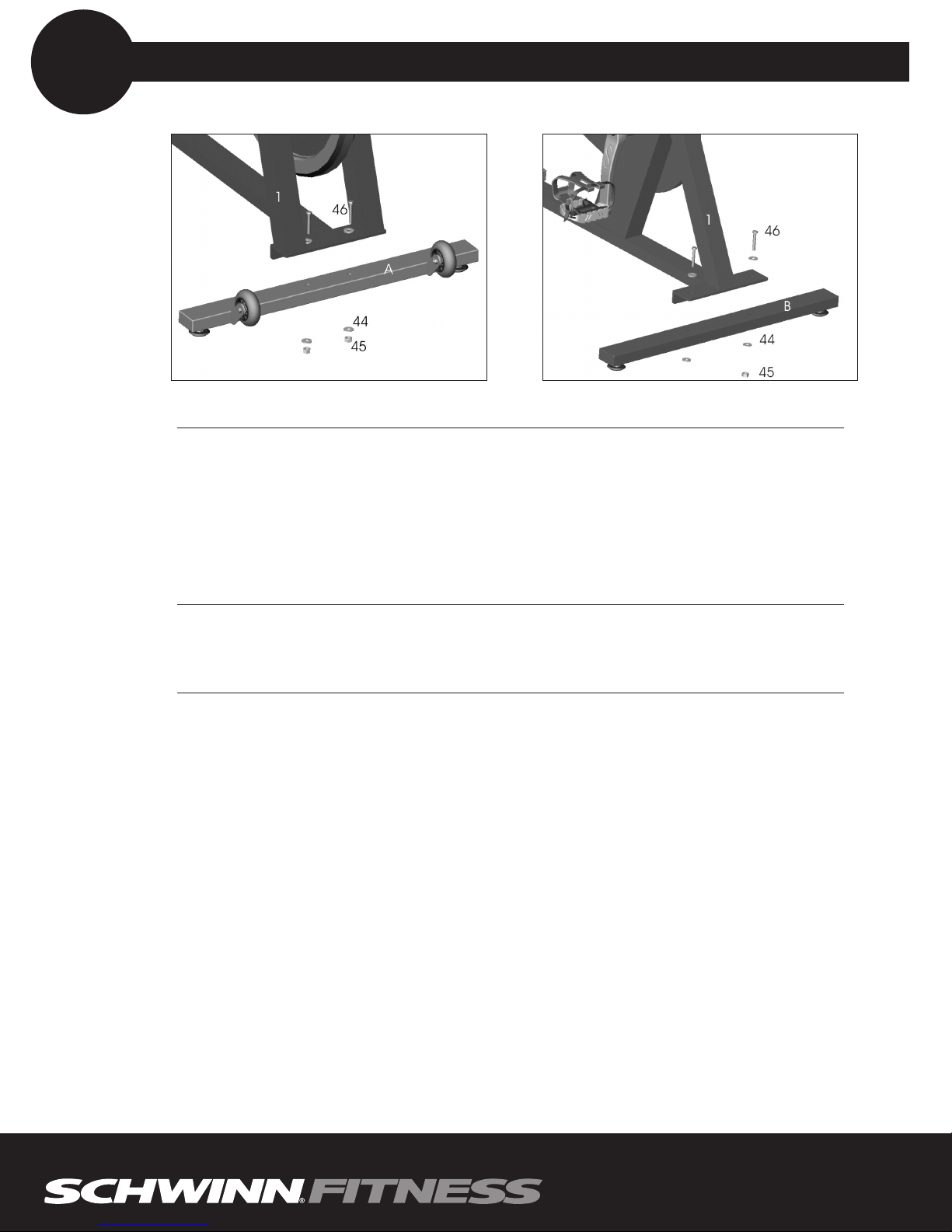

A. Position the Front Stabilizer Bar (A) on the frame bracket as shown in the illustration.

B. Make sure the adjustable feet are on the bottom and the transport wheels are facing up and

toward the front of the bike.

C. Attach Front Stabilizer Bar (A) to Frame (1) using two hex bolts (46), four washers (44), and two

lock nuts (45). Tighten hardware firmly but do not over tighten as deformation of the stabilizer

tube may occur

D. At this time make sure that the adjustable feet with lock nuts are screwed fully into the stabilizer.

E. Position the Rear Stabilizer Bar (B) on the frame bracket as shown in the illustration.

F. Make sure the adjustable feet are on the bottom.

G. Attach Rear Stabilizer Bar (B) to Frame (1) using two hex bolts (46), four washers (44), and two

lock nuts (45). Tighten hardware firmly but do not over tighten as deformation of the stabilizer

tube may occur

H. At this time make sure that the adjustable feet with lock nuts are screwed fully into the stabilizer.

MATERIALS & TOOLS

step

Front Rear

IC Pro / IC Elite

Ref. # Description Qty

1Frame 1

29 Pop Pin Assembly for Head Tube 1

42 Handle Bar 1

7, 8, & 9 Seat Slider Assembly 1

51 Water Bottle Cage 2

Tools Required

3mm Hex 1

Adjustable wrench (not supplied) 1

A. Using your hand, grab the T-handled of the Pop Pin attached to the seat tube of the frame. Turn

the Pop Pin counter clockwise for several revolutions to make sure it is free of the securing

threads and can be pulled freely.

B. Pull the entire seat slider assembly (7,8,9) from the frame and reverse its direction. Reinsert the

seat slider assembly into the frame (with the holes facing the front of the bike) while pulling out on

the Pop Pin. Release the Pop Pin and make sure it fully engages one of the holes provided in

the seat post.

C. Using the stamped steel combination wrench supplied, loosen up the 14mm nuts that secure

the saddle bracket to the seat slider (8). Once loose, rotate the saddle so that the nose of the

saddle is facing the handle bars and is level with the ground or in your desired position. Tighten

the 14mm nut securely and manually attempt to twist the saddle sideways to confirm that it is

secure before ridding.

D. Remove the Pop Pin Assembly (29) from the small parts bag and add some grease to the

threads of the large 21mm nut that will screw into the head tube boss on the bike.

E. Thread the Pop Pin Assembly (29) into the head tube boss using a large adjustable wrench and

tighten firmly.

F. Using your hand, grab the T-handled of the Pop Pin, turn it counter clockwise for several revolu-

tions to make sure it is free of the securing threads and can be pulled freely.

G. Insert the handle bar (42) into the head tube of the bike while pulling the Pop Pin out. Lower the

handle bar to the desired height and release the Pop Pin. Make sure the Pop Pin fully engages

one of the holes provided in the handle bar. Turn the T-handle of the Pop Pin clockwise until it is

fully tightened, this will secure the handle bar firmly at the desired height.

H. Using the 3mm hex tool supplied, mount the two water bottle cages (51) to each side of the fork

legs. The necessary mounting screws have previously been installed and must be removed from

the fork legs prior to securing the water bottle cage.

MATERIALS & TOOLS

step

IC Pro / IC Elite

NS-75

MATERIALS & TOOLS / INITIAL SETUP ADJUSTMENTS

step

Ref. # Description Qty

1Frame 1

43 Pedals with Toe Clips & Straps (Left & Right) 1 Pair

Tools Required

Stamped Steel Combination Wrench 1

A. Remove Pedals (43) from the small parts box and look at the ends of

the pedal threads. You will notice that each pedal is market with an "R"

or an "L" on the very end of the spindle past the threads. This mark

indicates which side of the bike the pedal is intended to mount. This is

important since the thread directions are different for each pedal.

B. Locate the Pedal that has the "R" on the spindle. This pedal is for the

right side crank arm of the bike (chain guard side) and is right hand

threaded (turn clockwise to tighten). It is a good idea to apply grease

to the threads before attaching them to the crank, this will assure that

they can be removed in the future. Using the supplied Combination

Wrench thread the right Pedal on to the crank arm, tighten firmly.

C. Locate the Pedal that has the "L" on the spindle. Follow the directions in step B. however, you will

need to turn the spindle left (counter-clockwise) to tighten as the "L" spindle is reverse threaded.

Prior to first using the Schwinn IC bike it is a good idea to follow

these initial set up steps.

A. Move bike into its final location. Confirm that all four feet are firmly in contact with the floor and that

the bike is stable. If any of the feet are not making full contact it is recommended that you adjust

them by turning the entire foot assembly counter-clockwise which will extend it further from the sta-

bilizer bar. Once the foot is in full contact and the bike is stable, thread the jam nut clockwise until

it comes into contact with the stabilizer at the point the foot assembly threads in. Tighten the jam

nut snug using an adjustable wrench. This will secure the foot at the desired height.

B. With the resistance adjustment knob turned fully in the counter-clockwise position (no brake con-

tact with flywheel) it is recommended that you soak the brake pads with Schwinn Fit-Tech Lube.

This will extend the life of the brake pads and assure a smooth resistance interface with the fly-

wheel.

C. Once the pads are lubricated it is recommended that you tighten the resistance adjustment knob

clockwise to tighten the brake pads against the flywheel surface. Do this until the brake pads are firm-

ly clamped against the flywheel. This will set the brake parts and give the springs some initial com-

pression. This process will also assure that the Fit-Tech Lube penetrates the entire brake pad surface.

D. Confirm that the Saddle is positioned in the desired location on the saddle mounting bracket. If the

angle of the saddle or the fore/aft position of the saddle needs to be adjusted, use the Combination

Wrench to loosen the 14mm nuts on either side of the saddle mounting bracket. This will allow you

to adjust the tilt angle and fore/aft position of the saddle. Once in the correct position, tighten both

14mm nuts on the saddle mounting bracket with the Combination Wrench.

That's it! Initial set up is complete and you can now enjoy all these

features and quality of you new Scwhinn IC Bike!

IC Pro / IC Elite

IC PRO ASSEMBLY DRAWING AND REPLACEMENT PARTS

Tech

Info

63 62

68 8

19 60

21 33

PRO

Dwg# Description Part #

1FRAME 84958

2RIGHT CRANK W/SPOCKET, ISIS M12 80034

3B.B. SET, OVERDRIVE W/BOLTS 68X113L 84990

4CHAIN, 1/2x3/32", 112L 95120

5RESISTANCE ASSY 84965

6BRAKE PADS 92874

7SEAT POST 84973

8SEAT ADJUSTING BRACKET 84975

9SEAT, 7777-1 BLACK 93092

10 OUTER CHAINGUARD 84968

11 INNER CHAINGUARD 84967

12 SLEEVE, SEAT POST/HANDLEBAR 84966

13 TENSION KNOB BALL PIVOT 84976

14 RUBBER CHAINGUARD RING 91719

15 ROD CARRIER 98009

16 SQUARE NUT FOR TENSION KNOB 98022

17 CRANK BOLT 8MM HEX FOR ISIS 80044

18 HEX HEAD SCREW M6 X 1.0 X 12L 95432

19 WASHER M6 6.5 X 16 x 1T 95431

21 FLANGED AXLE NUT 95149

22 LEVELER NUT 80016

23 NYLON NUT M6 X 1.0 95456

24 LEVELER FOOT 84995

26 HEX HEAD SCREW M6 X 1.0 X 15L 98775

27 ADJUSTING BOLT, STAINLESS 95433

29 T-HANDLE POP PIN, DOUBLE LEAD 84994

31 TENSION KNOB 84974

32 CHAIN ADJ BRACKET, LEFT 84970

33 CHAIN ADJ BRACKET, RIGHT 84969

34 YELLOW PLASTIC BUSHING, SET OF 2 92204

37 FLYWHEEL, COMPLETE 16T 84996

39 FRONT STABILIZER ASSY 22" W/ TRANSPORT 84964

40 REAR STABILIZER 22" 84963

41 TRANSPORT WHEEL 92220

42 HANDLEBAR 84959

43 PEDALS 95129

44 WASHER M8 19 X 8.5 X 1T STAINLESS 95426

45 NYLON NUT M8 X 1.25 STAINLESS 91731

46 HEX BOLT M8 X 1.25 X 40L STAINLESS 95434

47 BOTTLE CAGE BOLT 95428

48 BOLT M8 X 1.25 X 45L 92218

51 BOTTLE CAGE 84998

53 LOCK RING 1.29 X 24 X 4T B.E.D. 95450

54 SPROCKET, 16T 84997

55 WASHER 95457

56 LEFT CRANK ARM , ISIS 80035

58 TOE CLIP 47046

59 TOE STRAP 57880

60 FRAME PLUG FOR BRAKE ASSEMBLY 80052

62 SAFETY RELEASE CLIP 92450

63 END CAP FOR SEAT SLIDER 84971

65 HUB SHELL PLASTIC COVER 92451

68 SLEEVE, SEAT SLIDER 84972

71 PROTECTIVE STEP PLATE STAINLESS 84961

72 MACHINE SCREW M5X.08X12L SS 84957

73 SHROUD - RIGHT 84978

74 SHROUD - LEFT 84977

75 MACHINE SCREW M4X.7X10L SS 84961

76 EMERGENCY BRAKE LEVER 84979

77 EMERGENCY BRAKE BUSHING 84957

78 EMERGENCY BRAKE PIVOT PIN 84981

79 EMERGENCY BRAKE E-CLIP 84960

80 RUBBER FRAME GUARD 84999

IC Pro / IC Elite

NS-75

IC ELITE ASSEMBLY DRAWING AND REPLACEMENT PARTS

Tech

Info

63 62

68 8

19 60

21 33

64 37

ELITE

Dwg# Description Part #

1FRAME 84958

2RIGHT CRANK W/SPOCKET, ISIS M12 80034

3B.B. SET, OVERDRIVE W/BOLTS 68X113L 84990

4CHAIN, 1/2x3/32", 112L 95120

5RESISTANCE ASSY 84965

6BRAKE PADS 92874

7SEAT POST 84973

8SEAT ADJUSTING BRACKET 84975

9SEAT, 7777-1 RED 92202

10 OUTER CHAINGUARD 84956

11 INNER CHAINGUARD 84967

12 SLEEVE, SEAT POST/HANDLEBAR 84966

13 TENSION KNOB BALL PIVOT 84976

14 RUBBER CHAINGUARD RING 91719

15 ROD CARRIER 98009

16 SQUARE NUT FOR TENSION KNOB 98022

17 CRANK BOLT 8MM HEX FOR ISIS 80044

18 HEX HEAD SCREW M6 X 1.0 X 12L 95432

19 WASHER M8 19 X 8.5 X 1T 95431

21 FLANGED AXLE NUT 95149

22 LEVELER NUT 80016

23 NYLON NUT M6 X 1.0 95456

24 LEVELER FOOT 84995

26 HEX HEAD SCREW M6 X 1.0 X 15L 98775

27 ADJUSTING BOLT, STAINLESS 95433

29 T-HANDLE POP PIN, DOUBLE LEAD 84994

31 TENSION KNOB 84974

32 CHAIN ADJ BRACKET, LEFT 84970

33 CHAIN ADJ BRACKET, RIGHT 84969

34 YELLOW PLASTIC BUSHING, SET OF 2 92204

37 FLYWHEEL, COMPLETE 92207

39 FRONT STABILIZER ASSY 22" W/TRANSPORT 84964

40 REAR STABILIZER 22" 84963

41 TRANSPORT WHEEL 92210

42 HANDLEBAR 84959

43 PEDALS 95129

44 WASHER M8 19 X 8.5 X 1T STAINLESS 95426

45 NYLON NUT M8 X 1.25 STAINLESS 91731

46 HEX BOLT M8 X 1.25 X 40L STAINLESS 95434

47 BOTTLE CAGE BOLT 95428

48 BOLT M8 X 1.25 X 45L 92218

51 BOTTLE CAGE 84998

53 HUB SPROCKET W/ BEARING 98419

54 ELITE BRAKE PAD SET, WHITE U.H.P. 92213

55 FLANGED HUB LOCKNUT 92214

56 LEFT CRANK ARM , ISIS 80035

58 TOE CLIP 47046

59 TOE STRAP 57880

60 FRAME PLUG FOR BRAKE ASSEMBLY 92206

62 SAFETY RELEASE CLIP 80052

63 END CAP FOR SEAT SLIDER 84971

64 CONICAL SPRING 92208

65 HUB SHELL PLASTIC COVER 92451

66 INNER ADJUSTABLE SMART RELEASE PLATE92452

67 INTERFACINE PLATE TO BRAKE PADS 92453

68 SLEEVE, SEAT SLIDER 84972

70 BEARING RETAINING RING 92458

71 PROTECTIVE STEP PLATE STAINLESS 84961

72 MACHINE SCREW M5X.08X12L SS 84957

73 SHROUD - RIGHT 84978

74 SHROUD - LEFT 84977

75 MACHINE SCREW M4X.7X10L SS 84961

76 EMERGENCY BRAKE LEVER 84979

77 EMERGENCY BRAKE BUSHING 84957

78 EMERGENCY BRAKE PIVOT PIN 84981

79 EMERGENCY BRAKE E-CLIP 84960

80 RUBBER FRAME GUARD 84999

IC Pro / IC Elite

Nautilus Health & Fitness Group • 1886 Prairie Way• Louisville, CO 80027

1.800.864.1270

Otros manuales para IC Pro

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Bicicleta estática de Schwinn

Schwinn

Schwinn EVO Airdyne Manual de usuario

Schwinn

Schwinn Airdyne Windjammer Manual de usuario

Schwinn

Schwinn 170i Upright Bike Manual de usuario

Schwinn

Schwinn Evolution Assembly Manual de usuario

Schwinn

Schwinn 140 Manual de usuario

Schwinn

Schwinn IC Elite Indoor Cycling Bike Manual de usuario

Schwinn

Schwinn 250 Manual de usuario

Schwinn

Schwinn Airdyne Manual de usuario

Schwinn

Schwinn Schwinn A.C. Classic Manual de usuario

Schwinn

Schwinn S.C. 7 Manual de usuario

Schwinn

Schwinn 130 Upright Bike Manual de usuario

Schwinn

Schwinn 270 Recumbent Bike Manual de usuario

Schwinn

Schwinn AirDyne Pro Manual de usuario

Schwinn

Schwinn Fitness 212 Manual de usuario

Schwinn

Schwinn Airdyne Manual de usuario

Schwinn

Schwinn Fitness 112 Manual de usuario

Schwinn

Schwinn 250 Manual de usuario

Schwinn

Schwinn 130 Upright Bike Manual de usuario

Schwinn

Schwinn Evolution Assembly Manual de usuario

Schwinn

Schwinn 120 Upright Bike 2010 model Manual de usuario

Schwinn

Schwinn 130i Upright Bike Manual de usuario

Schwinn

Schwinn 230 Recumbent Bike Manual de usuario

Schwinn

Schwinn SC5 Manual de usuario

Schwinn

Schwinn 190 Manual de usuario

Manuales populares de Bicicleta estática de otras marcas

Weslo

Weslo Vector 302 Guía de inicio rápido

TOORX

TOORX BRX85 Manual de usuario

Matrix

Matrix KranKcycle Manual de usuario

Matrix

Matrix IC3 Manual de usuario

Sunny Health & Fitness

Sunny Health & Fitness SF-B121021 Manual de usuario

Monark

Monark 827E Manual de usuario

Stamina

Stamina 1310 Manual de usuario

American Fitness

American Fitness SPR-BK1072A Manual de usuario

Cateye

Cateye CS-1000 (CYCLO SIMULATOR) Manual de usuario

BH FITNESS

BH FITNESS H9158H Manual del operador

Body Sculpture

Body Sculpture BC-7220G Manual de usuario

Cateye

Cateye EC-2300 Manual de usuario

FYTTER

FYTTER RACER RC MSR Manual de usuario

Kikos

Kikos HM-9090M Manual de usuario

Pro-Form

Pro-Form 345 Zlx Bike Guía del usuario

Fuel Fitness

Fuel Fitness SU135-40 Manual de usuario

NordicTrack

NordicTrack Gxr 4.2 Bike Manual de usuario

Vision Fitness

Vision Fitness U70 Manual de usuario
