TableofContents

ImportantSafetyInstructions3Parts6

Specifications4Assembly7

BeforeAssembly4LevelYourBike1

ToolsRequired5Contacts1

Hardware5Instructionsdemontage2

™and®indicateatrademarkorregisteredtrademark.Nautilus,Inc.(www.nautilus.com)trademarksinclude

NAUTILUS®,BOWFLEX®,STAIRMASTER®,SCHWINN®andUNIVERSAL®andrespectivelogos.

Othertrademarksarethepropertyoftheirrespectiveowners.

PatentInformationThisproductmaybecoveredbyUSandForeignPatentsandPatentsPending.

2 2

ImportantSafetyInstructions

Thisiconmeansapotentiallyhazardoussituationwhich,ifnotavoided,couldresultindeathorseriousinjury.

Obeythefollowingwarnings:

Readandunderstandallwarningsonthismachine.

CarefullyreadandunderstandtheAssemblyManual.

• •

•Keepbystandersandchildrenawayfromtheproductyouareassemblingatalltimes.

• •

•Donotconnectpowersupplytothemachineuntilinstructedtodoso.

• •

•Donotassembleequipmentinawetordamplocation.

• •

•Makesureassemblyisdoneinanappropriateworkspaceawayfromfoottrafficandexposuretobystanders.

• •

•Somecomponentsofthemachinecanbeheavyorawkward.Useasecondpersonwhendoingtheassemblystepsinvolving

theseparts.Donotdostepsthatinvolveheavyliftingorawkwardmovementsonyourown.

• •

•Donottrytochangethedesignorfunctionalityofthismachine.Thiscouldcompromisethesafetyandcanvoidthewarranty.

• •

•IfreplacementpartsarenecessaryuseonlygenuineSchwinn®replacementpartsandhardwaresuppliedbyNautilus.

Failuretousegenuinereplacementpartscancausearisktousers,keepthemachinefromoperatingcorrectlyorvoid

thewarranty.

• •

•Donotuseorputthemachineintoserviceuntilthemachinehasbeenfullyassembledandinspectedforcorrect

performanceinaccordancewiththeOwner’sManual.

• •

•ReadandunderstandthecompleteOwner’sManualsuppliedwiththismachinebeforefirstuse.KeeptheOwner’sManual

forfuturereference.

• •

•Doallassemblystepsinthesequencegiven.Incorrectassemblycanleadtoinjury.

3 3

Specifications

BeforeAssembly

Selecttheareawhereyouaregoingtosetupandoperateyourmachine.Forsafeoperation,thelocationmustbeonahard,level

surface.Allowaworkoutareaofminimum82”x61”(2.1mx1.5m).

Followthesebasicpointswhenyouassembleyourmachine:

1.Readandunderstandthe“ImportantSafetyInstructions”beforeassembly.

2.Collectallthepiecesnecessaryforeachassemblystep.

3.Usingtherecommendedwrenches,turntheboltsandnutstotheright(clockwise)totighten,andtheleft

(counterclockwise)toloosen,unlessinstructedotherwise.

4.Whenattaching2pieces,lightlyliftandlookthroughtheboltholestohelpinserttheboltthrough

theholes.

5.Theassemblyrequires2people.

4 4

Tools

IncludedNot Included

6mm

Hardware

ItemQtyDescriptionItemQtyDescription

A1HexHeadBoltG3FlatWasher

B1ButtonHeadHexBoltH1Nut

C4FlatHeadHexScrewI1T-Nut

D4ButtonHeadHexScrewJ1Consoleslideradjustmentknob

E4ArcWasherK1Consoletiltadjustmentknob

F4Cover

5 5

Parts

ItemQtyDescriptionItemQtyDescription

11MainFrame71Seat

21Frontstabilizer81ConsoleMast

31RearStabilizer91Handlebar

41LeftPedal101ConsoleBracket

51RightPedal111Console

61SeatPost121PowerCord

6 6

Assembly

1.AttachStabilizerstoFrame

7 7

2.AttachPedalstoFrameAssembly

8 8

3.AttachSeatPosttoFrameAssembly

9 9

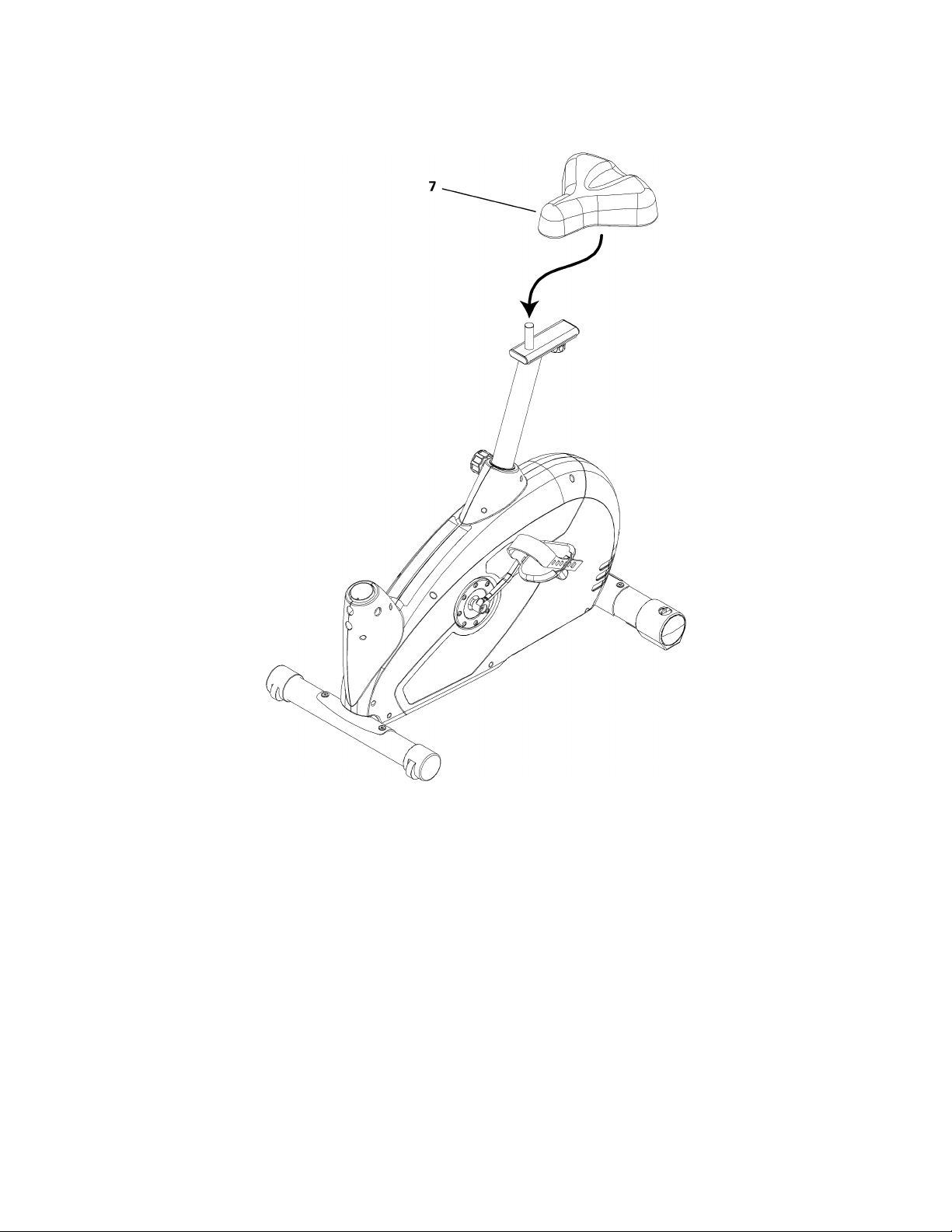

4.AttachSeattoFrameAssembly

10 10
