Schlage M490G Manual de usuario

*23697287*

23697287

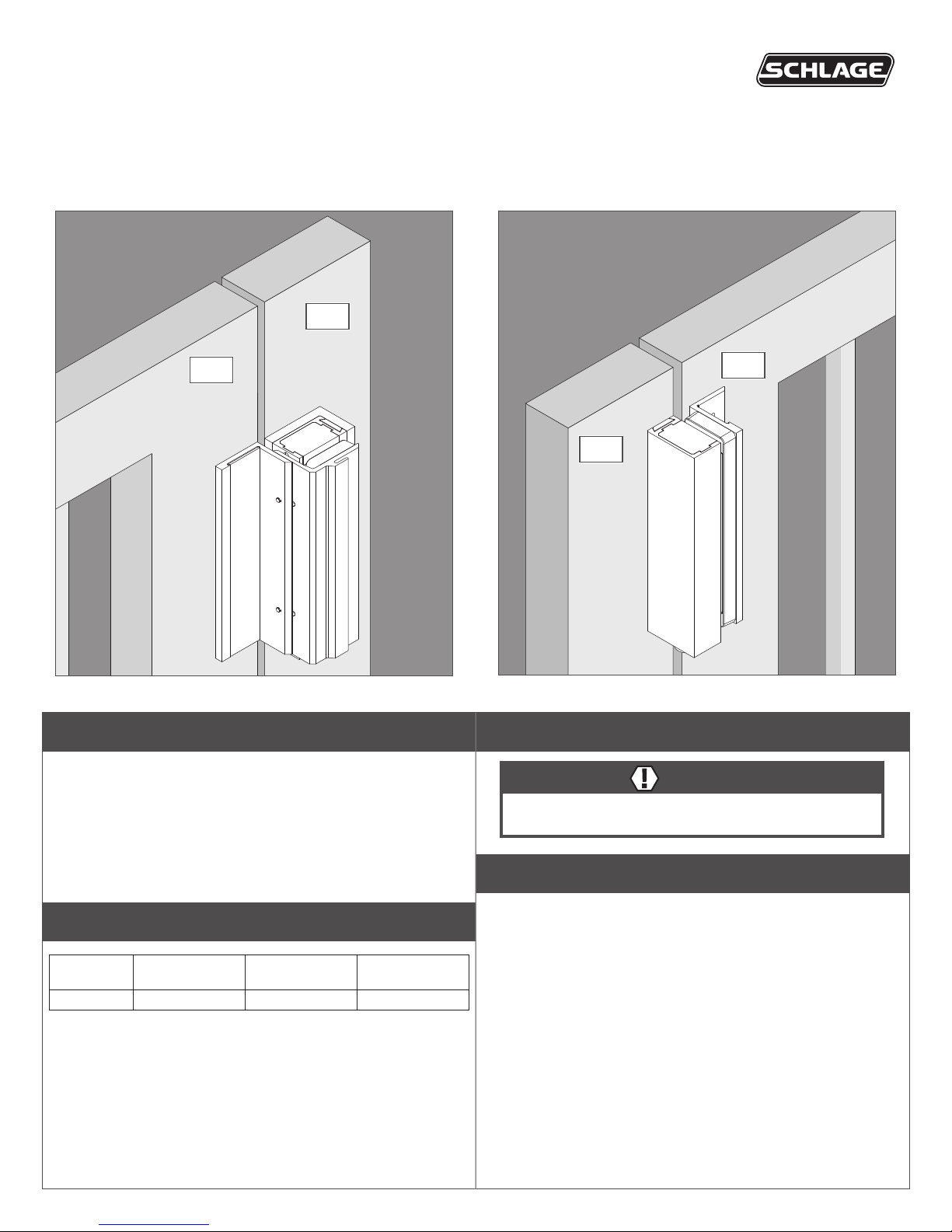

Swinging Application

For swinging application, go to page 3.

Sliding Application

For sliding application, go to page 5.

Electromagnetic Locks

M490G

Installation Instructions

Gate Gate

Post

Features

Magnetic Bond Sensor (MBS)

Detects proper bond between magnet and armature. It can be

monitored remotely.

Door Position Switch (DPS)

Indicates whether door is open or closed. This feature is used in

conjunction with the MBS.

Electrical Speciﬁcations

Model

Amps (12VDC)

Per Lock

Amps (24VDC)

Per Lock

Holding Force

(lbs) Per Lock

M490G 0.650 0.350 1500

Warnings and Cautions

WARNING

Warnings indicate potentially hazardous conditions, which if not

avoided or corrected, may cause death or serious injury.

Pre-Installation Considerations

• Use ONLY the hardware provided for mounting this product.

• Follow the installation procedure as described in this manual.

• Operational temperature range is -31°F to 151°F (-35°C to 66°C).

• This product can be rehanded. Determine the proper door

handing before installing the product. See page 2 for rehanding

instructions.

Rehanding Instructions

1 Remove housing screws.

2 Slide out top endcap.

3 Slide out bottom endcap and magnet.

LDo not pull wires completely through.

4 Flip the housing 180°.

5 Remove the bolts from both endcaps, ﬂip 180°and

reinsert into bottom of endcaps.

NOTE: Be careful to not pinch any cables in the bottom endcap with the

screw!

6 Slide the magnet and bottom endcap into the

housing.

7 Slide in the top endcap.

8 Insert and tighten endcap screws.

Swinging Lock Installation

1 Place template and mark holes.

a. Place template on gate and post surfaces as marked on

template.

b. Mark holes and prepare them per template.

2 Install magnet assembly to non-moving post.

2a Attach L-Bracket to gate.

Actual Size (4x)

2b Attach mounting bracket to L-Bracket.

Actual Size (4x)

Actual Size (2x)

2c Attach magnet to bracket.

Actual Size (2x)

3 Install armature to moving part of gate.

3a Attach TJ bracket to gate.

Actual Size (4x)

3b Install cover plate.

a. Slide cover plate onto bracket.

b. Install set screw.

Actual Size

3c Attach armature holder to second TJ bracket.

TJ Bracket

Armature

Holder

Actual Size (2x)

3d Attach armature plate to armature holder.

Flat Washer

Star Locking Washer

Cone Washer

Armature Bolt *

Actual Size

Armature

Plate TJ Bracket

* Armature bolt must be tightened to 120 in-lbs. Replace with bolt in Gate

kit. M490 armature must be disassembled to replace armature bolt.

WARNING

Backing off the bolt after tightening will loosen the thread-

locking patch, which may allow the bolt to loosen over time.

3e Attach two TJ brackets together.

Actual Size (4x)

Actual Size

3f Align magnet to armature.

a. Close gate.

b. Press magnet to fully engage with armature.

c. Fully tighten two screws and set screw to lock position.

Press

armature to

magnet

Two (2)

screws

For Wiring Installation, see page 8.

LNote: Some warming of the device under routine operation is

normal.

Sliding Lock Installation

1 Place template and mark holes.

1. Place template on gate and post surfaces as marked on template.

2. Mark holes and prepare them per template.

2 Install armature to moving part of gate.

2a Attach armature holder to TJ bracket.

Actual Size (2x)

2b Attach armature plate to armature holder.

Flat Washer

Star Locking Washer

Cone Washer

Armature

Plate

TJ Bracket

Armature Bolt *

Actual Size

* Armature bolt must be tightened to 120 in-lbs. Replace with bolt in Gate

kit. M490 armature must be disassembled to replace armature bolt.

WARNING

Backing off the bolt after tightening will loosen the thread-

locking patch, which may allow the bolt to loosen over time.

2c Install cover plate.

Actual Size

2d Attach Armature Assembly to moving part of gate.

Actual Size (2x)

3 Install magnet assembly to non-moving post.

3a Attach mounting bracket to post.

a. Attach bracket with two screws through two slotted holes.

b. Leave screws loose so that bracket can adjusted.

Actual Size (2x)

Loosely install

screws

3b Attach magnet to bracket.

a. Slide magnet assembly onto mounting bracket.

b. Secure magnet with two screws.

Actual Size (2x)

Loosely install

screws

3c Align magnet to armature.

a. Press magnet to fully engage with armature.

b. Mark bracket location.

3d Remove magnet.

3e Fully attach bracket.

a. Check bracket alignment with marks.

b. Fully tighten two screws in slotted holes.

c. Drill and tap four (4) remaining holes for #10-24 screws.

d. Fully tighten all screws.

3f Reinstall magnet and secure with two screws.

Actual Size (2x)

Loosely install

screws

For Wiring Installation, see page 8.

LNote: Some warming of the device under routine operation is

normal.

Printed in U.S.A.

23697287 Rev. 09/17-e

Customer Service

1-877-671-7011 www.allegion.com/us

Wiring Installation

1 Attach wiring per information shown.

24 Volt DC,

Power Input

DC (+) Red

Violet

Brown

DC (-) Black

12 Volt DC,

Power Input

Red

DC (+) Violet

Brown

DC (-) Black

DPS: 0.25A, 30VDC,

Resistive

NO Blue

NC Yellow

CGreen

MBS: 1A, 30VDC,

Resistive

NO Gray

CWhite

2 Connect conduit to lock.

Z\x” Conduit
