Schlage BE499WB Manual de usuario

Backup

Key

Touchscreen

Assembly

Battery

Cover

Inside

Assembly

Backplate

Bolt

Reinforcement

Screws

Inside Assembly

Screws

Backplate

Screws

Bolt/Strike

Screws

Parts

Strike and

Reinforcement

Plate

Reinforcement

Strike

Visit alle.co/encodeplus for an improved

installation experience. Access online interactive

instructions, user guide, warranty, and reference

information.

Start here!

alle.co/encodeplus

Communication Icon

•Flashes when lock is connecting

to WiFi to check for updates.

Low Battery Icon

•Flashes after code is entered

when battery is low.

•Solid when battery is critical.

The lock will not work without

new batteries.

Programming and Input

LED

•Amber when using manual

programming mode.

Home Button and

Checkmark Icon

•Turns on keypad backlight.

•Checkmark ashes when

code entry is correct.

•Checkmark ashes when

manual programming is

successful.

Lock Button and “X” Icon

•Locks the lock.

•“X” ashes for a wrong user

code.

Touchscreen

step

Remove existing lock.

Remove the entire deadbolt, including the bolt.

You may also want to remove the strike. A standard

Schlage deadbolt is shown. Check with your specic

deadbolt manufacturer if you need help.

Tools

Don’t use a power drill!

Phillips screwdriver

1 2 3

4 5

Need Help?

Visit alle.co/encodeplus

step

Actual Size

Make sure the

word “TOP” is

facing up.

Install the bolt.

You may have to adjust your bolt length. Make sure the slot in

the bolt is centered in the hole.

Slot is

centered

in the hole.

No change

needed.

Twist the

faceplate to

extend. Keep

twisting

until 2 ¾”.

step Need Help?

Trouble installing the strike reinforcer?

Visit alle.co/encodeplus

Install the strike into the door frame.

Actual Size

Install this

strike reinforcer

for enhanced

security.

Reinforcement

strike.

Optional

If you have a window next to your door, you may not be

able to use the longer wood screws to install the strike. Do

not reuse existing strike for proper operation.

step

Install the touchscreen.

Route the cable through the door BELOW the bolt. Align the

tailpiece as shown and push the touchscreen onto the door.

Is it hard to install the touchscreen?

Is the tailpiece not installing correctly?

If your through hole seems too small, you

may need to remove the hole adapter. Visit

alle.co/encodeplus.

The bump on

the tailpiece

aligns with the

slot in the bolt.

step

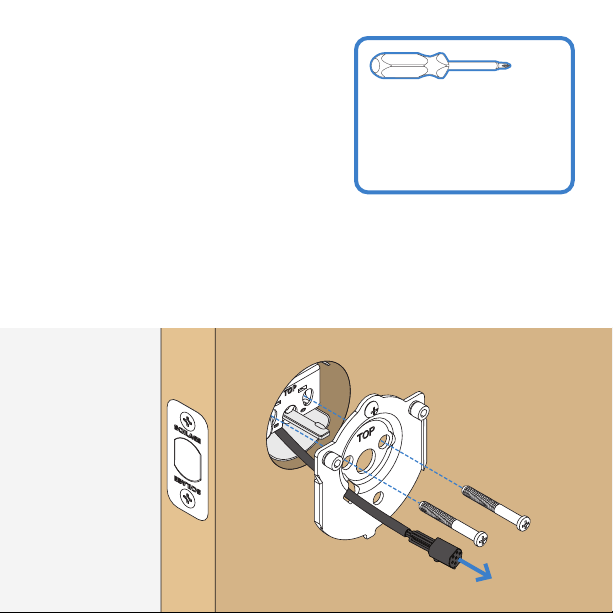

Install the backplate.

Route the cable under the bolt and through the hole on

the bottom of the backplate. Secure the backplate with

screws. Make sure the outside touchscreen is straight before

tightening screws all the way.

Don’t use a power drill!

You may damage your

lock!

Phillips screwdriver

1 2 3

4 5

step

Connect the cable.

Tuck the cable and connector in the space above the spindle.
