Schlage CO-Series Manual de usuario

CO-Series with Mortice

Installation Instructions

ToolsIncluded

Right Hand Shown, Left Hand Opposite

1Prepare Door

See template.

IfInsulator Strip isPresent,CarefullyRemoveit

Inside

Outside

Please refer to Legge 990 Mortice instructions for

installation of the mortice lock

Check Lever Handing

See "Rehanding" on back page if pin is not towards

latch

Install Cylinder and Lever

c90˚

90˚

Until Cam Stops

Align asShown

Keyed Lever Interchangeable Cores

15°

Outside

AlignTriangles

Wrench

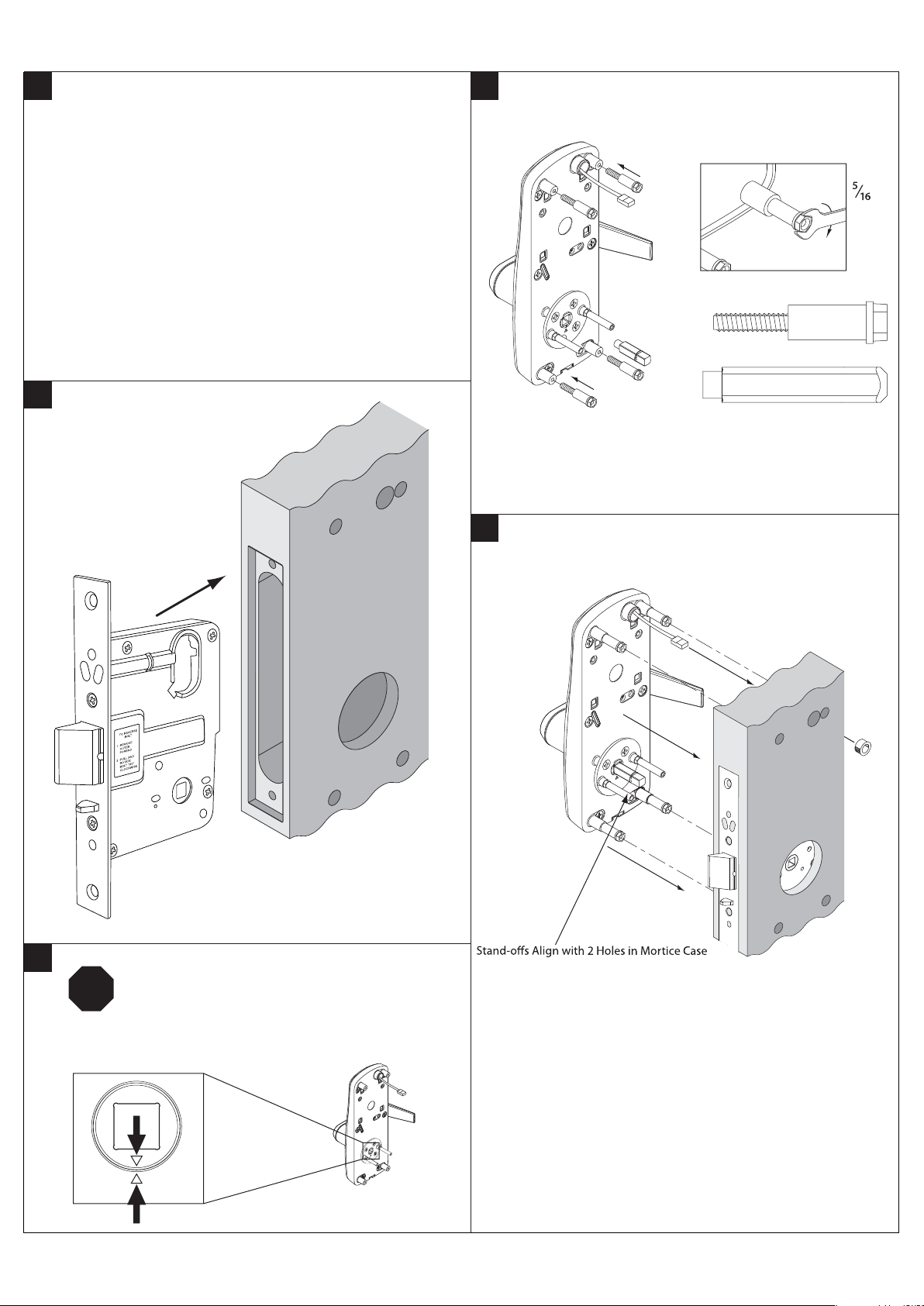

Slide Mortice Lock Into Door

9Install Bushing and Outside Escutcheon

Prepare Legge 990 Mortice Lock for installation.

Please refer to Legge 990 Mortice Lock installation guide

for more details (in lock box).

Install Outside Spindle and Standoffs

10 Install Plate and Spindle

TOP

Inside

Align as Shown

Inside

For door thickness

>42mm

For door thickness

35mm - 42mm

16 Test Mechanical Function

a.Rotate lever down and verify that latch retracts fully

17 RouteWires and Install Inside Escutcheon

Release lever and verify that latch extends fully

40 / 50

Ribbon Cable

Battery Cable

Classroom/Storeroom (70) Function

Office (40) or Privacy (50) Functions

BTuck Cable and Wires as Shown

!Plug MUST Be on Right

Install Battery Holder and Strap

IMPORTANT - when installing the battery pack, the plug for

the pack must be on the right.

20 Connect Battery Plug and Tuck as Shown

Cable

!Red Wire MUST Be On Left

Install Ribbon Cable

IMPORTANT - the red wire must be on the left.

Follow Steps Below if 40 or 50 Function Only

If 70 Function, Go to Step 22

Cap Pin (2 Positions)

2 Notches from Full

Classic

Everest or Primus

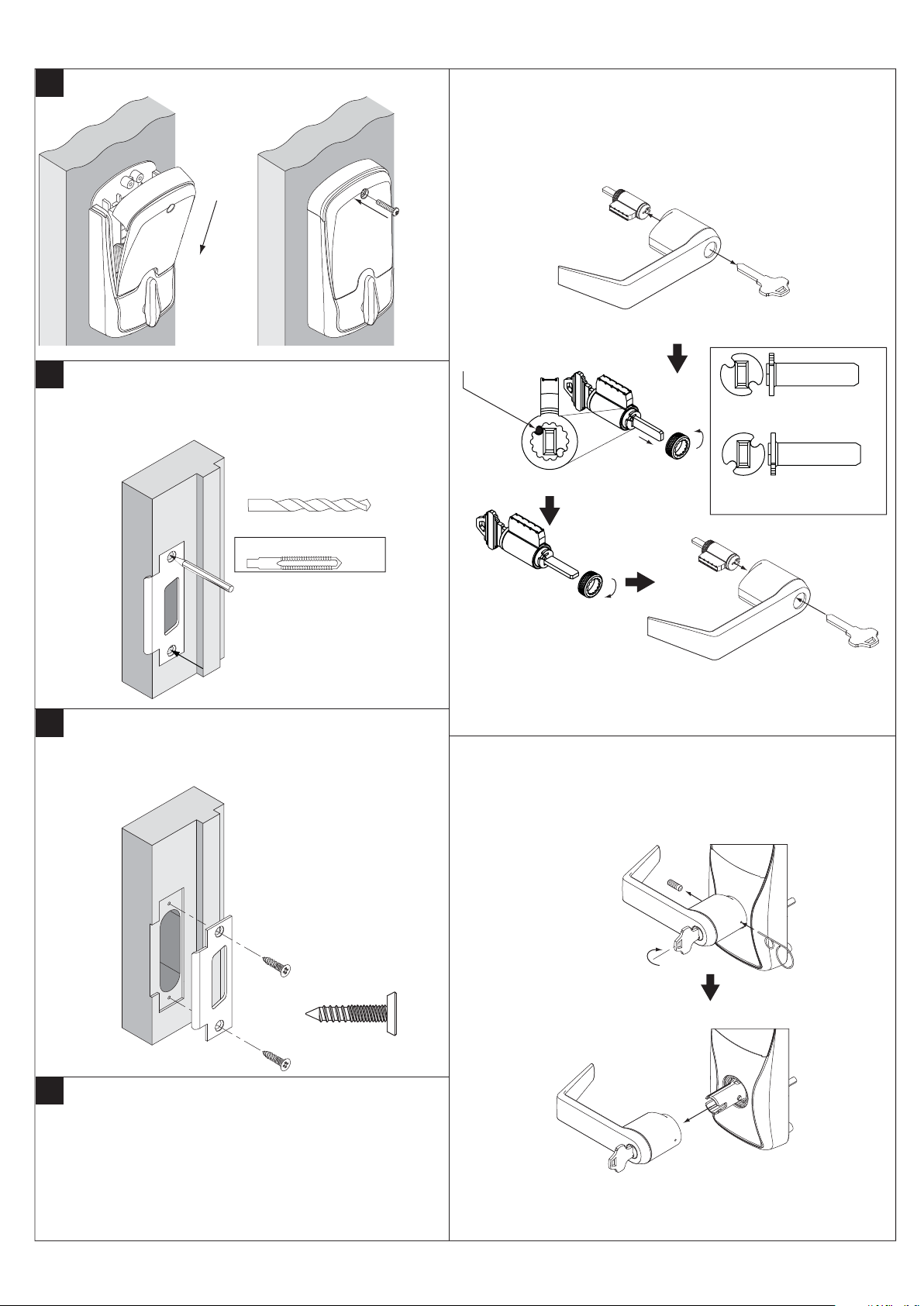

Future Lever Removal

Changing the Cylinder’sTailpiece

Install Strike

Setup and Operation.

After Installing the Lock, See the User Guide for

#16

#12-24

Wood

Metal

Prepare Frame

Rehanding

RHR

LHR

Remove Reader and Cover From Baseplate

Remove Spring Cage, Align Arrow with Latch, and Reinstall

Reinstall Cover and Reader onto Baseplate

a. If Present, Remove USB plug

Use Loctite

NOTE: On Keypad Only Applications, Reader is Not

Removable!

Allegion (New Zealand) Limited

Phone 0800 477 869

Website www.allegion.co.nz

Allegion (Australia) Pty Ltd

Phone 1800 098 094

Website www.allegion.com.au 12/2013
