Schick Handel DT596/ID Manual de usuario

2 -Wire Intercom System

DT596(F)/ID User Manual

DT596/ID DT596F/ID

DT-ENG-596(F)ID-V1 110S923

RF CARD

Rainy Cover

DT596/ID

DT596F/ID

Side View Mounting box

RF CARD

Camera Lens

ID card window

Speaker

Indicator

Nameplate

Call Button

Microphone

90 mm

28 mm

176 mm

220 mm

119 mm

ID card window

Camera Lens

Speaker

Nameplate

Call Button

Screws for panel

mounting

Microphone

RF CARD

1.Parts and Functions

2.Terminal Descriptions

BUS

S1+ S2+ S-

MIC adjustment

(Lock Control Jumper)

Door Station Code DIP

Main Connect Port

SPK adjustment

1 2 3 4

ON DIP

JP/LK

RS485 Connect Port

1 2 3

-1-

 JP/LK(Lock Control Jumper): 

 Doorstation Code DIP: 

 RS485:

 MIC

 SPK

 Main Connect Port:

•

 

 

 



3.Door Station Mounting

adjust camera angle

1 2

Drill holes in the wall to match the size of

screws and attach the rainy cover to the wall.

Attach the panel to the rainy cover Use the screwdriver and the screw

to fix the panel

Connect the cable correctly and adjust

right angle for camera

DT596/ID Mounting

-2-

DT596F/ID Mounting

90mm

174mm

52mm

Drill a hole in the wall to match the size of the

mounting box and attach to the wall.

Attach the panel to the mounting box and

use screws supplied to fix the panel

Place name label

Connect the cable correctly and adjust

right angle for camera

adjust camera angle

Adjusting Camera Angle







-3-

Placing Name Label





RF CARD

4. System Wiring and Electric Lock Connection

Basic Connection

AC~

monitor

DPS PS4

L1 L2 PL S1+ S2+ S-

-4-

Electric Lock Connection

Door Lock Controlled with Internal Power



 

 

 

 Unlock Mode

Door Lock Controlled with Dry Contact



 

 

 

 Unlock Mode

 

 

LOCK

BUS PL S1+ S2+ S-

LOCK

2nd

1ST

2nd

*1ST

Jumper position in

Connect two locks

2-3

1 2 3

LOCK

BUS PL S1

+S-

Jumper position in

Connect one lock

2-3

1 2 3

-5-

 

Unlock parameter setting(set on monitor)











LOCK

BUS PL S1

+S-

Take off the Jumper

POWER

SUPPLY

LOCK

BUS PL S1

+S-

Take off the Jumper

POWER

SUPPLY

LOCK

-6-

Manual

Monitor

Memory

Playback

Album User Setup

09/30/2010 Thu.16:41

Intercom Multimedia

？About

H/W : DT14-CT a1.3

S/W: V17.11.418.00

Local addr: ---

Unlock timing: ---

Video standard: -

UI-CODE: ---

MCM-VER.: ---

Updated: ---

Home

Installer

setup

Caliber

TouchScreen

Code Number:[----]

[0010]#:Remove all remote control

[0011]#:Add remote control

[8000]#:Set as master unit 0

[8001]#:Set as slaver unit 1

[8002]#:Set as slaver unit 2

[8003]#:Set as slaver unit 3

[8004]#:Set as guard unit

[8005]#:Set as not guard unit

[8006]#:Panel on as slaver unit called

[8007]#:Panel off as slaver unit called

[8008]#:Date format:MM/DD/YYYY

[8009]#:Date format:DD/MM/YYYY

[8010]#:Set lock mode to 0

[8011]#:Set lock mode to 1

[8021]~[8029]

#Set the lock time of 1~9s

Multi language settings:

---

Cancel

Installation settings:

1.Touch item on main

menu page.

2.Touch the screen anywhere

and hold for 2s.

3.Touch Installer setup item

4.A digital keypad and setting

instructions will be showed.

Multi Door Stations Connection

85~260VAC

DPS PS5

monitors

L1 L2 PL S1+ S2+ S- L1 L2 PL S1+ S2+ S-L1 L2 PL S1+ S2+ S-L1 L2 PL S1+ S2+ S-

123 4

1# Camera

ID=00

ID=10

ID=01ID=11

2# Camera3# Camera4# Camera

DBC4

A B C D

BUS

-7-

Basic IN-OUT Wiring Mode

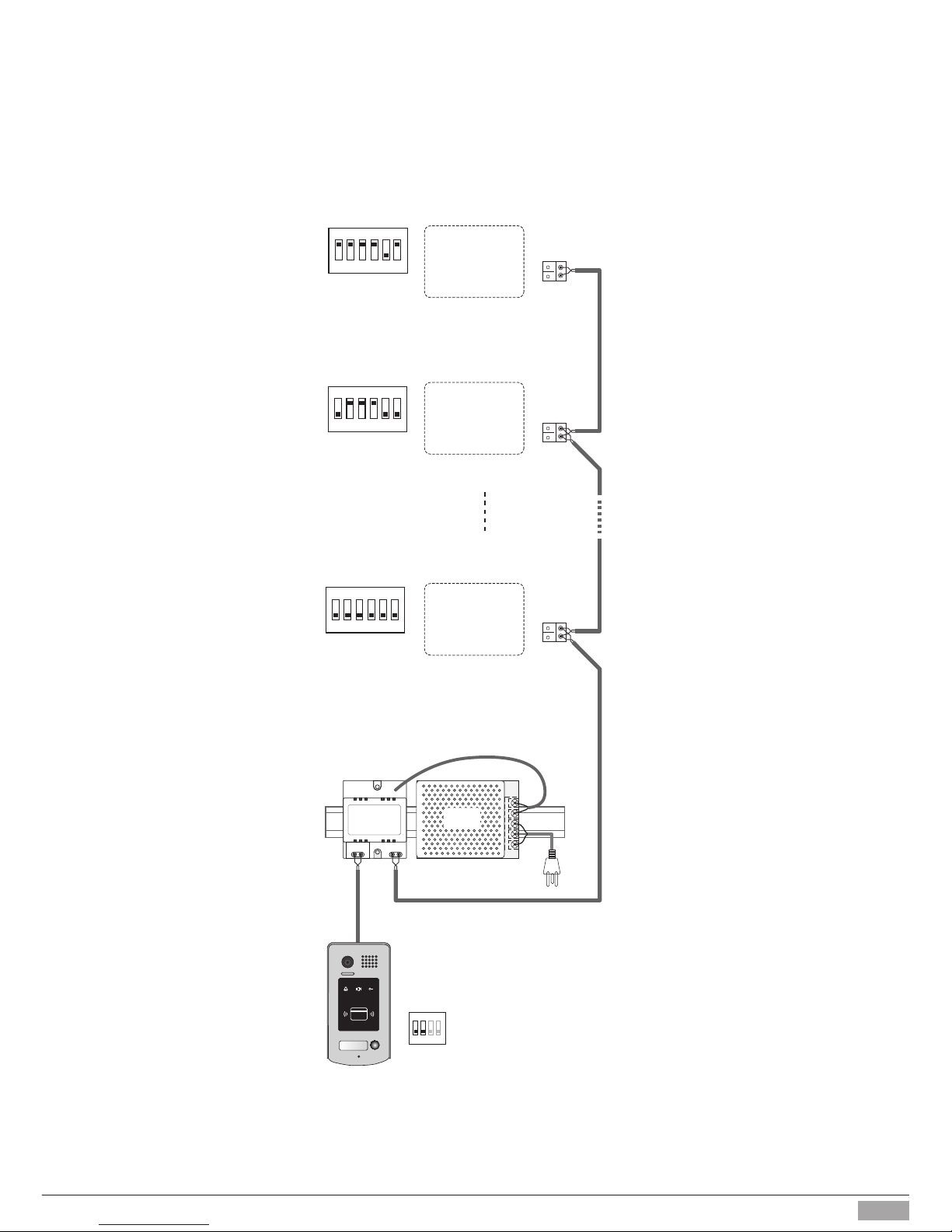

Multi Monitors Connection

Code=0, DIP-6=off

Code=14, DIP-6=off

Code=15, DIP-6=on

1 2 3 4 5 6

monitor

123 4

ID=00

85~260AC

DPS PS5

RF CARD

-8-

5.DIP Switches Setting

DIP Switches Settings of Monitor

DIP Switches Settings of Door Station





Setting Item Bit state Descriptions

































 



1234

ON(1)

OFF(0)

-9-
