Scag Power Equipment CHEETAH SCZ Guía de configuración

ILLUSTRATED

PARTS

MANUAL

Part No. 06209

Printed 11/10

Printed in USA

Scag Power Equipment

Division of Metalcraft of Mayville, Inc.

ModelSCZ

Cheetah

IPL

THIS MANUAL CONTAINS THE ILLUSTRATED PARTS LIST FOR MODELS:

SCZ61V-31FX with a serial number of F5000001 to F5099999

SCZ61V-32BV with a serial number of F5100001 to F5199999

SCZ72V-34FX with a serial number of F5200001 to F5299999

Table of Contents

61V & 72V CUTTER DECKS .............................................................................................................................2

CUTTER DECK CONTROLS .............................................................................................................................4

SHEET METAL COMPONENTS ........................................................................................................................6

SCZ ROLL-OVER PROTECTION SYSTEM.......................................................................................................8

SCZ SUSPENSION SYSTEM ..........................................................................................................................10

SCZ STEERING & FOOT PLATFORM COMPONENTS..................................................................................12

SCZ DRIVE SYSTEM COMPONENTS ............................................................................................................14

SCZ SPEED CONTROL COMPONENTS ........................................................................................................16

SCZ BRAKE COMPONENTS ..........................................................................................................................18

SCZ HYDRAULIC SYSTEM .............................................................................................................................20

SCZ FUEL SYSTEM - EPA PHASE 2 ..............................................................................................................22

SCZ FUEL SYSTEM - EPA PHASE 3 ..............................................................................................................24

SCZ ENGINE & ATTACHING PARTS ..............................................................................................................26

ZT-5400 TRANSAXLE ASSEMBLY..................................................................................................................28

SCZ ELECTRICAL SYSTEM ...........................................................................................................................30

REPLACEMENT DECALS AND INFORMATION PLATES .............................................................................32

SCZ ELECTRICAL SCHEMATIC .....................................................................................................................34

Section 8

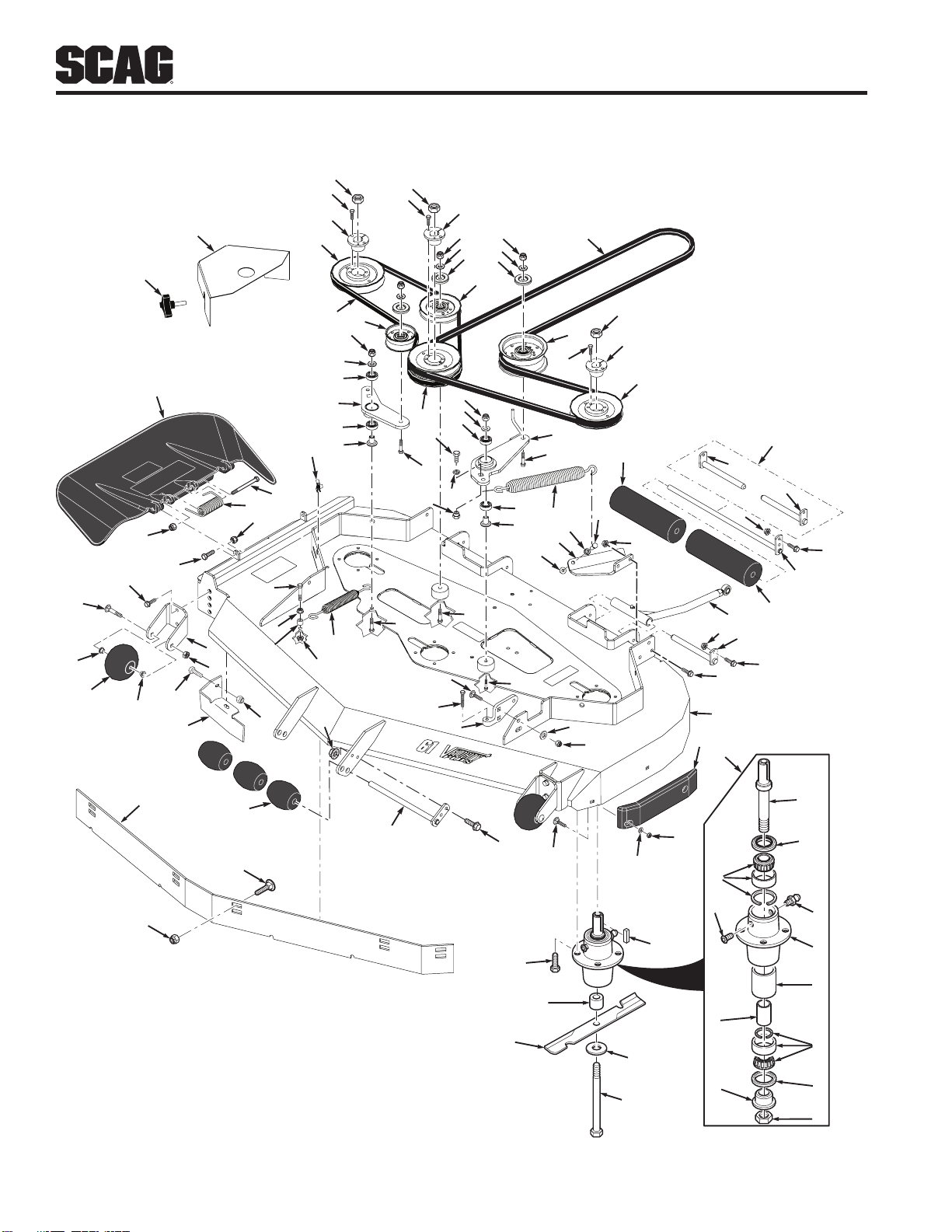

61V & 72V CUTTER DECKS

72V Only

714

35 33

62 61

84 83

Section 8

61V & 72V CUTTER DECKS

Ref.

No. Part No. Description 61 72 Ref.

No. Part No. Description 61 72

425431

425417

481625-01

04020-09

04001-172

48926

483286

484050

483157

484159

04021-09

04043-04

424367

48181

483741

484088

483210

483415

483287

484051

48224

461946

43689

04001-31

04001-17

04030-05

43686

461940

04001-54

483246

48038

451118

45944

04019-04

425335

04001-136

462225

462226

451240

04001-09

04021-10

04001-19

462266

46xxxx

483176

483174

461663

04021-04

04040-04

04003-12

43589

481024

Belt Cover, 61V

Belt Cover, 72V

Knob w/Stud

Nut, 5/8-11 UNC

Bolt, Hex Head 1/4-20 x 1”

Tapered Hub, 1.125” Bore

Pulley, 6.32” Dia.

Pulley, 7.50” Dia.

Belt

Nut, Elastic Stop 3/8-16

Flatwasher, 3/8-.391 x .938

x .105

Dust Shield

Pulley, Idler

Belt, Deck Drive

Pulley, 5” Idler

Pulley, 3-1/2” Idler

Pulley, 6.32” Dia. Double

Groove

Pulley, 7.50” Dia. Double

Groove

Bearing

Idler Arm Assy. (incl. #16)

Pivot, Idler

Bolt, Hex Head 3/8-16 x

2-1/2”

Bolt, Hex Head 7/16-14 x 1”

Lockwasher, 7/16” Spring

Boss, Spring Anchor

Idler Arm Assy. (incl. #16)

Bolt, Hex Head 3/8-16 x 3”

Spring, LH Cutter Deck

Guide Roller

Shaft Weldment

Nut, Serrated Flange 3/8-16

Spring Mount, SCZ

Bolt, Hex Head 3/8-16 x

1-1/2” Grade 8

Pusharm Assy., LH

Pusharm Assy., RH

Rod Weldment, Pusharm

Bolt, Hex Head 5/16-18 x 1”

Nut, Elastic Stop 5/16-18

Bolt, Hex Head 3/8-16 x 1”

Cutter Deck w/Decals

Wear Pad

Spindle Assembly

Nut, Center Lock 5/16-18

Flatwasher, 5/16-.344 x .688

x .065

Bolt, Carriage 5/16-18 x 3/4”

Shaft, Spindle

Seal, Top

481022

48114-04

48677

43644

43312

43296

481025

43297

481035

04001-41

04043-06

482881

482882

43590

04001-176

04063-08

45944

482295

424841

424917

04003-23

424209

424856

481632

48100-15

422478

04003-26

04021-05

04017-27

04021-11

04040-07

461929

483167

04003-40

04001-54

04001-46

483703

43063

04001-12

461846

462132

04001-108

483378

Bearing Assembly

Grease Fitting

Relief Fitting, Spindle

Spindle Housing

Spacer, Outside

Spacer, Inside

Seal, Bottom

Spindle Bushing

Nut, Special 1-1/16 - 18

Bolt, Hex Head 5/8-11 x

9-1/2”

Flatwasher, 5/8-.688 x 1.75

x .134 HD

Cutter Blade, 21”

Cutter Blade, 24-1/2”

Spacer, Spindle Bottom

Bolt, Hex Head 5/16-18 x

1-3/4” Grade 8

Key, 1/4 x 1/4 x 2”

Shaft Weldment

Wheel, Anti-Scalp

Bafﬂe, Flange - 61V

Bafﬂe, Flange - 72V

Bolt, Carriage 3/8-16 x 1”

Bafﬂe, Turbo - 61V

Bafﬂe, Turbo - 72V

Wheel, Anti-Scalp

Bushing, .376 ID Oilite

Bracket, Anti-Scalp Wheel

Bolt, Carriage 3/8-16 x 4”

Nut, Center Lock 3/8-16

Bolt, Hex Head 3/8-16 x 1”

Serrated Flange

Nut, Elastic Stop 7/16-14

Flatwasher, 1/2-.531 x 1.062

x .095

Lever Assembly, Deck Level

Bolt, Deck Adjust

Bolt, Carriage 7/16-14 x

1-1/4”

Bolt, Hex Head 3/8-16 x 3”

Bolt, Hex Head 3/8-16 x

2-1/4”

Deck Spring

Spacer

Bolt, Hex Head 5/16-18 x

1-3/4”

Discharge Chute Assy., 61V

Discharge Chute Assy., 72V

Bolt, Hex Head 5/16-18 x

4-1/2”

Spring, Discharge Chute

Section 8

CUTTER DECK CONTROLS

CUTTER DECK

13 14

15 16

2327 28

29 31

Section 8

CUTTER DECK CONTROLS

Ref.

No. Part No. Description

481477

462253

43668

484191

483345

425574

425361

484115

43487

04050-10

484141

481765

481766

04020-27

04020-28

04001-72

04040-07

04003-04

04105-01

04030-07

04019-03

04019-04

04021-09

04001-22

04001-136

04021-07

481598

424504

04004-44

43526

43527

04020-09

04019-04

48540

48114-04

04040-09

04061-07

04001-20

04003-40

04040-11

04021-11

Grip, Deck Latch

Deck Latch Assembly w/Grip

Spacer, Deck Latch

Spring, Torsion Return Lever

Ring Pin Assembly w/Lanyard

Adjustment Bracket, Upper Cut Height

Adjustment Bracket, Lower Cut Height

Slide, Height Adjustment

Pin, Deck Lift

Retaining Ring, 1/2” External “E”

Linkage, Deck Lift

Rod End, 1/2-20 RH Female

Rod End, 1/2-20 LH Female

Nut, 1/2-20 UNF Jam

Nut, 1/2-20 UNF LH Jam

Bolt, Hex Head 1/2-13 x 2”

Flatwasher, 1/2-.531 X 1.062 X .095

Bolt, Carriage 5/16-18 x 1”

Capscrew, 5/8-11 x 1-1/2”

Lockwasher, 5/8” Spring

Nut, Serrated Flange 5/16-18

Nut, Serrated Flange 3/8-16

Nut, Elastic Stop 3/8-16

Bolt, Hex Head 3/8-16 x 2-3/4”

Bolt, Hex Head 3/8-16 x 1-1/2” Grade 8

Nut, Elastic Stop 1/2-13

Spring, Deck Lift

Pedal, Foot Lift

Stud, 5/8-11 x 22”

Swivel Joint, LH

Swivel Joint, RH

Nut, 5/8-11 UNC

Nut, Serrated Flange 3/8-16

Chain

Grease Fitting, 1/4-28 Self Tap

Flatwasher, 5/8”

Cotter Pin, 3/16 x 1”

Bolt, Hex Head 3/8-16 x 1-1/2”

Bolt, Carriage 7/16-14 x 1-1/4”

Flatwasher, 7/16-.500 x 1.25 x .083

Nut, Elastic Stop 7/16-14

Section 8

SHEET METAL COMPONENTS

12 10

26 18 17

16 15

2020

42 44 46

31 53

Section 8

SHEET METAL COMPONENTS

Ref.

No. Part No. Description Ref.

No. Part No. Description

462265

04040-05

424634

483507

424633

04009-07

04001-21

43740

483471

04010-30

425309

484194

04021-17

04003-07

04003-02

04019-02

484143

425400

481284

04104-01

425232

04019-04

04001-19

04041-11

04021-09

452145

425408

04001-32

425579

425582

425350

04019-03

04003-12

04110-03

425573

04001-14

04110-01

04003-12

452193

452194

484195

04021-20

481657

481025

451416

43584

43583

Hood Assembly w/Decals

Flatwasher, 3/8-.406 x .812 x .065

Lock, Hood Latch

Spring, Hood Latch

Latch, Hood

Bolt, Shoulder

Bolt, Hex Head 3/8-16 x 1-3/4”

Spacer, Hood

Disc, Anti-Friction

Screw, #8-32 x 1/2”

Belt Guard, Rear

Spring Clip

Nut, Elastic Stop #8-32

Bolt, Carriage 1/4-20 x 1/2”

Bolt, Carriage 1/4-20 x 3/4”

Nut, Serrated Flange 1/4-20

Hinge, Belt Cover

ROPS Heatshield

Bumper, Rubber

Button Head Capscrew, Torx 3/8-16 x 1”

Bumper, Rear

Nut, Serrated Flange 3/8-16

Bolt, Hex Head 3/8-16 x 1”

Flatwasher, 3/8-.406 x 1.5 x 7 Ga.

Nut, Elastic Stop 3/8-16

Mount Weldment, Hood

Brace, Hood Support

Bolt, Hex Head 3/8-16 x 1-1/4”

SCZ Skid Plate, Kawasaki FX

SCZ Skid Plate, Briggs & Stratton

Mounting Bracket, Fuel Tank Rear

Nut, Serrated Flange 5/16-18

Bolt, Carriage 5/16-18 x 3/4”

U-Nut, 3/8-16

Mounting Bracket, Fuel Tank Front

Bolt, Hex Head 1/4-20 x 1”

U-Nut, 1/4-20

Bolt, Carriage 5/16-18 x 3/4”

Caster Support Weldment, 61V

Caster Support Weldment, 72V

Cap, Grease

Nut, Elastic Stop 1”-14

Bearing w/Race

Seal, 2” OD x 1.625 Bore

Yoke Weldment

Spacer, Caster Wheel

Sleeve, Caster Wheel

9278

482621

48114-10

04001-167

04021-07

04001-28

04021-11

04030-05

462260

04003-04

04001-01

04019-02

425361

425574

425300

425299

04001-19

425422

481325-01

04024-02

04019-03

48661

Caster Wheel Assy.

Bearing

Grease Fitting

Bolt, Hex Head 1/2-13 x 9-1/2”

Nut, Elastic Stop 1/2-13

Bolt, Hex Head 7/16-14 x 1-1/4”

Nut, Elastic Stop 7/16-14

Lockwasher, 7/16-” Spring

Mainframe Assy. w/Decals

Bolt, Carriage 5/16-18 x 1”

Bolt, Hex Head 1/4-20 x 3/4”

Nut, Serrated Flange 1/4-20

Adjustment Bracket, Lower Cut Height

Adjustment Bracket, upper Cut Height

Fan Cover, RH

Fan Cover, LH

Bolt, Hex Head 3/8-16 x 1”

Cover, Battery Box

Knob w/Stud

Nut, Push-On 3/8”

Nut, Serrated Flange 5/16-18

Pad, Rubber

Section 8

SCZ ROLL-OVER PROTECTION SYSTEM

888

16 14

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Cortacésped de Scag Power Equipment

Scag Power Equipment

Scag Power Equipment SW36-8K Manual de usuario

Scag Power Equipment

Scag Power Equipment SFZ Manual de usuario

Scag Power Equipment

Scag Power Equipment GC-4D Manual de usuario

Scag Power Equipment

Scag Power Equipment SCZ61V-31CV-EFI Manual de usuario

Scag Power Equipment

Scag Power Equipment Turf Tiger STT61V-31EFI Manual de usuario

Scag Power Equipment

Scag Power Equipment STT-31BSG Manual de usuario

Scag Power Equipment

Scag Power Equipment Turf Tiger STT61V-31EFI-SS Manual de usuario

Scag Power Equipment

Scag Power Equipment STT-31BSG Manual de usuario

Scag Power Equipment

Scag Power Equipment ST 12B Tractor Manual de usuario

Scag Power Equipment

Scag Power Equipment Freedom Z SFZ36-18FS Manual de usuario

Scag Power Equipment

Scag Power Equipment SFZ52-23FS Manual de usuario

Scag Power Equipment

Scag Power Equipment STC Manual de usuario

Scag Power Equipment

Scag Power Equipment STHM Manual de usuario

Scag Power Equipment

Scag Power Equipment Turf Tiger STT61V-31EFI-SS Manual de usuario

Scag Power Equipment

Scag Power Equipment SW Manual de usuario

Scag Power Equipment

Scag Power Equipment SM-52 Manual de usuario

Scag Power Equipment

Scag Power Equipment Wildcat STWC48V-25CV Manual de usuario

Scag Power Equipment

Scag Power Equipment SW Manual de usuario

Scag Power Equipment

Scag Power Equipment SW32-481FS Manual de usuario

Scag Power Equipment

Scag Power Equipment MAG Manual de usuario

Scag Power Equipment

Scag Power Equipment SM-61 Manual de usuario

Scag Power Equipment

Scag Power Equipment SWZ Manual de usuario

Scag Power Equipment

Scag Power Equipment Turf Tiger Diesel Powered STT61V-25KBD Manual de usuario

Scag Power Equipment

Scag Power Equipment TIGER CAT STC48V-19KAI Manual de usuario

Manuales populares de Cortacésped de otras marcas

RHINO

RHINO 1958 Manual de usuario

Wolf Garten

Wolf Garten Compact plus 40 B Manual de usuario

Cub Cadet

Cub Cadet LTX 1045 Manual de usuario

Craftsman

Craftsman 917.378461 Manual de usuario

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manual de usuario

Challenge

Challenge CH18V2 Instrucciones de operación

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manual de usuario

DEWEZE

DEWEZE ATM-725 Manual de operación

Weed Eater

Weed Eater 180083 Manual de usuario

Husqvarna

Husqvarna Poulan Pro PP185A42 Manual de usuario

Better Outdoor Products

Better Outdoor Products Quick Series Manual de usuario

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manual de funcionamiento

MTD

MTD 795, 792, 791, 790 Manual de usuario

Toro

Toro Groundsmaster 3505-D Manual de usuario

Dennis

Dennis FT 610 Manual de usuario

AIRFORCE

AIRFORCE F-15 Gen 3 Manual de usuario

MTD

MTD 126-220-000 Manual de usuario

Toro

Toro 74806 Manual de usuario
