SATO ARGOX AME-3230W Manual de usuario
AME-3230W WLAN Setting
Quick Start Guide
Version: 1.0
Date: May. 24, 2022
i
Contents
Attaching the power supply...........................................................................................1
Connecting your printer to a host (computer)...............................................................1
Turning on your printer..................................................................................................1
Installing printer utility...................................................................................................1
Setting up WLAN connection.........................................................................................3
1
Attaching the power supply
1. Insert the power supply’s connector into the printer power jack or load a fully
charged battery in the printer
2. Plug the other end of the AC power cord into the wall socket.
Do not plug the AC power cord with wet hands or operate the
printer and the power supply in an area where they may get wet.
Serious injury may result from these actions!
Connecting your printer to a host (computer)
Make sure the host (computer) is powered on. Connect one end (mini-B) of the USB
cable to the USB (mini-B) port of the printer and then the other end (type-A) of the
USB cable to the USB (type-A) port of the host.
Turning on your printer
It is the best practice to turn on the printer after your printer is connected to the host
(computer) and the host is powered on.
Installing printer utility
1. Download the printer utility from ARGOX global website and start the installation
process.
2. Locate the installation file and click it.
3. Here, in the printer utility dialog box, click Next.
2
4. In this dialog box, follow the instructions to choose the installation path and then
click Next.
5. At this step, select a program folder and then click Next. Then, the UTILITY will
be installed automatically.
After finishing in installing this utility, a small icon of Printer Utility
will appear on your desktop. Double-click on the small icon to open
the software.
3
Setting up WLAN connection

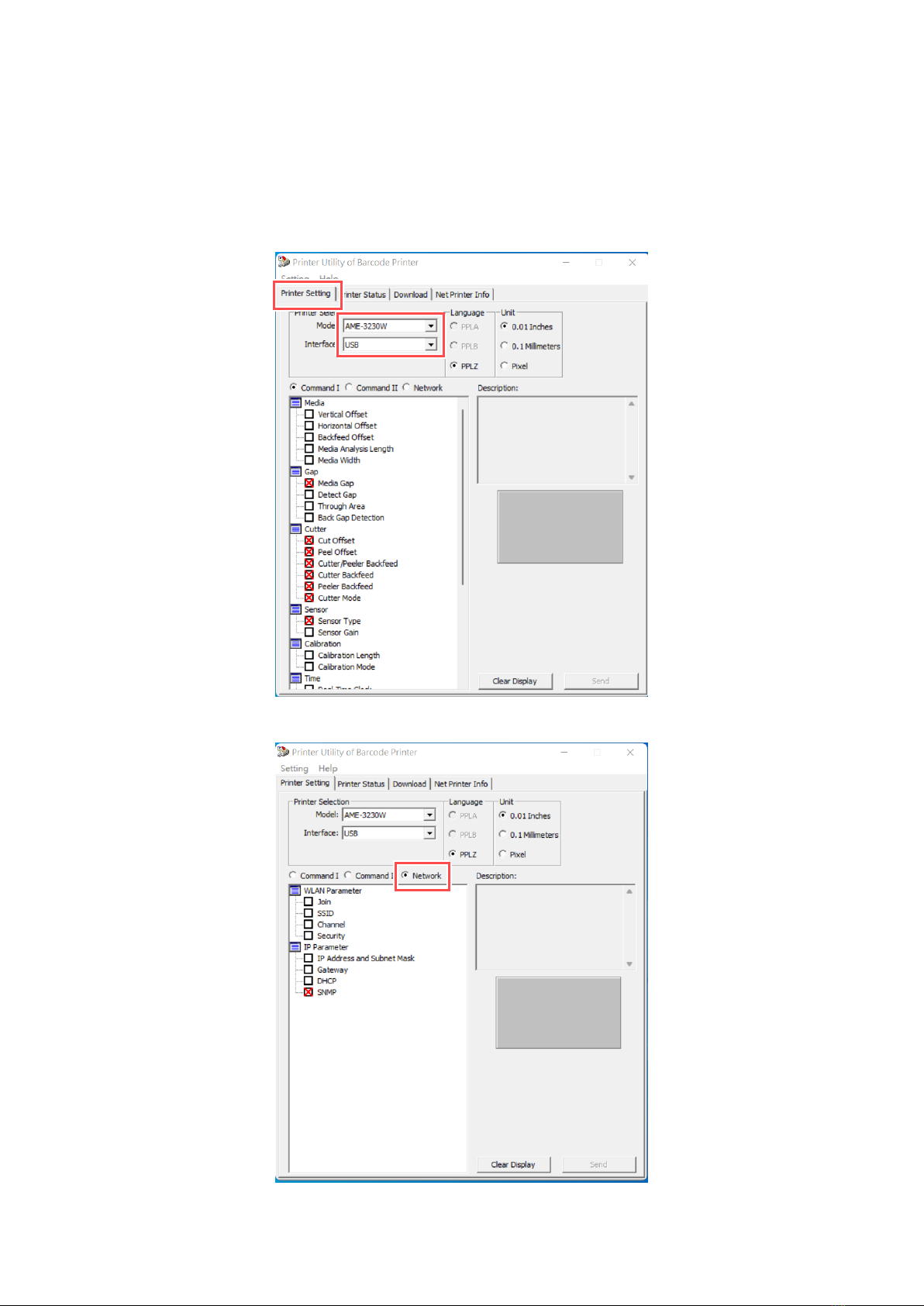

After opening the Printer Utility, click on the "Printer Setting" tab. Next, select
"AWE-3230W" in the Model drop-down menu and "USB" in the Interface drop-down
menu.
Next, select the "Network" setting, as shown below.
4
Please check the "Join" box in the WLAN Parameter item.After checking the box,
you can see the Joining selection mode in the lower right corner and, for example, you
can select "Access Point".
When the above steps are complete, click Send. In this case, please restart the device.
5
Please check the "SSID" box in the WLAN Parameter item. After checking the box,
you can see the SSID input field at the lower right corner and enter the SSID of the
Access Point you want to connect.
When the above steps are complete, click Send. In this case, please restart the device.
6
Please check the "Security" box in the WLAN Parameter item. After checking the box,
select an encryption level to be performed and then enter the encryption key to be set
according to the selected encryption level. When the two steps are complete, click
Send.
Check the "DHCP" box in the IP Parameter item. Finally, click Send to complete the
WLAN setting.
