Saramonic SR-AX100 Manual de usuario
Saramonic
Audio
Adapter
The
SR-AX100
is
a
2-channel
audio
adapter
for
shooting
videos
with
any
DSLR
camera
or
camcorder.
It
provides
a
compact
dual-mic
mounting
and
audio
mixing
solution.
User
Manual
SR-AX100
1
PRODUCT
INTRODUCTION
1.1General
Introductions
The
SARAMONIC
SR-AX100
is
a
2-channel
audio
adapter
ideal
for
shooting
videos
with
any
DSLR
camera
or
camcorder.
This
adapter
provides
you
with
a
compact
dual-mic
mounting
and
audio
mixing
solution,
which
allows
you
to
easily
mount
and
control
two
mics
or
wireless
receivers.
It
requires
no
batteries
or
power
source.
1.2
Highlights
1.2.1
Inputs
»
One
stereo
1/8"
(3.5
mm)
Mini-Jack
Input
to
connect
stereo
mic
»*
Two
mono
1/8"
(3.5
mm)
Mini-Jack
Inputs
to
connect
mono
mics
1.2.2
Output
*
One
stereo
1/8"
(3.5
mm)
Mini-Jack
outputs
audio
signal
from
the
adapter
to
the
camera.
1.2.3
Dual
Trim
Control
Knobs
»
Adjust
the
signal
of
each
channel
to
the
optimum
recording
levels
1.2.4
Mono
/Stereo
Switch
>»
select
mono
or
stereo
output
mode
The
Mono mode
is
for
one
mono
microphone
recording,
it
could
send
the
mono
audio
signal
to
each
channel
and
mix
them
together
to
output
stereo
audio
signal.
The
Stereo
mode
is
for
one
stereo
microphone
or
two
mono
microphones
recording,
it
provide two
separate
channels
of
audio.
1.2.5
Three
Integrated
Mounting
Shoes
»
Attach
a
variety
of
mics
or
wireless
receivers
1.2.6
Passive
Operation
Requires
No
Batteries
1.2.7
Compact
Shaped
With
Die-cast
Aluminum
Chassis
1.3
Specifications
Input
Level
MIC
setting:
-35
dBu
minimum
Gain
Unity
Frequency
Response
10
Hz
to100
kHz
(+/-
0.5
dB)
Dimensions
L
76.0
x
W
59.5
x
H
55.0
mm
Weight
158g
(5.4
oz.
)

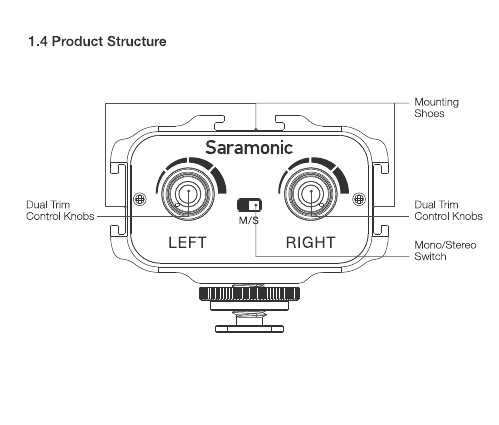

1.4
Product
Structure
Mounting
Shoes
Dual
Trim
Control
Knobs
Dual
Trim
Control
Knobs
Mono/Stereo
Switch
Stereo
Input
REO
RIGHT
Stereo
Output
Cold
Shoe
2
Quick
Start
Guide
2.1
Mount
the
SR-AX100
on
your
camera’s
hot
shoe
2.2
Connect
the
supplied
signal
transmission
line
from
the
output
jack
of
the
adapter
to
the
MIC
input
of
DSLR
camera
or
camcorder.
Note:
Please
switch
off
the
AGC
function
of
your
camera
or
camcorder.
2.3
Mount
self-powered
camera
microphones
or
wireless
mics
on
the
top
or
sides
shoes
of
the
adapter.
2.4
Connect
mono
mics
to
the
corresponding
LEFT
or
/
and
RIGHT
inputs
on
the
adapter.
Connect
stereo
mics
to
the
STEREO
input.
2.5
Set
the
M/S
switch.
When
using
one
channel,
switch
to
M
for
mono.
When
using
two
channels,
switch
to
S
for
stereo.
2.6
In
case
of
any
distortion,
you
should
initially
set
the
LEFT
and
RIGHT
trim
controls
fully
clockwise.
When
recording,
you
could
adjust
the
knobs
flexibly
to
get the the
optimum
signal
levels.
2.7
If
your
camera
has
a
headphone
jack,
you can
plug
headphone
into
the
headphone
terminal
on
the
camera
to
monitor
the
audio.
3
Warranty
3.1
Saramonic
International
provides
one-year
warranty
under normal
use
and
lifelong
paid
maintenance
from
the
date you
purchase
this
product.
3.2
Saramonic
International
will
repair
or
replace
the
product
that
under
the
warranty
for
free
during
the
one-year
valid
period,
but
customers
should
pay
for
shipping
and
insurance
charges
for
returning
the
product
to
Saramonic
International.
3.3
This
warranty
only
applies
where
a
defect
has
arisen,
wholly
or
substantially,
as
a
result
of
faulty
manufacture,
parts
or
workmanship
during
the
warranty period.
3.4
This
warranty
does
not
cover:
a)
All
damages
caused
by
human
factors
include
using
the
products
in
abnormal
conditions
and
operate
the
device
without
according
to
the
user
manual.
b)
The
guarantee
is
invalid
if
defect
is
caused
by
incorrect
use,
poor
maintenance
or
if
persons
not
authorized
by
Saramonic
International
have
carried
out
alterations
or
repairs.
c)
Damages
caused
by
poor
transportation
after
you
purchased
this
product.
d)
Force
majeure
such
as
fire,
flood,
lighting
stroke,
earthquake.
e)
Customers
who
can
not
show
valid
invoice.
3.5
Wherever
you
purchased
our
products,
you
will
be
served
very
well
at
local
retailer.
3.6
Saramonic
International
reserves
all
the
rights
for
the
ultimate
interpretation.
4
Compatibility
Sensitive
3.5
mm
Mini-Jack
condenser
microphones
Any
comcorder
or
DSLR
camera
with
a
MIC
JACK
and
standarded
hotshoe
5
Packing
List
One
SR-AX100
main
unit
One
signal
transmission
line
User
manual
Warranty
card
