Digital Voice Recorder

INSTRUCTION MANUAL ICR-A181M

GB English

D Deutsch

F Français

E Español

GB-1

Please read this manual before use.

Keep the manual in a safe place for future

reference.

Your SANYO product is designed and

manufactured with high quality materials

and components which can be recycled

and reused.

This symbol means that electrical and

electronic equipment, at their end-of-life,

should be disposed of separately from

your household waste.

Please dispose of this equipment at

your local community waste collection/

recycling centre.

In the European Union there are separate

collection systems for used electrical and

electronic products.

Please help us to conserve the

environment we live in!

[SANYO ICR support] : For down loading the

instruction manual from our web side.

http://www.sanyo-audio.com/english/index.html

GB-2

Accessories

Headphones

x 1

External stereo microphone

Battery (AAA/LR03/HP16)

x 1

Original USB connection cable

x 1

GB-3

Contents

Precautions …………………………………………4

Controls ……………………………………………..5

Before use …………………………………………..7

Recording ………………………………………….12

Playback……………………………………………18

Erasing……………………………………………...21

Using timer…………………………………………24

Menu setting……………………………….………30

Connecting to PC…………………………………37

Copying data by using Explorer.………………46

Troubleshooting guide…………………………..50

Cleaning the cabinet……………………………..52

Specifications……………………………………..53

Note:

This handling description is printed prior to product

development.

When a part of the product specication must be

changed to improve operability or other functions,

priority is given to the product specication itself.

In such instances, the instruction manual may

not entirely match all the functions of the actual

product.

Therefore, the actual product and packaging, as

well as the name and illustration, may differ from

the manual.

The screen/LCD display shown as an example

in this manual may be different from the actual

screen/LCD display.

GB-4

Precautions

• The apparatus shall not be exposed to dripping or

splashing.

• Do not remove the battery while operating the unit.

•Do not drop the unit or subject it to strong shocks.

•Do not use where there are extremes of temperature (below

5°C or exceeding 35°C).

• Microsoft, Windows MediaTM, and the Windows®Logo

are trademarks or registered trademarks of Microsoft

Corporation in the United States and/or other countries.

• Windows MediaTM Player is trade-mark or registered

trademark of Microsoft Corporation.

• Other system and product names

generally are the registered trademarks or

trademarks of the respective development

manufacturers. The symbols TM and ®are

not shown in this manual.

• SANYO takes no responsibility for recording failure due to

power cuts or damage to the unit.

• To avoid potential risk of data loss caused by accidental

operation or malfunction of the unit, we recommend that

you save a backup copy of your recorded messages on a

PC, etc.

• Recording copyright material without permission of the

to re-record copyright material, permission from the

of, and cannot be held responsible for, any unlawful use

of this machine.

• High volume levels can create potentially dangerous

situations by drowning out surrounding sounds. Use

caution when driving while operating the unit, and obey

all applicable laws. Do not play your headset at a high

volume level. Hearing experts advise against continuous

extended play. If you experience a ringing in your ears,

reduce the volume or discontinue use.

GB-5

1. Recording LED

2. Built-in microphone

3. External stereo microphone

socket ( )

4. Headphones socket ( )

5. Skip/Search buttons

(f, e)

6. Volume buttons (VOL) (+, –)

7. Erase button (ERASE)

8. Folder/Repeat button

(FOLDER/REPEAT)

9. Play button (PLAY) (a)

10. Stop/Menu button

(STOP/MENU) (n)

11. Speaker

12. Record button (REC) (m)

13. LCD display

Controls

14. Power/Hold switch

(ON-POWER-OFF)

(HOLD )

15. Battery compartment lid

16. Necklace/Strap connection

holes

17. USB terminal (I/O)

1 32 4

GB-6

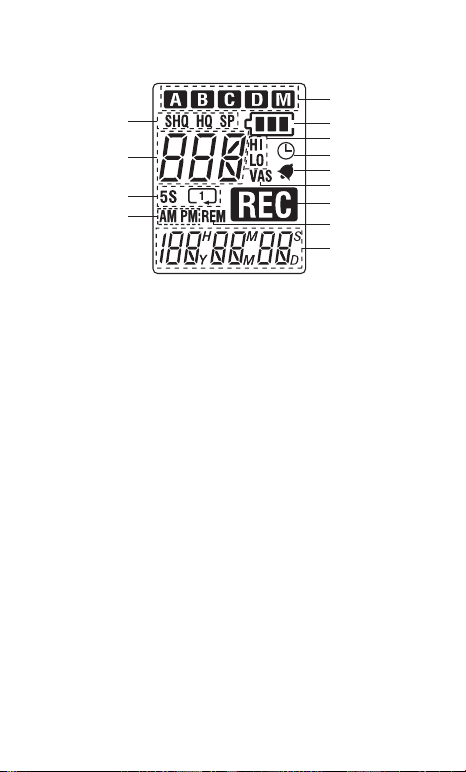

LCD display

1. Folder (A, B, C, D, M)

2. Battery indicator

3. Microphone sensitivity

4. Timer

5. Alarm

6. VAS (Voice Activated System)

7. Record mark

8. Remain recording time

9. Date (Y/M/D)

Time (H/M/S)

10. AM/PM

11. Repeat / 5 seconds replay

12. Setting/File No.

13. Recording mode (SHQ, HQ, SP)

(LP: not displayed)

GB-7

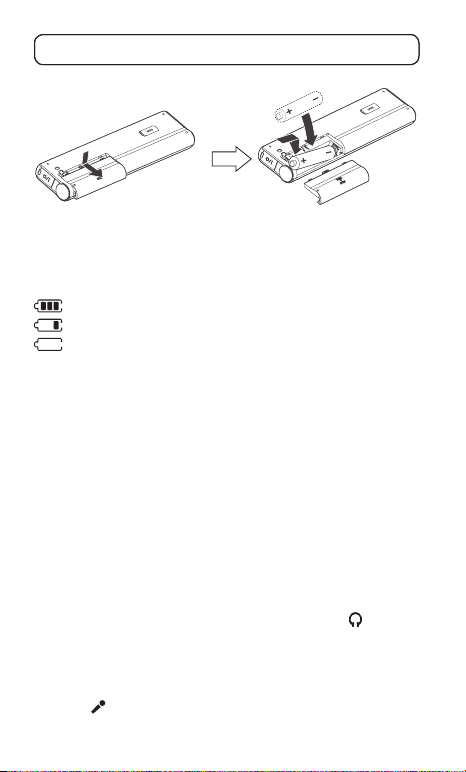

Inserting battery

Before use

AAA/LR03/HP16 alkaline battery

(supplied)

Battery indicator

Check the battery indicator on the LCD display for

remaining battery power.

: Good condition

: Weak battery

: Exhausted battery, must be replaced with new

alkaline battery. If not, after displaying “LobAtt”,

the LCD display goes out.

Note:

• Do not replace the battery while the power is on. It

may cause the unit malfunction.

• Remove the battery if the unit will not be used for a

week or longer.

• Dispose of all used batteries safely in accordance

with all applicable laws.

• Operation by the battery other than alkaline battery

is not guaranteed.

Using the headphones

Connect the headphones (supplied) to the socket.

The speaker is automatically disconnected.

Using an external stereo microphone

Connect an external stereo microphone (supplied)

to the socket. The built-in microphones are

automatically disconnected.

GB-8

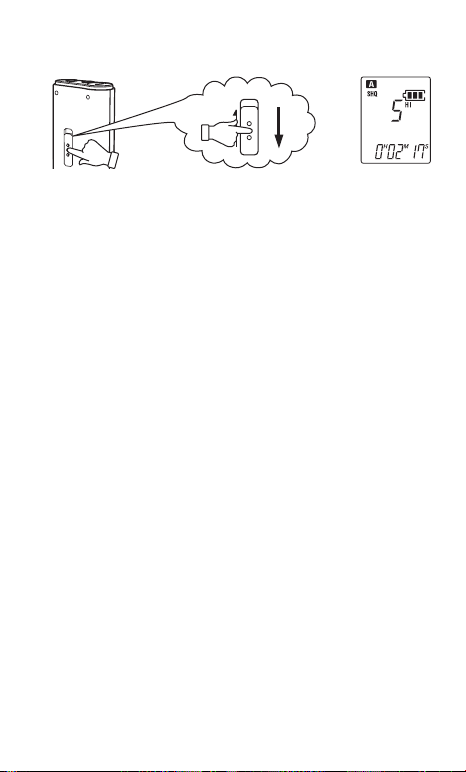

Turning the power on and off

ON-POWER-OFF

Slide the Power/Hold switch downward, “HELLO”

appears briey on the display and the power turns on.

Slide the Power/Hold switch upward, “-byE-” appears

and the power turns off.

Auto power off function

When “AUto OF” is set to “ON” (See page 36.),

• Leaving the unit on for 15 minutes without using it

automatically turns off the power.

• Leaving the unit on with recording pause for more

than 15 minutes turns off the power after creating

the recorded le.

Selecting display

In the stop mode, press the n(MENU/STOP) button

repeatedly.

• The display changes under A, B, C or D folder as

follows.

Total playing time

Current time

Current date

Remaining recording time (REM)

Recorded

time (“H M S” blinks, if there is le)

Recorded date

(“Y M D” blinks, if there is le)

• The display changes under M folder as follows.

Total playing time

Current time

Current date

Current le position (if there is le)

GB-9

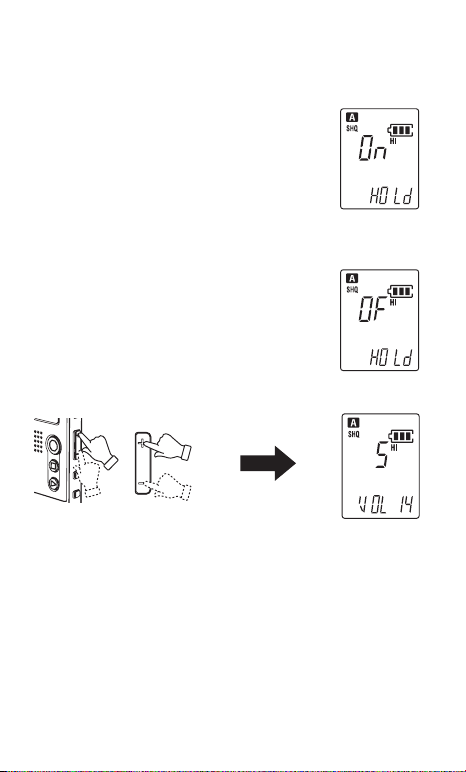

Hold function

This prevents operation from stopping by accidentally

pressing a button during recording or playback.

Slide the Power/Hold switch upward. “On

HOLd” appears on the display, and the

hold function is engaged.

• If an operation button is pressed while

the hold function is engaged. “On

HOLd” will appear and nothing else

happens.

Slide the Power/Hold switch downward. “OF

HOLd” appears on the display, and the

hold function is disengaged.

To adjust the volume

Press the VOL + or - button.

The volume level appears (VOL 00 to VOL 20).

VOL
