Sanyo CDP-195 Manual de usuario

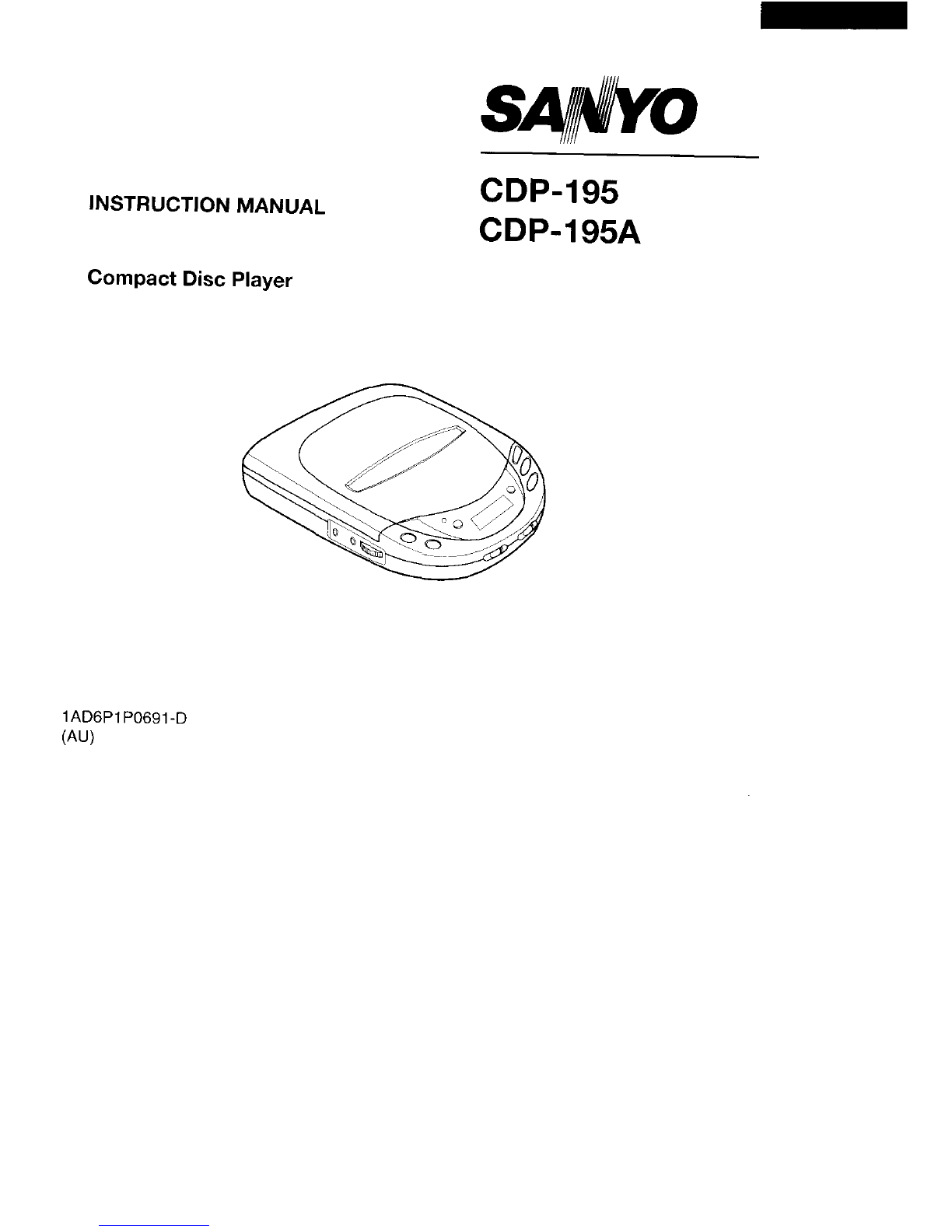

INSTRUCTION MANUAL

Compact Disc Player

CDP-195

CDP-195A

1AD6P1P0691-D

(AU)

TABLE OF CONTENT

Safety Certification .............................................................................E3

Accessories ........................................................................................E5

Safety Tips .........................................................................................E6

Controls ..............................................................................................E7

Bassxpander Switch ......................................................................E8

Auto Power on Function ................................................................E8

Auto Power off Function ................................................................E8

Hold Function ................................................................................E8

Power Supply .....................................................................................E9

AC Adaptor installation ..................................................................E9

Rechargeable Nickel-Cadmium Battery Installation ..................... E9

Alkaline Battery Installation .........................................................Ell

Handling Compact Disc ....................................................................El2

Playing aDisc ...................................................................................El3

Track Search ...............................................................................El5

Forward/Reverse Search ............................................................El5

Programmed Play .............................................................................El6

Introscan .......................................................................................... E20

Random Play ....................................................................................E20

Repeat Play ......................................................................................E21

Using The Cigarette Lighter And Car Cassette Adaptor .................. E22

Recording From The Line Out Jack ..................................................E25

Cleaning ...........................................................................................E25

Specifications ...................................................................................E26

-El-

CAUTION:

Changes or modifications not expressly approved by Sanyo may void the user’s authority

to operate this equipment.

Remove this protective sheet before use.

-E2-

SAFETY CERTIFICATION

CAUTION

USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES

OTHER THAN THOSE SPECIFIED IN THE OPERATING INSTRUCTIONS MAY RESULT

IN HAZARDOUS RADIATION EXPOSURE.

THE COMPACT DISC PLAYER SHOULD NOT BE ADJUSTED OR REPAIRED BY

ANYONE EXCEPT PROPERLY QUALIFIED PERSONNEL.

The rating label is located

:m: -eonthebottomoft’eunt

‘\\\t_/

CAUTION-INVISIBLE LASER RADIATION WHEN OPEN AND

INTERLOCKS DEFEATED AVOID EXPOSURE TO BEAM ,

ADvARsEL-usyNL(G LASER STRALING VED ABN(NG, NAR

SIKKERHEDSAFBRYDERE ER UDE AF FUNKTION UNDGA UDS

VARNING-OSYNLIG LASER STRALNING NAR DENNA DiLAR

OPPNAD OCH SPARR AR URKOPPUD STRALEN AR FARLIG

VORSICHT-UNSICHTBARE LASERSTRAHLUNG TRIT? AUS, WENN

DECKEL GEOFFNET UND WENN SICHERHEITSVERRIEGELUNG

UBERBRUCKT 1ST NICHT, DEM STRAHL AUSSETZEN

VARO ‘-Avmaessa @S.qaluk,tus oh(tettaessa OIet alnllna

-E3-

Hearing Comfort &Well-Being

.High volume levels can create potentially dangerous situations by drowning out

surrounding sounds, Use caution when driving while operating the unit, and obey all

applicable laws.

.Do not play your headset at ahigh volume level. Hearing experts advise against

continuous extended play.

.If you experience aringing in your ears, reduce the volume or discontinue use.

Traffic Safety

●Do not use while operating amotorized vehicle. It may create atraffic hazard and is illegal

in many areas.

.You should use extreme caution or temporarily discontinue use in potentially hazardous

situations.

●Even if your headset is an open-air type designed to let you hear outside sounds, don’t

turn up the volume so high that you can’t hear what’s around you.

Generaf

.Do not place the unit in aposition where it will be exposed to magnetic fields, water or

sources of heat. Avoid leaving the unit in direct sunlight for prolonged periods.

.It is not recommended to use this unit while bicycling or running.

-E4-

ACCESSORIES

AC adaptor

Model No. DPS412007

INPUT: AC 230V 50Hz 55mA

OUTPUT: DC 6V 500mA

Polarity: Center Positive

Rechargeable Nickel-Cadmium Battery

Model No. NBA-50A

Amplified speakers

(supplied with CDP-1 95A) Headphones Patch cable

-E5-

SAFETY TIPS

CAUTIONS FOR SAFETY

●The apparatus shall not be exposed to

dripping or splashing.

.Do not take the unit apart.

The laser beam used in the unit could

harm your eyes.

.Do not insert pins, etc., inside the unit.

This unit is equipped with asafety de-

vice which automatically turns the laser

beam off when the disc compartment is

opened, If apin or other metal object

should get inside the unit, however, this

safety device may be deactivated.

.Do not drop the unit or subject it to

strong shocks. Doing so could result in

damage.

Do not place the unit in the following

locations:

.Locations where the temperature is

high.

The unit’s cabinet may warp or the unit

may otherwise be damaged if it is

placed in direct sunlight, near heaters

(where the temperature is60°C/140”F

or greater) or in cars with the windows

closed, (In the summer, the tempera-

ture may get as high as 100°C/2120F or

more.)

Use the unit within atemperature range

of !5”C141“F to 35°C/950F,

.In humid or dusty locations,

●In locations exposed to heavy vibra-

tions.

●On unstable or tilted surfaces.

CONDENSATION

If cold water is poured into aglass, water

droplets form on the outside of the glass.

This is called condensation. Condensation

may occur on internal operating parts of the

lens.

Condensation occurs:

.When the unit is brought from the cold

outdoors into awarm room, or if it is in

acold room which is heated quickly.

.In the summer, if the unit is moved

suddenly from an air-conditioned room

or car to ahot or humid location.

Should condensation occur

The unit may not operate properly if con-

densation occurs.

Wait for 1or 2hours (to allow the internal

parts to adjust to the surrounding tempera-

ture) before using the unit,

-E6-

1. Disc Compartment

2. OPEN Button

3. Play/Pause Button (HII)

4. Stop Button(D)

5. P-MODE Button

6. HOLD Switch

7. BASSXPANDER Switch

8. Display

9. M-SET Button

10. Charge Indicator

11. Fast Forward Button(F-l)

12. Fast Backward Button (14<)

13. VOLUME Control

14. LINE OUT Socket

15. PHONES Socket

16. Battery Compartment (bottom)

17, EXT DC 6V Socket

-E7-

BASSXPANDER SWITCH

Use the BASSXPANDER

crease the bass sound, switch to in-

BASSXPANDER ON .~.OFF

ON: Toincrease the bass sound

OFF: Normal sound.

AUTO POWER ON FUNCTION

The power turns on automatically when the

E/n button is pressed.

AUTO POWER OFF FUNCTION

The power turns off automatically when all

tracks on a disc have been played or when

the ■button is pressed once to stop play,

.The power turns off automatically after

the P-MODE, l<+ or ➤-l button is

pressed if no other operation is per-

formed.

.The power turns off immediately after

the disc compartment is opened.

.The power turns off immediately if the ■

button is pressed twice during play

If the ➤/11button, K< or F-I button is

not pressed for approximately 3min-

utes after entering the Pause mode, the

power turns off automatically.

HOLD FUNCTION

The HOLD switch disables the buttons

from operating to prevent play from starting

or stomina due to accidental o~eration.

For no;ma~ use, leave the switch in the

OFF Dosition.

ON. m. OFFHOLD

To prevent battery drain:

Set the HOLD switch to the ON position

when carrying the unit in abag. The unit

will not operate even if the buttons are

pressed accidentally. This will prevent

unnecessary battery drain.

To prevent play from being interrupted:

Set the HOLD switch to the ON position

after starting play. This will prevent

interruptions if the Hbutton or other

buttons are pressed accidentally.

●The VOLUME control will operate re-

gardless of the position of the HOLD

switch.

i8-

POWER SUPPLY 1~

AC ADAPTOR INSTALLATION

Plug one end of the supplied AC adaptor

into the EXTDC6Vsocket, then plug the

other end into a230V AC wall outlet.

230-240V

*’

Cautions on the AC Adaptor

.Use this unit only with the supplied AC

adaptor. Use with other AC adaptors

could damage the unit.

.Do not touch the AC adaptor with wet

hands, Doing so is dangerous, as this

could result in an electrical shock.

●Ifthe AC adaptor is connected when the

batteries are installed, the power sup-

ply automatically switches to the AC

power source and the batteries are

disconnected,

RECHARGEABLE NICKEL-CADMIUM

BATTERY INSTALLATION

●

Fully charge the rechargeable

nickel-cadmium battery before us-

ing it for the first time.

Slide the battery compartment on the

bottom of the unit to the left, then swing

the battery compartment open.

@-@

●

Insert the NBP-50A rechargeable

nickel-cadmium battery into the battery

compartment. Be sure to observe the

proper polarity (the “+” and “-” signs,

as indicated inside the battery compart-

ment).

Close the battery compartment.

The battery is fully charged approxi-

mately 10-15 hours after the AC adap-

tor is connected.

More time may be required for charging

in cold temperatures.

You can listen to CDs while the battery

is charging, but more time is required

for charging.

When charging is completed, discon-

nect the AC adaptor plugs from both the

CDP-195/CDP-195A and the AC out-

let,

-E9-
