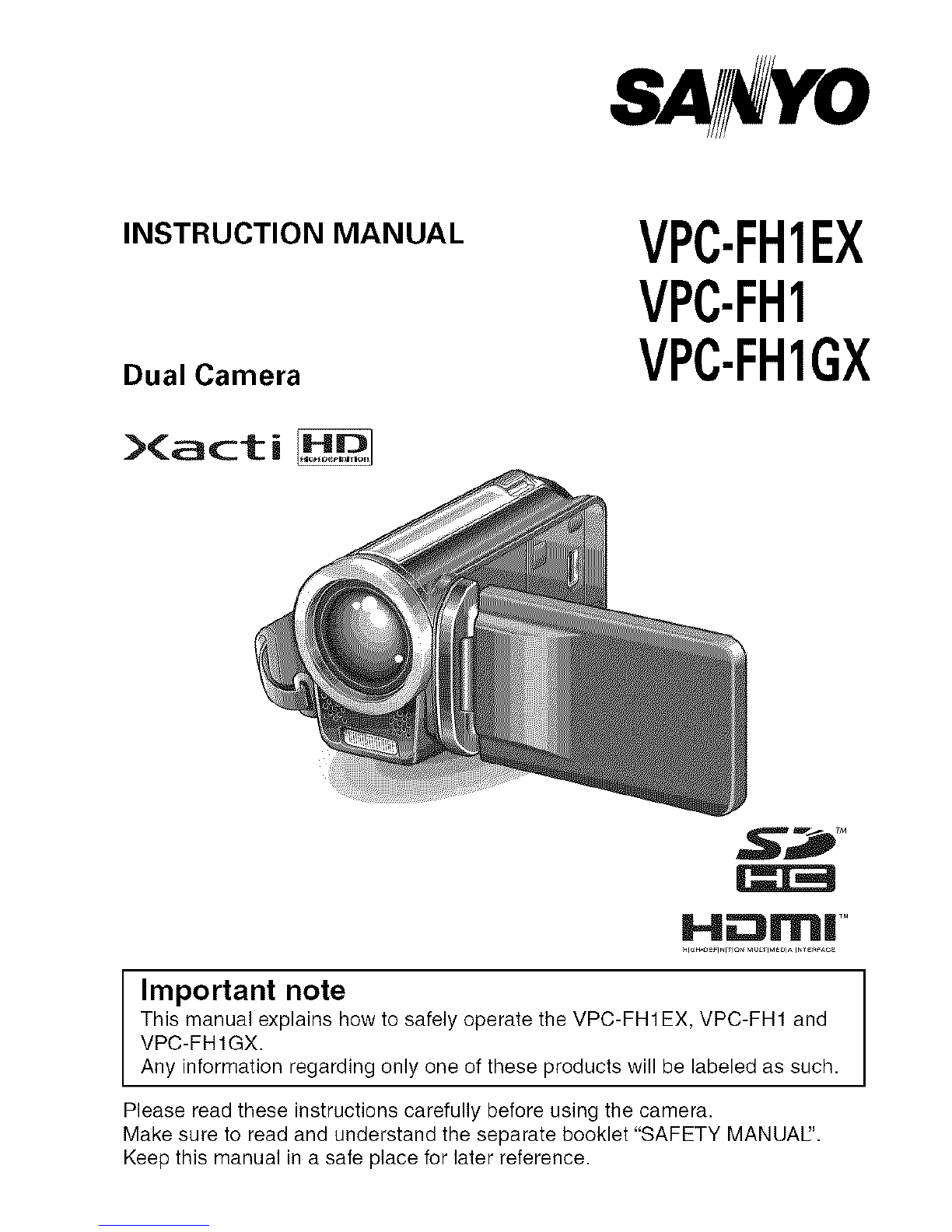

Sanyo Xacti VPC-FH1 Series Manual de usuario

INSTRUCTION MANUAL

Dual Camera

>(acti

VPC-FHIEX

VPC-FHI

VPC-FHIGX

1.1=--I1-1-11TM

Important note

This manual explains how to safely operate the VPC-FH1 EX, VPC-FH1 and

VPC-FH1GX.

Any information regarding only one of these products will be labeled as such.

Please read these instructions carefully before using the camera.

Make sure to read and understand the separate booklet "SAFETY MANUAL:'.

Keep this manual in a safe place for later reference.

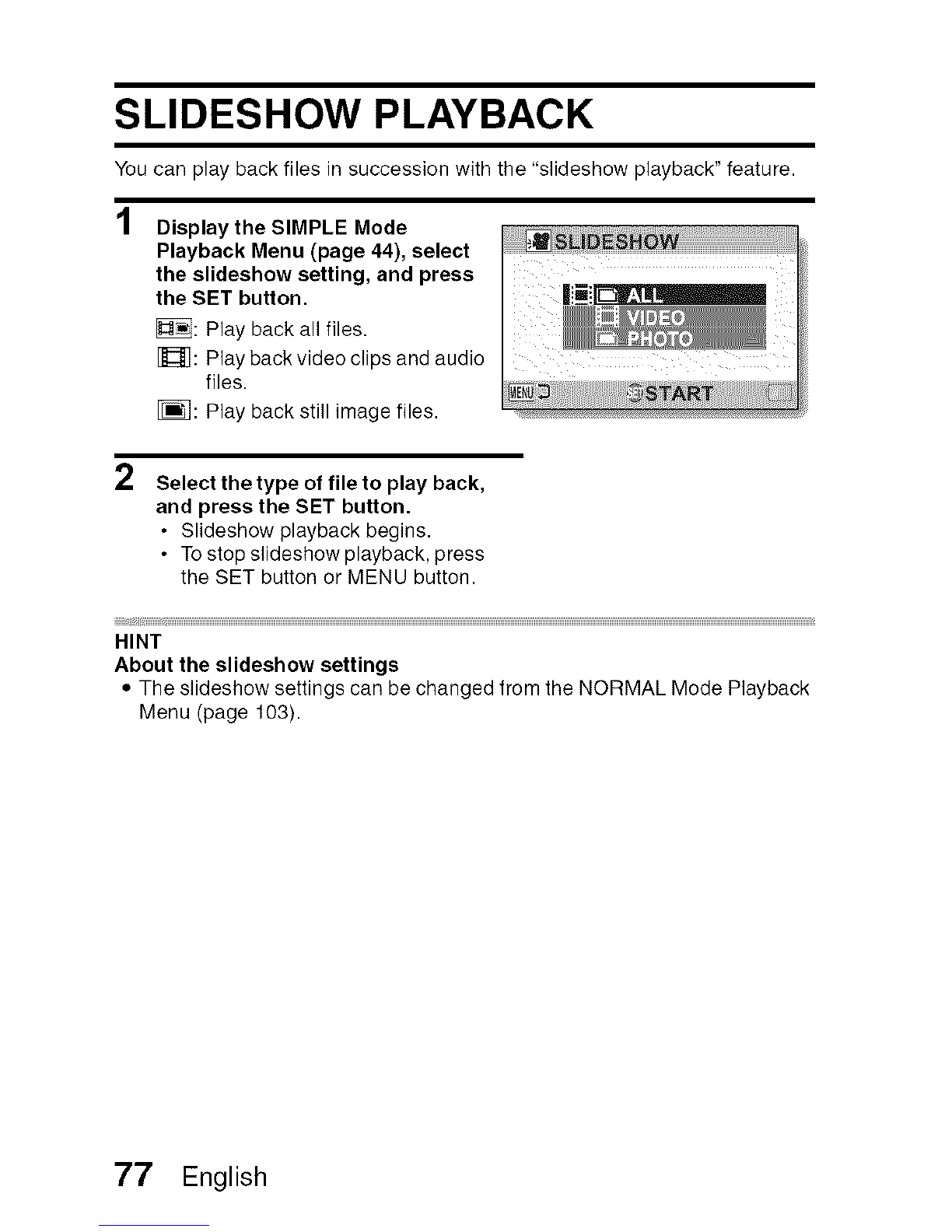

SLIDESHOW PLAYBACK

You can play back files in succession with the "slideshow playback" feature.

1Display the SIMPLE Mode

Playback Menu (page 44), select

the slideshow setting, and press

the SET button.

_: Play back all files.

[_: Play backvideo clips and audio

files.

_: Play back still image files.

2Select the type of file to play back,

and press the SET button.

•Slideshow playback begins.

• To stop slideshow playback, press

the SET button or MENU button.

77 English

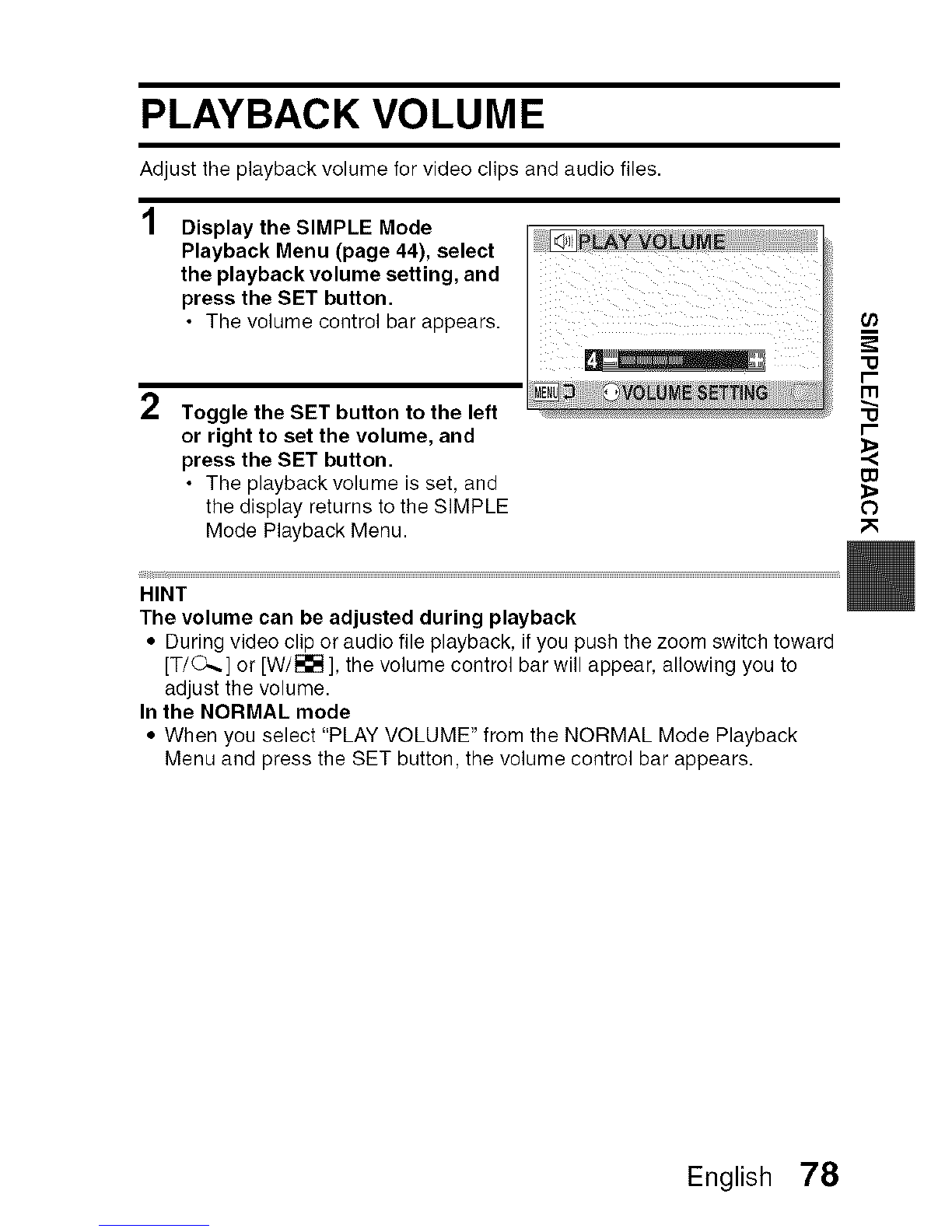

PLAYBACK VOLUME

Adjust the playback volume for video clips and audio files.

1...a..°...,.e°en.s°...'.a.°°°e'".ee., /t.ep.aybackvo..mesett,ng,andpresst.eSETb.tton. _

2Toggle the SET button to the left "_

or right to set the volume, and _r-

the SET button. -_press

•The playback volume is set, and w;_

the display returns to the SIMPLE O

Mode Playback Menu.

HINT

The volume can be adjusted during playback

• During video clip or audio file playback, if you push the zoom switch toward

[T/O.,.] or [W/_ ], the volume control bar will appear, allowing you to

adjust the volume.

In the NORMAL mode

• When you select "PLAY VOLUME" from the NORMAL Mode Playback

Menu and press the SET button, the volume control bar appears.

English 78

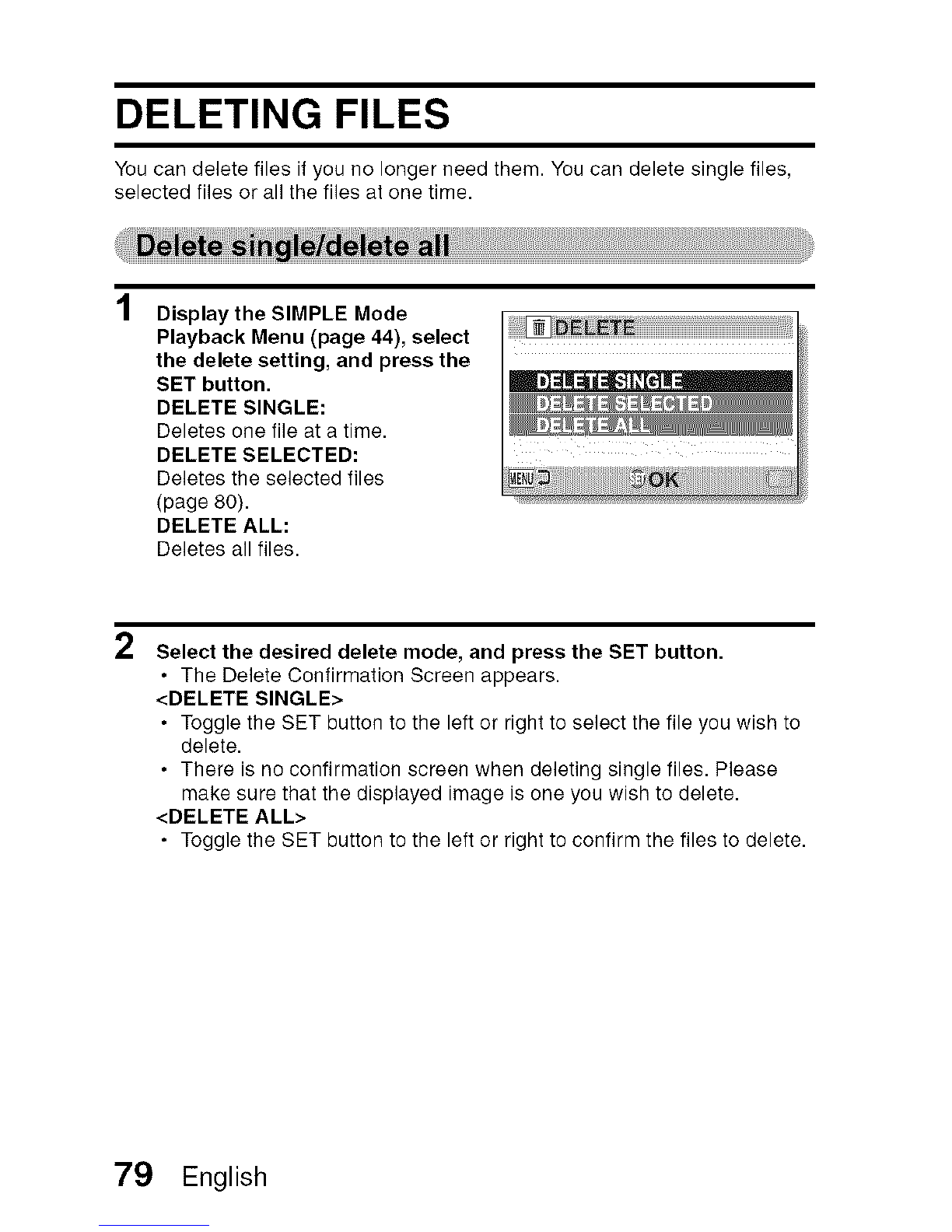

DELETING FILES

You can delete files if you no longer need them. You can delete single files,

selected files or all the files at one time.

Display the SIMPLE Mode

Playback Menu (page 44), select

the delete setting, and press the

SET button.

DELETE SINGLE:

Deletes one file at a time.

DELETE SELECTED:

Deletes the selected files

(page 80).

DELETE ALL:

Deletes all files.

2Select the desired delete mode, and press the SET button.

• The Delete Confirmation Screen appears.

• Toggle the SET button to the left or right to select the file you wish to

delete.

• There is no confirmation screen when deleting single files. Please

make sure that the displayed image is one you wish to delete.

• Toggle the SET button to the left or right to confirm the files to delete.

79 English

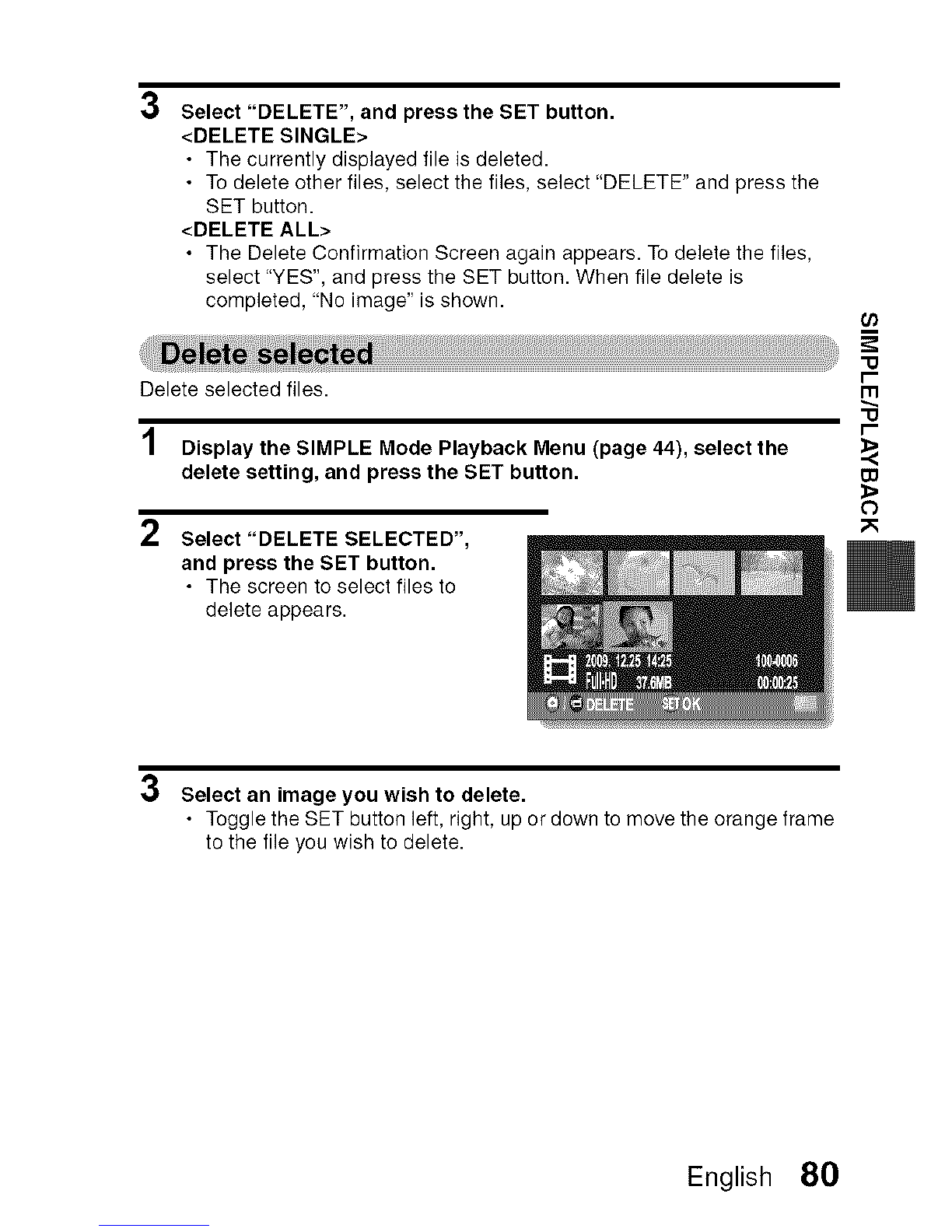

Select "DELETE", and press the SET button.

•The currently displayed file is deleted.

• To delete other files, select the files, select "DELETE" and press the

SET button.

• The Delete Confirmation Screen again appears. To delete the files,

select "YES", and press the SET button. When file delete is

completed, "No image" is shown.

Delete selected files, rn

Display the SIMPLE Mode Playback Menu (page 44), select the

delete setting, and press the SET button.

Select "DELETE SELECTED",

and press the SET button.

• The screen to select files to

delete appears.

3Select an image you wish to delete.

• Toggle the SET button left, right, up or down to move the orange frame

to the file you wish to delete.

English 80

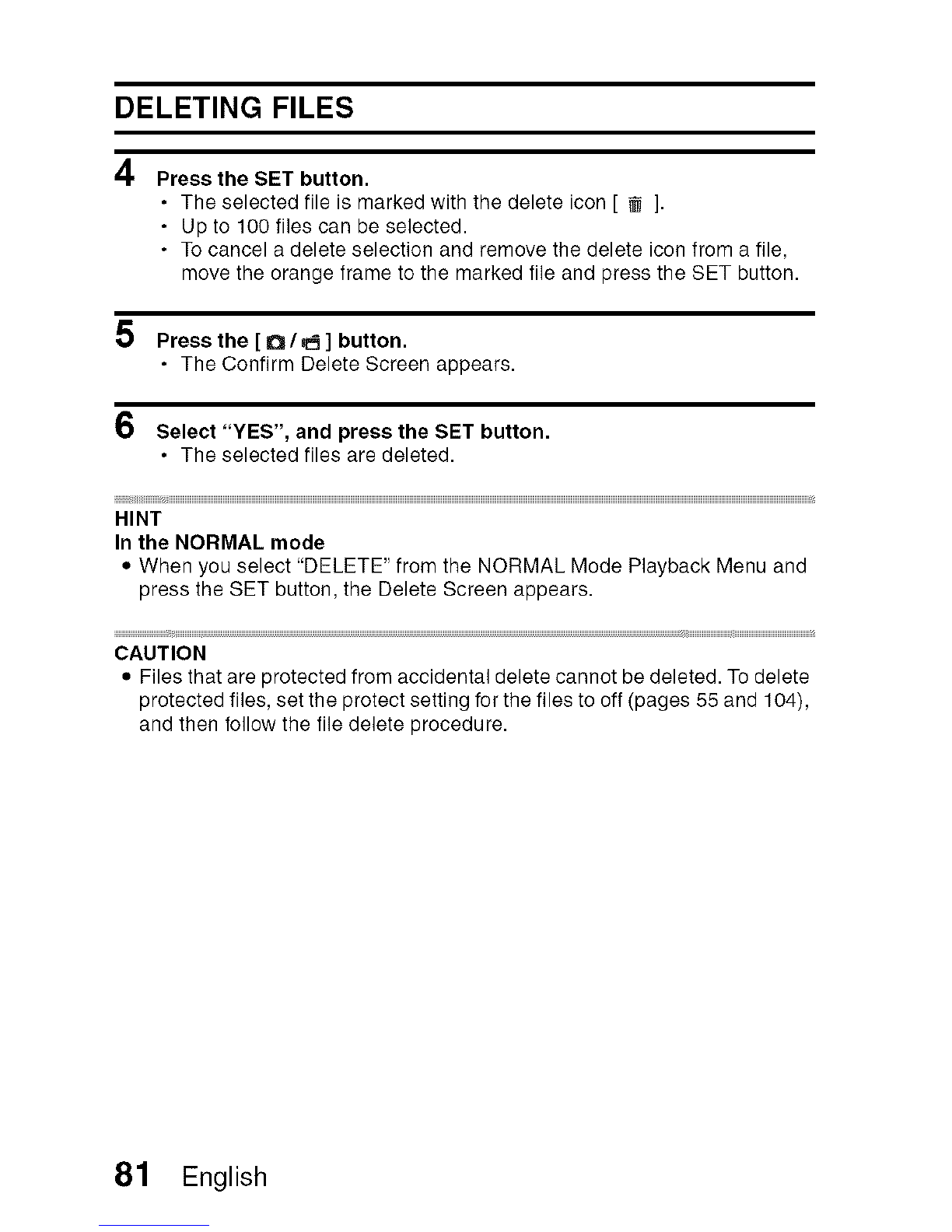

DELETING FILES

4Press the SET button.

•The selected file is marked with the delete icon [ _ ].

• Up to 100 files can be selected.

• To cancel a delete selection and remove the delete icon from a file,

move the orange frame to the marked file and press the SET button.

Press the [ O /_] button.

• The Confirm Delete Screen appears.

6Select "YES", and press the SET button.

• The selected files are deleted.

HINT

In the NORMAL mode

• When you select "DELETE" from the NORMAL Mode Playback Menu and

press the SET button, the Delete Screen appears.

CAUTION

• Files that are protected from accidental delete cannot be deleted. To delete

protected files, set the protect setting for the files to off (pages 55 and 104),

and then follow the file delete procedure.

81 English

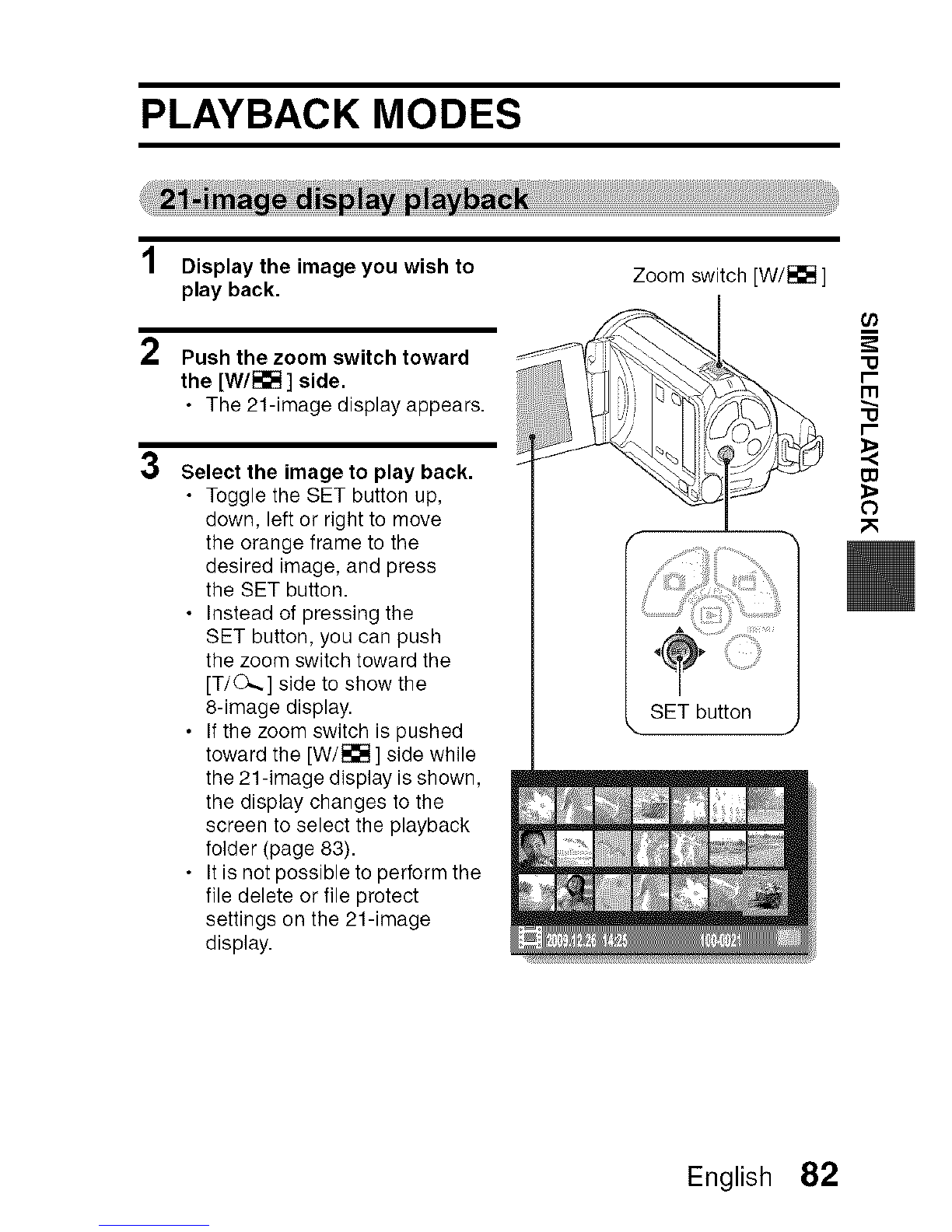

PLAYBACK MODES

Display the image you wish to

play back.

Push the zoom switch toward

the [W/_ ] side.

• The 21-image display appears.

Select the image to play back.

•Toggle the SET button up,

down, left or right to move

the orange frame to the

desired image, and press

the SET button.

• Instead of pressing the

SET button, you can push

the zoom switch toward the

[T/O...] side to show the

8-image display.

• If the zoom switch is pushed

toward the [W/_ ] side while

the 21 -image display is shown,

the display changes to the

screen to select the playback

folder (page 83).

• It is not possible to perform the

file delete or file protect

settings on the 21-image

display.

Zoom switch [W/_]

Ill

English 82

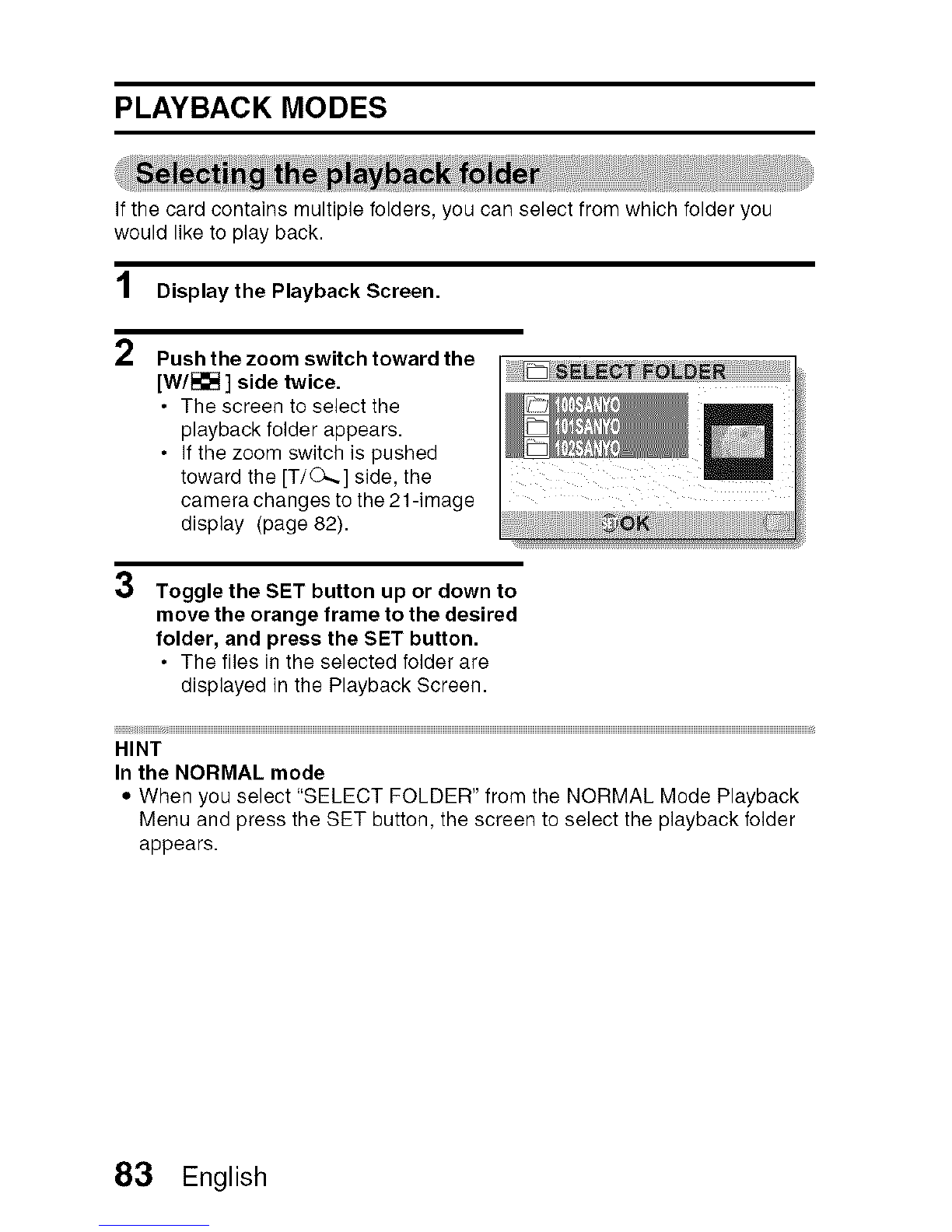

PLAYBACK MODES

If the card contains multiple folders, you can select from which folder you

would like to play back.

1Display the Playback Screen.

2Push the zoom switch toward the

[W/_ ] side twice.

• The screen to select the

playback folder appears.

• If the zoom switch is pushed

toward the [T/O,,.] side, the

camera changes to the 21 -image

display (page 82).

3Toggle the SET button up or down to

move the orange frame to the desired

folder, and press the SET button.

• The files in the selected folder are

displayed in the Playback Screen.

HINT

In the NORMAL mode

• When you select "SELECT FOLDER" from the NORMAL Mode Playback

Menu and press the SET button, the screen to select the playback folder

appears.

83 English

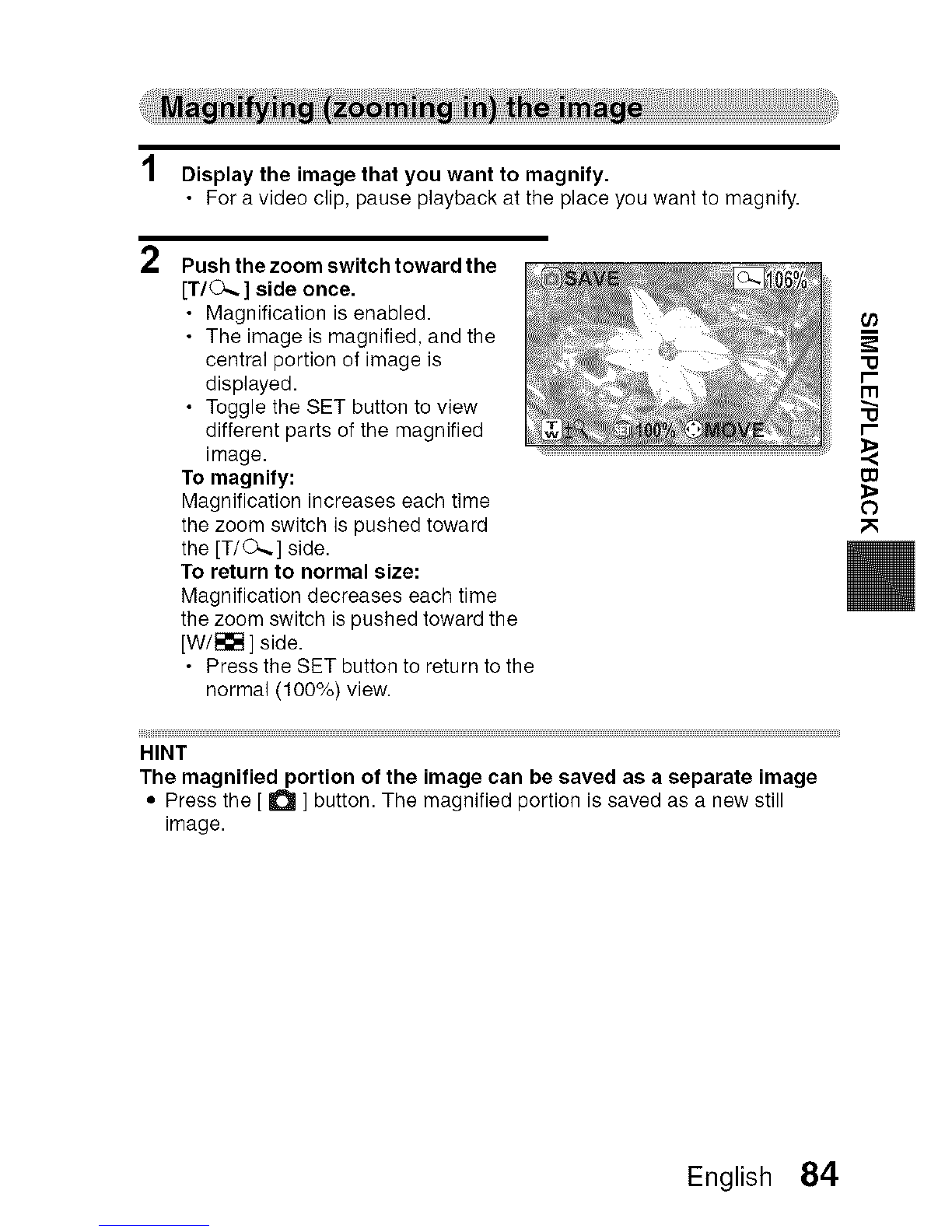

1Display the image that you want to magnify.

•For a video clip, pause playback at the place you want to magnify.

2Push the zoom switch toward the

IT/O,..] side once.

• Magnification is enabled.

• The image is magnified, and the

central portion of image is

displayed.

• Toggle the SET button to view

different parts of the magnified

image.

To magnify:

Magnification increases each time

the zoom switch is pushed toward

the [T/O,,,.] side.

To return to normal size:

Magnification decreases each time

the zoom switch is pushed toward the

[W/_ ] side.

• Press the SET button to return to the

normal (100%) view.

HINT

The magnified portion of the image can be saved as a separate image

•Press the [ It_ ] button. The magnified portion is saved as a new still

image.

English 84

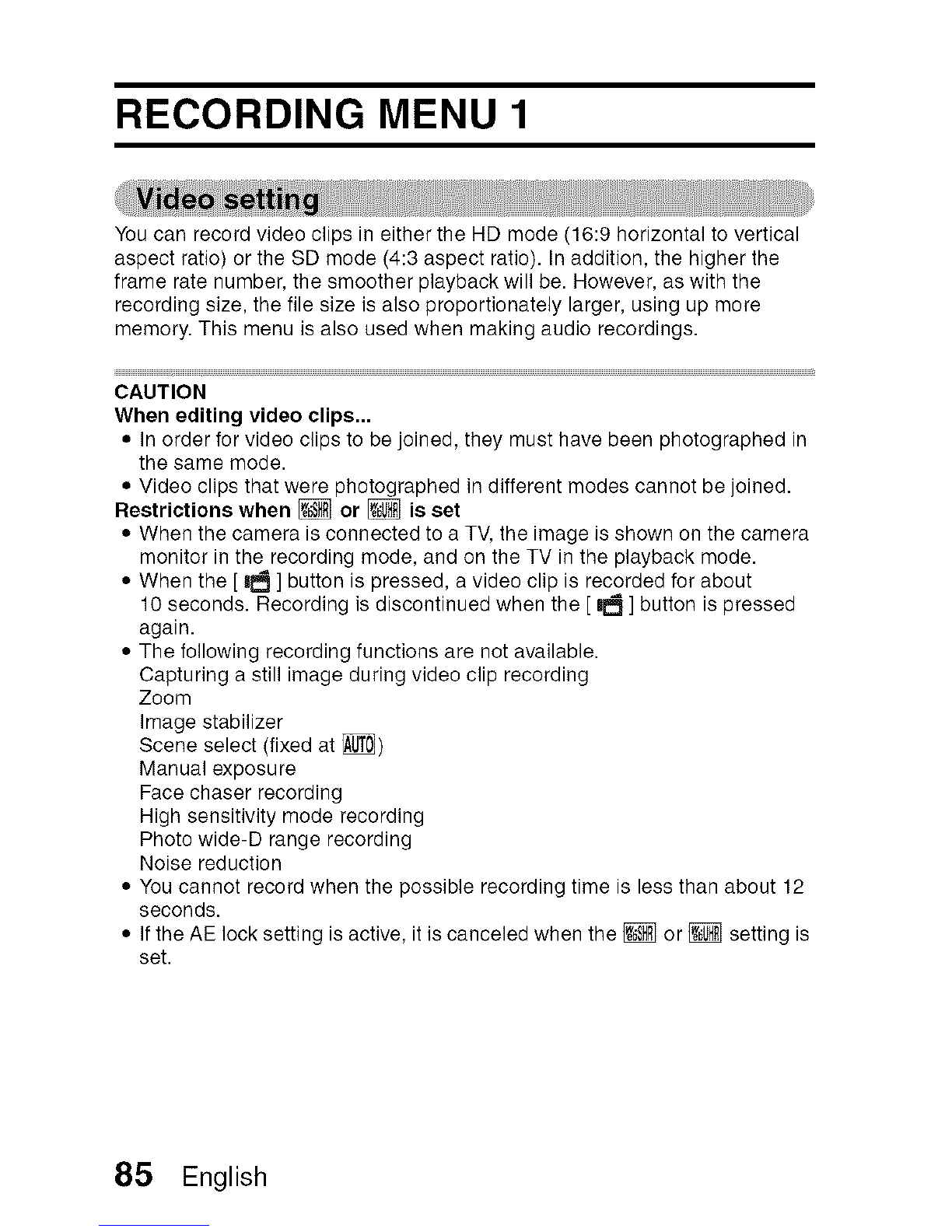

RECORDING MENU 1

You can record video clips in either the HD mode (16:9 horizontal to vertical

aspect ratio) or the SD mode (4:3 aspect ratio). In addition, the higher the

frame rate number, the smoother playback will be. However, as with the

recording size, the file size is also proportionately larger, using up more

memory. This menu is also used when making audio recordings.

CAUTION

When editing video clips...

• In order for video clips to be joined, they must have been photographed in

the same mode.

• Video clips that were photographed in different modes cannot be joined.

Restrictions when _ or _is set

• When the camera is connected to a TV, the image is shown on the camera

monitor in the recording mode, and on the TV in the playback mode.

• When the [ I_ ] button is pressed, a video clip is recorded for about

10 seconds. Recording is discontinued when the [ |4 ] button is pressed

again.

• The following recording functions are not available.

Capturing a still image during video clip recording

Zoom

Image stabilizer

Scene select (fixed at [_)

Manual exposure

Face chaser recording

High sensitivity mode recording

Photo wide-D range recording

Noise reduction

• You cannot record when the possible recording time is less than about 12

seconds.

• If the AE lock setting is active, it is canceled when the _ or _ setting is

set.

85 English
