Sanyo CLM1972 Manual de operación y mantenimiento

123

Indoor unit B

Indoor unit A

Ground

Power:

Single-phase,

230/208VAC 60HZ

Power breaker

(not provided)

Outdoor unit

Terminal board

Label A

Inter-unit cables

#14 (not provided)

Terminal board

Inter-unit cables

#14 (not provided)

Terminal board Label B Label C

Inter-unit cables

#14 (not provided)

Inter-unit cables

#14 (not provided)

Terminal board

Label D

Power cable (not provided)

(#12: Less than 85 ft.)

Be sure to perform grounding.

Attach a ground wire to either the

outdoor unit or indoor unit.

If there is a grounding terminal

inside the room, use the grounding

screw inside the indoor unit.

Be sure to apply the provided labels to both

ends of the inter-unit cables to prevent mis-

wiring. The units will not function if the wiring

connections are incorrect.

A is the indoor unit with

refrigerant tubing that is

connected to service valve

A (bottom) of the outdoor unit.

refrigerant tubing that is

connected to service valve B

(second from the bottom) of

the outdoor unit.

B is the indoor unit with

Indoor unit C

refrigerant tubing that is

connected to service valve

C (third from the bottom)

of the outdoor unit.

C is the indoor unit with

Indoor unit D

refrigerant tubing that is

connected to service valve

D (top) of the outdoor unit.

D is the indoor unit with

1 2

1 2 3 4 5 6 7 8 9 10 11 12 Power supply

(conduit)

Inter Unit

(conduit)

Inter Unit

(conduit)

# ... AWG (American Wire Gauge)

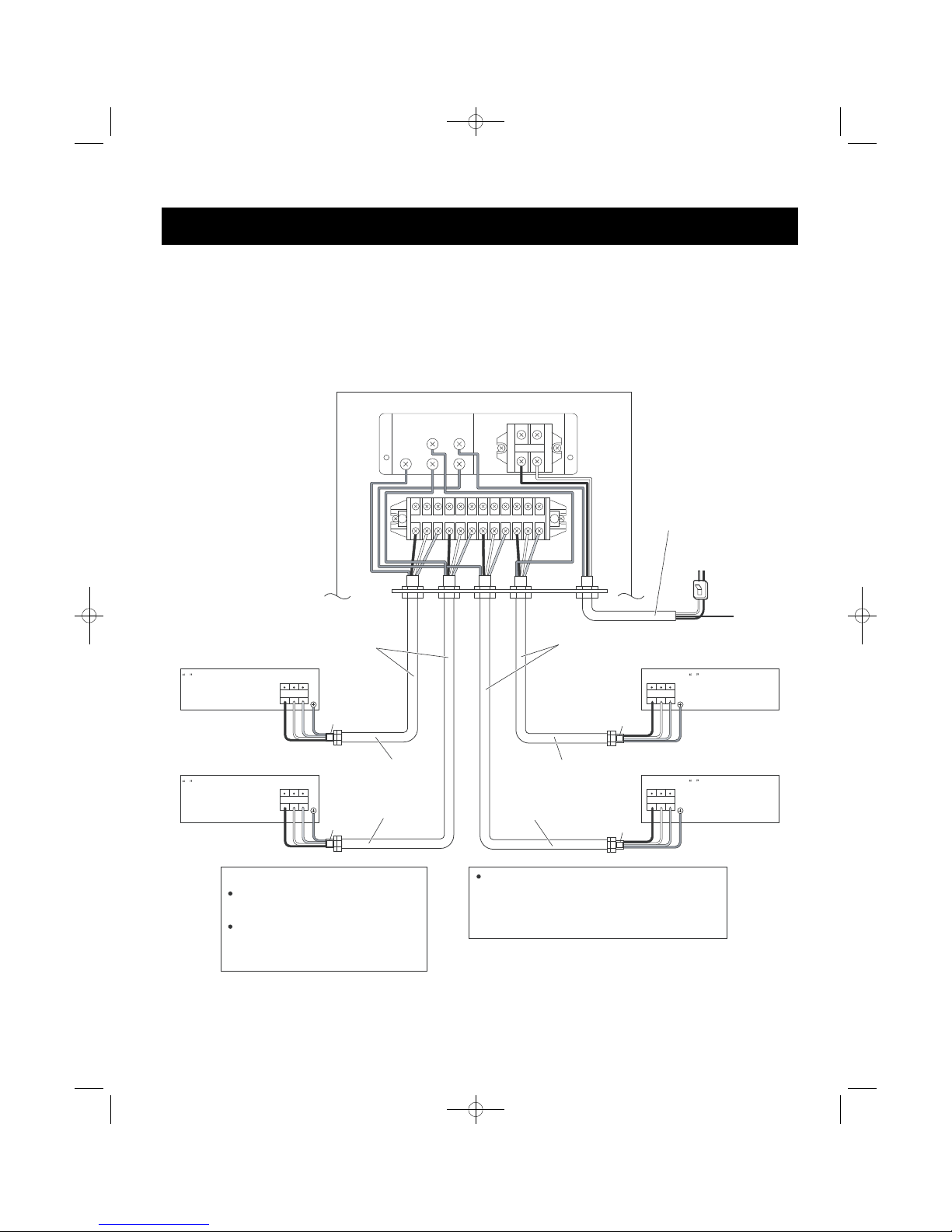

Fig. 31

• INSTALLATION INSTRUCTIONS (For Outdoor Unit) for 85264189993002 and 85264190214003

GThe illustration in “5-5. Wiring Instructions for the Outdoor Unit (Fig. 31)”

in the installation instructions (For Outdoor Unit) was corrected as shown below.

MODEL CMH1972

CMH2472

CMH3172

CM1972

CM2472

CM3172

CLM1972

CLM2472

CLM3172

Correction Notice

85264190492000

09-057 3pages 3/30/09 2:55 PM Page 25
